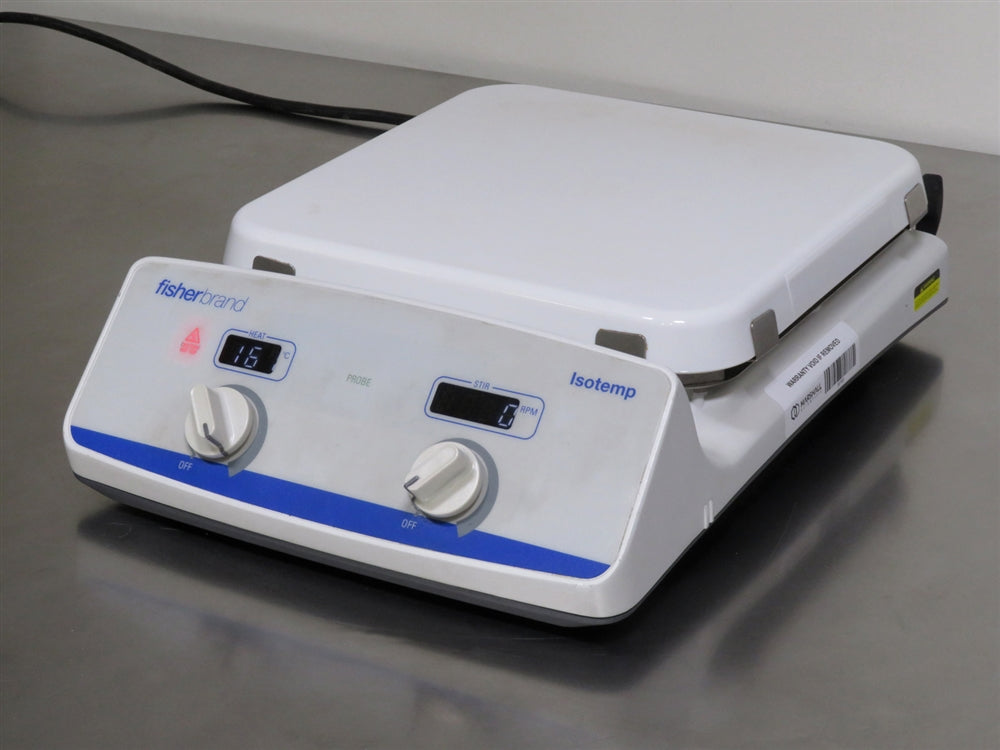

Fisherbrand Isotemp SP88850200 Hotplate Stirrer
Temperature Range
Ambient to 400°C
Stirrer Speed
50 to 1,500 RPM
Platform Size
10 x 10 in. (25.4 x 25.4 cm)
Features
- Ceramic top plate provides excellent chemical resistance and uniform heat distribution
- Strong magnetic coupling ensures smooth and consistent stirring performance
- HOT TOP warning system alerts when surface exceeds 50°C (122°F) to prevent accidental burns
- Automatic over-temperature protection safeguards samples and equipment
- Raised control panel design protects internal electronics from spills
- Durable construction designed for long-term laboratory use
All of our equipment will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Fisherbrand Isotemp SP88850200 Hotplate Stirrer includes:
The Fisherbrand Isotemp SP88850200 Hotplate Stirrer includes:
- > Operator's Manual
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Fisherbrand Isotemp SP88850200 Hotplate Stirrer Specifications
| Temperature Range | Ambient to 400°C |
| Stirrer Speed | 50 to 1,500 RPM |
| Maximum Stirring Volume | 6L |
| Platform Size | 10 x 10 in. (25.4 x 25.4 cm) |
| Plate Material | Ceramic |
| Dimensions (W x D x H) | 11.3 x 17.2 x 4.1 in. (28.8 x 43.8 x 10.5 cm) |
| Weight | 13 lb. (5.9 kg) |
| Electrical Requirements | 100-120V, 50/60Hz, 13.2A |
Hot Plate Stirrers Inspection and Recertification Checklist
- Inspect Display and Replace Any Dim/Dead Pixels (If Applicable).
- Inspect Ceramic Top for Any Cracks and Replace If Necessary.
- Inspect Functionality of All Buttons/Knobs.
- Use Magnetic Stir Bar Alongside NIST Tachometer to Confirm RPM of Internal Motor (If Applicable).
- Inspect Internal Wiring Inside Case.
- Clean Internal Parts and Vent Any Internal Debris.
- Check Feet to Confirm Plate Sits Properly Balanced.
- Replace All Parts That Were Removed on Internal Inspections.
- Confirm Temperature with NIST Traceable Temperature Probe (If Applicable).
- Ensure Cosmetics Are Acceptable.
Technician Inspection and Recertification Checklist: Hot Plate Stirrers
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect Display and Replace Any Dim/Dead Pixels (If Applicable) | Completed | |
| Inspect Ceramic Top for Any Cracks and Replace If Necessary | Completed | |
| Use Magnetic Stir Bar Alongside NIST Tachometer to Confirm RPM of Internal Motor (If Applicable) | Completed | |
| Inspect Internal Wiring Inside Case | Completed | |
| Clean Internal Parts and Vent Any Internal Debris | Completed | |
| Check Feet to Confirm Plate Sits Properly Balanced | Completed | |
| Replace All Parts That Were Removed on Internal Inspections | Completed | |
| Confirm Temperature with NIST Traceable Temperature Probe (If Applicable) | Completed |
