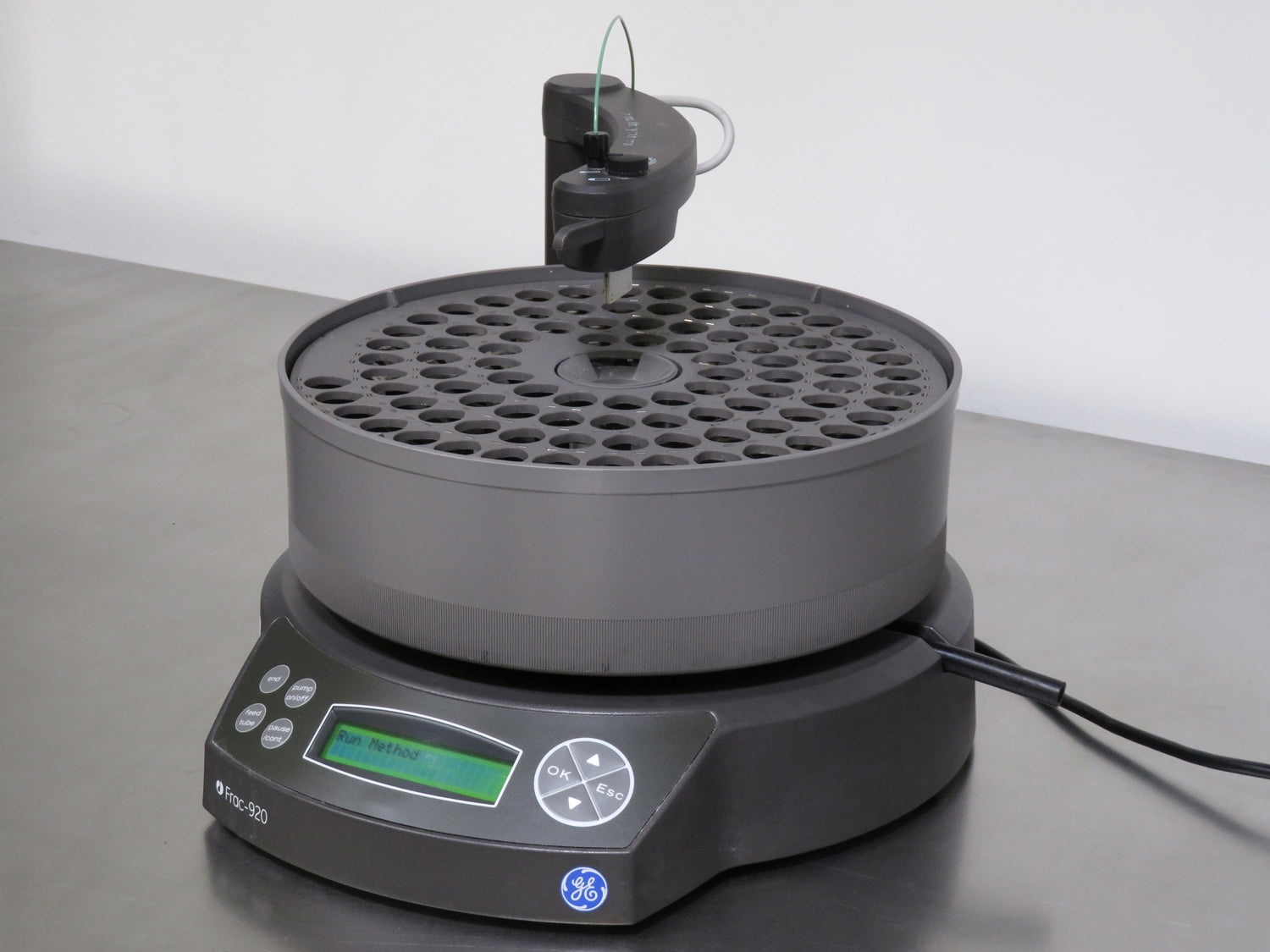

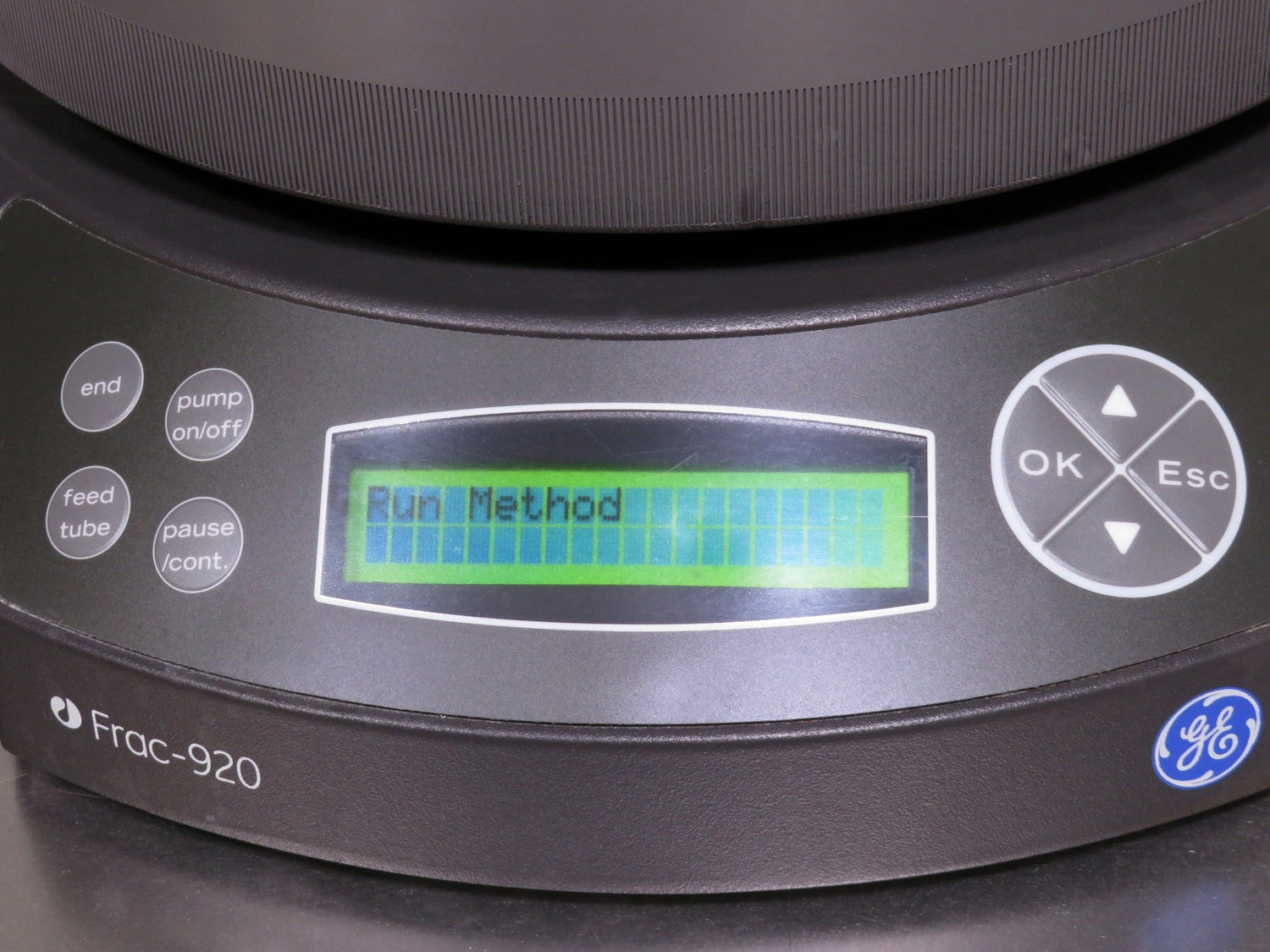

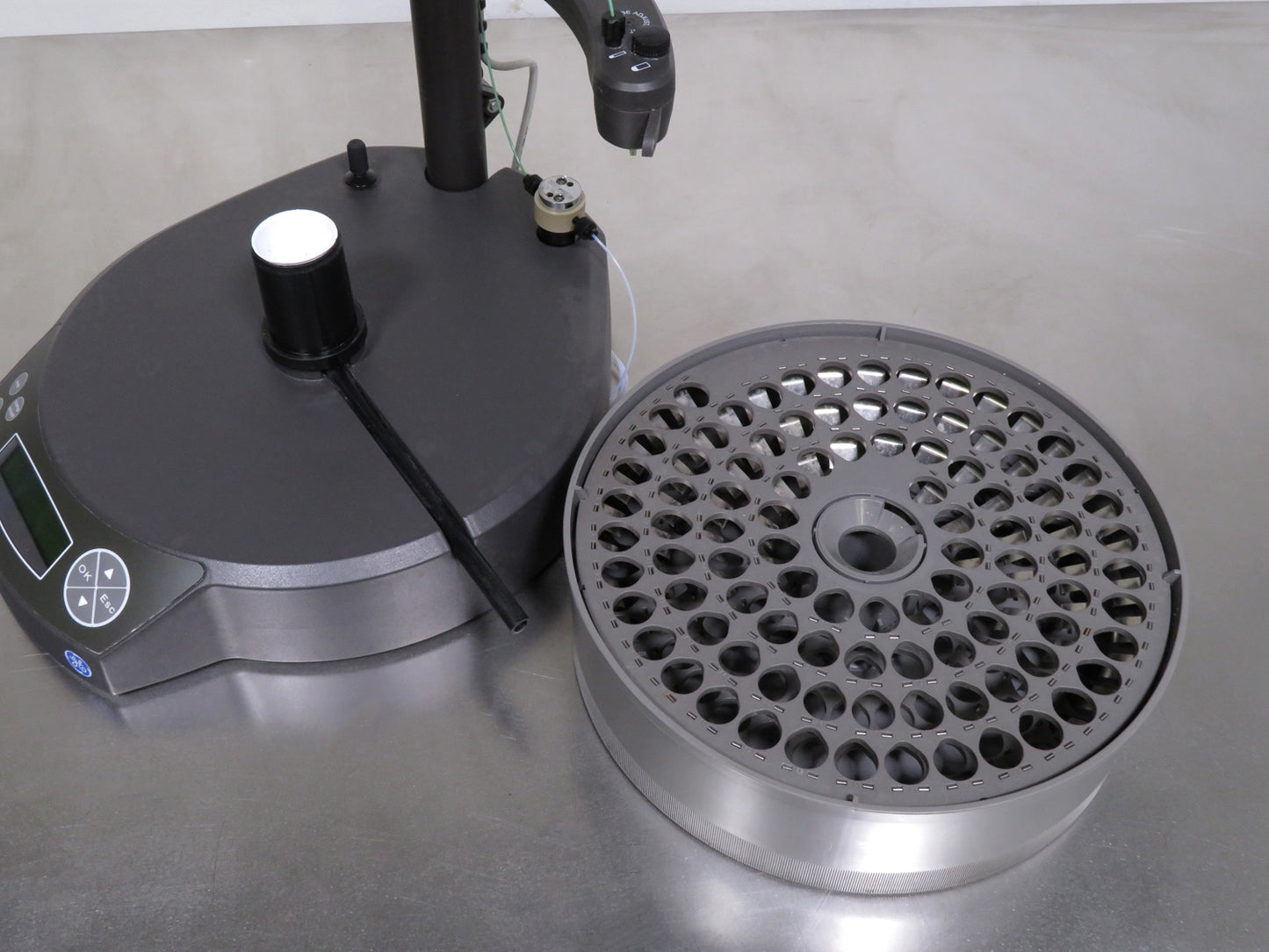

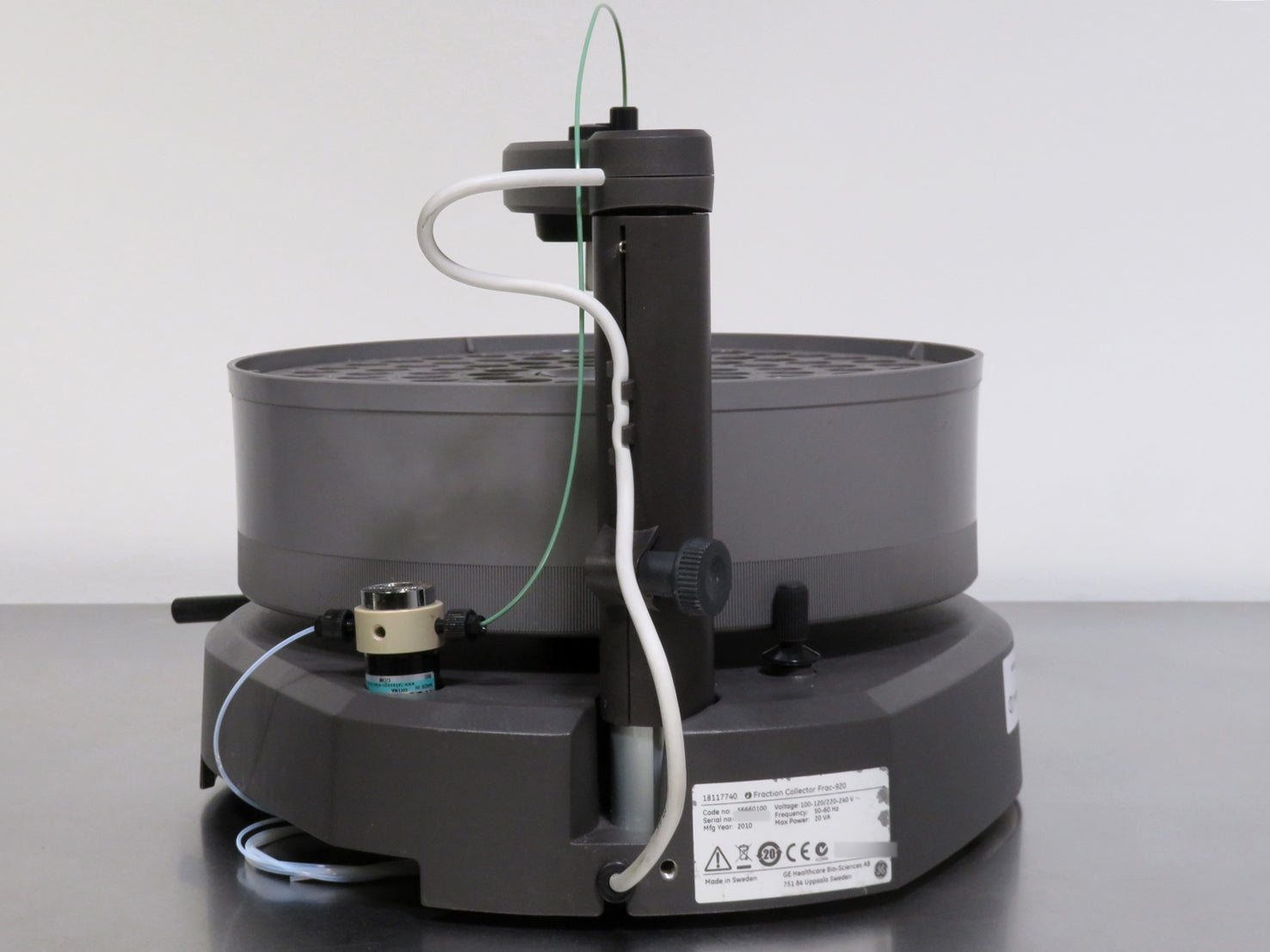

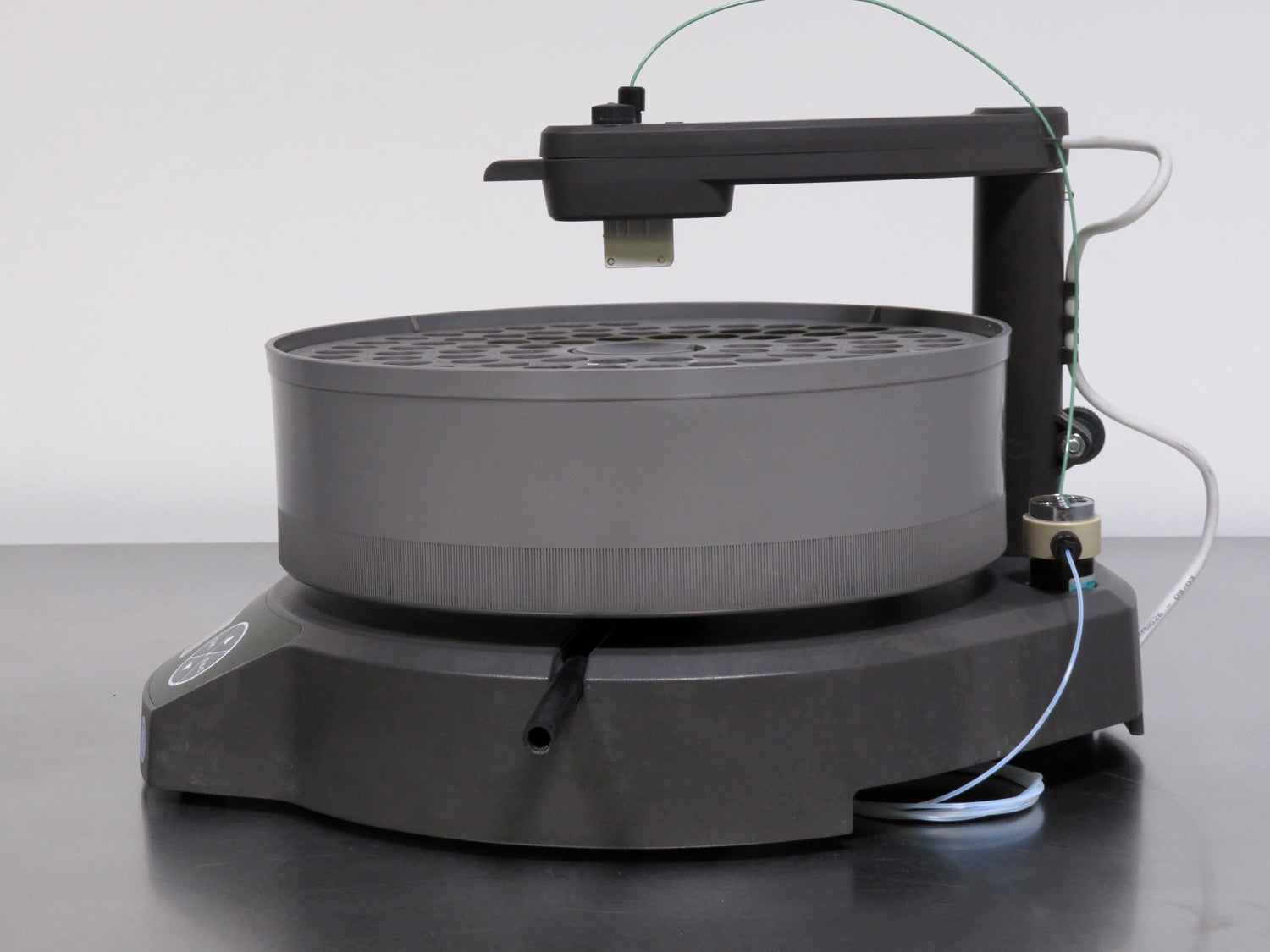

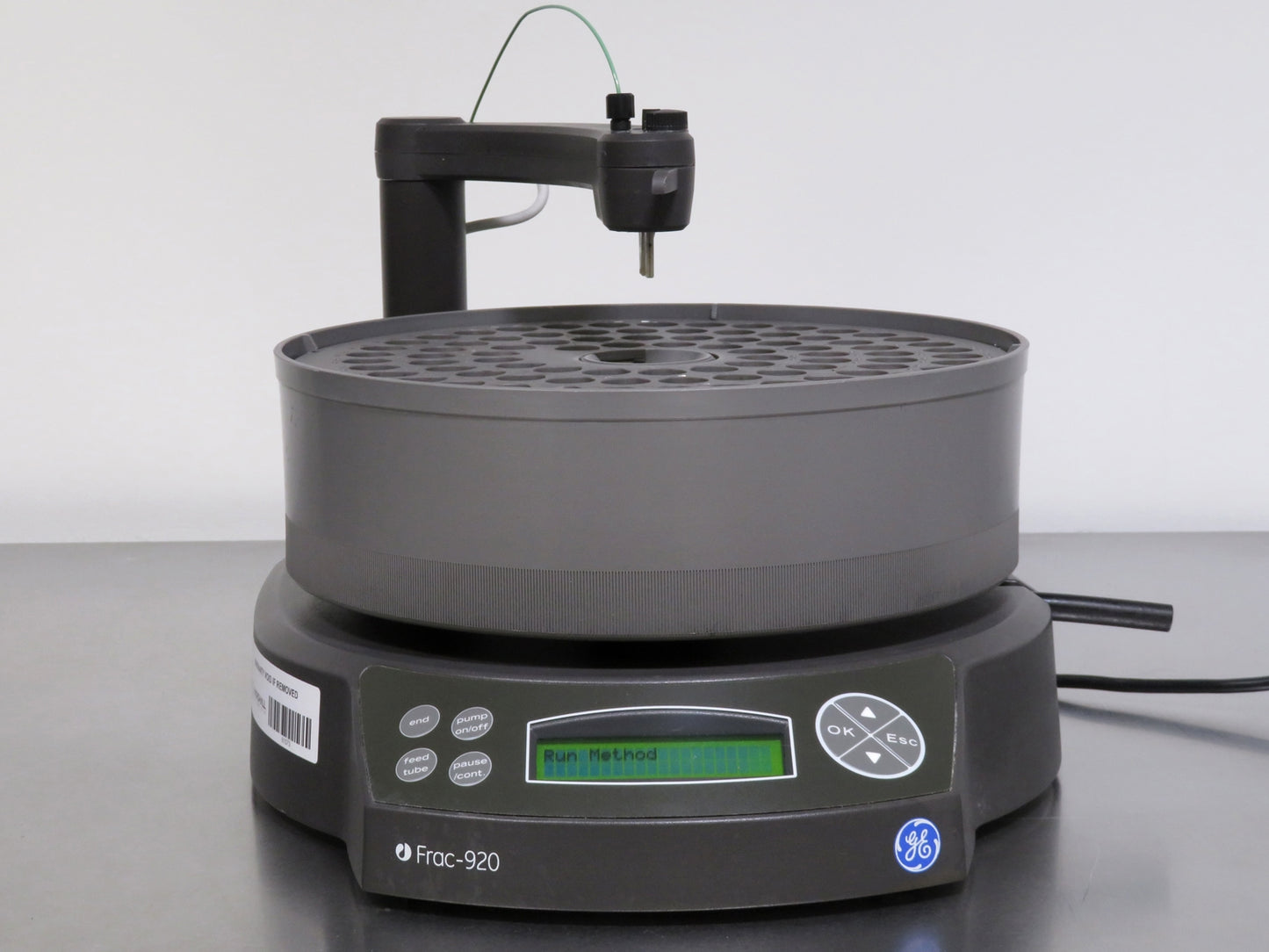

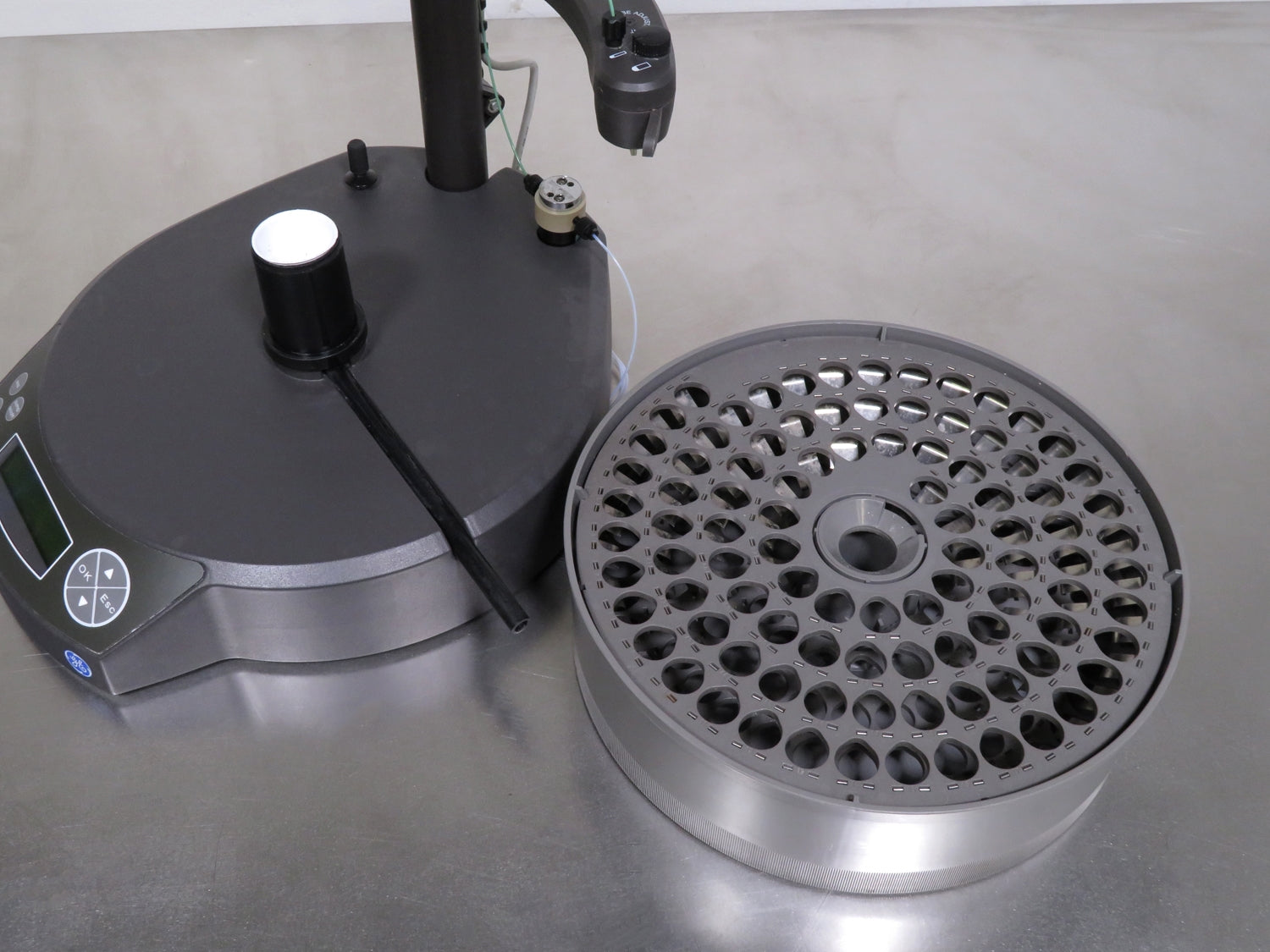

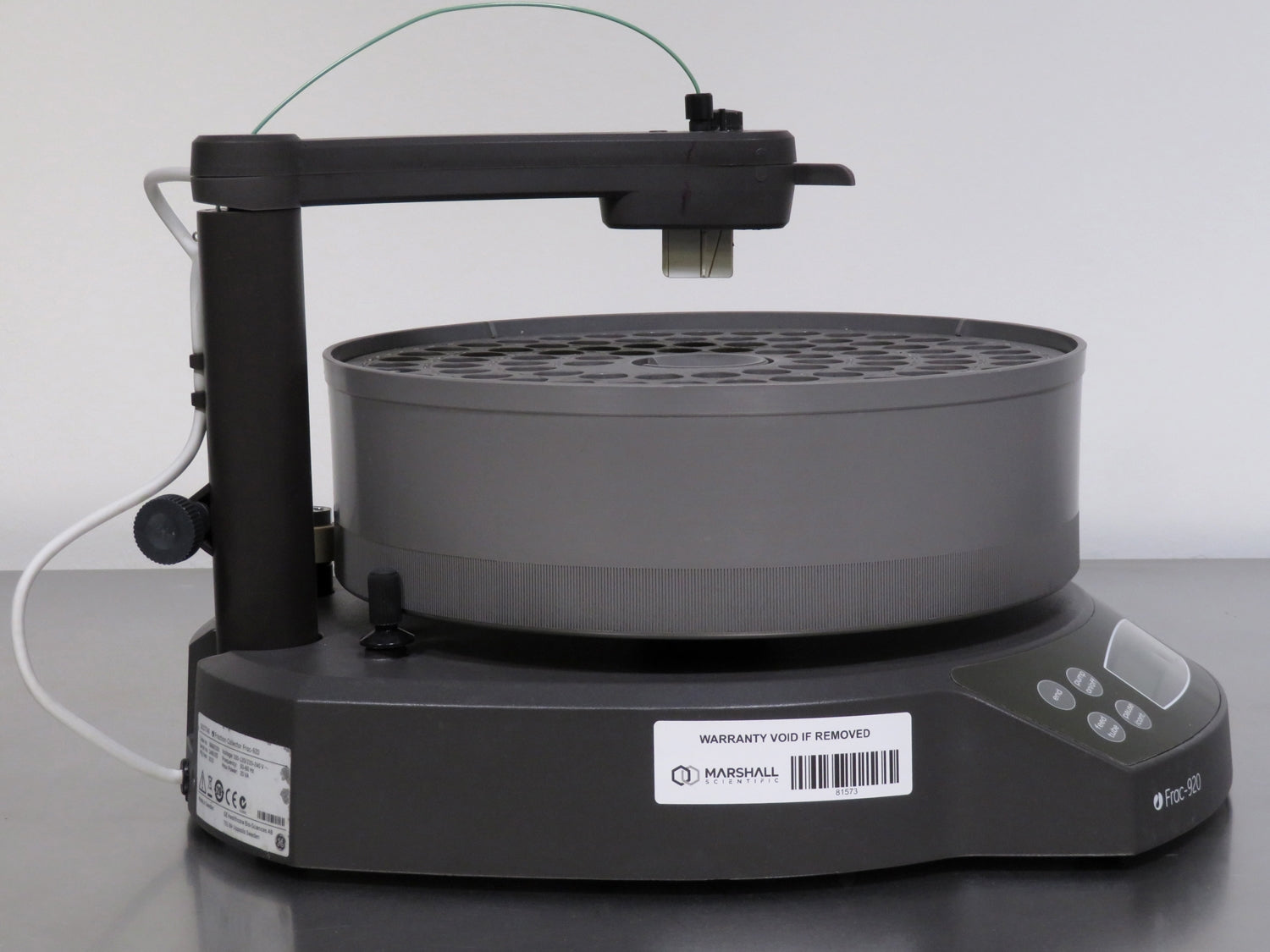

GE AKTA Frac-920 Fraction Collector

The GE AKTA Frac-920 Fraction Collector has the ability to collect up to 175 fractions in 12 mm tubes, or 95 fractions using 10-18mm tubes, or 40 fractions with 30 mm diameter tubes, depending on which rack you’re using. The Frac-920 can collect fixed volumes, peak fractionation, and timed fractionation all through a few simple pushes of a button. The system is reliable and easy-to-use, allowing quick and concise setup of methods, and was designed with scale-up chromatography in mind. The Frac-920 can be used as a standalone fraction collector or can be connected to an AKTA FPLC system.

All of our equipment is fully tested to perform at factory specifications before being shipped.

GE AKTA Frac-920 Fraction Collector Specifications

Capacity	95 fractions in 10-18 mm tubes
Depth	400 mm
Flow Rate	< 100 ml/min
Height	250 mm
Operating Temperature	4° to 40°C
pH Stability Long Term	1 – 13
pH Stability Short Term	1 – 14
Program Memory	99 programs
Rack Designation	95 x 10-18 mm (Standard) 175 x 12 mm and 40 x 30 mm (Optional)
Relative Humidity	20 – 95% (none condensing)
Time Mode	0.01 – 9.999 min
Volume Mode	0.1 – 999 ml
Voltage	100 – 240 V
