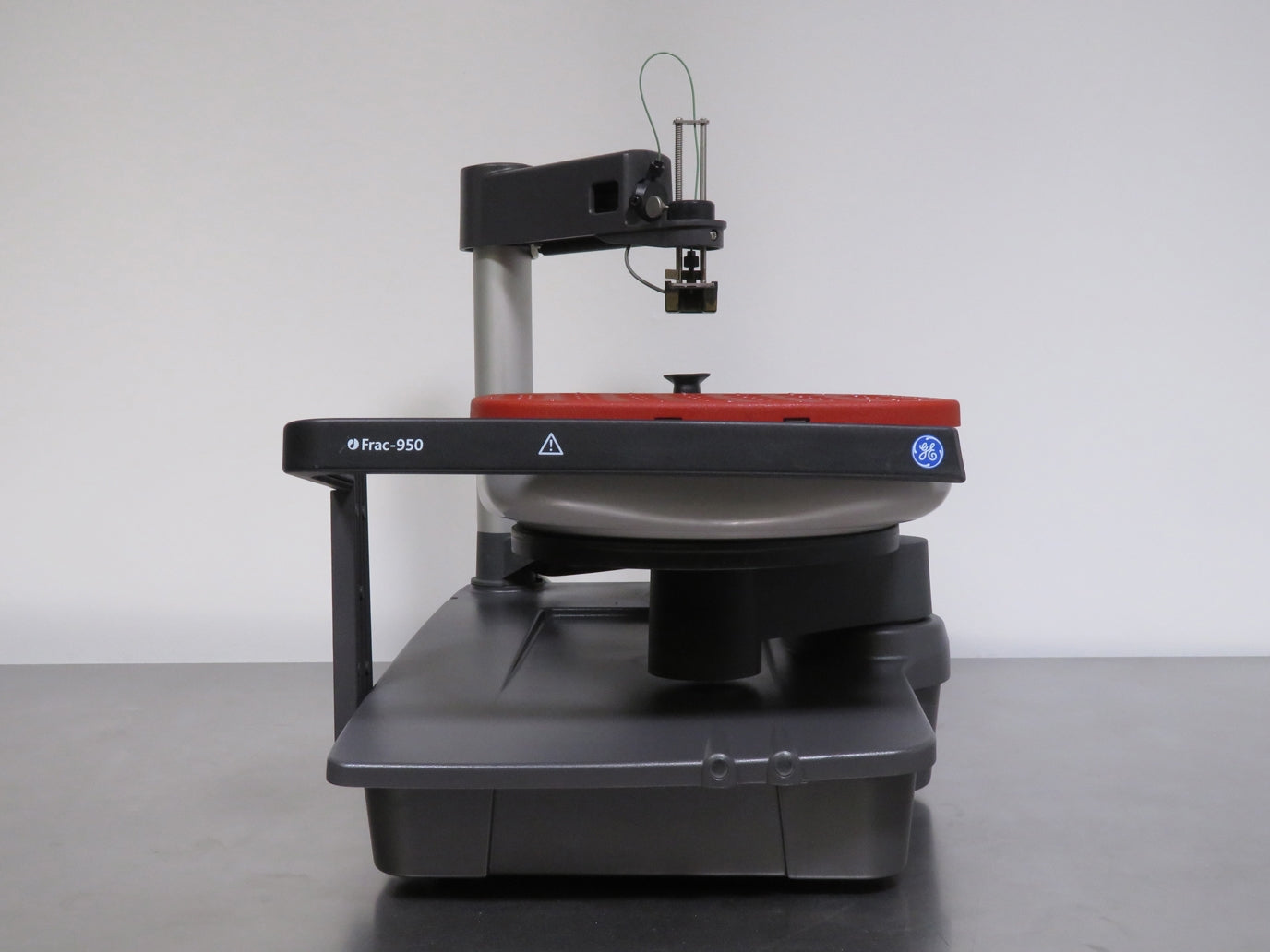

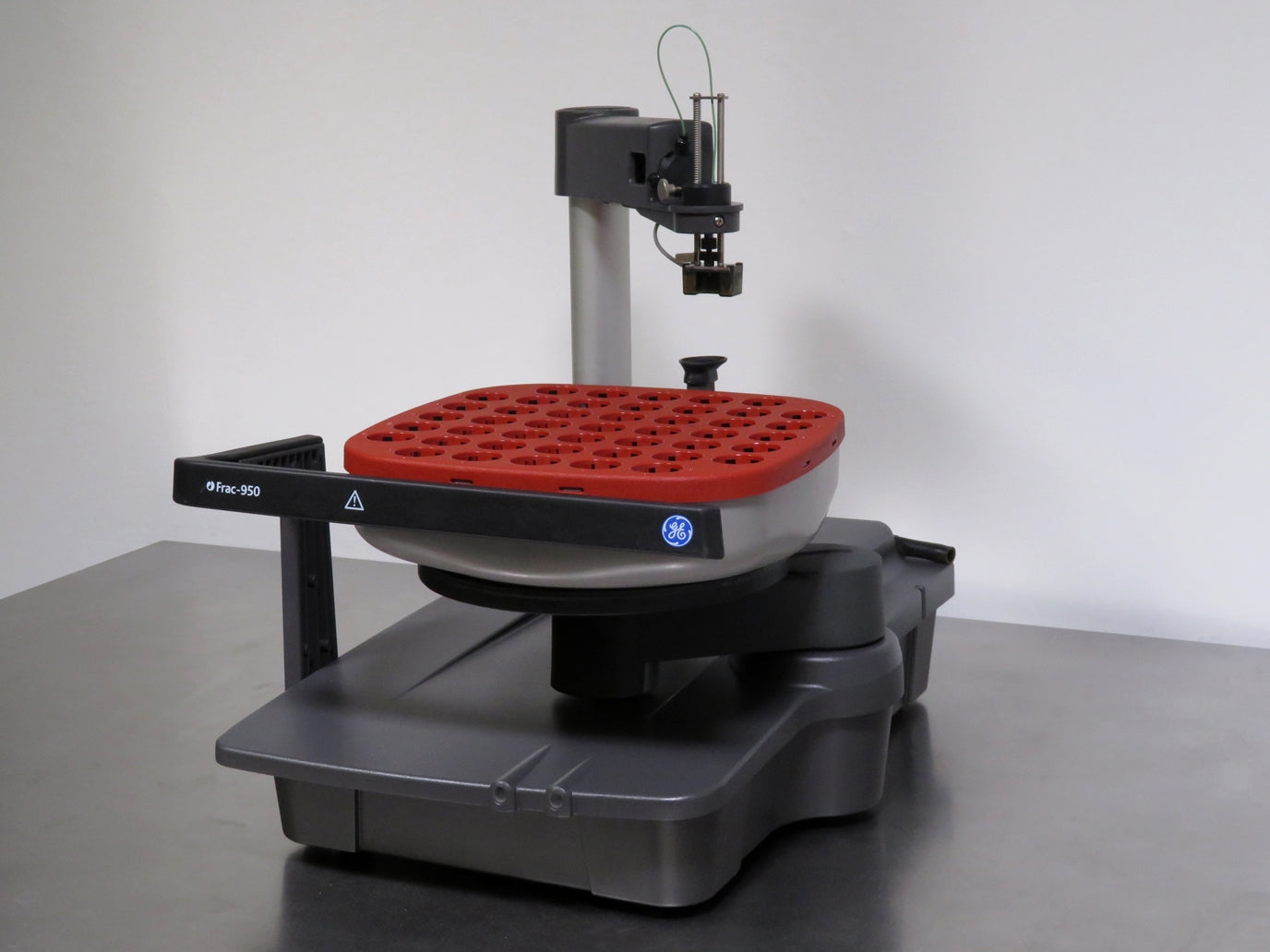

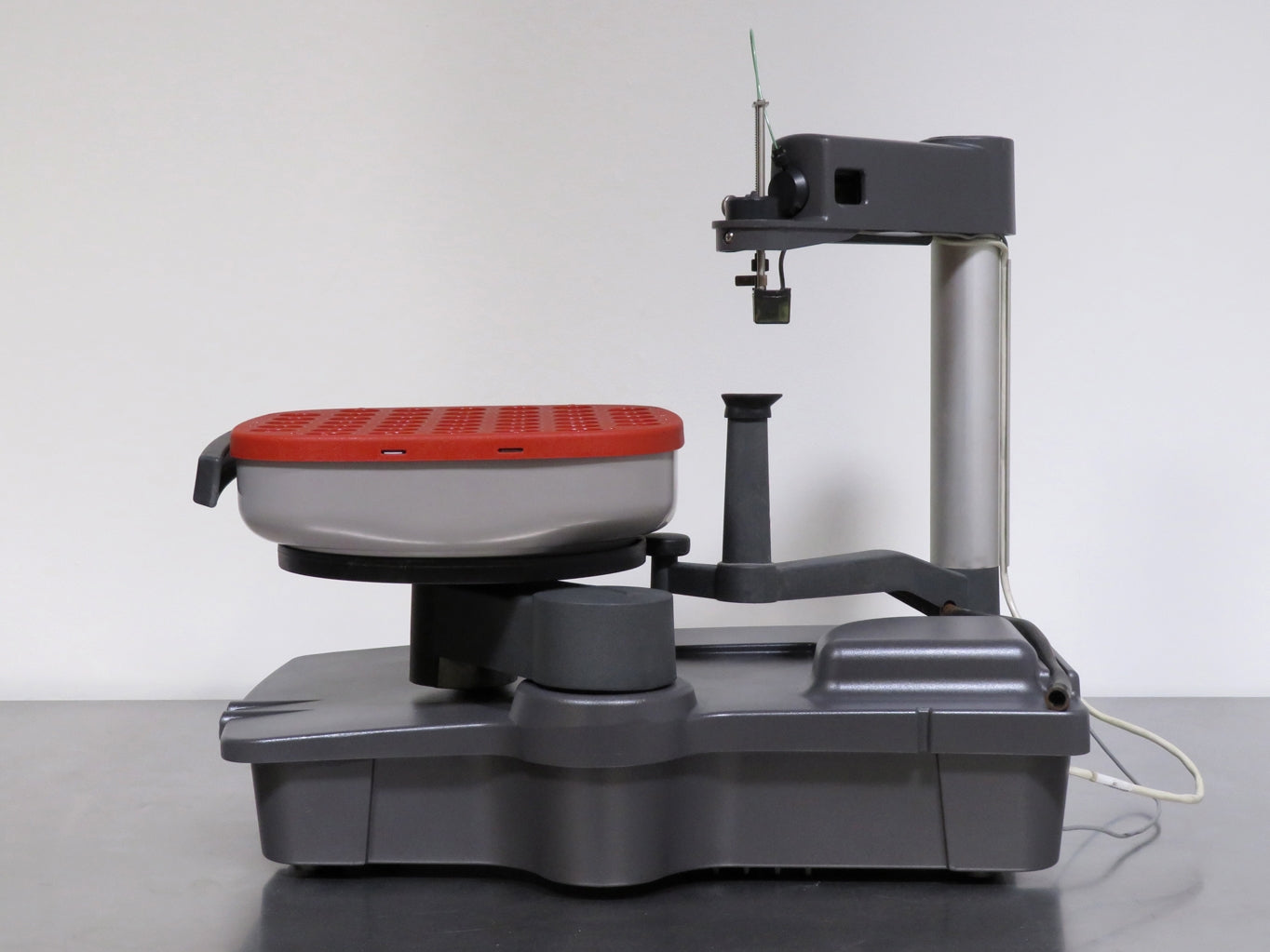

GE AKTA Frac-950 Fraction Collector
Flow Rate
0.001 – 100 ml/min
Volume Mode
0.1 to 99999.99 ml
pH Stability Range
1 to 13
- Capable of collecting up to 392 fractions simultaneously, suitable for time or volume-based fractionation.
- Supports both standard and preparative modes for versatile fraction collection, including large volume handling.
- Equipped with an accumulator to prevent spillage at high flow rates, enhancing efficiency and cleanliness.

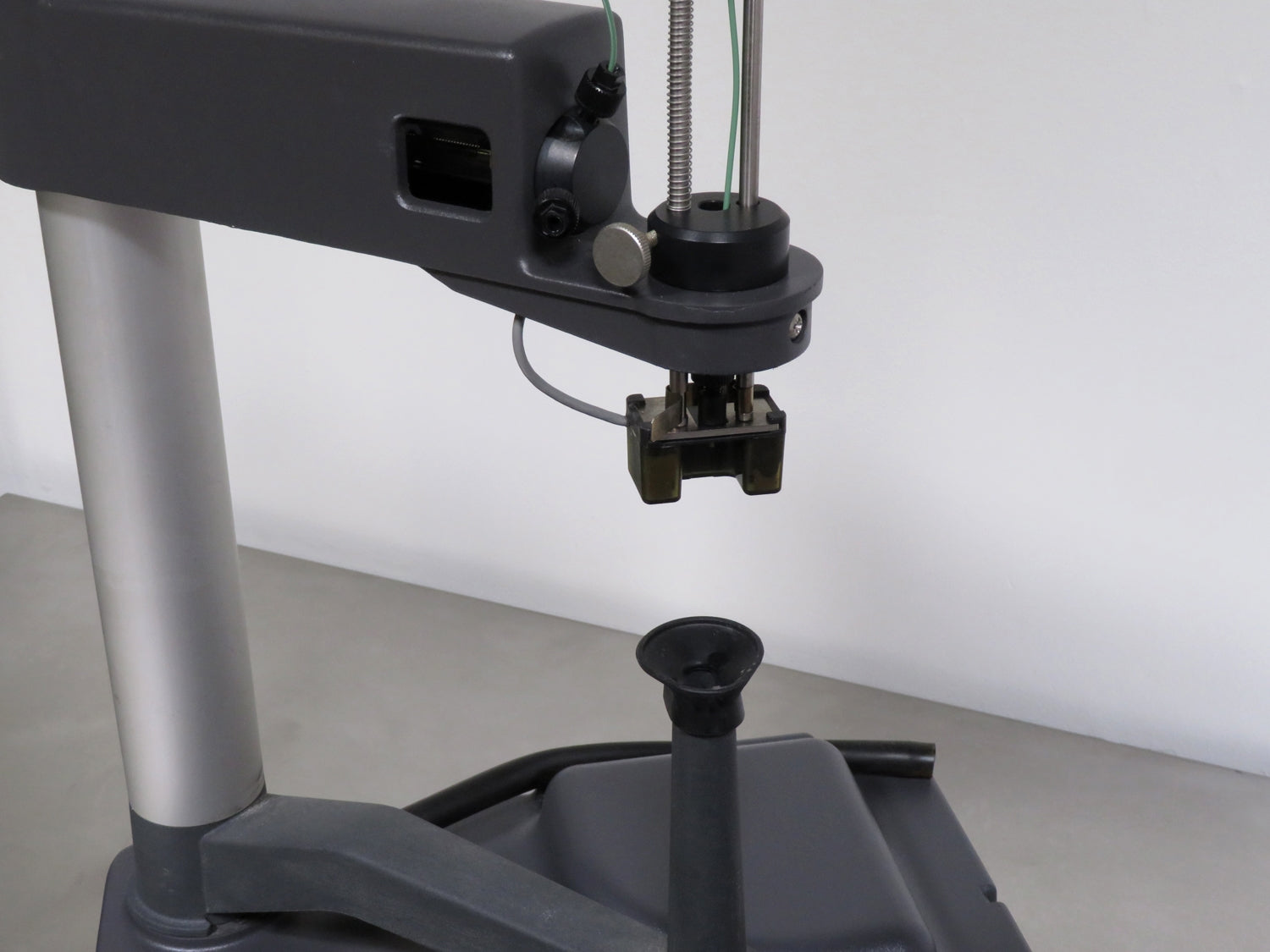

- Features fixed capillary tip with moving rack or vice versa in prep mode, allowing for precise and efficient fraction collection.
- Offers the ability to pre-program standard racks or customize positions within the fractionation area for specific needs.
The GE Frac-950 is an automated fraction collector for use with AKTA design chromatography systems running Unicorn software. Equipped with an accumulator, the Frac-950 eliminates spillage at high flows. Up to 392 fractions can be collected at once for time or volume base, fixed volume and/or peak fractionation, fixed capillary tip with moving rack, fixed rack with moving capillary tip, or fractionation order (row-by-row, column-by-column, serpentine-row, serpentine-column).
This fraction collector is in excellent condition andis fully tested to peform at factory specifications before being shipped.
The GE AKTA Frac-950 Fraction Collector includes:
- > Collecting Rack
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
GE AKTA Frac-950 Fraction Collector Specifications
|
Flow Rate
|
0.001 – 100 ml/min
|
|
Volume Mode
|
0.1 to 99999.99 ml
|
|
Time Mode
|
0.1 to 99999.99 ml
|
|
Height
|
480 mm
|
|
pH Stability range
|
1 to 13, 1 to 14 (<1 day exposure)
|
