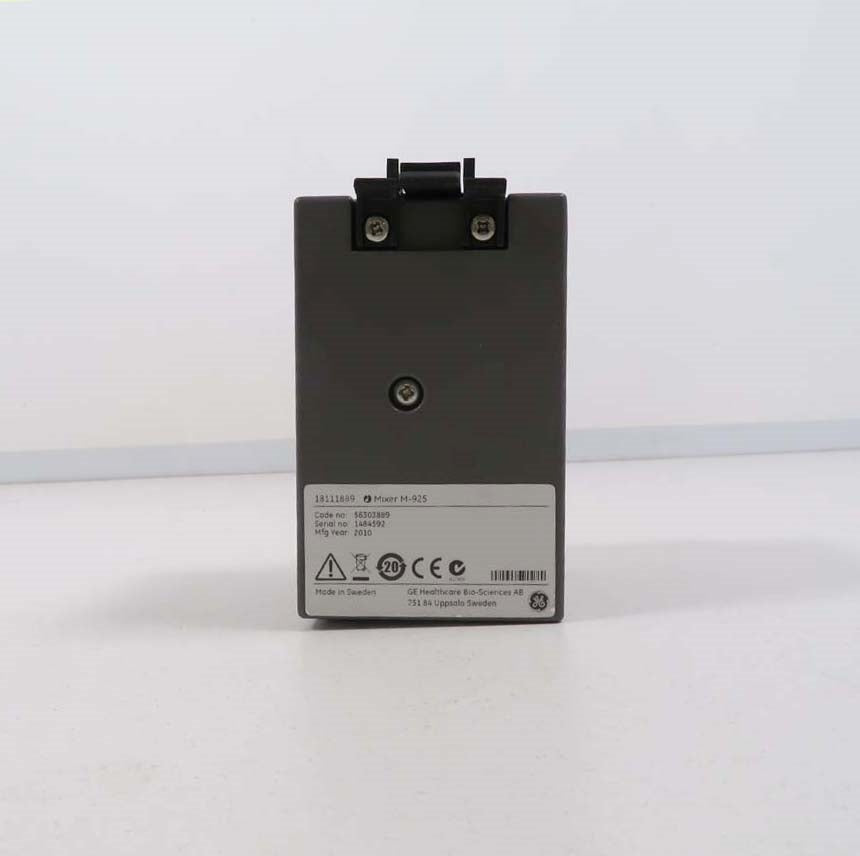

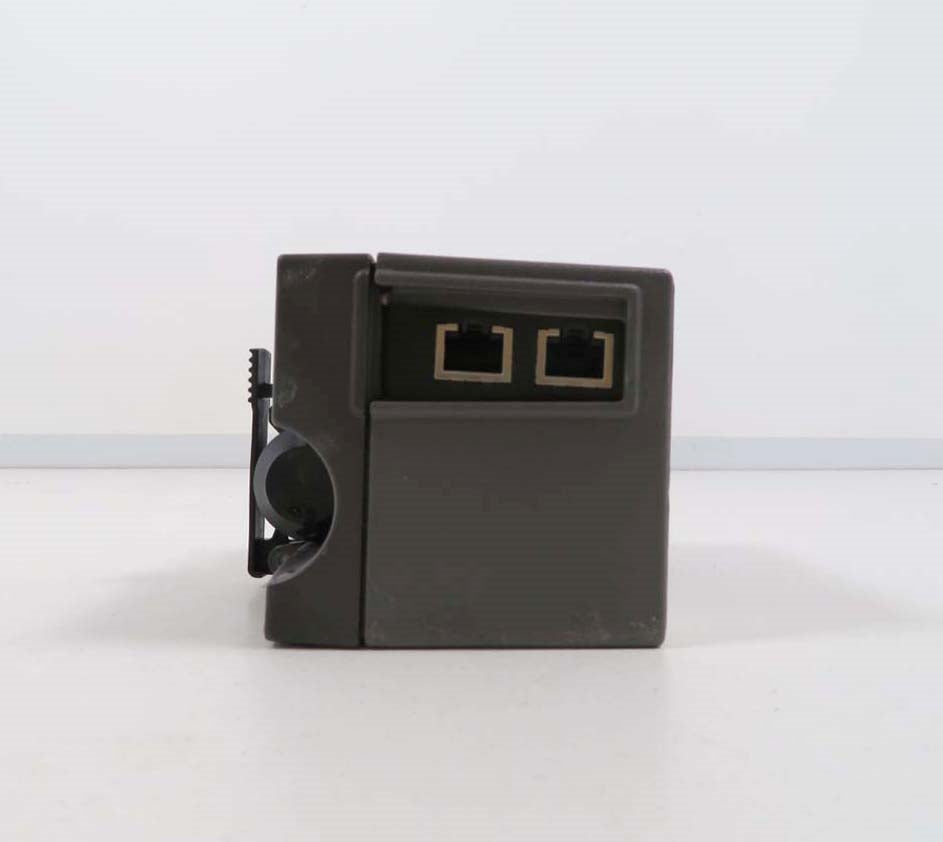

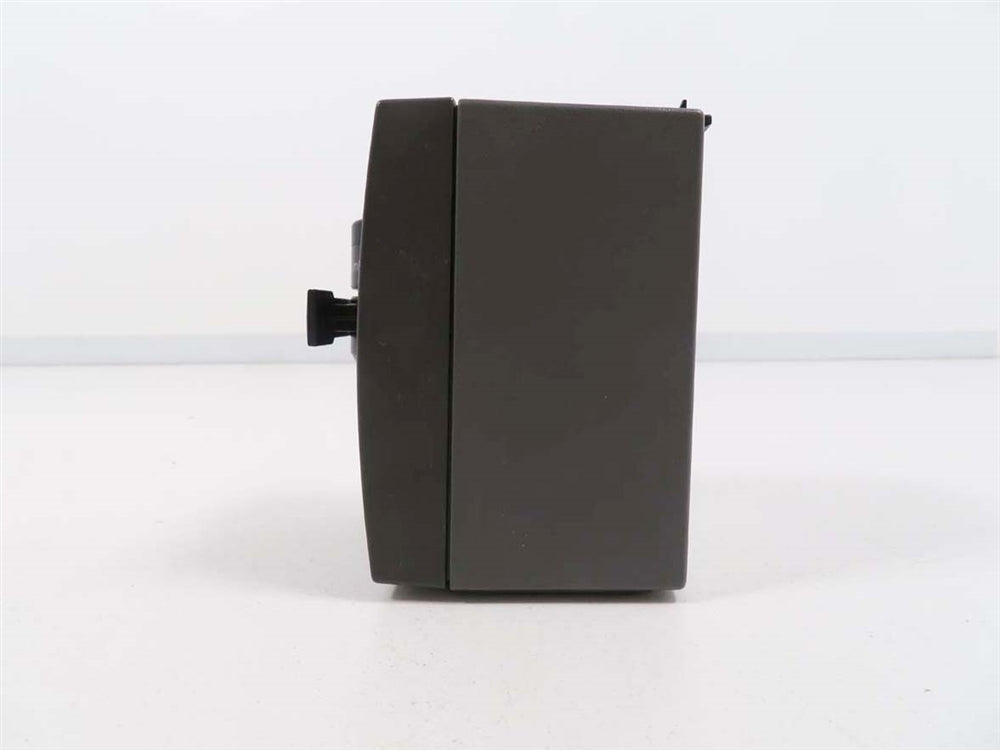

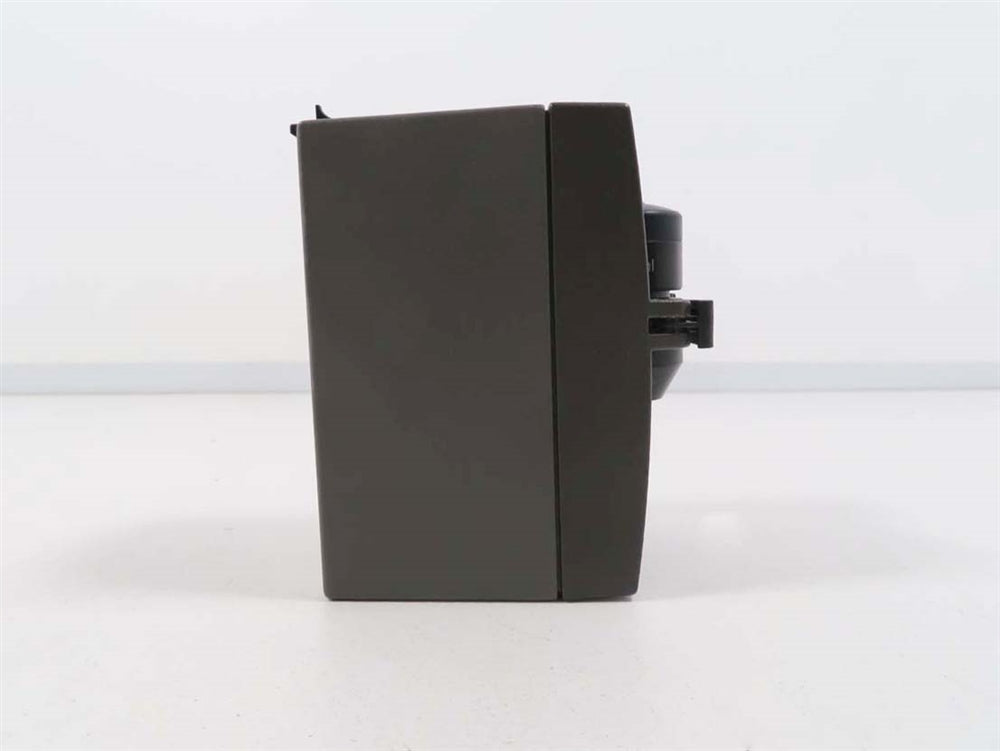

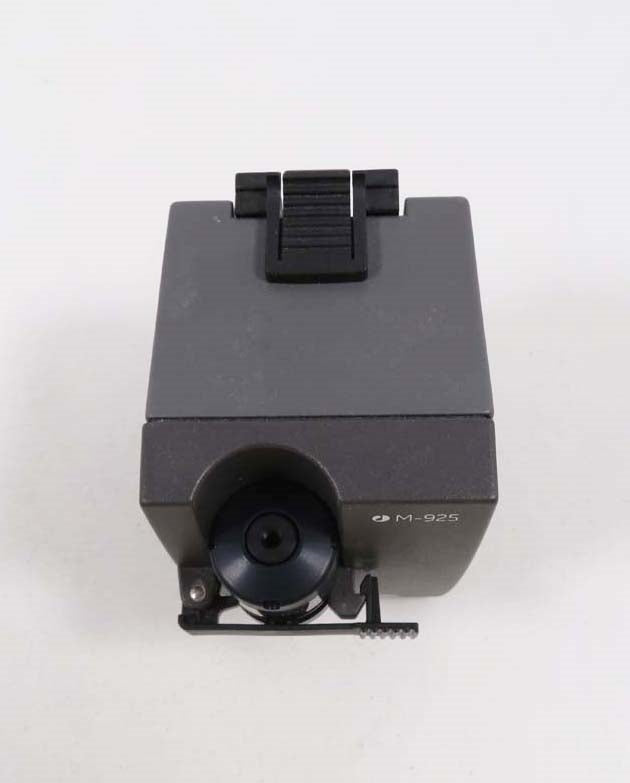

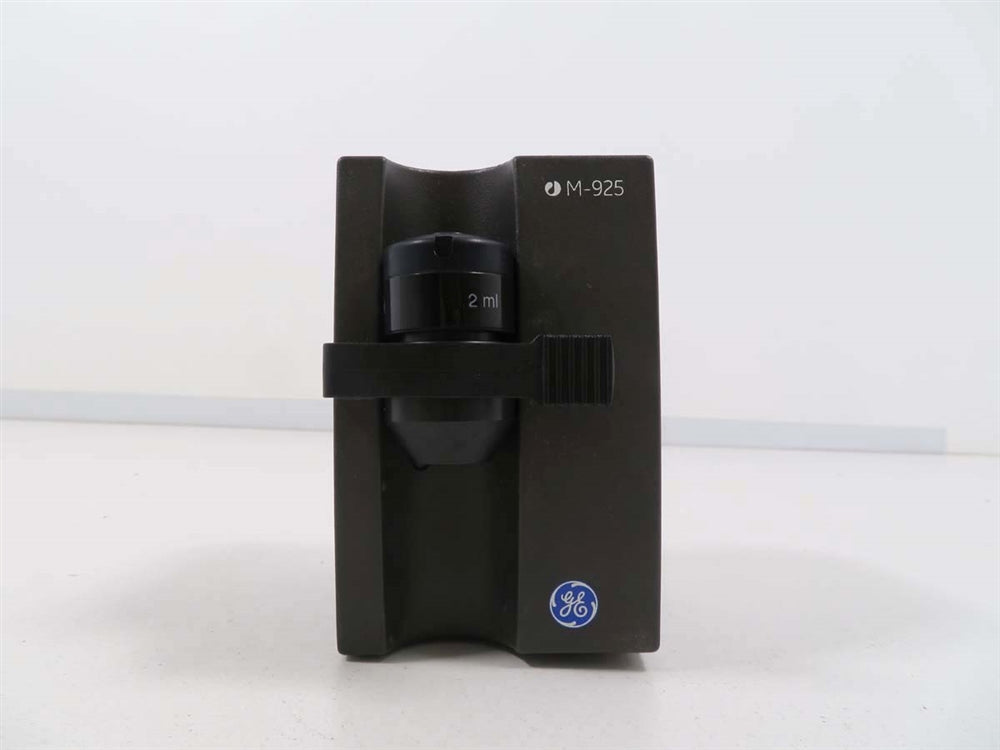

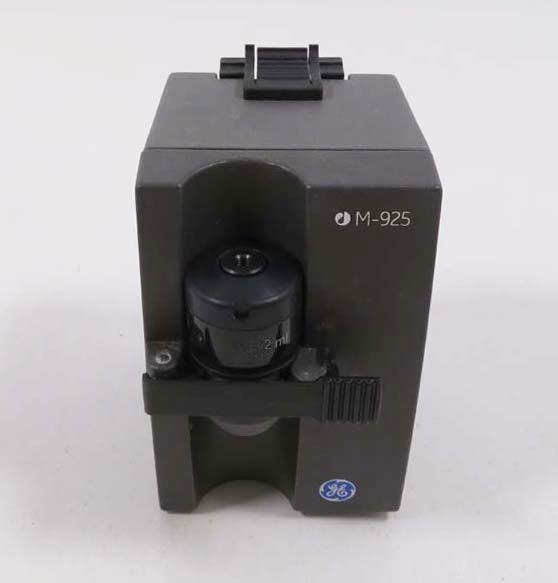

GE AKTA M-925 Mixing Valve, Cat # 18-1118-89
Maximum Flow Rate
0.001 – 100 ml/min
Maximum Pressure
12 ml chamber: 10 MPa at 0.1 – 100 ml/min
pH Range
1 – 13, 1 – 14 (< 1 day exposure)
- Dynamic single-chamber mixer for flexible chromatographic workflows
- Combines one static and one dynamic chamber for effective mixing
- Compatible with ÄKTA P-900 series pumps and Ettan systems
- Handles solvents with viscosities up to 5 cP
- Ideal for standalone or integrated use in chromatography setups
The GE AKTA M-925 Mixing Valve, Cat # 18-1118-89 is in excellent condition. The M-925 is a dynamic, single chamber mixer with interchangeable mixer volumes. The mixer is used in stand-alone applications with AKTA Pump P-900 series, in AKTA chromatography systems, and in Ettan liquid chromatography systems.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The GE AKTA M-925 Mixing Valve, Cat # 18-1118-89 includes:
- > 2ml Mixing Valve
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
GE AKTA M-925 Mixing Valve # 18-1118-89 Specifications
|
Max Flow Rate |
0.001 – 100 ml/min |
|
Max Pressure |
12 ml chamber: 10 MPa at 0.1 – 100 ml/min (100 bar, 1450 psi) 0.6, 2, and 5 ml chambers: 25 MPa at 0.001 – 100 ml/min (250 bar, 3625 psi) 90 µl and 0.2 ml chambers: 35 MPa at 0.001 – 5 ml/min (350 bar, 5075 psi) |
|
pH Range |
1 – 13, 1 – 14 (< 1 day exposure) |
|
Viscosity |
Max 5 cP |
|
Internal Volume |
6 interchangeable mixing chambers: 90 µl, 0.2, 0.6, 2, 5, and 12 ml |
|
Mixing Principle |
1 static chamber and 1 dynamic chamber |
|
Power Requirement |
12 – 40 V DC from the pump |
|
Power Consumption |
1 W |
