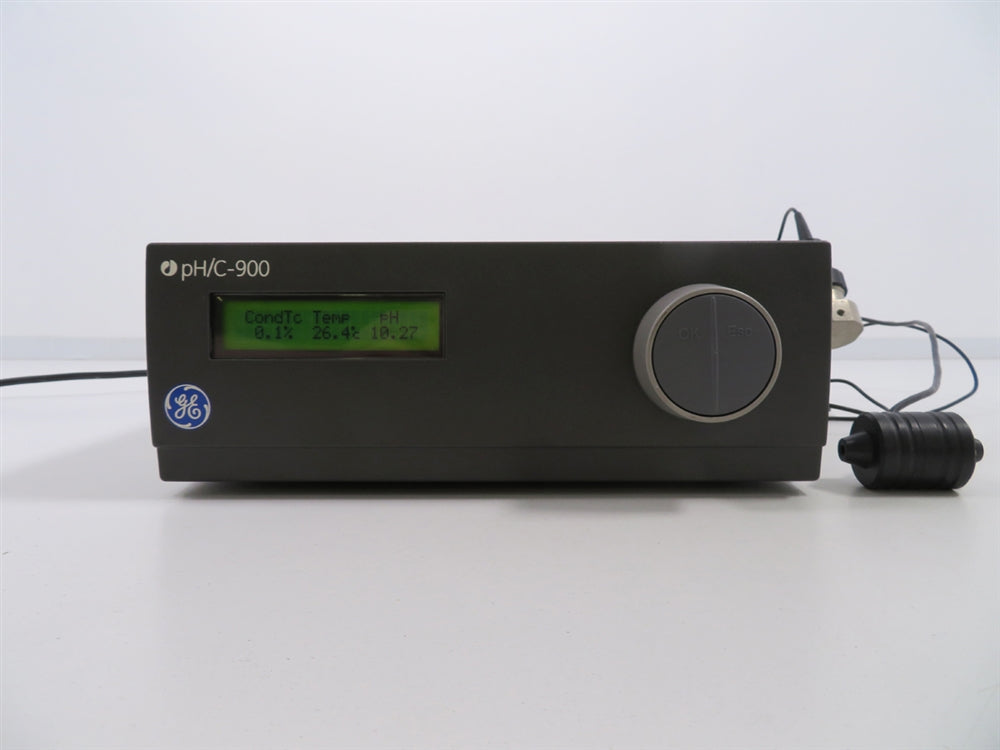

GE AKTA pH/C-900 Monitor
The GE AKTA pH/C-900 Monitor is a combined unit for accurate, on-line monitoring of pH and conductivity in a wide range of liquid chromatography applications. Monitor pH/C-900 precisely measures the elution conditions of chromatographic separations, either as a component of ÄKTAdesign systems or as a standalone instrument. It displays pH, conductivity, and temperature. Since temperature can influence both pH and conductivity, the monitor compensates for temperature variations of these readings. Self-diagnostics ensure continual reliability and reproducibility. Both the pH and the conductivity/temperature flow cells feature low cell volume and high linearity for accurate measurements.PH Electrode Not Included.
The GE AKTA pH/C-900 Monitor includes:
- > Conductivity Sensor
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
GE AKTA pH/C-900 Monitor Specifications
|
Operating pressure max.
|
50 bar (5 MPa) (725 psi)
|
|
Conductivity
|
1 µS/cm-999.9 mS/cm
|
|
Operating Temperature
|
4°C-40°C
|
|
Relative humidity
|
20%-95% (non condensing)
|
|
Wetted Part
|
No
|
|
pH Stability Long Term
|
2-12
|
|
Dimensions (W x D x H)
|
260 x 370 x 100 mm
|
|
Weight
|
8.5
|
|
Material
|
Glass Perfluororubber (FFKM) Polyetheretherketone (PEEK)
Polytetrafluoroethylene (PTFE) Titanium alloy (Ti alloy)
Chlorotrifluoroethylene (CTFE)
|
|
Accuracy
|
The greater of ± 2% of full scale or ± 10 µS/cm in the range 1
µS/cm-300 mS/cm ± 0.1 pH unit, temperature compensated Max. 0.1 pH units
within 0–10 ml/min (pH measurement)
|
|
Baseline noise
|
± 0.5% of full scale calibrated range
|
|
Drift
|
Max. 0.02 pH/h (measured at pH 4.0) ±0.5 °C per 10 h 0.1 pH unit
deviation/10 h
|
|
Cell Constant
|
50 ± 20 cm-1
|
|
Response Time
|
Max. 10 s (0–95% of step) (pH measurements) Max. 3 s (0–95% of step)
(Conductivity measurement)
|
|

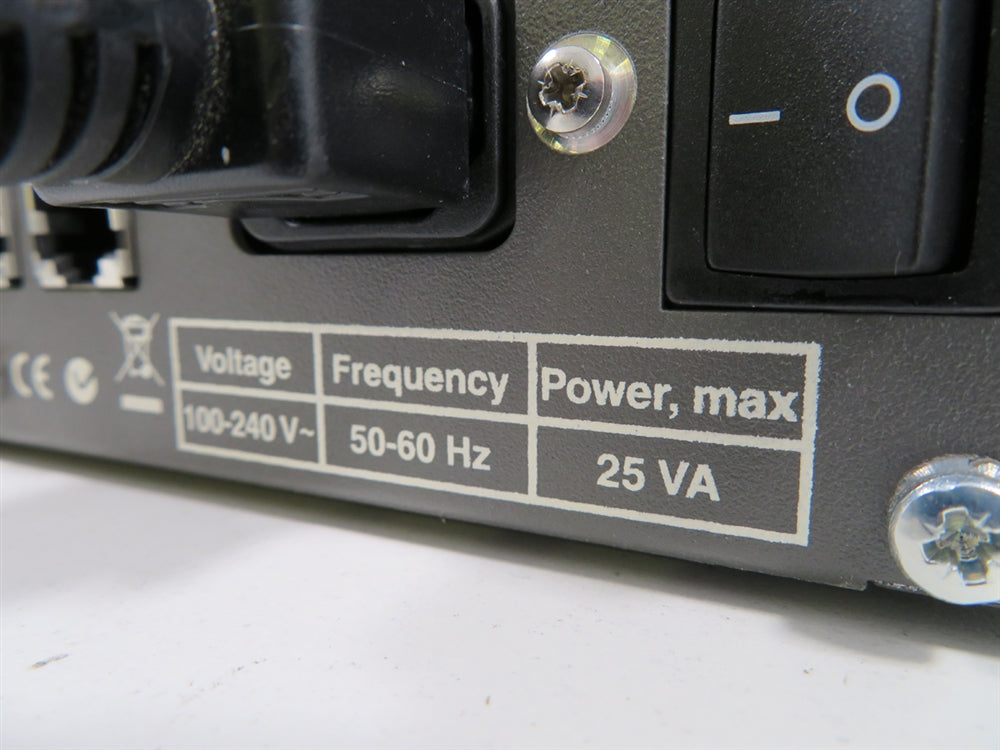

Voltage
|
100-120/220-240 VAC
|
|
Protection class
|
IP 20 (Housing) IP 44 (Flow cell)
|
