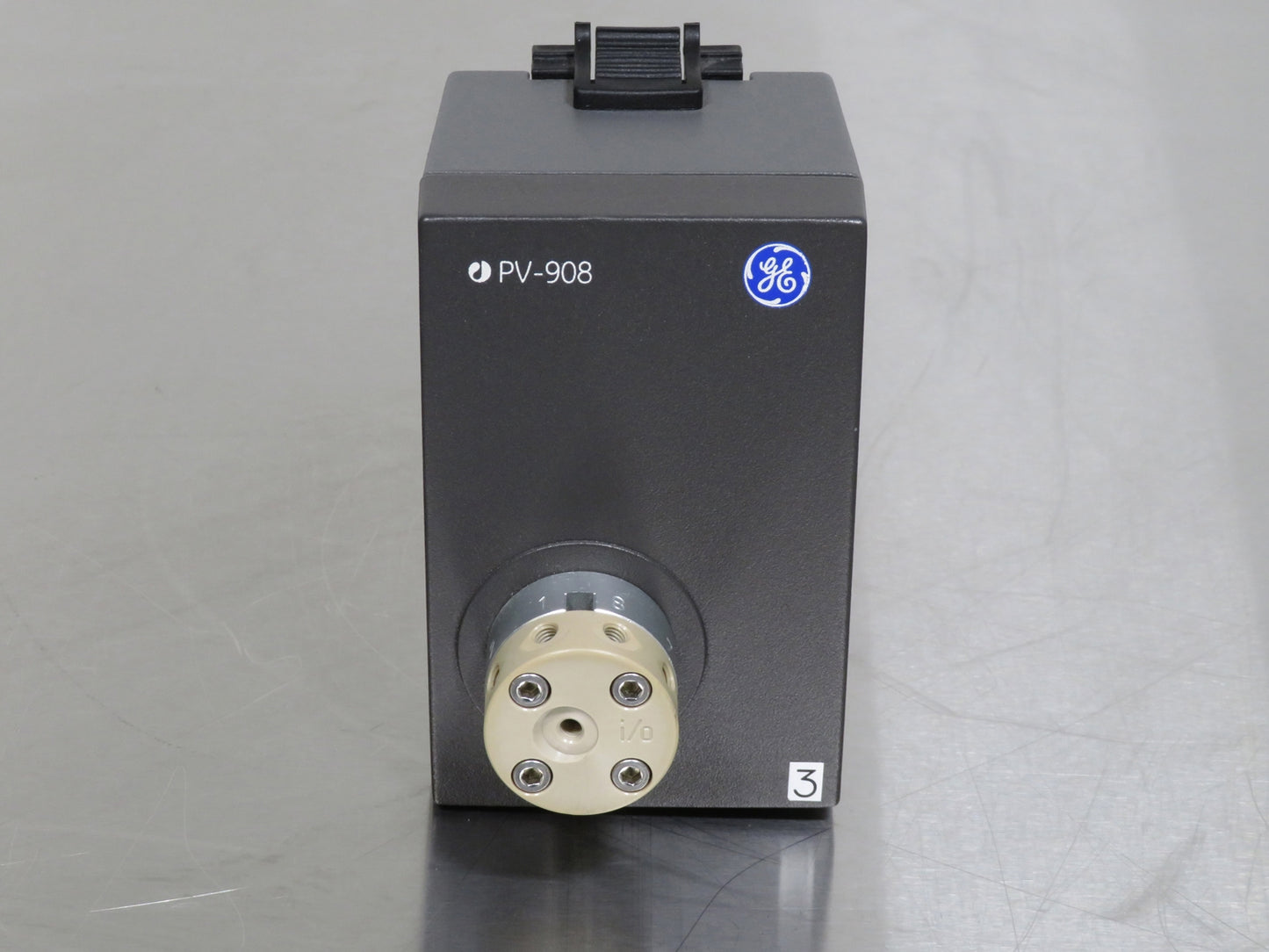

GE AKTA PV-908 FPLC Valve
The GE AKTA PV-908 FPLC Valve is a motorized rotary 8-way valve used in AKTA chromatography systems. The unit is powered from a P-900 series pump and controlled from the UNICORN control system. The valve has 8 positions and each position connects the central port with one of the peripheral ports.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The GE AKTA PV-908 FPLC Valve includes:
The GE AKTA PV-908 FPLC Valve includes:
- > Uninet Cable
- > Full 180 Day Parts and Labor Warranty
GE AKTA PV-908 FPLC Valve Specifications
|
Max Flow Rate |
100 ml/min |
|
Max Pressure |
25 MPa (250 bar, 3600 psi) |
|
Back Pressure |
< 40 kPa at 100 ml/min with water |
|
Leakage |
<0.1 ul/min at 25 MPa |
|
pH Stability Range |
1-13, 1-14 (<1 day exposure) |
|
Viscosity |
Max 5 cP |
|
Switch Time |
< 260 ms between two adjacent positions |
|
Operating Life Time |
> 50,000 cycles, two adjacent positions |
|
Flow Channel Diameter |
1.2 mm |
Click Here to View the Technical Specs for the GE AKTA PV-908 FPLC Valve
