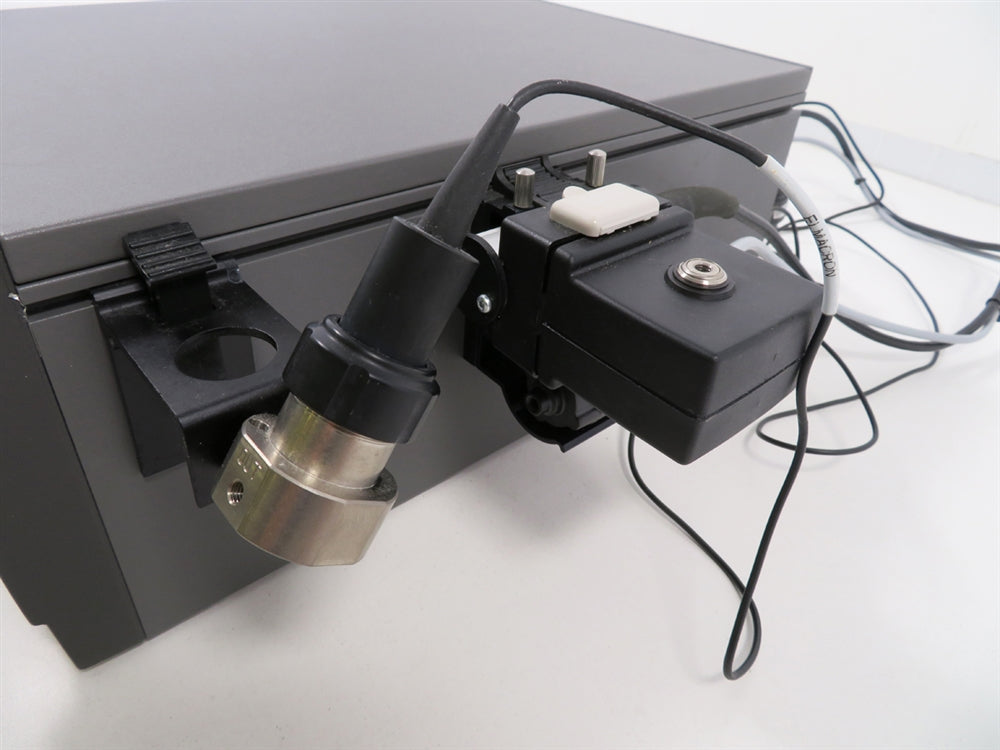

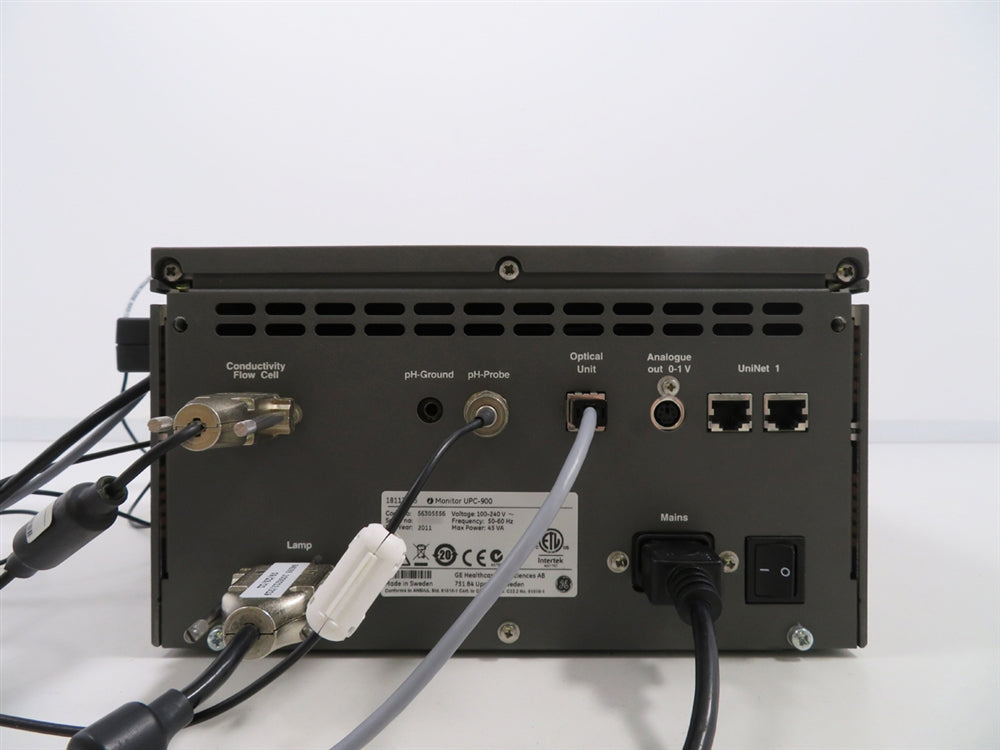

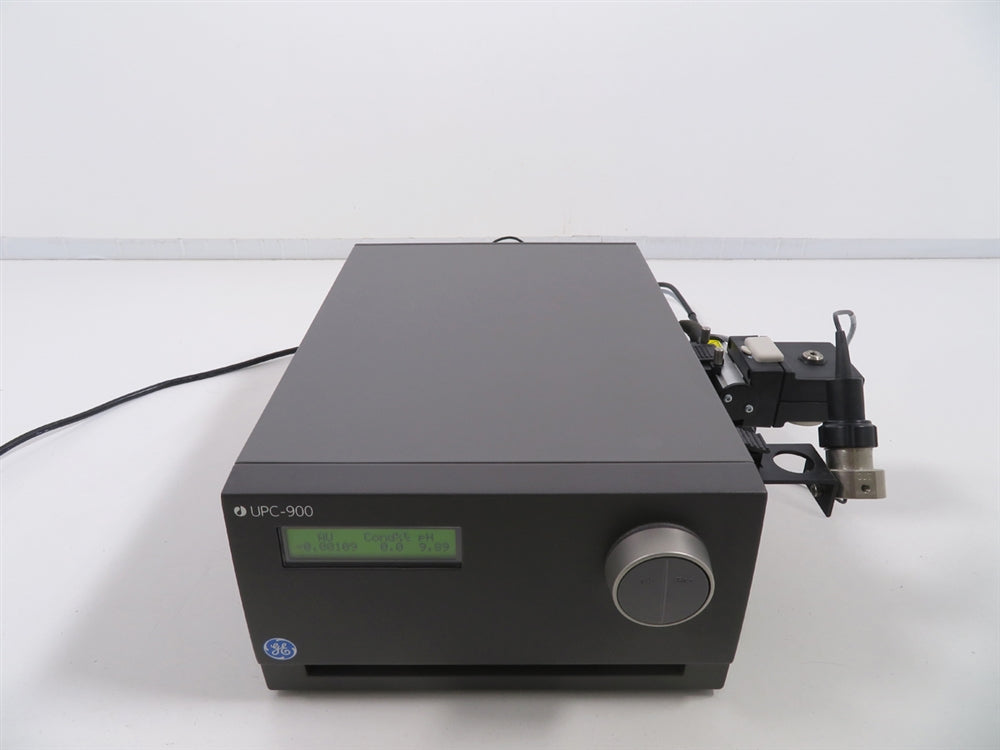

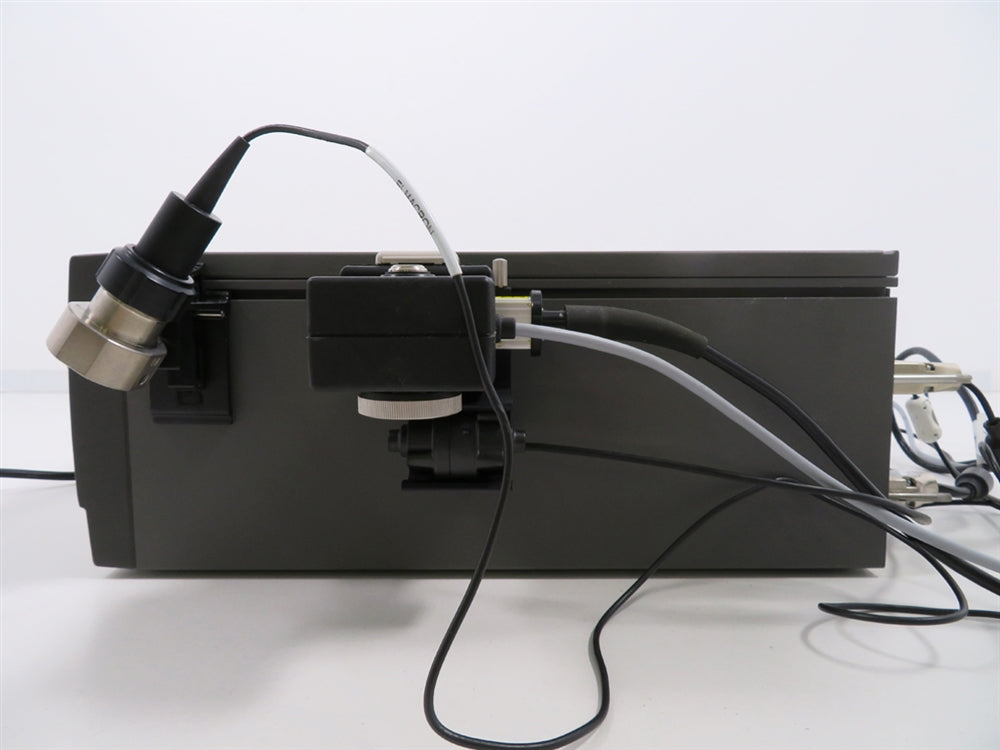

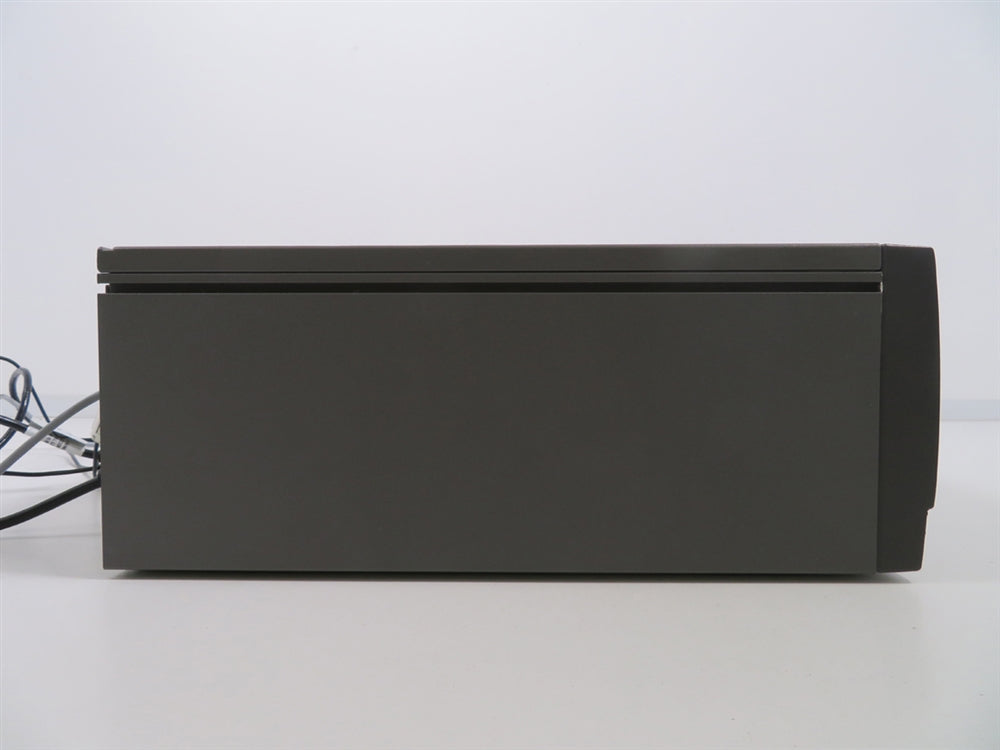

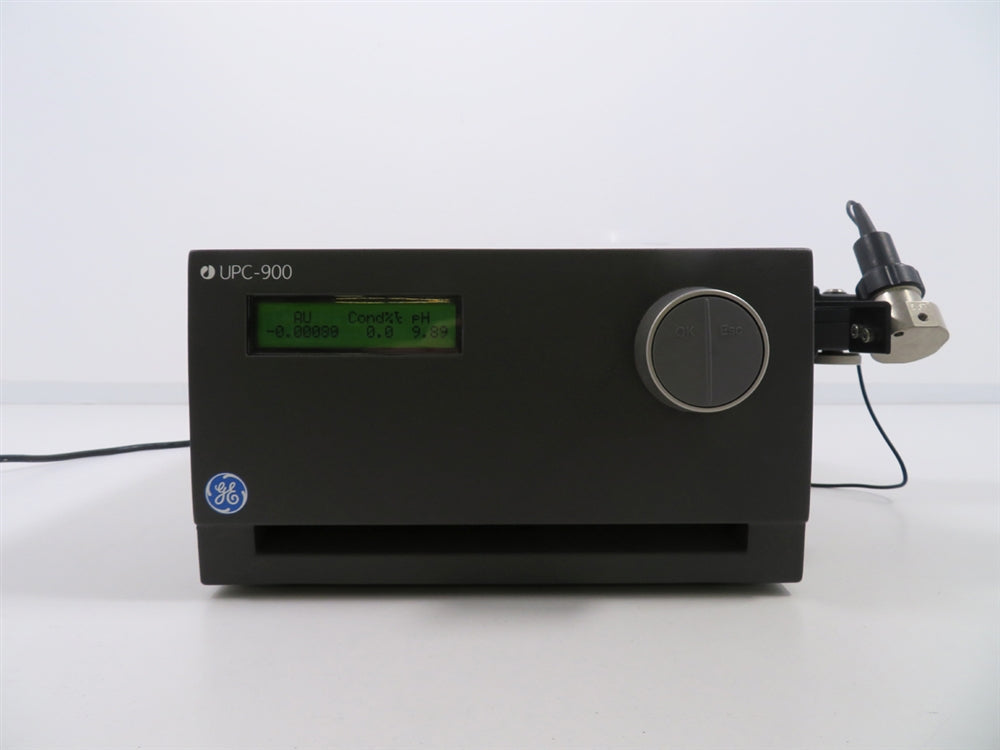

GE AKTA UPC-900 Monitor
The GE AKTA UPC-900 Monitor is a high precision on-line monitor offering the possibility to measure UV, conductivity, and pH using a single instrument. Provides real chromatographic information at a glance with three monitors in one unit: UV, pH, and conductivity. Operates as an integral component of ÄKTA FPLC or as a standalone unit. Flow cells fit tightly in series to minimize dead volume and band-broadening effects. Wide range of select, high specificity UV wavelengths using a mercury or zinc lamp.All of our equipment is fully tested to perform at factory specifications before being shipped.
The GE AKTA UPC-900 Monitor includes:
- >Flow Cell
- > UV Lamp
- > Installation Calibration Report
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
- (Ph Probe & Holder not included)
GE AKTA UPC-900 Monitor Specifications
|
Absorbance range
|
0.01 - 5 AU (full scale)
|
|
Autozero range
|
-0.2 - 2.0 AU
|
|
Baseline adjust Adjustable
|
0-100% of full scale
|
|
Wavelengths
|
Hg lamp, fixed: 254 and 280
by changing filter:313, 365, 405, 436 and 546 nm
Zn lamp: 214 nm
|
|
Linearity, 5 mm cell
|
<3% up to 2 AU at 254 nm
<5% up to 1 AU at 280 nm
|
|
Static noise
|
short term: 40x10-6 AU at 254 nm
(typically 6x10-6 AU at 254 nm)
long term: 40x10-6 AU at 254 nm
|
|
Static Drift
|
±100x10-6 AU/h at 254 nm
|
|
Flow Sensitivity
|
2x10-4 AU min/ml
|
