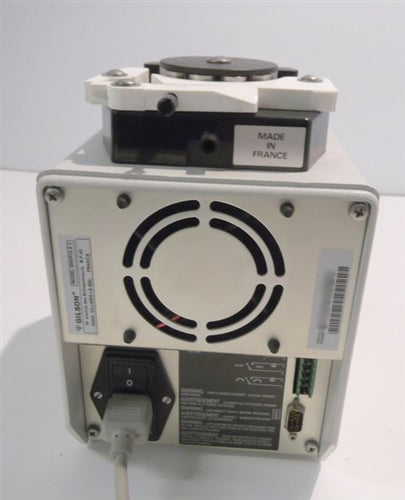

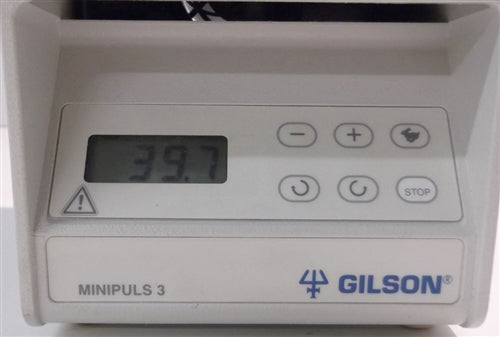

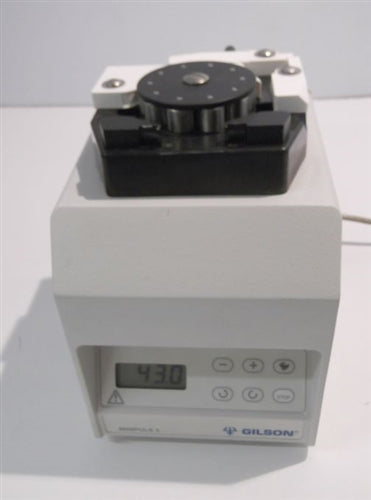

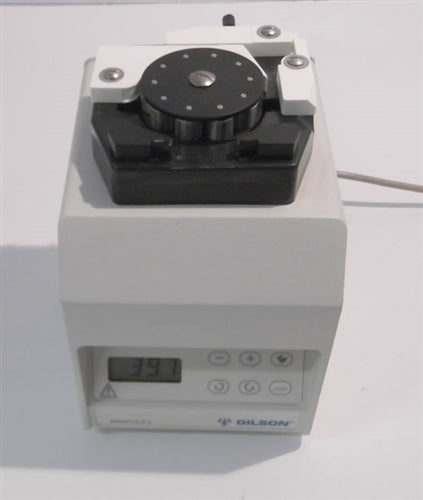

Gilson Minipuls 3 Peristaltic Pump
Flow Rate Range
0.3 µL/min to 30 mL/min
Head Speed
0 to 48 RPM
Number of Channels
2
- Peristaltic pump specifically designed for smooth, low pulse flow of biological and chemical fluids
- Offers interchangeable heads for versatility, available in 1, 2, 4, or 8 channel standard flow rate configurations (includes 2-channel head)
- Features microprocessor speed control combined with a high-torque stepper motor for precise operation
- Standard flow rates range from 0.3 µL/min to 30 mL/min at a maximum pressure of 0.5 MPa
- Allows continuous head speed adjustment from 0 to 48 rpm with high resolution and precision
- Compatible with tubing diameters from 0.25–4mm (ID)
The Gilson Minipuls 3 is a peristaltic pump with
interchangeable heads for delivering smooth, low pulse flows of biological and
chemical fluids in 1, 2, 4, or 8 channel standard flow rate and 2 or 4 channel
high flow rate configurations. The Minipuls 3 combines microprocessor speed
control with a high-torque stepper motor and is specifically designed to meet
your process laboratory liquid handling needs. The Minipuls 3 delivers high
resolution and precision speed and control for smooth flows without sample
shearing or degradation.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Gilson Minipuls 3 Peristaltic Pump includes:
- > 2 Channel Pump Head
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Gilson Minipuls 3 Peristaltic Pump Specifications
|
Standard Flow Rates (1, 2, 4, or 8 channels)
|
0.3 µL/min–30 mL/min at a maximum pressure of 0.5 MPa
|
|
High Flow Rates (2 or 4 channels)
|
1 mL/min–220 mL/min at a maximum pressure of 0.3 MPa
|
|
Head Speed
|
Continuous adjustment from 0 to 48 rpm by 0.01 rpm increments up to
9.99 rpm and by 0.1 rpm increments above 10 rpm
|
|
Motor Speed Stability
|
0.5% for any variation of line voltage, torque, or temperature
|
|
Peristaltic Tubing Diameter
|
Standard model: 0.25–4mm (ID)
High-Flow model: 2–8mm (ID)
|
|

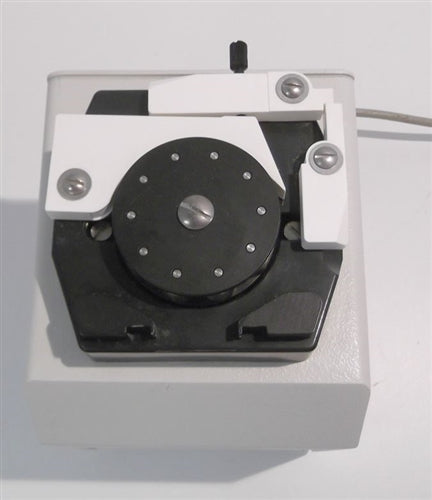

Pump Heads
|
Standard model: 1-, 2-, 4-, or 8-channel heads with 10 stainless
steel rollers per head
High-Flow model: 2- or 4-channel heads with five stainless steel
rollers per head
|
|
Power Requirements
|
90-132 or 180-264V; 47-63Hz
|
|
Dimensions
|
15 x 17.5 x 18 cm (5.9 x 6.9 x 7.1 in)
|
- Verify power supply and PCB voltage outputs for accuracy and stability
- Inspect display for dim or dead pixels, replacing any compromised segments
- Test full functionality of speed, time, and start/stop buttons
- Confirm proper bidirectional rotation of the pump head
- Examine all internal wiring within the casing for secure and intact connections
- Inspect pump head for any blockages or obstructions that could hinder rotation
- Confirm functionality of the fan, replacing if performance is suboptimal
- Inspect and clean the internal casing to maintain optimal conditions
- Verify RPM of pump head using a NIST-traceable tachometer
- Conduct a cosmetic inspection to ensure all surfaces meet quality standards
Technician Inspection and Recertification Checklist: Peristaltic Pumps
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Verify power supply and PCB voltage outputs for accuracy and stability | Completed | |
| Inspect display for dim or dead pixels; replace any compromised segments | Completed | |
| Test full functionality of speed, time, and start/stop buttons | Completed | |
| Confirm proper bidirectional rotation of the pump head | Completed | |
| Examine all internal wiring for secure and intact connections | Completed | |
| Inspect pump head for blockages or obstructions | Completed | |
| Confirm fan functionality, replacing if performance is suboptimal | Completed | |
| Inspect and clean internal casing to maintain optimal conditions | Completed | |
| Verify RPM of pump head using a NIST-traceable tachometer | Completed | |
| Conduct cosmetic inspection to ensure all surfaces meet quality standards | Completed |
