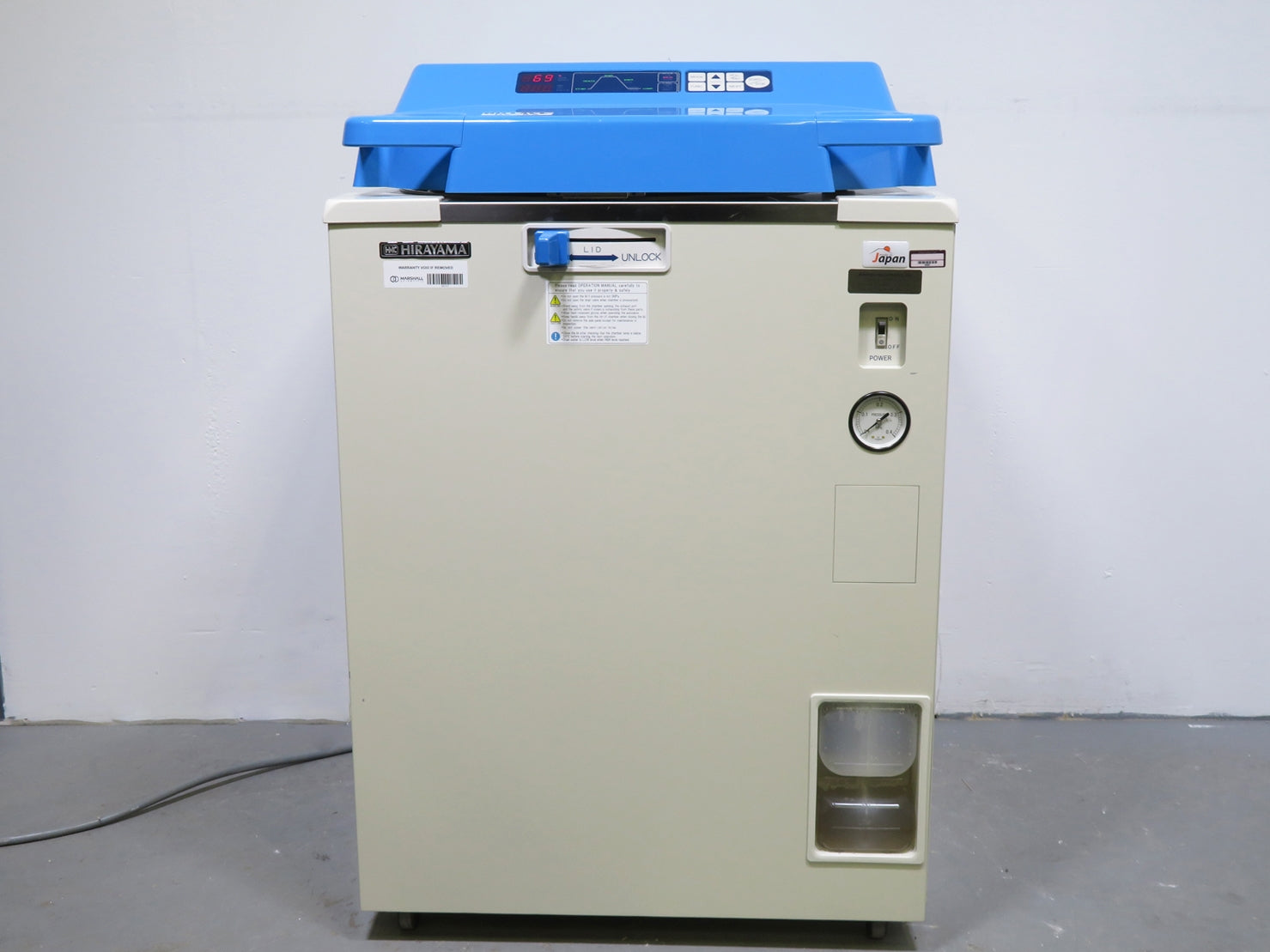

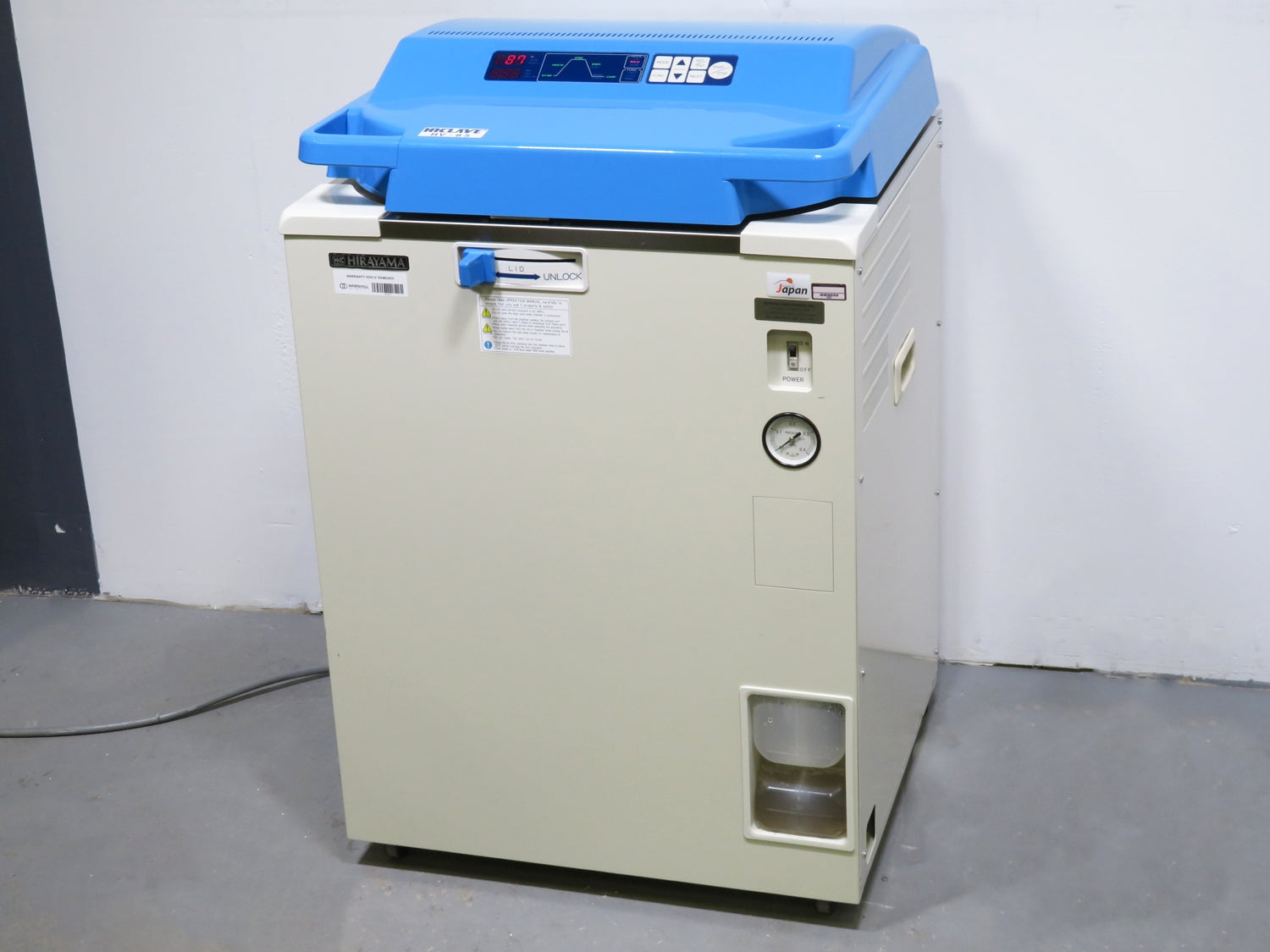

Hirayama HICLAVE HV-85 Floor-Standing Autoclave, 208/200/240V
Chamber Volume
85L (22 gal.)
Temperature Range
105°C to 135°C

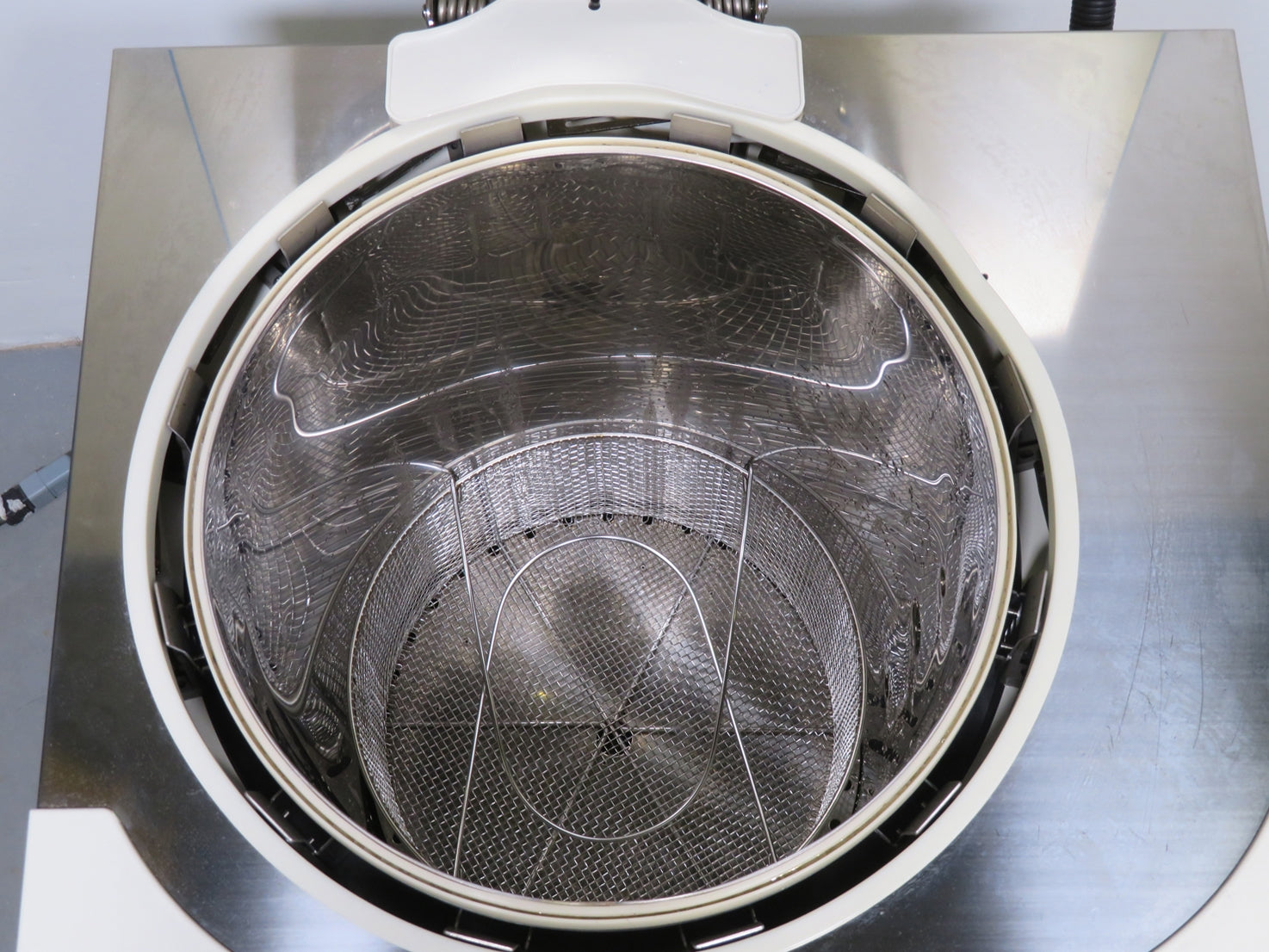

Chamber Dimensions (Diameter x Height)
16.5 x 24.2 in. (42.0 cm x 61.5 cm)
Features

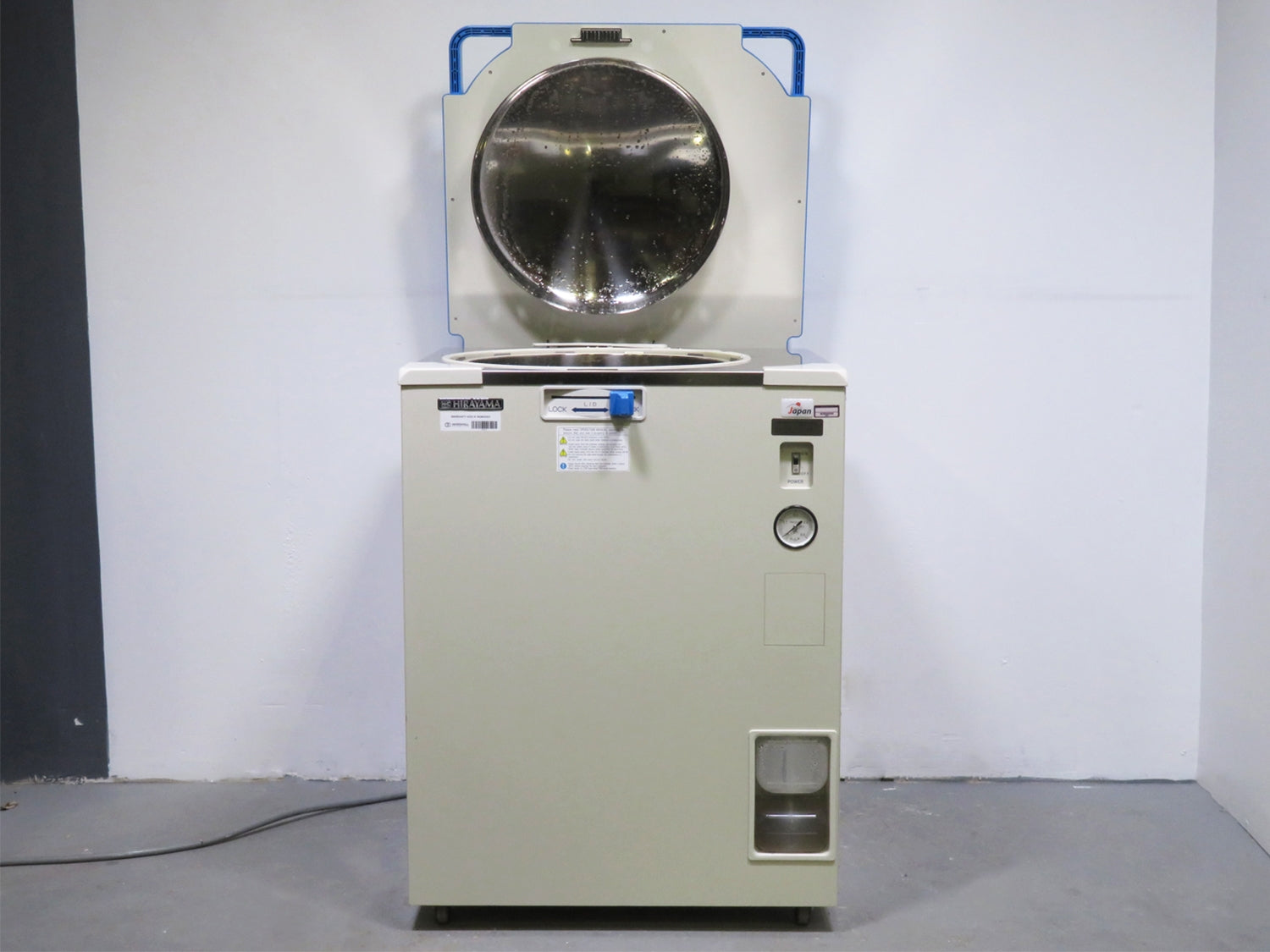

- Space-saving design with lid opening upward
- Agar sterilization mode for sterilizing agar and then automatically maintaining it at liquid temperature
- Dual-sensing lid interlock prevents lid opening when chamber is pressurized or when temperature exceeds 97°C
- Agar melting mode for melting agar and maintaining it at liquid temperature, or for a hot, faster start-up

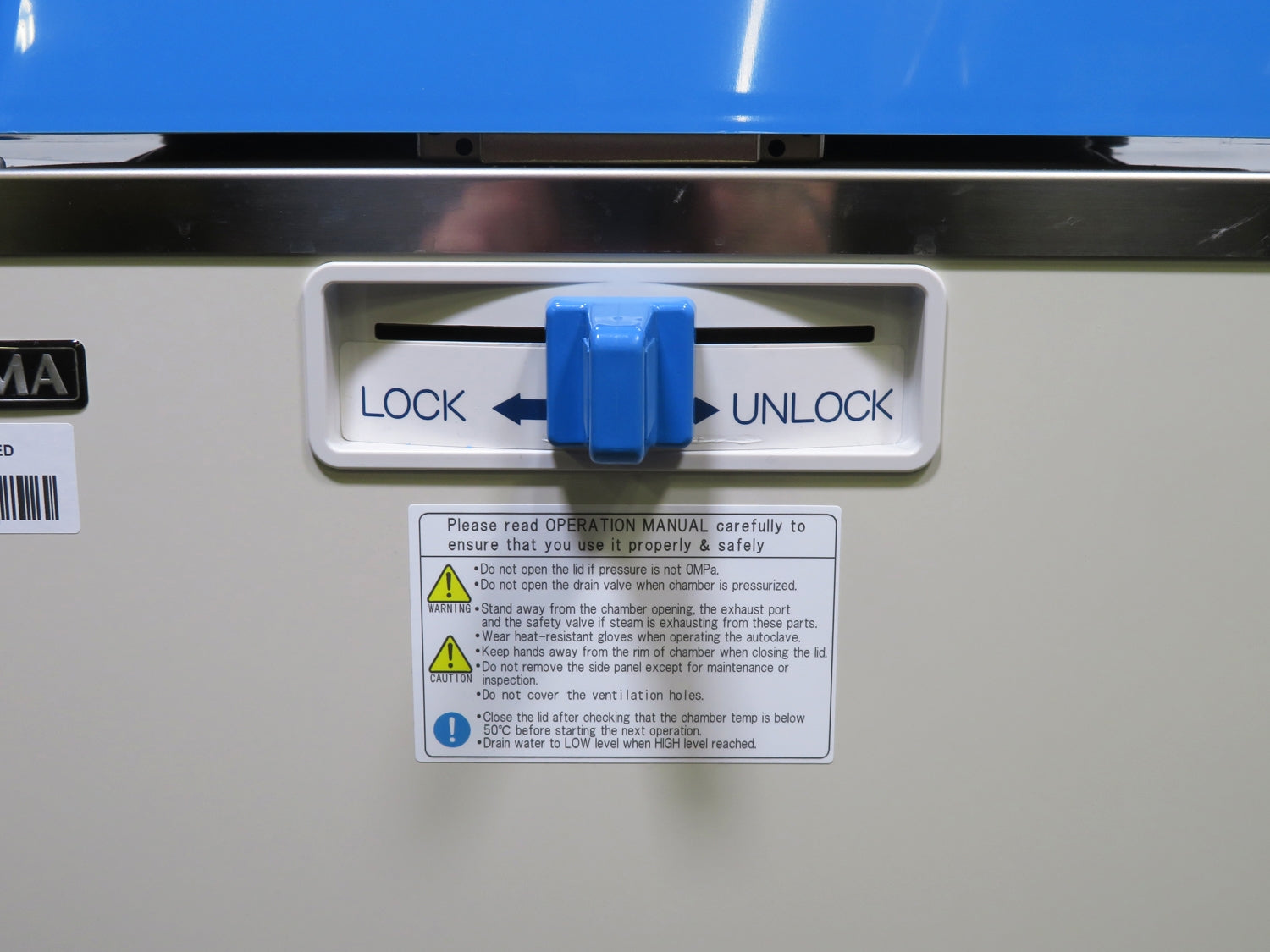

- One-touch lever to easily open and close chamber lid

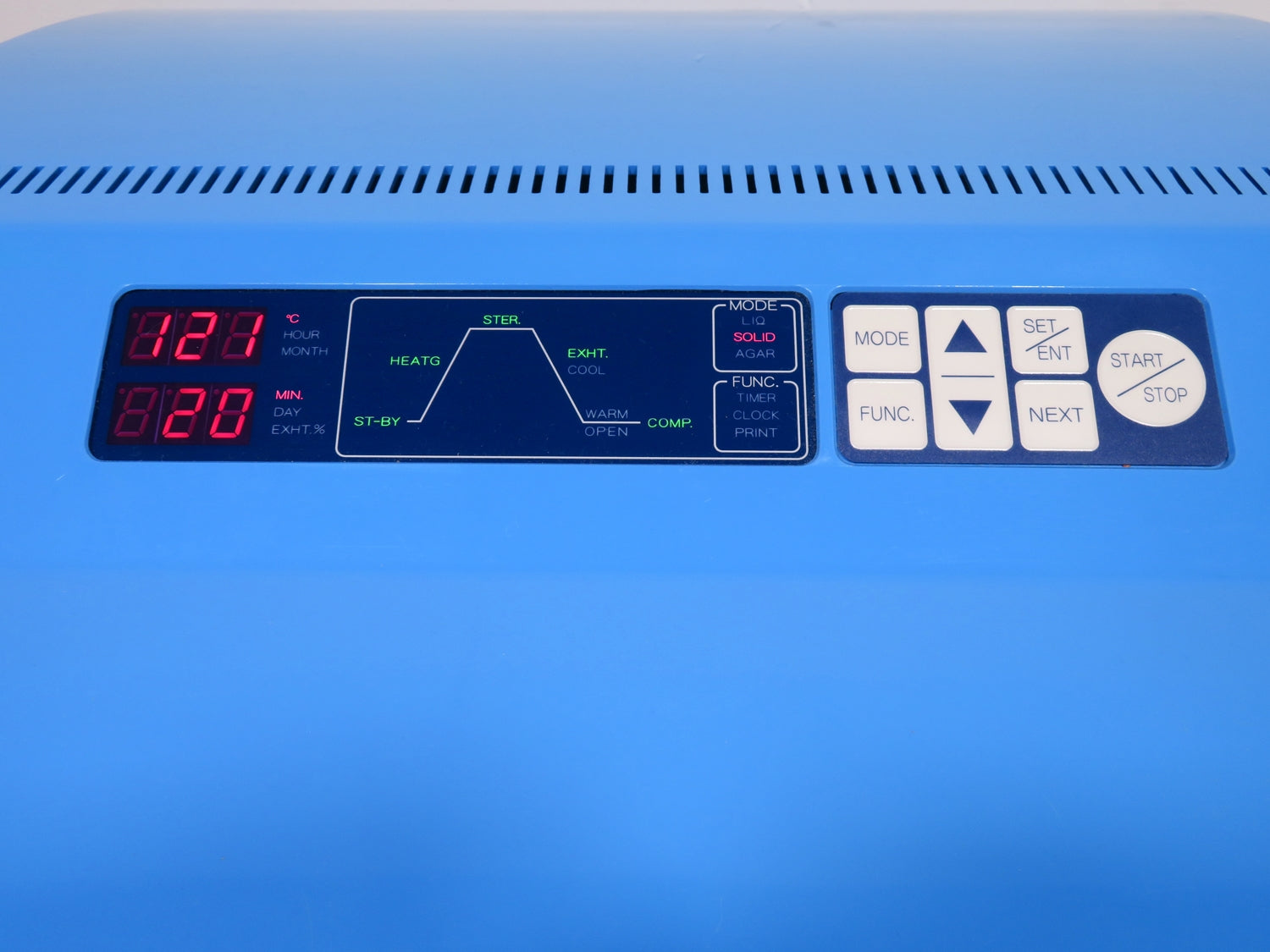

- In-process display shows the status and the progress of sterilization cycle
- Door-closure sensor provides a prompt and the cycle will not start unless the door is closed properly
User convenience is enhanced with a space-saving top-opening lid, a one-touch lever for easy chamber access, and a real-time in-process display showing cycle progress. A delayed auto-start timer allows scheduling from 1 minute to 7 days in advance, and sterilization times are programmable from 1 to 250 minutes. Advanced safety features include a dual-sensing lid interlock, multiple power cutoffs, pressure relief valves, and a lid-closure sensor that prevents cycle initiation unless properly sealed. Built for reliability and user safety, the HV-85 is ideal for labs needing high-volume, programmable sterilization in a compact footprint.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Hirayama HICLAVE HV-85 Floor-Standing Autoclave, 208/200/240V includes:
The Hirayama HICLAVE HV-85 Floor-Standing Autoclave, 208/200/240V includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts & Labor Warranty
Hirayama HICLAVE HV-85 Floor-Standing Autoclave, 208/200/240V Specifications
| Chamber Volume |
85L (22 gal.)
|
| Temperature Operating Range |
105°C to 135°C
|
| Temperature Display Range |
10°C to 137°C
|
| Temperature Warming Range |
45°C to 60°C
|
| Temperature Agar Dissolution |
Heating at 60°C to 100°C for up to 1 hour (temperature and time programmable), followed by 45°C to 60°C
(programmable for up to 20 hours to prevent coagulations) |
| Gauge Pressure Operating Range |
3 to 30 psi (0.021 to 0.206MPa)
|
| Gauge Pressure Maximum Allowable |
38 psi ( 0.26MPa)
|
| Sterilization Timer |
1 to 250 minutes
|
| Delayed Auto-Start Timer |
Program autoclave to start 1 minute to 7 days later
|
| Dimensions Overall (W x D x H) |
26.0 x 25.6 x 39.4 in.
(66 x 65 x 100 cm) |
|
Dimensions Chamber
(Diameter x Height) |
16.5 x 24.2 in. (42.0 cm x 61.5 cm)
|
| Safety Devices |
Dual-sensing lid interlock, over-pressure power cutoff, over-temperature power cutoff, low-water power cutoff, mechanical pressure relief valve, microprocessor-controlled pressure relief valve, lid-closure detector, over-current detector and circuit breaker
|
| Programs for Agar |
Heating -> Sterilization -> Exhaust (from no exhaust to slow, programmable) -> Warming -> Completion
|
| Programs for Liquids |
Heating -> Sterilization -> Exhaust (from no exhaust to slow, programmable) -> Completion
|
| Programs for Solids |
Heating -> Sterilization -> Exhaust (fast, default) -> Completion
|
| Programs for Melting Agar or for Faster Start-Up |
Rapid melting at 60°C to 100°C (temperature and time programmable) -> Maintain at 45°C to 60°C (temperature programmable) -> Completion
|
| Weight |
282 lb. (128 kg)
|
| Electrical Requirements |
208V/220V/240V, 50/60 Hz, single phase, 3000W
|
Autoclave Inspection and Recertification Checklist
- Verify power supply output to ensure precise voltage delivery as per equipment specifications
- Check full display functionality, replacing any dead or dim pixels for optimal clarity
- Confirm unit is level to maintain stability and accurate operational performance
- Inspect door seal integrity, replacing if any wear or damage compromises airtight performance
- Examine and clean both external and internal filters to ensure unobstructed airflow and system efficiency
- Execute comprehensive cycle testing to validate consistent operation
- Verify printer functionality (if applicable) to ensure precise print outputs without error
- Assess internal plumbing system for any leaks or pressure inconsistencies
- Inspect all electrical connections and wiring for secure attachment and optimal conductivity
- Verify functionality of internal switches to ensure reliable engagement and operational control
- Inspect and clean the water reservoir to maintain purity and prevent contamination
- Confirm accuracy of pressure readings, recalibrating if deviations are identified
- Perform final test cycles, ensuring zero errors for validated operational readiness
Technician Inspection and Recertification Checklist: Autoclaves
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Verify power supply output voltages | Completed | |
| Check display functionality and replace dead/dim pixels | Completed | |
| Confirm unit leveling for stability | Completed | |
| Inspect and replace damaged door seal | Completed | |
| Clean external and internal filters for airflow efficiency | Completed | |
| Conduct comprehensive cycle testing | Completed | |
| Confirm printer functionality (if applicable) | Completed | |
| Assess plumbing for leaks or pressure issues | Completed | |
| Inspect electrical connections for secure and optimal conductivity | Completed | |
| Verify internal switch functionality | Completed | |
| Inspect and clean water reservoir | Completed | |
| Confirm pressure reading accuracy and recalibrate if needed | Completed | |
| Perform final test cycles with zero errors | Completed |
