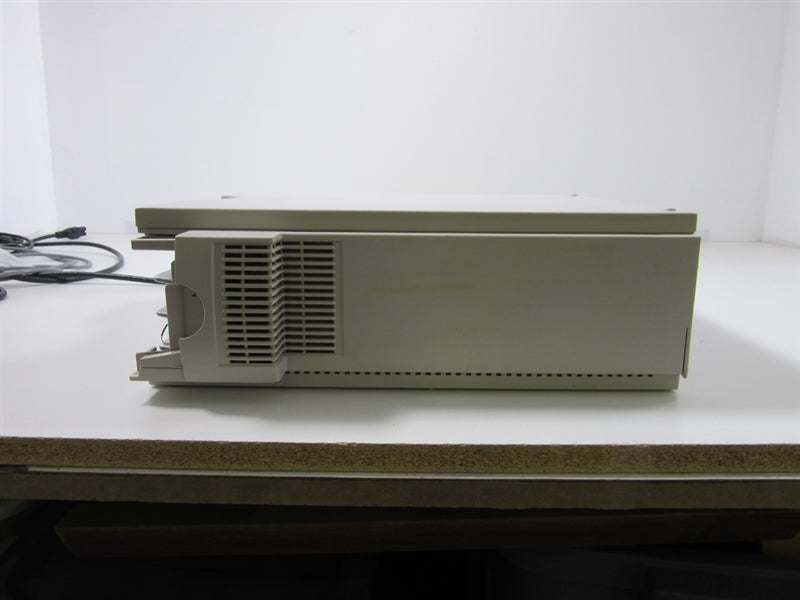

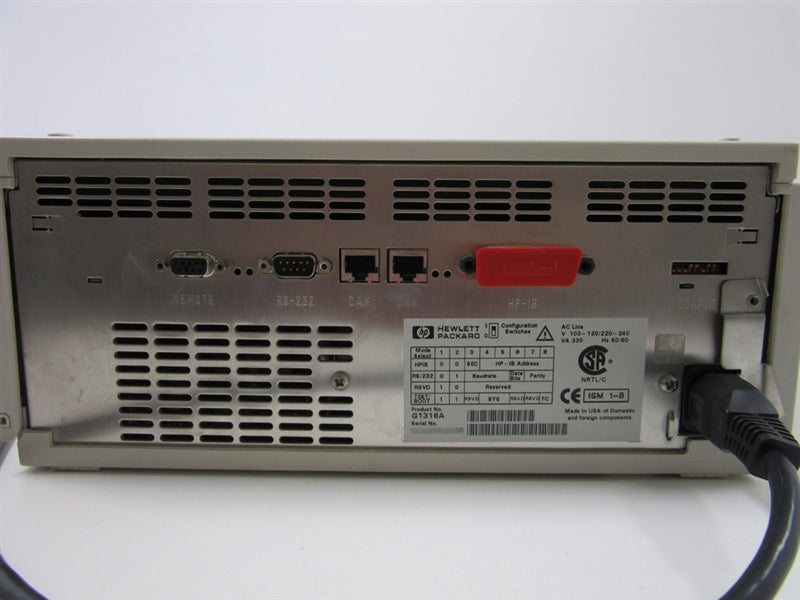

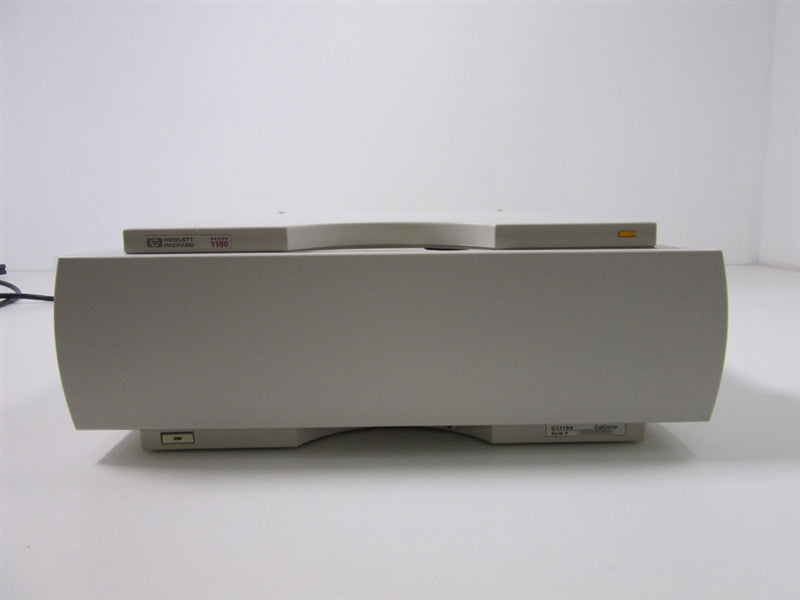

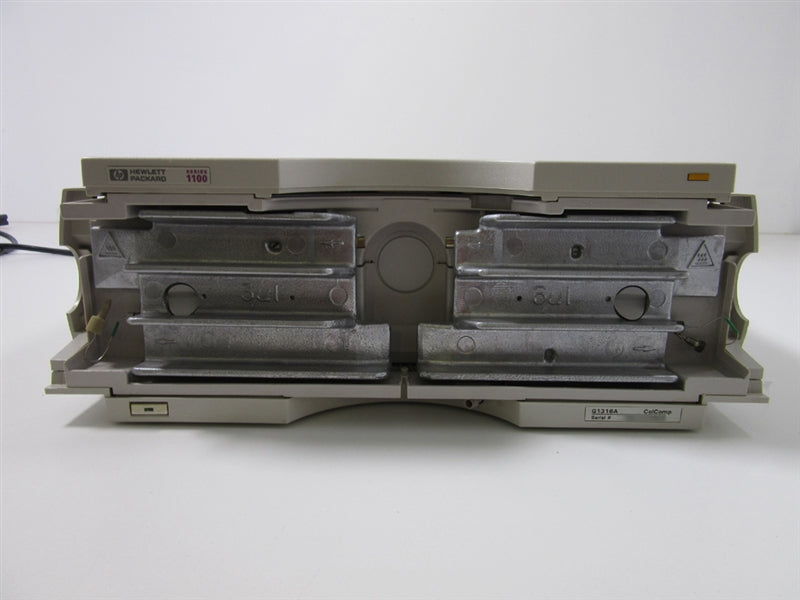

HP Agilent 1100 HPLC G1316A Column Compartment

The HP Agilent 1100 G1316A Colcom thermosstatted column compartment is built with two heat exchangers for solvent pre-heating, automated column identification module and CAN cable. The compartment’s compact size conveniently fits into a single Agilent 1100 Series HPLC stack. The G1316A offers a temperature range of 10° below ambient to 80° C and temperature stability of ± 0.15°C. The HP Agilent G1316A has a column capacity of three 30 centimeter columns and can utilize a temperature accuracy of ± 0.8°C. The warm up/cool down of the G1316A is 5 mins from ambient to 40°C. Peltier heating and cooling allows for high heating and cooling speeds for maximum flexibility and stability.

HP Agilent 1100 HPLC G1316A Column Compartment Specifications

Temperature Range	10° below ambient to 80° C
Temperature Stability	± 0.15°C
Temperature Accuracy	± 0.8°C
Column Capacity	Three 30cm columns
Warm-up/Cool Down	5 mins from ambient to 40°C
Dead Volume	3 ul left heat exchanger 6 ul right heat exchanger
Dimensions (H x W x D)	5.5 x 16 x 17 in (14 x 41 x 43.5 cm)

HP Agilent G1316A Operator's Manual

Click Here to View all the Technical Specs for the G1316A Column Compartment
