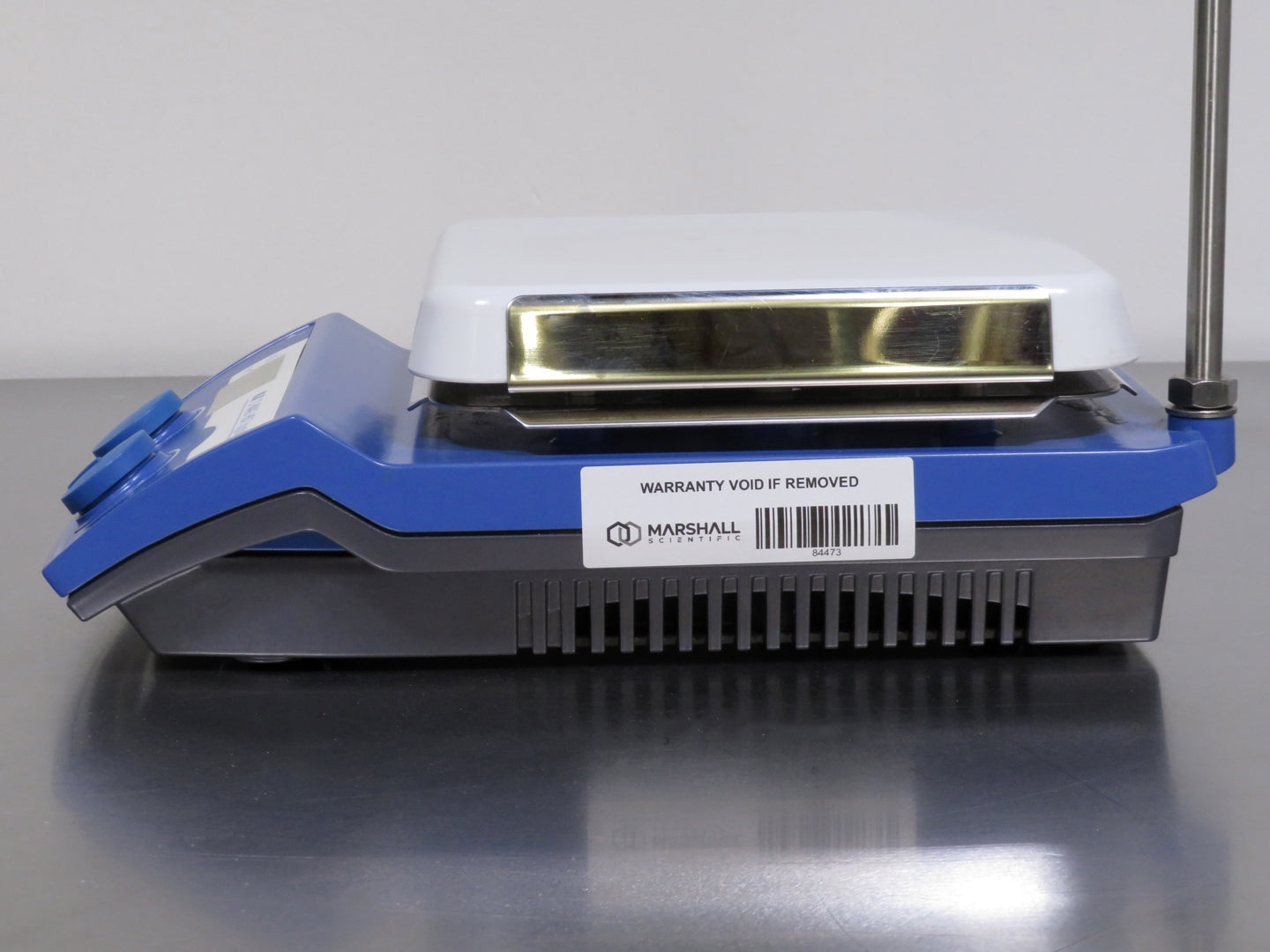

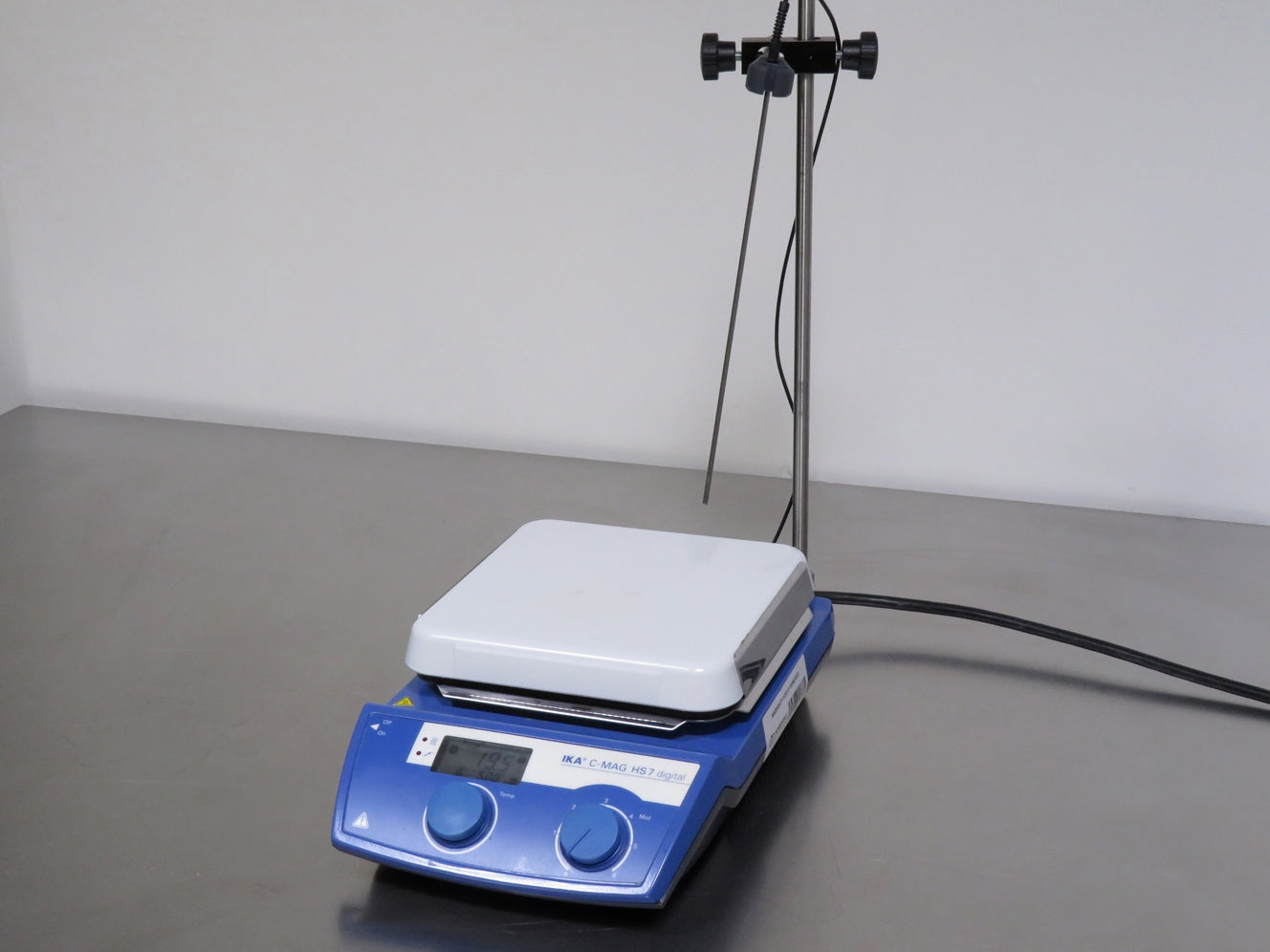

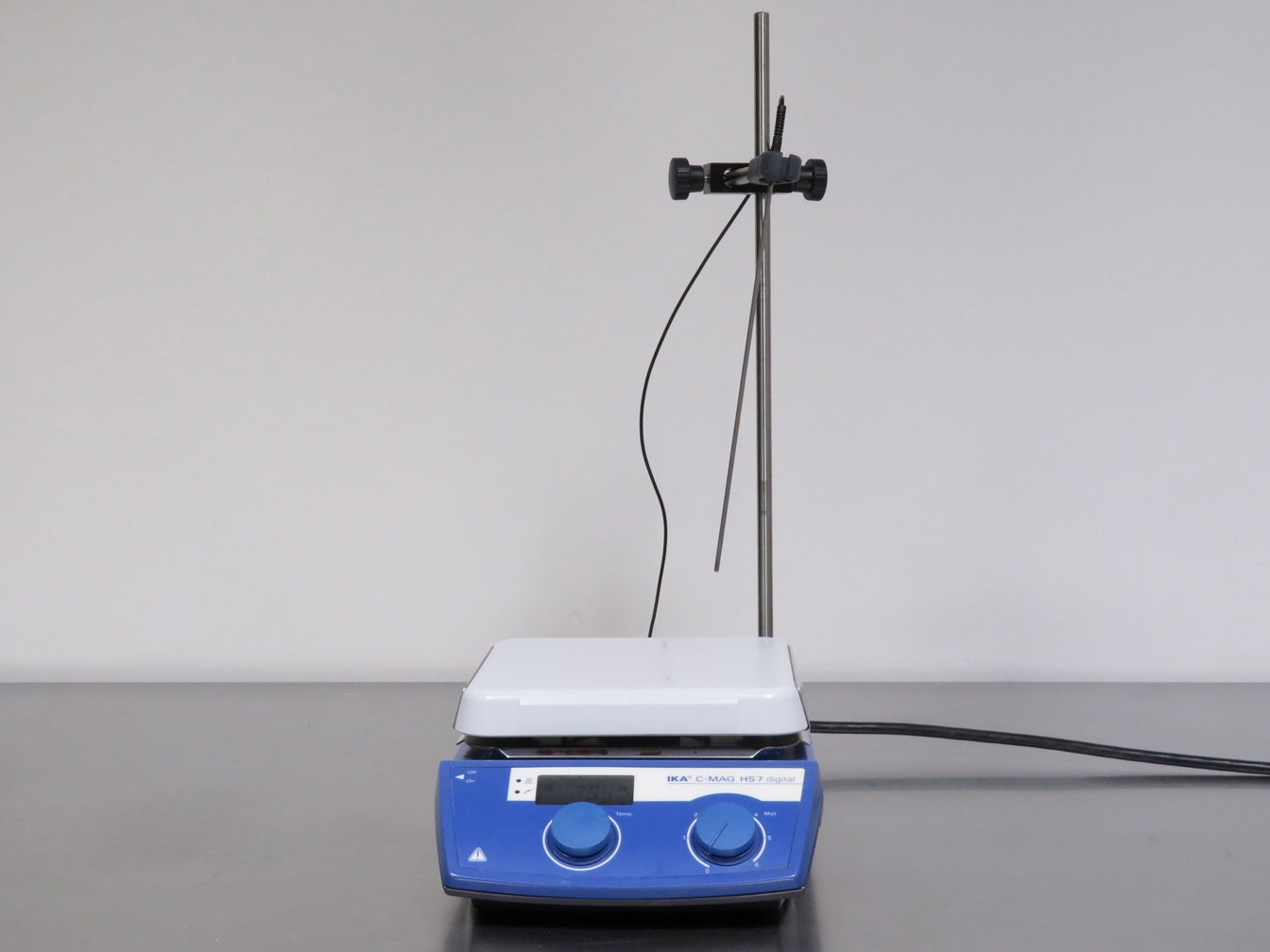

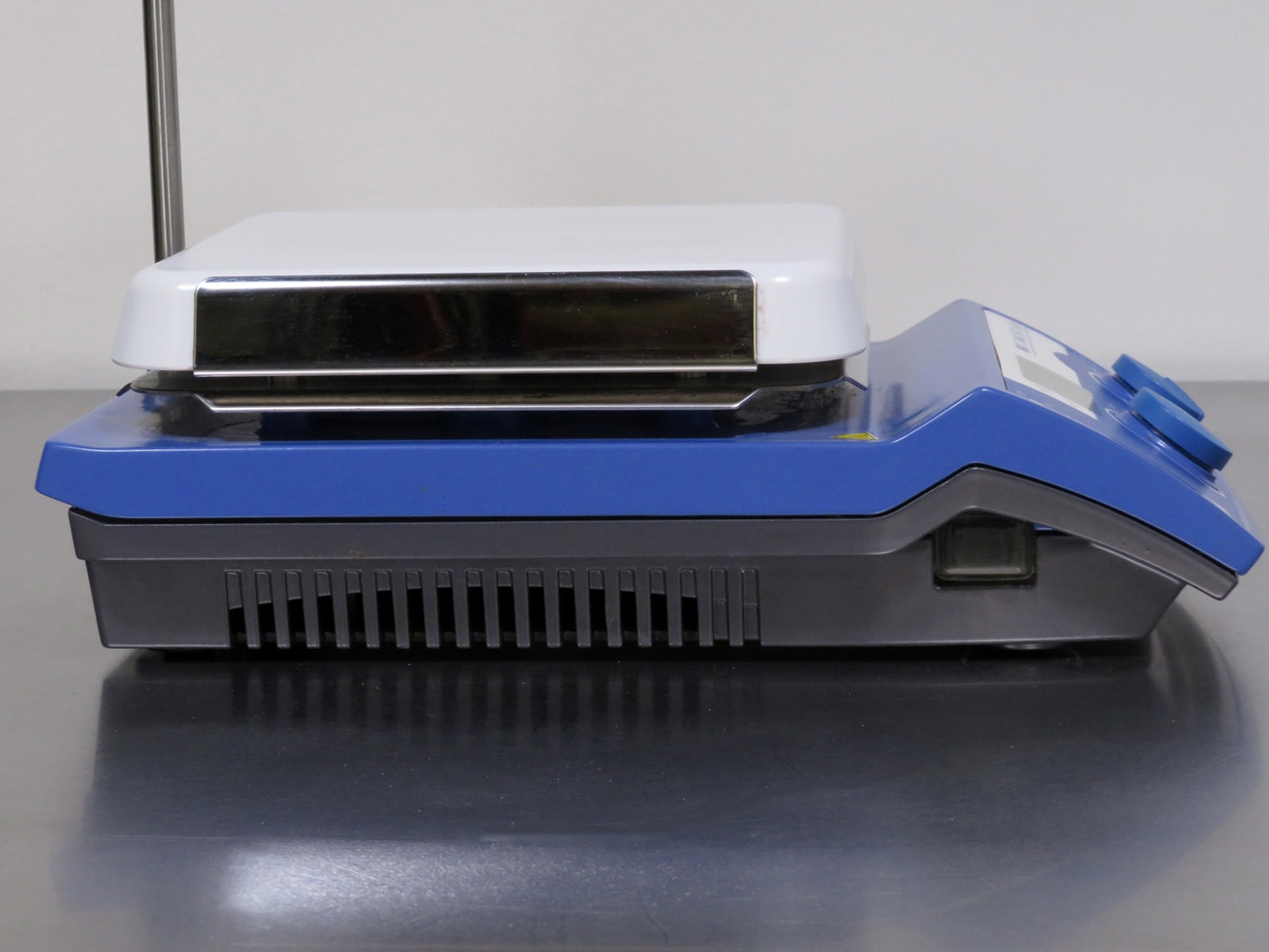

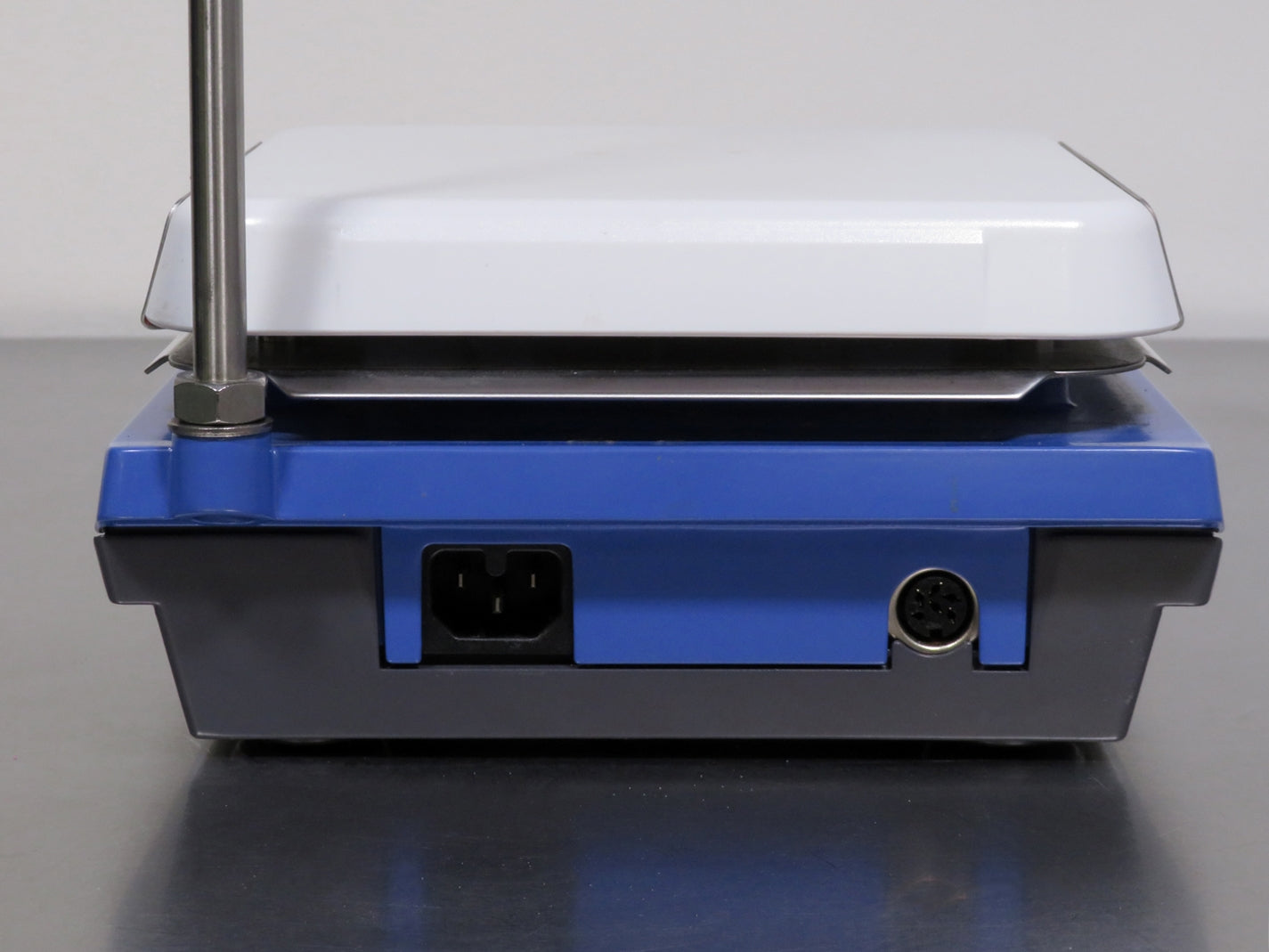

IKA C-MAG HS 7 Digital Hotplate Stirrer
Temperature Range
50 to 500°C
Stirrer Speed
100 to 1,500 RPM
Platform Size
7.1 x 7.1 in (18 x 18 cm)
Features
- Powerful motor for stirring quantities of up to 10 l (H2O)

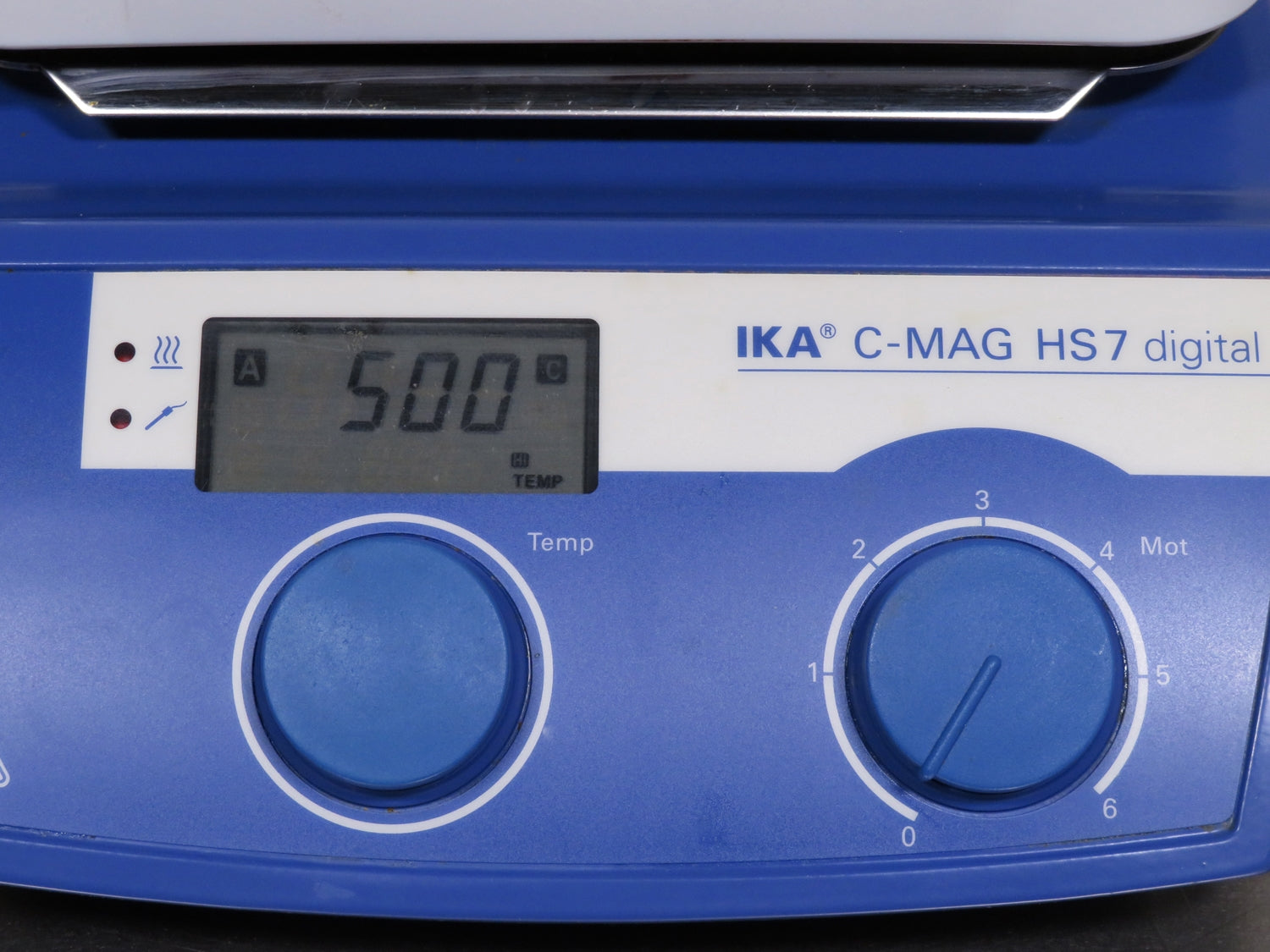

- Simultaneous digital display of target and actual temperatures via LCD display
- Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
- Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
- Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
- 3 operating modes to choose (standard, safe, adjustment protection)
- Fixed safety circuit of 550°C
- Hot surface warning to prevent burns
- Digital error code display
- Elevated control panel for protection against leaking liquids
All of our equipment will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The IKA C-MAG HS 7 Digital Hotplate Stirrer includes:
The IKA C-MAG HS 7 Digital Hotplate Stirrer includes:
- > Temperature Probe
- > Support Stand
- > Operator's Manual
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
IKA C-MAG HS 7 Digital Hotplate Stirrer Specifications
| Temperature Range | 50 to 500°C |
| Stirrer Speed | 100 to 1,500 RPM |
| Max. Stirring Volume | 10L |
| Platform Size | 7.1 x 7.1 in (18 x 18 cm) |
| Plate Material | Ceramic |
| Weight | 11 lb. (5 kg) |
| Dimensions (W x D x H) | 7.1 x 10 x 4.8 in. (21.5 x 33 x 10.5 cm) |
| Electrical Requirements | 120V, 60Hz, 1020W |
Inspection and Recertification Checklist
- Inspect the display for clarity and brightness, replacing any dim or dead pixels to ensure optimal performance.
- Examine external regulators for structural integrity and damage, replacing if necessary (if applicable).
- Assess the functionality of temperature, COâ‚‚, and Hâ‚‚O sensors, verifying accuracy and consistency (if applicable).
- Check all internal wiring for frays, tears, or breakages, addressing any compromised sections.
- Confirm software settings are properly configured to match the specifications of internal components.
- Inspect and clean the fan for efficient airflow, replacing if wear or malfunction is detected.
- Verify the condition of wheels and leveling mounts, ensuring stability and ease of movement.
- Inspect door gaskets and latches for sealing integrity, replacing if compromised to maintain proper enclosure.
- Calibrate temperature accuracy to 37°C using an NIST-traceable temperature probe for precision.
- Calibrate COâ‚‚ levels to 5% using a Fyrite combustion test kit to verify environmental control (if applicable).
- Confirm temperature and COâ‚‚ stability over a 24-hour period to ensure consistent conditions.
- Conduct a cosmetic inspection, verifying the unit meets appearance and cleanliness standards.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect display for clarity and replace if needed | Completed | |
| Examine external regulators for integrity and damage | Completed | |
| Assess temperature, COâ‚‚, and Hâ‚‚O sensors for accuracy | Completed | |
| Check internal wiring for frays, tears, or breakages | Completed | |
| Confirm software settings match internal component specs | Completed | |
| Inspect and clean fan, replacing if wear is detected | Completed | |
| Verify condition of wheels and leveling mounts | Completed | |
| Inspect door gaskets and latches for sealing integrity | Completed | |
| Calibrate temperature to 37°C with NIST-traceable probe | Completed | |
| Calibrate COâ‚‚ to 5% with Fyrite combustion test kit | Completed | |
| Confirm 24-hour temperature and COâ‚‚ stability | Completed | |
| Conduct cosmetic inspection to ensure appearance standards | Completed |
