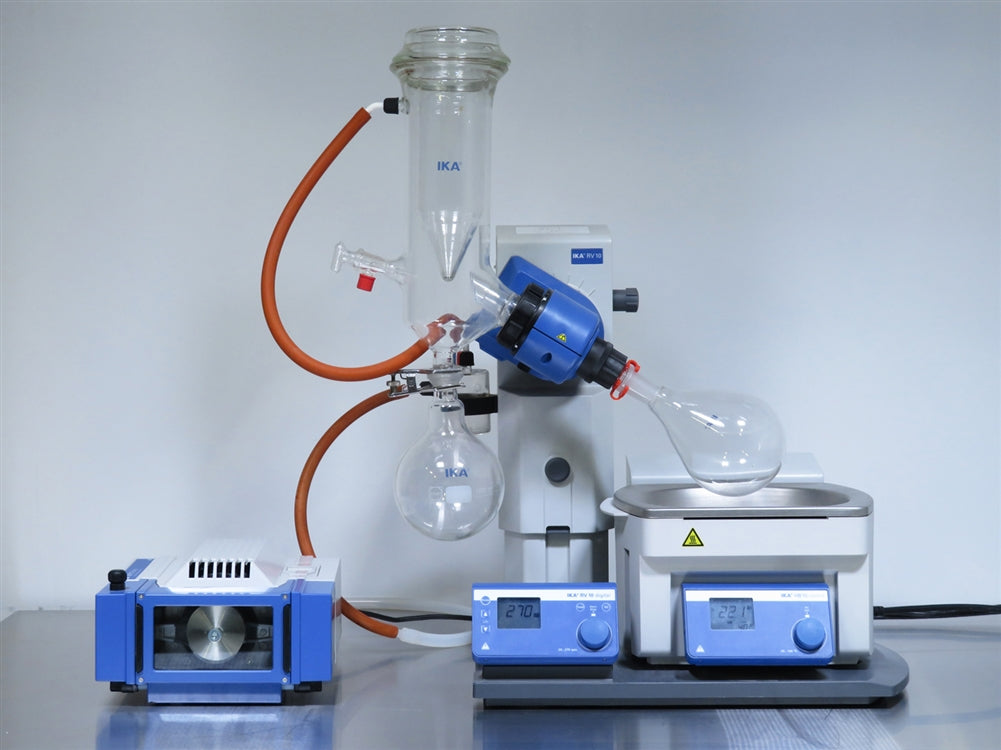

IKA RV 10 Digital Rotary Evaporator System
Maximum Flask Size
3L
Rotation Speed Range
20 to 270 RPM
Temperature Range
Ambient to 180°C
Features

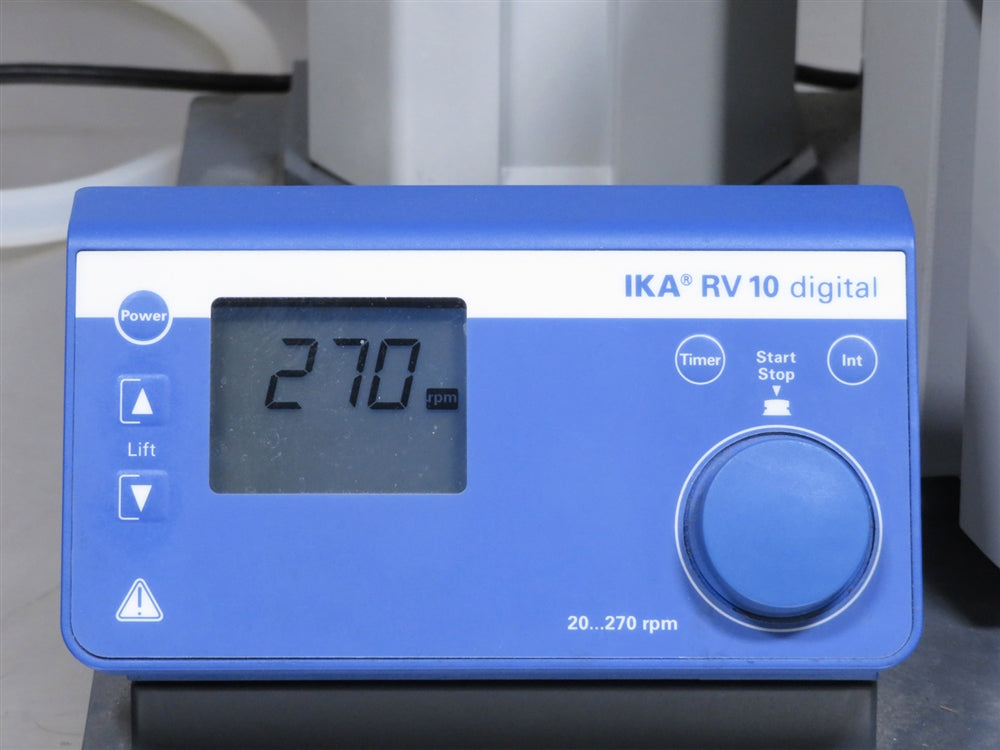

- Digital display provides clear, real-time feedback of rotation speed for precise control
- Motorized lift with 140 mm stroke displacement and 60 mm contact-free end stop enables safe, repeatable positioning

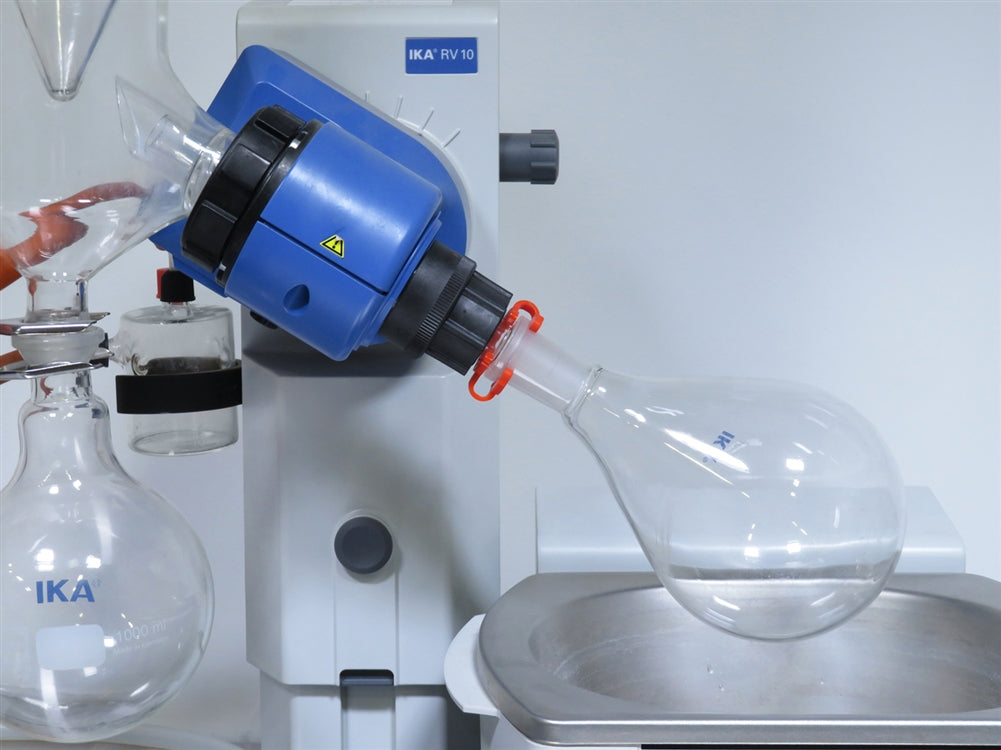

- Adjustable evaporating head angle from 0° to 45° for flexibility in setup and solvent recovery
- Brushless DC motor delivers quiet, efficient, and low-maintenance operation
- Smooth start function reduces sample bumping and foaming during operation

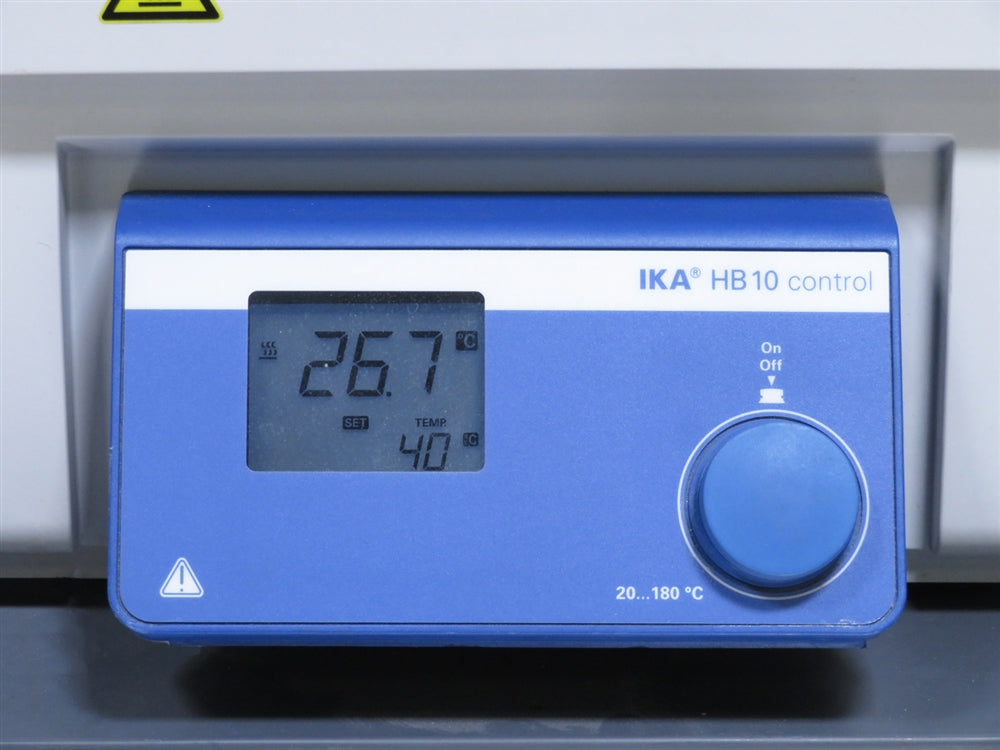

- HB 10 Control Heating Bath offers 1300W heating capacity with microcontroller-based precision control

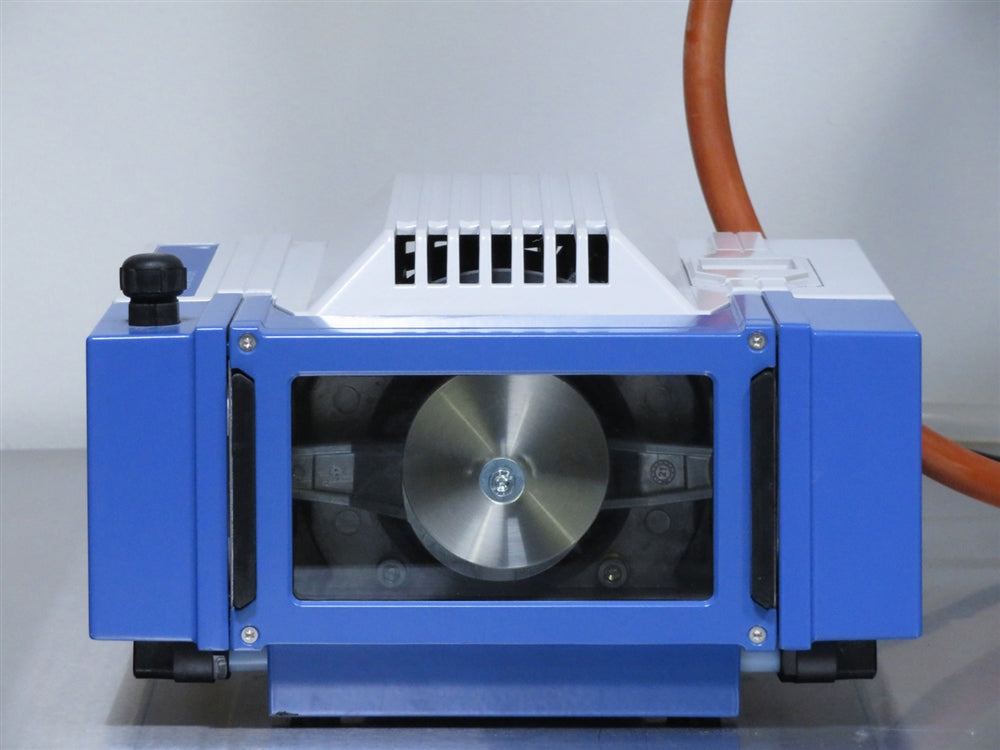

- VACSTAR Vacuum Pump features 1.32 m³/h flow rate and ultimate vacuum of 2 mbar for efficient solvent removal
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The IKA RV 10 Digital Rotary Evaporator System includes:
The IKA RV 10 Digital Rotary Evaporator System includes:
- > IKA VACSTAR Vacuum Pump
- > IKA HB 10 Digital Heating Bath

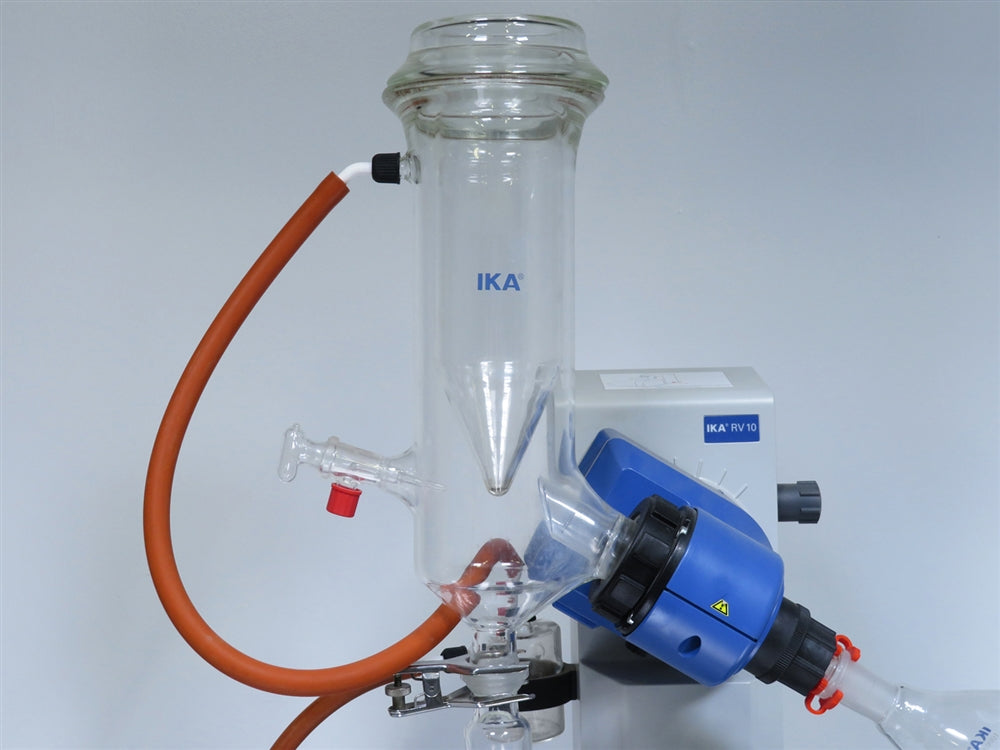

- > IKA RV 10.4 Dry Ice Condenser

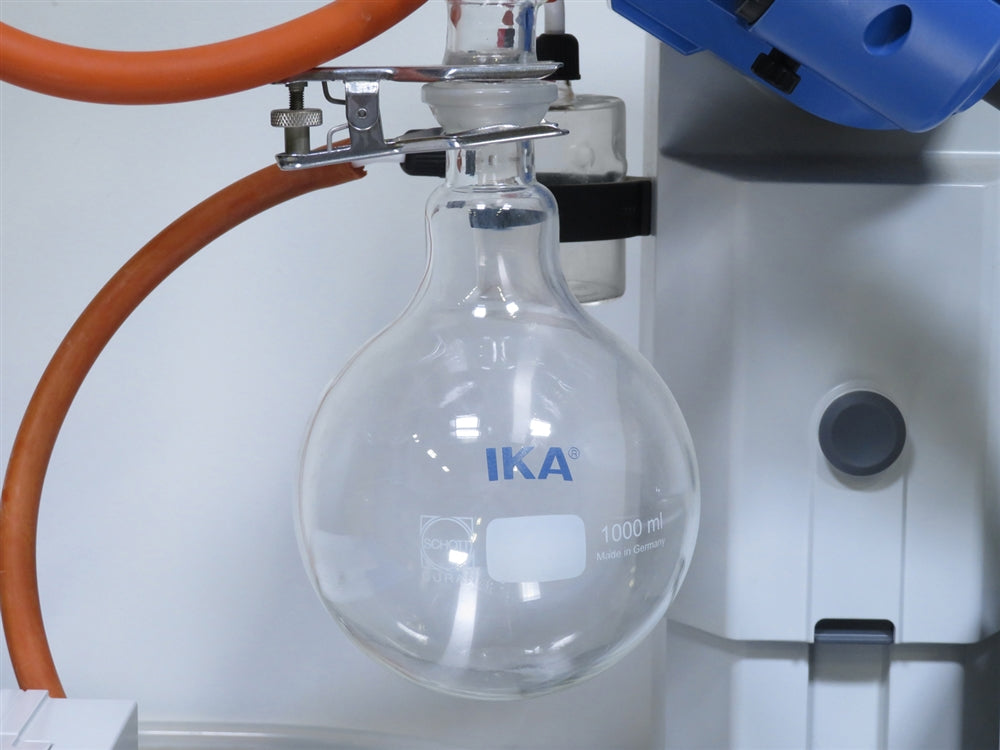

- > 1 Liter Receiving Flask
- > 1 Liter Evaporating Flask
- > Woulff Bottle
- > All Necessary Power Cords, Tubing, and Connectors
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
IKA RV 10 Digital Rotary Evaporator System Specifications
|
|
|
|
Maximum Flask Size |
3L |
|
Rotation Speed Range |
20 to 270 RPM |
|
Temperature Range |
Ambient to 180°C |
|
Condenser |
Dry Ice Condenser |
| Rotation Speed Display | Digital |
| Stroke Displacement | 140mm, motorized lift |
| Lower End Stop Setting | 60mm, contact-free |
| Head Angle Adjustability | 0° to 45° |
|
Motor Type |
Brushless DC Drive Motor |
|
Motor Rating Input |
50W |
|
Smooth Start |
Yes |
| Electrical Requirements | 100-240V, 50/60Hz, 75W |
|
|
|
|
Heating Capacity |
1,300W |
|
Temperature Range |
Ambient to 180°C |
| Temperature Accuracy |
1K |
|
Control Deviation |
± 1K |
|
Controller |
Microcontroller |
| Capacity | 3L Flask |
|
|
|
|
Flow Rate |
1.32 m^3/h (22 L/min) |
|
Ultimate Vacuum |
2 mbar |
|
Power Input |
130W |
| Weight | 25.4 lbs (11.5 kg) |
| Dimensions (W x H x D) | 5.9 x 14.7 x 14.5 in (15 x 37.5 x 37 cm) |
Rotary Evaporator Inspection and Recertification Checklist
- Inspect all glassware for chips or cracks, reapplying vacuum grease to stopcocks to ensure a secure seal
- Examine displays, replacing any dim or dead pixels to maintain clear visibility
- Verify drive motor RPM using a tachometer for accurate rotational speed
- Confirm the ease of raising and lowering the tower, lubricating as needed for smooth operation
- Check the Woulff bottle for any leaks or structural breakages, ensuring airtight performance
- Disassemble and inspect the vacuum pump, cleaning and replacing seals or components as necessary
- Inspect internal wiring for each component, checking for any frays, cuts, or potential breakages
- Examine all hoses, hose barbs, and seals for signs of wear or leaks, ensuring integrity
- Inspect the vapor duct seal and replace if compromised to maintain vacuum efficiency
- Verify and calibrate the vacuum controller for accurate pressure regulation
- Confirm all hoses and cables are securely fastened to prevent disconnections or leaks
- Check heat bath temperatures against settings to ensure precise thermal control
- Confirm the final system vacuum level meets manufacturer specifications
- Ensure cosmetic condition meets standards, with no damage impacting function or appearance
Technician Inspection and Recertification Checklist: Rotary Evaporators
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect all glassware for chips or cracks, apply vacuum grease to stopcocks | Completed | |
| Examine displays and replace dim/dead pixels | Completed | |
| Verify drive motor RPM with tachometer | Completed | |
| Confirm ease of raising/lowering tower, lubricate if needed | Completed | |
| Check Woulff bottle for leaks or structural issues | Completed | |
| Disassemble and inspect vacuum pump, clean/replace parts as needed | Completed | |
| Inspect internal wiring for frays, cuts, or breakages | Completed | |
| Examine hoses, hose barbs, and seals for leaks | Completed | |
| Inspect vapor duct seal, replace if compromised | Completed | |
| Verify and calibrate vacuum controller | Completed | |
| Confirm hoses and cables are securely fastened | Completed | |
| Check heat bath temperatures for accurate control | Completed | |
| Confirm final system vacuum level meets specifications | Completed | |
| Ensure cosmetic condition meets standards | Completed |
