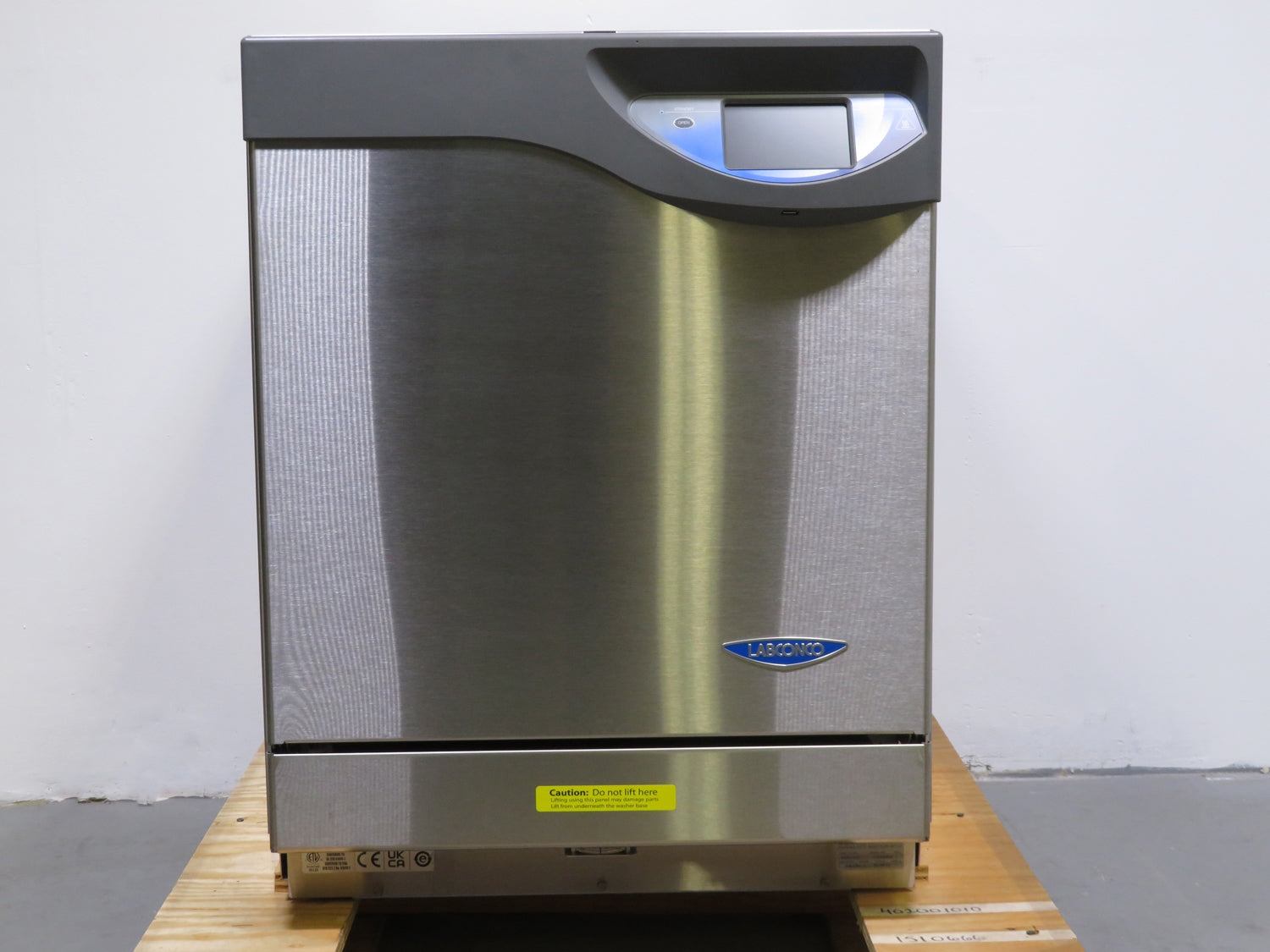

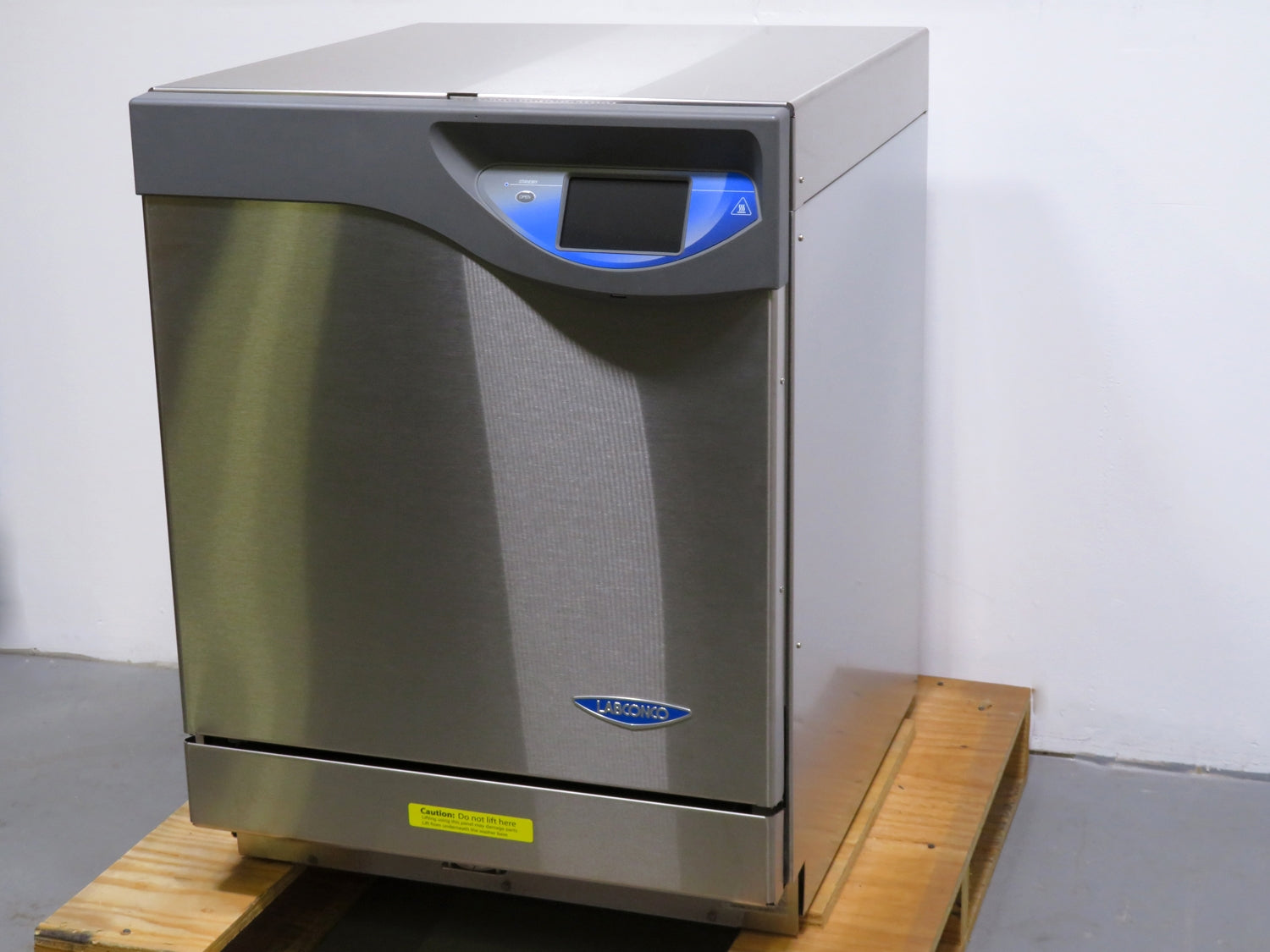

Labconco 402001010 SteamScrubber Glassware Washer, Freestanding, 208/230V
Maximum Fill Water Temperature
93°C / 199°F
Drain Pump
4.2 gal/min (16 L/min)
Drying Temperature Range
25 to 80°C / 77 to 176°F
Features
- Designed for washing and drying wide-mouth and general-purpose labware
- Equipped with a 5" touchscreen featuring CleanWorks OS for full user control

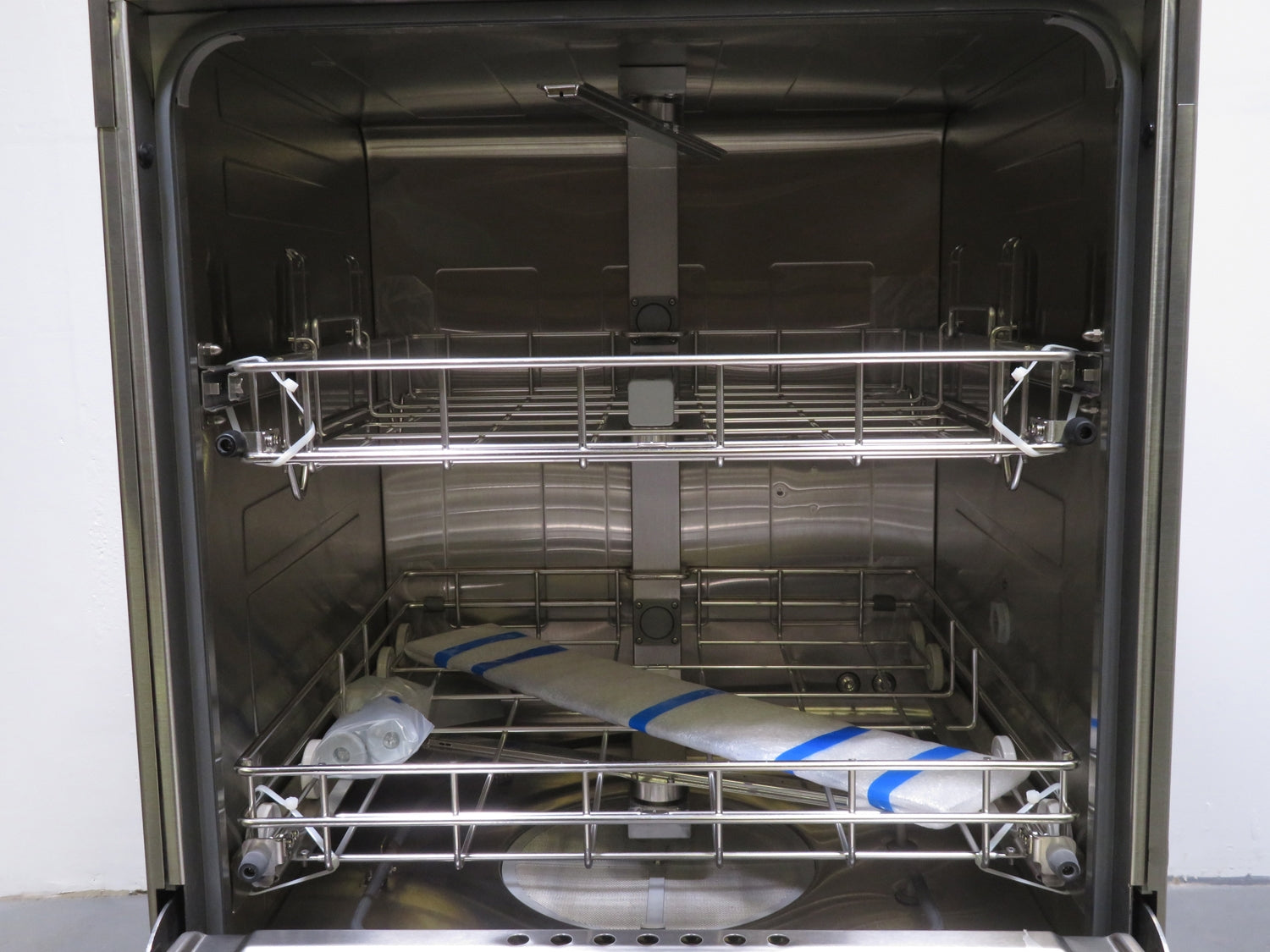

- Standard stainless steel upper and lower racks accommodate various basket inserts
- Constructed with durable Type 304 stainless steel for long-term reliability
- Programmable wash parameters with up to 9 factory-set programs and 200 user-defined options
- Electronic door latch with SpeedVent Technology for enhanced efficiency
- Operates quietly at or below 62 dB(A) for minimal lab disruption
- Complies with CAN/CSA C22.2, CE, ETL, and UL standards
- Freestanding design with ADA-compliant height adjustability
Featuring CleanWorks OS, this washer offers a 5-inch full-color touchscreen interface for complete control over wash parameters. Users can select from nine factory-set programs or create up to 200 user-defined programs to tailor the cleaning process to specific needs. The forced air drying system, programmable up to 240 minutes, ensures glassware is dried thoroughly at temperatures ranging from 25 to 80°C (77 to 176°F). With additional features such as an electronic door latch with SpeedVent Technology for faster drying, and a pump rated at 112 gal/min for reliable washing performance, the SteamScrubber is built to handle the demands of a modern laboratory. This unit has electrical requirements of 208/230V, 50/60 Hz. If you have a different voltage requirement, please inquire. This unit is unused and fully tested.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Labconco 402001010 SteamScrubber Glassware Washer, Freestanding, 208/230V includes:
The Labconco 402001010 SteamScrubber Glassware Washer, Freestanding, 208/230V includes:
- > Lower Spindle Rack w/ Glassware Holders
- > Small Spindle Accessory Kit
- > Leveling Feet x 4
- > Screws x 2
- > Hose Clamp
- > Drain Hose

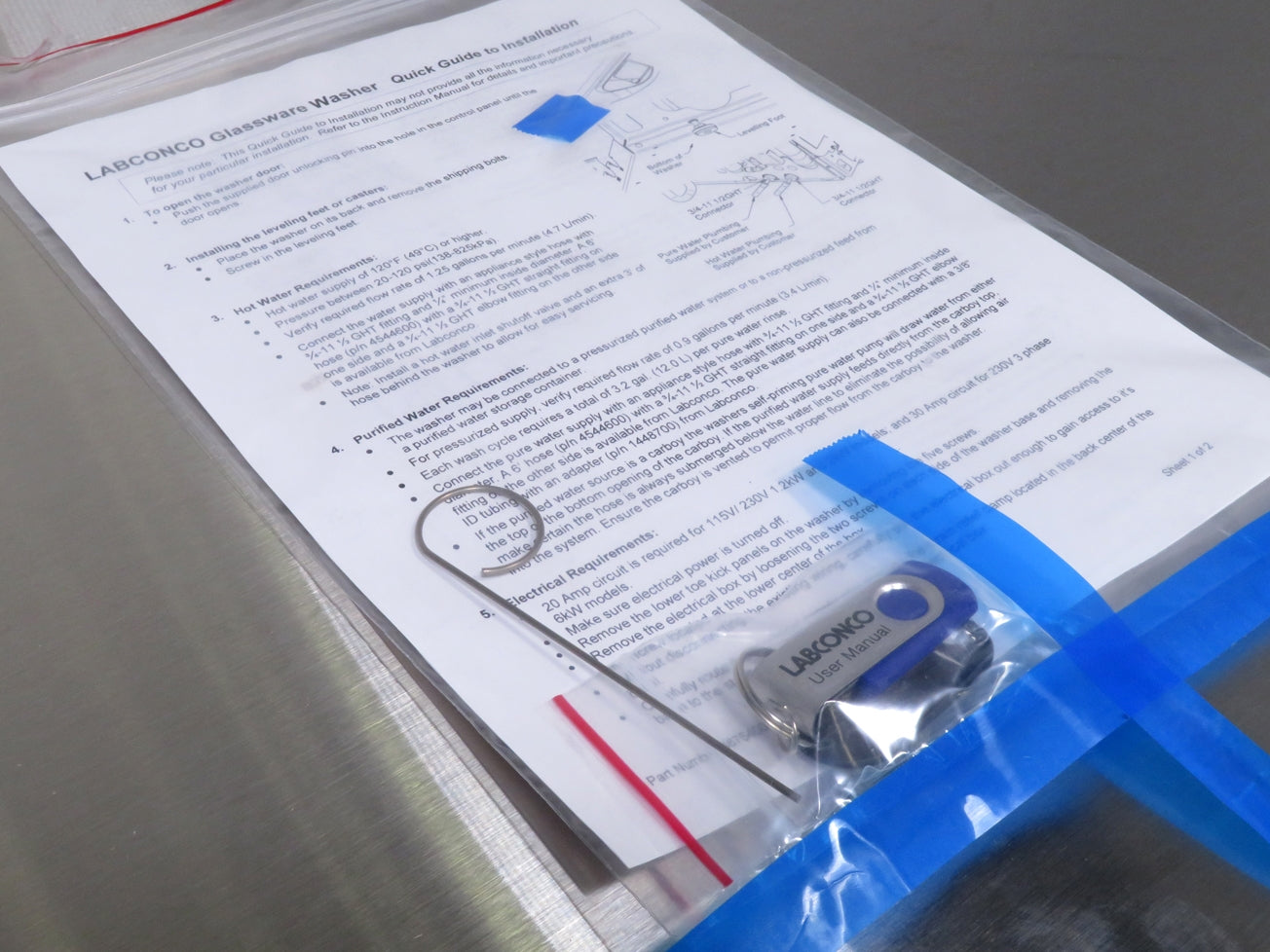

- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
- > Please Note: This glassware washer does NOT include a power cord and MUST BE HARD WIRED
Labconco 402001010 SteamScrubber Glassware Washer, Freestanding, 208/230VSpecifications
| Minimum Fill Water Temperature | 49°C (120°F) |
| Maximum Fill Water Temperature | 93°C (199°F) |
| Pump Rating | 112 gal/min (424 L/min) at 208/230V, 60 Hz |
| Drain Pump Rating | 4.2 gal/min (16 L/min) |
| Pressure Range | 20 to 120 PSI |
| Material | Type 304 Stainless Steel |
| Style | Freestanding |
| Drying System | Forced air drying, programmable up to 240 minutes, 25 to 80°C (77 to 176°F) |
| Control System | CleanWorks OS, touch screen interface, 9 factory-set programs, up to 200 user-defined programs |
| Conformance | CAN/CSA C22.2, CE, ETL, UL |

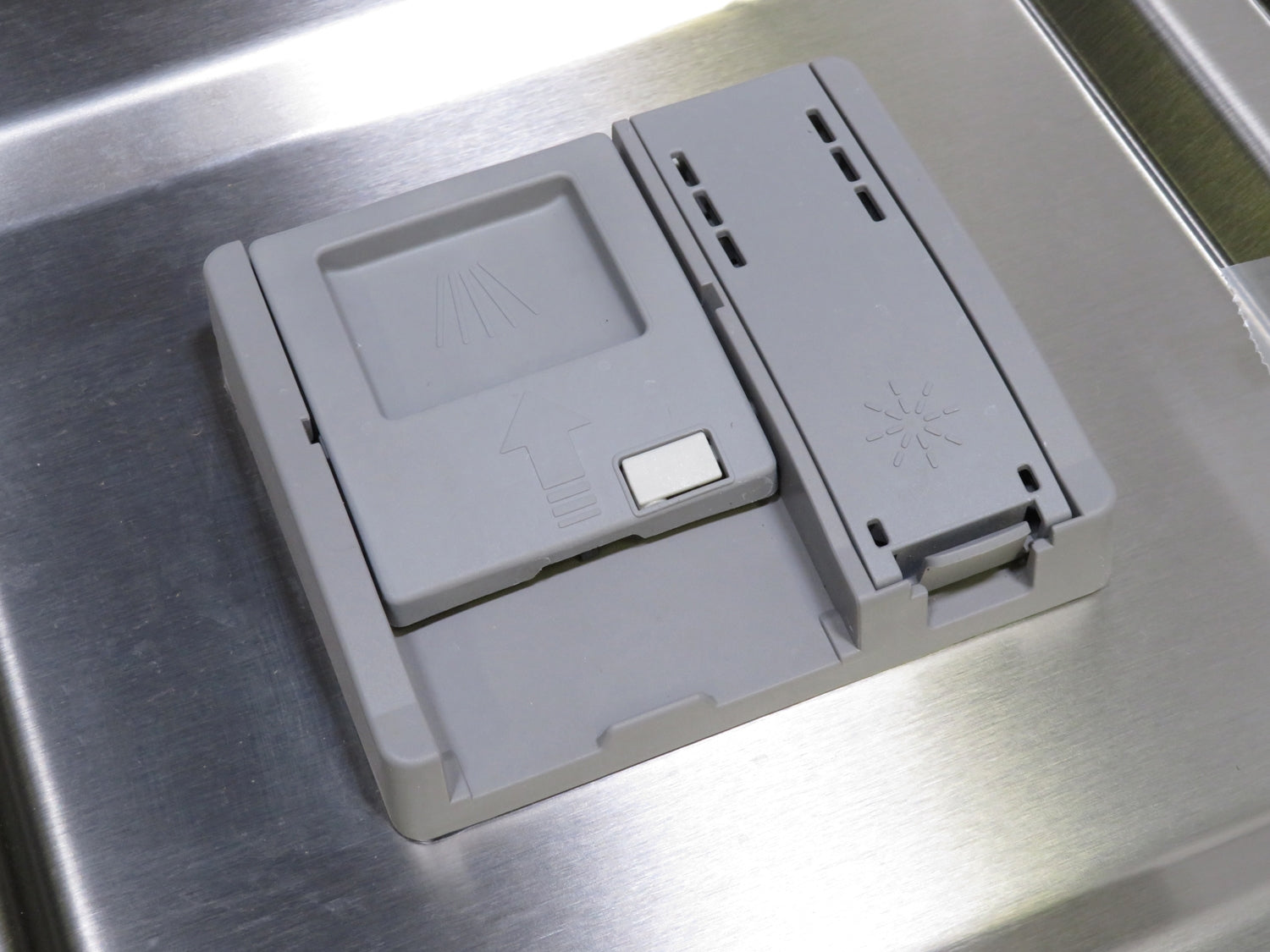

| Detergent Compatibility | Liquid or Powder |
| Noise Level | 62 dB(A) |
| Dimensions (W x D x H) | 24.3 x 27.8 x 32.2–36.2 in. (61.7 x 70.6 x 81.8–91.9 cm) |
| Weight | 230 lb. (104.3 kg) |
| Electrical Requirements | 208/230V, 50/60 Hz, single-phase, requires dedicated 20A circuit |
Recertification Inspection Protocol
- Inspect the display for pixel clarity and brightness issues; replace any dim or defective pixels for optimal performance.
- Test each button for responsiveness, resistance, and continuity, replacing any that do not meet operational standards.
- Verify touchscreen functionality (if applicable), ensuring consistent response across all touch points.
- Check the door seal and lock for airtight closure and secure operation, replacing any compromised parts.
- Inspect rubber hoses for wear, tears, or cracks, replacing any that compromise system integrity.
- Inspect for internal or external leakage, addressing and sealing any detected points of vulnerability.
- Check all wiring for integrity, inspecting for frays, tears, or breakages, and replace compromised sections.
- Run the system in continuous cycle mode, monitoring for operational errors to ensure reliable performance.
- Confirm all sensors are activated and responsive using internal diagnostics, recalibrating or replacing any faulty ones.
- Conduct a cosmetic inspection of external surfaces, verifying cleanliness and addressing visible wear to meet standards.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect display for pixel issues and replace if needed | Completed | |
| Test button functionality and replace any defective buttons | Completed | |
| Verify touchscreen functionality (if applicable) | Completed | |
| Check door seal and lock functionality; replace if compromised | Completed | |
| Inspect rubber hoses for wear, tears, or cracks | Completed | |
| Check for internal or external leakage and address as needed | Completed | |
| Inspect wiring for frays, tears, or breakages | Completed | |
| Run continuous cycle mode and monitor for errors | Completed | |
| Confirm all sensors are activated and functional | Completed | |
| Conduct cosmetic inspection and address visible wear | Completed |
