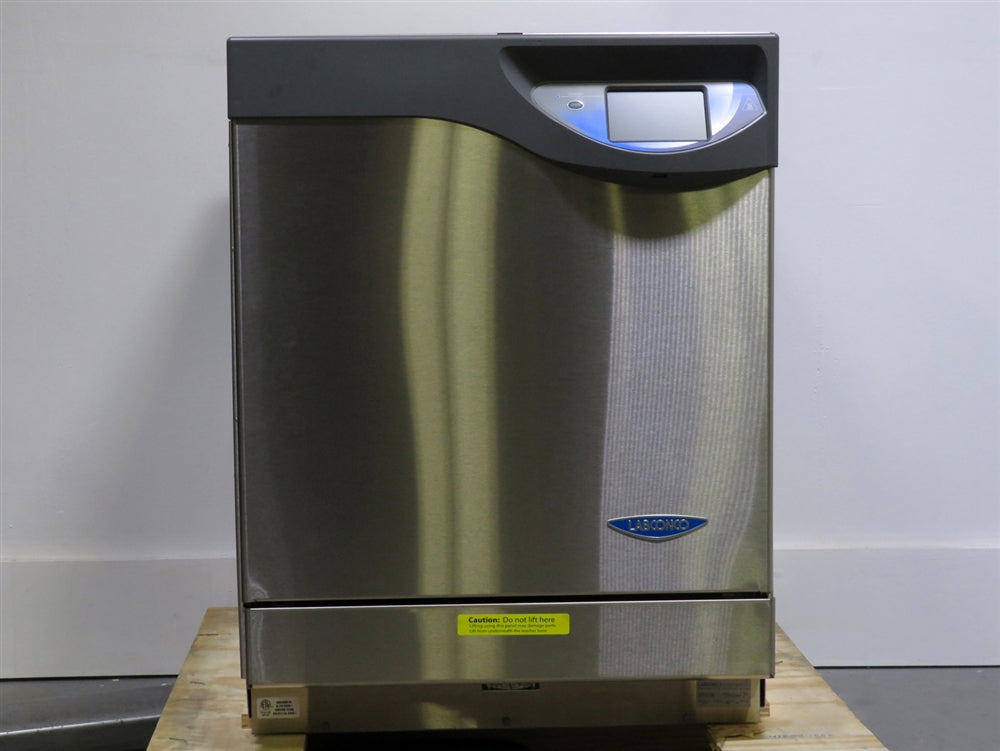

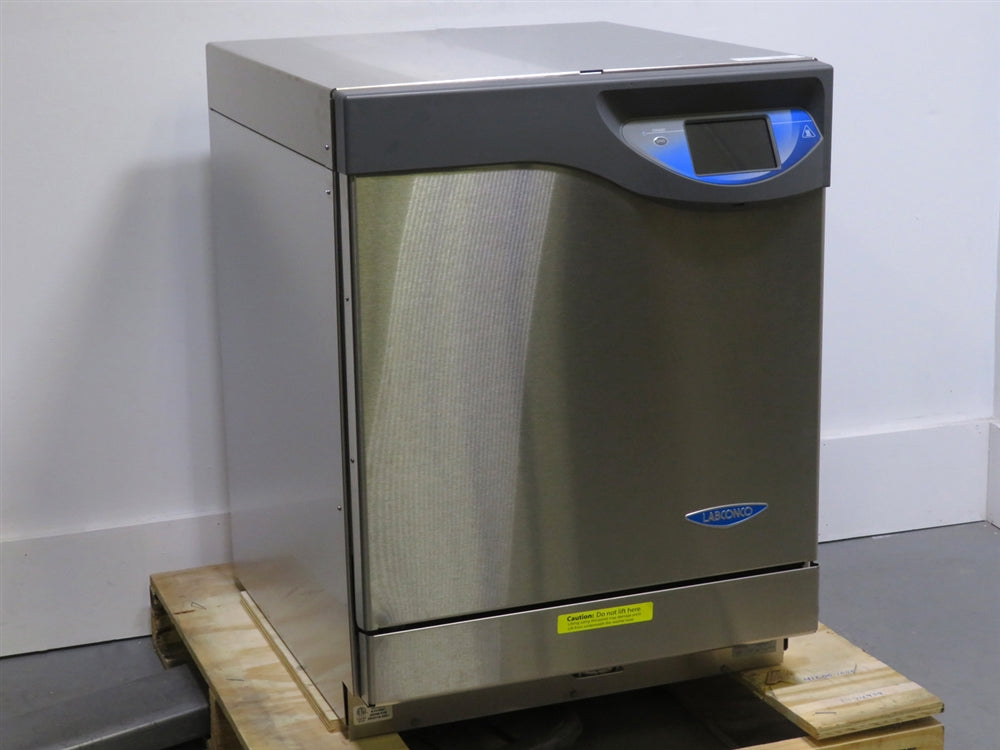

Labconco 412001000 FlaskScrubber Glassware Washer, Freestanding
Maximum Fill Water Temperature
93°C (199°F)
Drain Pump
4.2 gal/min (16 L/min)
Drying Temperature Range
25 to 80°C / 77 to 176°F
Features
- Freestanding design with Type 304 stainless steel door, tank, wash arms, exterior sides, and top for long-term durability
- CleanWorks OS with full-color touchscreen for intuitive cycle management and program control
- Steam generator penetrates and softens dried contaminants for more effective cleaning
- Dual pump system ensures thorough recirculation and reduces the risk of cross-contamination
- Forced-air drying system provides efficient and consistent drying through spindles
- SpeedVent Technology shortens drying time by venting residual heat from the washer

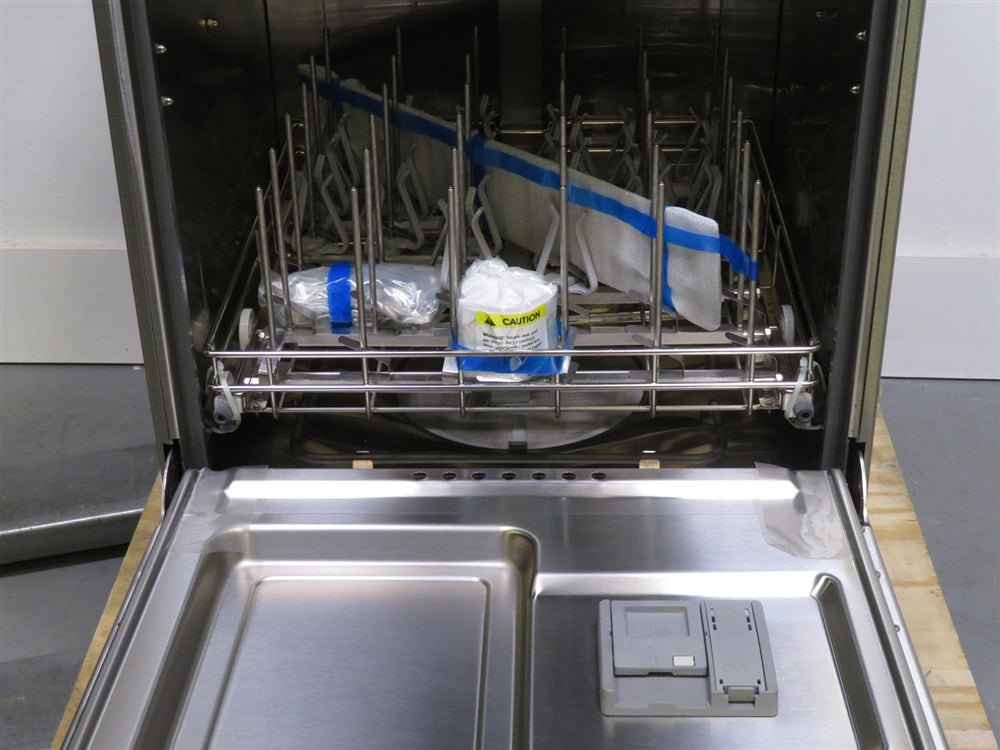

- Lower spindle rack with 36 spindles accommodates a wide variety of accessories
- Versatile and interchangeable rack options support flexible loading configurations
- USB data output, program storage for up to 200 custom cycles, and system diagnostics for reliable operation
Performance is enhanced with a built-in steam generator that penetrates and softens contaminants, powerful dual pumps for thorough recirculation, and purified water rinse capabilities for up to eight rinses. Forced-air drying delivers consistent results, while SpeedVent Technology utilizes residual heat for faster drying cycles. Quiet operation at or below 62 decibels ensures minimal disruption to the lab environment.

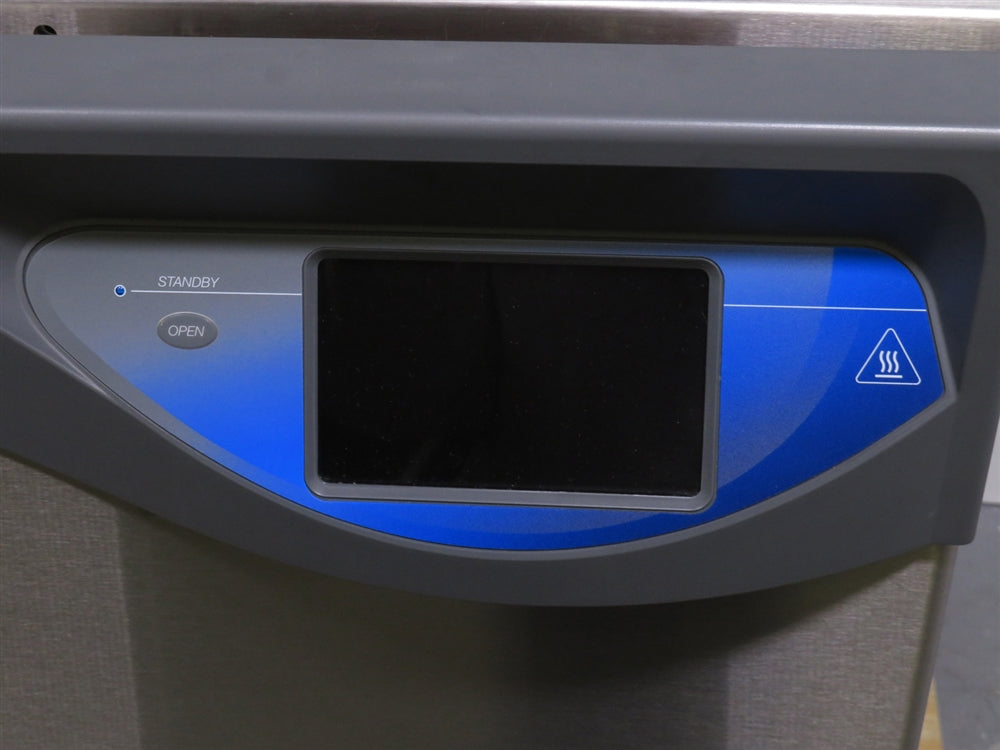

User control is managed through the intuitive CleanWorks OS full-color touchscreen interface, which includes nine factory-set programs and the ability to store up to 200 user-defined programs. Additional features include programmable setpoints for temperature and detergent dispensing, USB data output, self-diagnostics, delayed start, and password protection. With robust construction, versatile rack options, and advanced washing technology, the 412001000 FlaskScrubber Glassware Washer is a dependable solution for laboratories requiring high-performance glassware cleaning in a freestanding configuration.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Labconco 412001000 FlaskScrubber Glassware Washer, Freestanding includes:
The Labconco 412001000 FlaskScrubber Glassware Washer, Freestanding includes:
- > Lower Spindle Rack w/ Glassware Holders
- > Small Spindle Accessory Kit
- > Kick Panel Extension
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
- > Please Note: This glassware washer does NOT include a power cord and MUST BE HARD WIRED
Labconco 412001000 FlaskScrubber Glassware Washer, Freestanding Specifications
| Minimum Fill Water Temperature | 49°C (120°F) |
| Maximum Fill Water Temperature | 93°C (199°F) |
| Pump Rating | 96 gal/min (363 L/min) at 115V, 60 Hz |
| Drain Pump Rating | 4.2 gal/min (16 L/min) |
| Material | Type 304 Stainless Steel |
| Style | Freestanding |
| Drying System | Forced air drying, programmable up to 240 minutes, 25 to 80°C (77 to 176°F) |
| Control System | CleanWorks OS, touch screen interface, 9 factory-set programs, up to 200 user-defined programs |
| Conformance | CAN/CSA C22.2, ETL, UL |
| Detergent Compatibility | Liquid or Powder |
| Noise Level | 62 dB(A) |
| Dimensions (W x D x H) | 24.1 x 27.7 x 32.2 to 36.0 in. (61.2 x 70.4 x 81.5 to 91.4 cm) |
| Weight | 229.9 lb. (104.3 kg) |
| Electrical Requirements | 115V, 60Hz, 16A, 1Ph, requires dedicated 20A circuit |
Recertification Inspection Protocol
- Inspect the display for pixel clarity and brightness issues; replace any dim or defective pixels for optimal performance.
- Test each button for responsiveness, resistance, and continuity, replacing any that do not meet operational standards.
- Verify touchscreen functionality (if applicable), ensuring consistent response across all touch points.
- Check the door seal and lock for airtight closure and secure operation, replacing any compromised parts.
- Inspect rubber hoses for wear, tears, or cracks, replacing any that compromise system integrity.
- Inspect for internal or external leakage, addressing and sealing any detected points of vulnerability.
- Check all wiring for integrity, inspecting for frays, tears, or breakages, and replace compromised sections.
- Run the system in continuous cycle mode, monitoring for operational errors to ensure reliable performance.
- Confirm all sensors are activated and responsive using internal diagnostics, recalibrating or replacing any faulty ones.
- Conduct a cosmetic inspection of external surfaces, verifying cleanliness and addressing visible wear to meet standards.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect display for pixel issues and replace if needed | Completed | |
| Test button functionality and replace any defective buttons | Completed | |
| Verify touchscreen functionality (if applicable) | Completed | |
| Check door seal and lock functionality; replace if compromised | Completed | |
| Inspect rubber hoses for wear, tears, or cracks | Completed | |
| Check for internal or external leakage and address as needed | Completed | |
| Inspect wiring for frays, tears, or breakages | Completed | |
| Run continuous cycle mode and monitor for errors | Completed | |
| Confirm all sensors are activated and functional | Completed | |
| Conduct cosmetic inspection and address visible wear | Completed |
