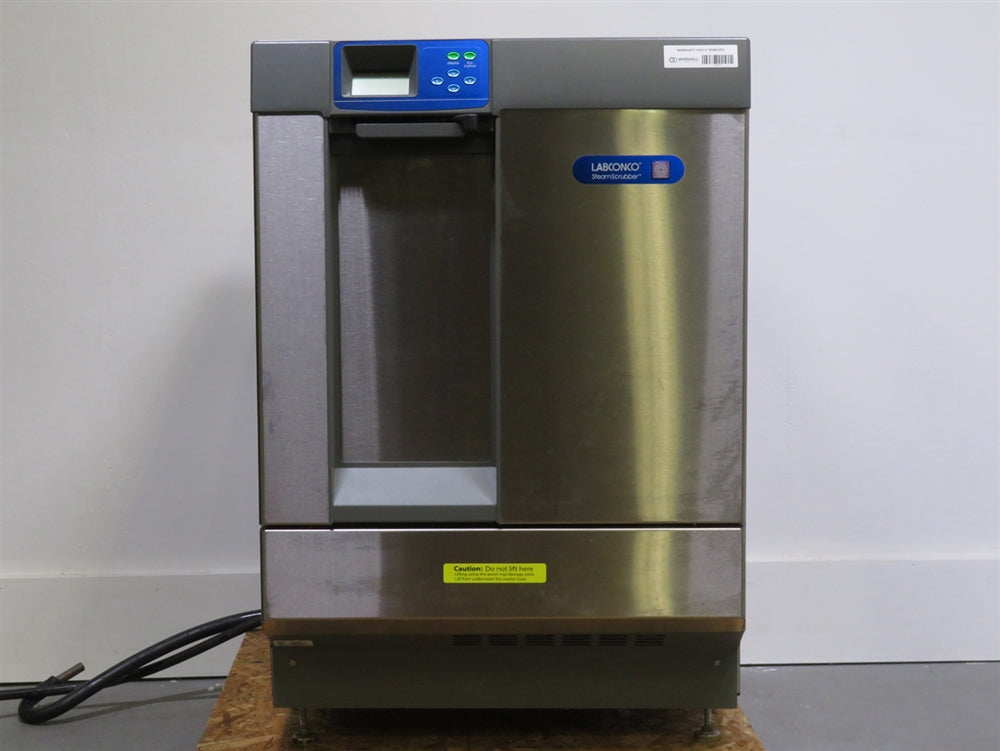

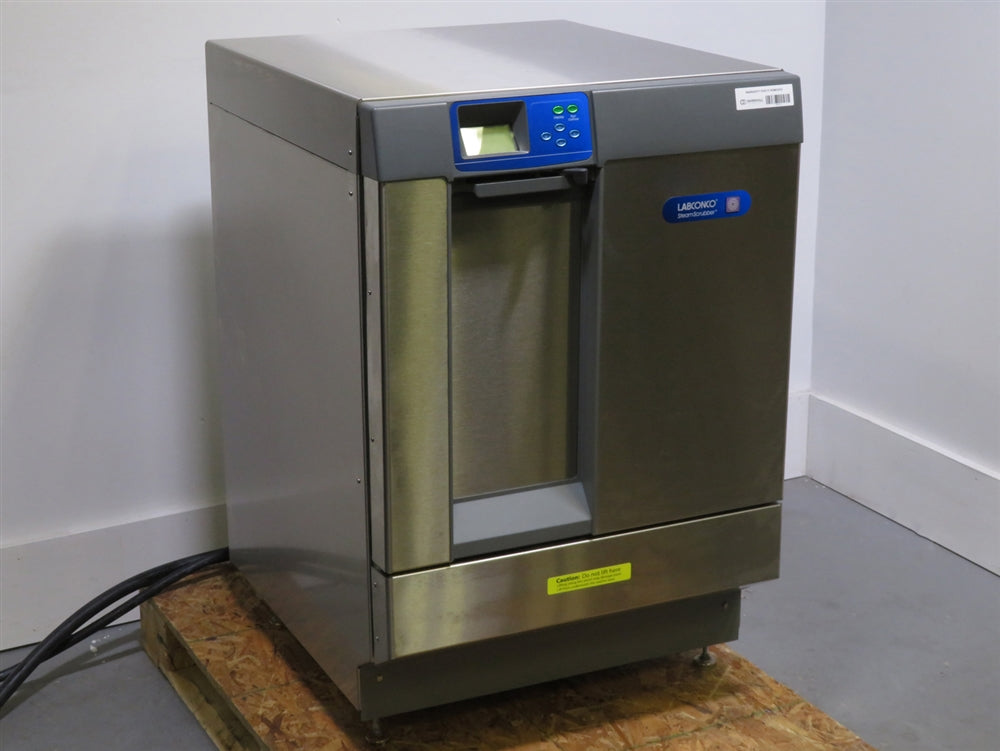

Labconco 4400420 SteamScrubber Glassware Washer, Freestanding
Maximum Fill Water Temperature
82°C (180°F)
Water Recirculation Rate
96 gal/min (363 liters/min) at 115V, 60Hz
Drying Temperature Range
38 to 70°C (100 to 158°F)
Features
- Dual pump system separates wash and drain functions to prevent cross-contamination
- Built-in purified water pump allows up to six pure water rinses
- Integrated steam generator removes dried residues for cleaner results
- Manual-fill detergent and rinse aid dispensers for powder or liquid agents
- Programmable forced-air drying up to 99 minutes from 38–70°C (100–158°F)

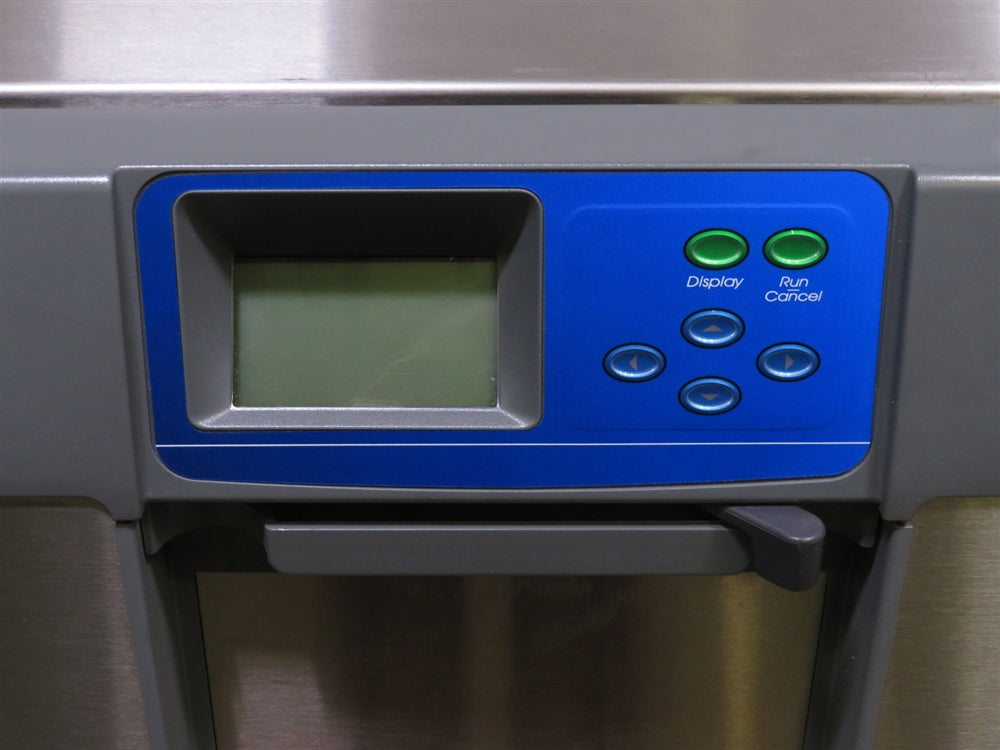

- LCD information center displays water temperature and cycle status in °C or °F
- Seven factory-set programs: RINSE ONLY, PLASTIC, GLASS, GLASS PLUS, SCIENTIFIC, SCIENTIFIC PLUS, and DRY ONLY
- Two customizable user-set programs with lockable settings to prevent unauthorized changes
- Audible and visual alarms for water level, overflow, detergent, rinse aid, and temperature alerts
- One-piece stainless-steel mesh drain filter protects pumps by trapping debris
Operating on 115 volts, the SteamScrubber reaches a sanitizing water temperature of 82°C (180°F) and utilizes dual pumps—one for washing and one for draining—to prevent cross-contamination. A built-in purified water pump enables up to six pure-water rinses, while an integrated steam generator removes stubborn residues for cleaner results. The LCD information center provides cycle customization and real-time monitoring of water temperature and system status. Additional convenience features include a manual-fill detergent and rinse aid dispenser, programmable forced-air drying (38–70°C), and two user-defined programs with lockable settings for security. Designed for standalone installation, this U.S.-made washer combines performance, reliability, and versatility.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Labconco 4400420 SteamScrubber Glassware Washer, Freestanding includes:
The Labconco 4400420 SteamScrubber Glassware Washer, Freestanding includes:

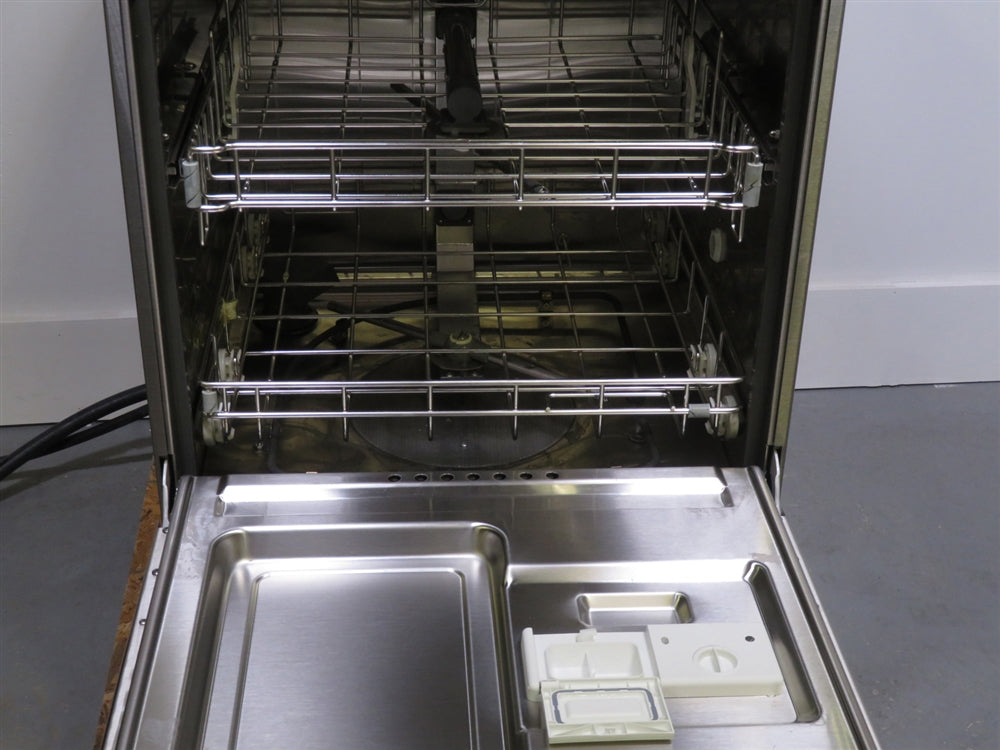

- > Upper and Lower Standard Racks
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
- > Please Note: This glassware washer does NOT include a power cord and MUST BE HARD WIRED
Labconco 4400420 SteamScrubber Glassware Washer, Freestanding Specifications
| Minimum Fill Water Temperature | 49°C (120°F) |
| Maximum Fill Water Temperature | 82°C (180°F) |
| Water Recirculation Rate | 96 gal/min (363 liters/min) at 115V, 60Hz |
| Material | Type 304 Stainless Steel |
| Style | Freestanding |
| Drying System | Forced air drying, up to 99 minutes, 38 to 70°C (100 to 158°F) |
| Conformance | CAN/CSA C22.2, ETL, UL |
| Detergent Compatibility | Liquid or Powder |
| Noise Level | 62 dB(A) |
| Dimensions (W x D x H) | 24.2 x 27.5 x 34.2-36.2 in. (61.5 x 69.9 x 86.9-91.9 cm) |
| Weight | 235 lb. (107 kg) |
| Electrical Requirements | 115V, 60Hz, 16A, requires dedicated 20A circuit |
Recertification Inspection Protocol
- Inspect the display for pixel clarity and brightness issues; replace any dim or defective pixels for optimal performance.
- Test each button for responsiveness, resistance, and continuity, replacing any that do not meet operational standards.
- Verify touchscreen functionality (if applicable), ensuring consistent response across all touch points.
- Check the door seal and lock for airtight closure and secure operation, replacing any compromised parts.
- Inspect rubber hoses for wear, tears, or cracks, replacing any that compromise system integrity.
- Inspect for internal or external leakage, addressing and sealing any detected points of vulnerability.
- Check all wiring for integrity, inspecting for frays, tears, or breakages, and replace compromised sections.
- Run the system in continuous cycle mode, monitoring for operational errors to ensure reliable performance.
- Confirm all sensors are activated and responsive using internal diagnostics, recalibrating or replacing any faulty ones.
- Conduct a cosmetic inspection of external surfaces, verifying cleanliness and addressing visible wear to meet standards.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect display for pixel issues and replace if needed | Completed | |
| Test button functionality and replace any defective buttons | Completed | |
| Verify touchscreen functionality (if applicable) | Completed | |
| Check door seal and lock functionality; replace if compromised | Completed | |
| Inspect rubber hoses for wear, tears, or cracks | Completed | |
| Check for internal or external leakage and address as needed | Completed | |
| Inspect wiring for frays, tears, or breakages | Completed | |
| Run continuous cycle mode and monitor for errors | Completed | |
| Confirm all sensors are activated and functional | Completed | |
| Conduct cosmetic inspection and address visible wear | Completed |
