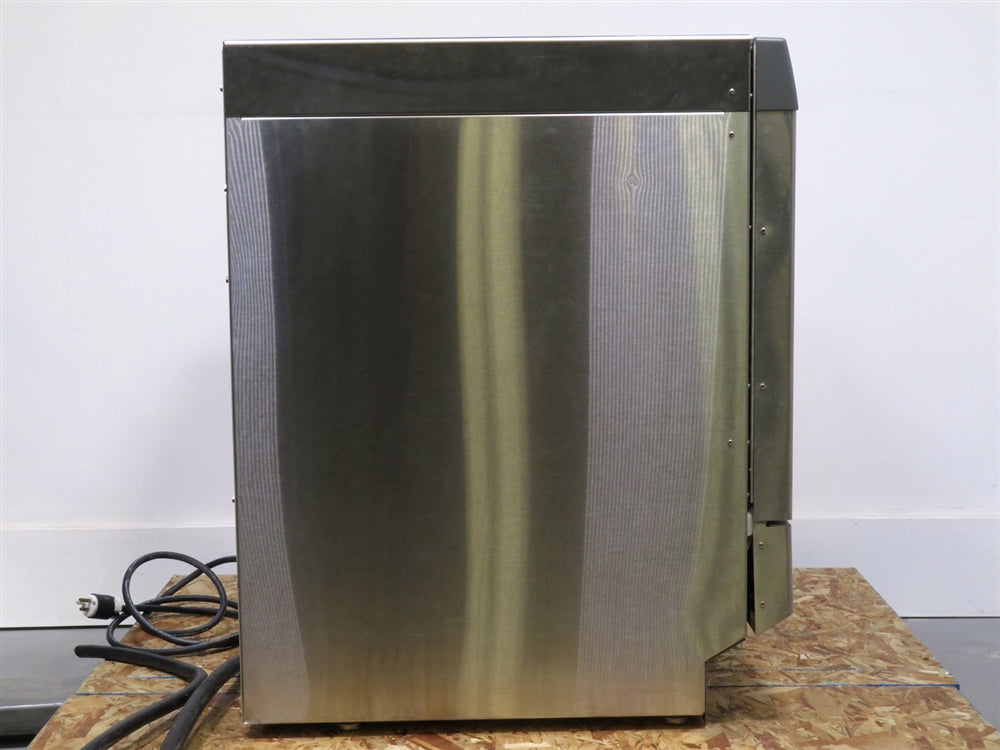

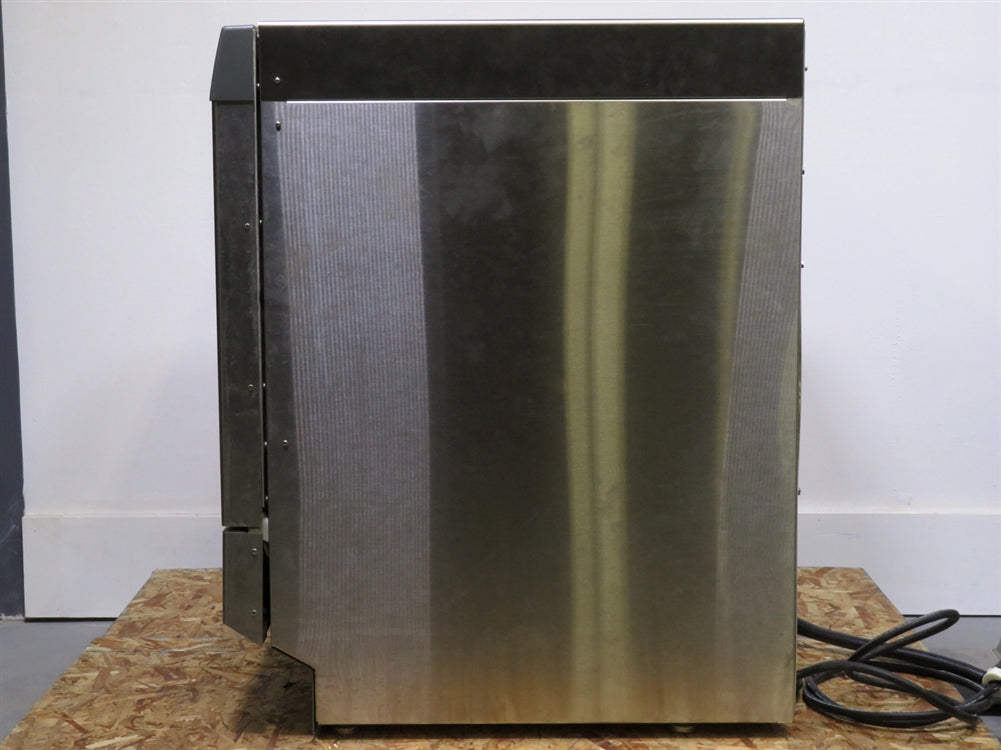

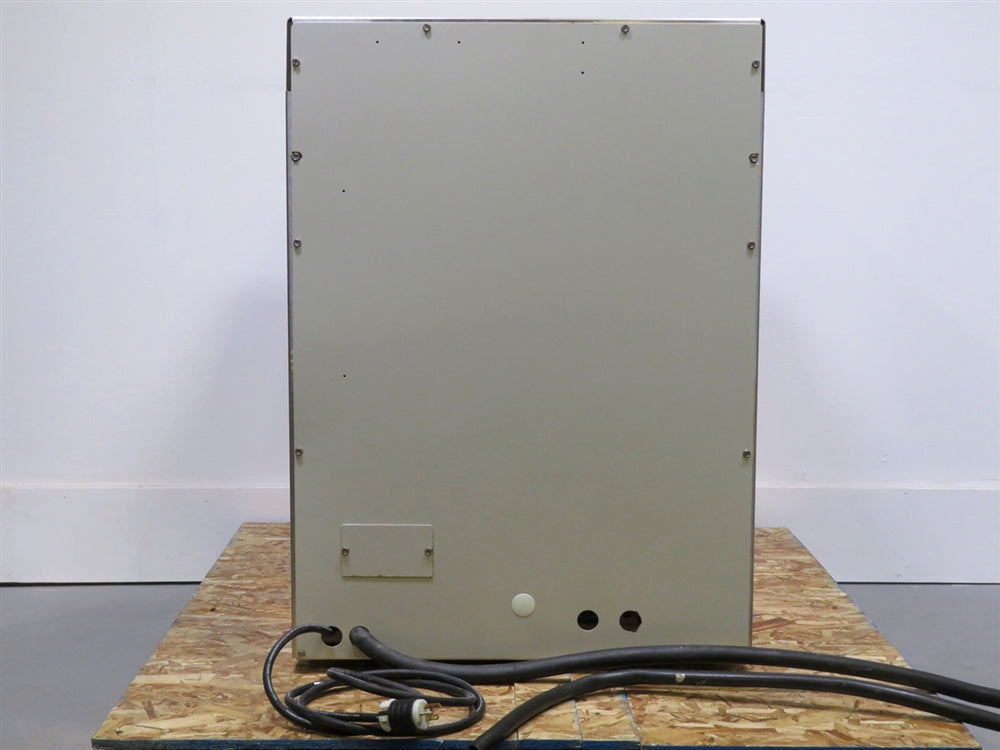

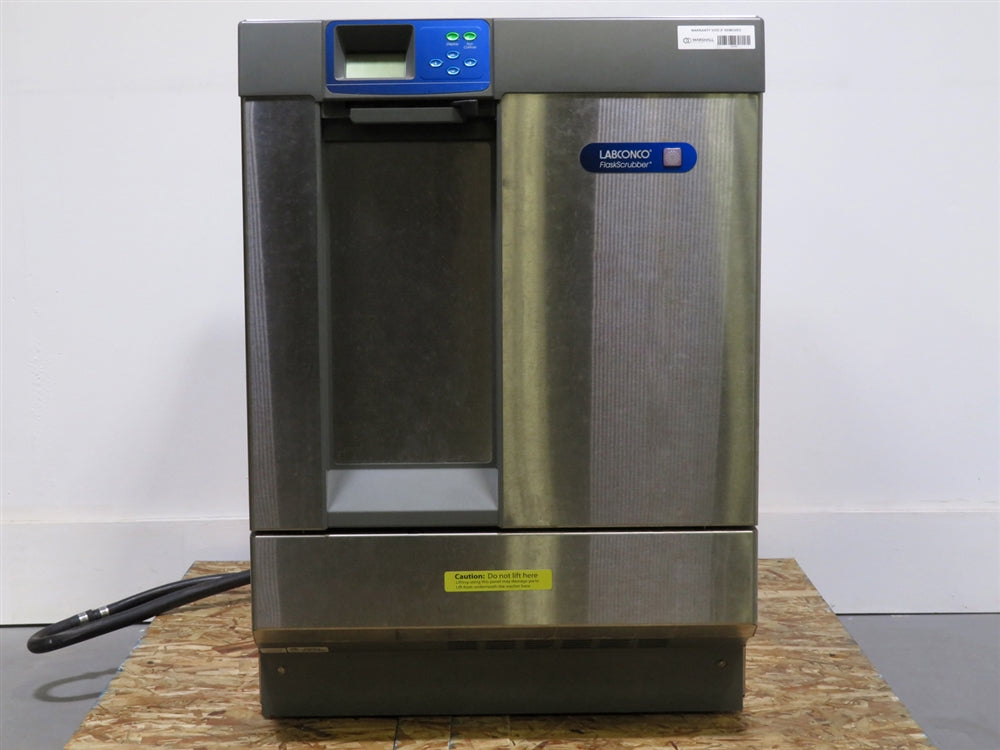

Labconco 4420420 FlaskScrubber Glassware Washer
Maximum Fill Water Temperature
82°C (180°F)
Pump Rating
96 gal/min (363 L/min) at 115V, 60 Hz
Drying System
Forced air drying, programmable up to 250 minutes, 38 to 70°C (100 to 158°F)
Features
- Type 304 stainless steel construction ensures durability and chemical resistance

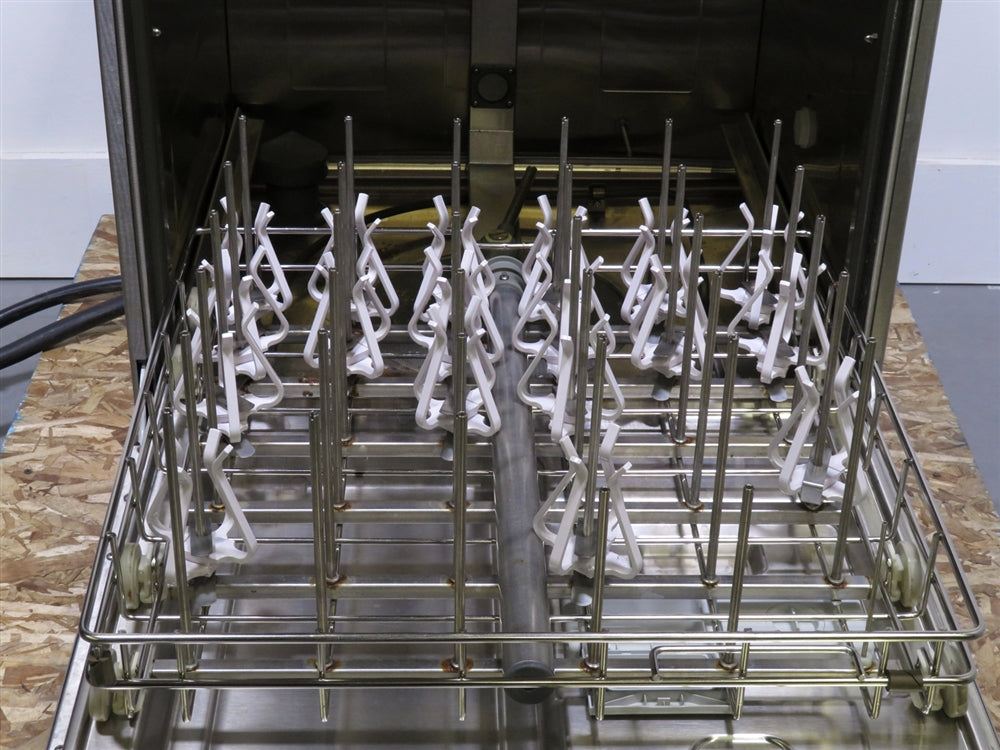

- Lower spindle rack supports diverse glassware
- High-capacity pump delivers strong and consistent wash performance

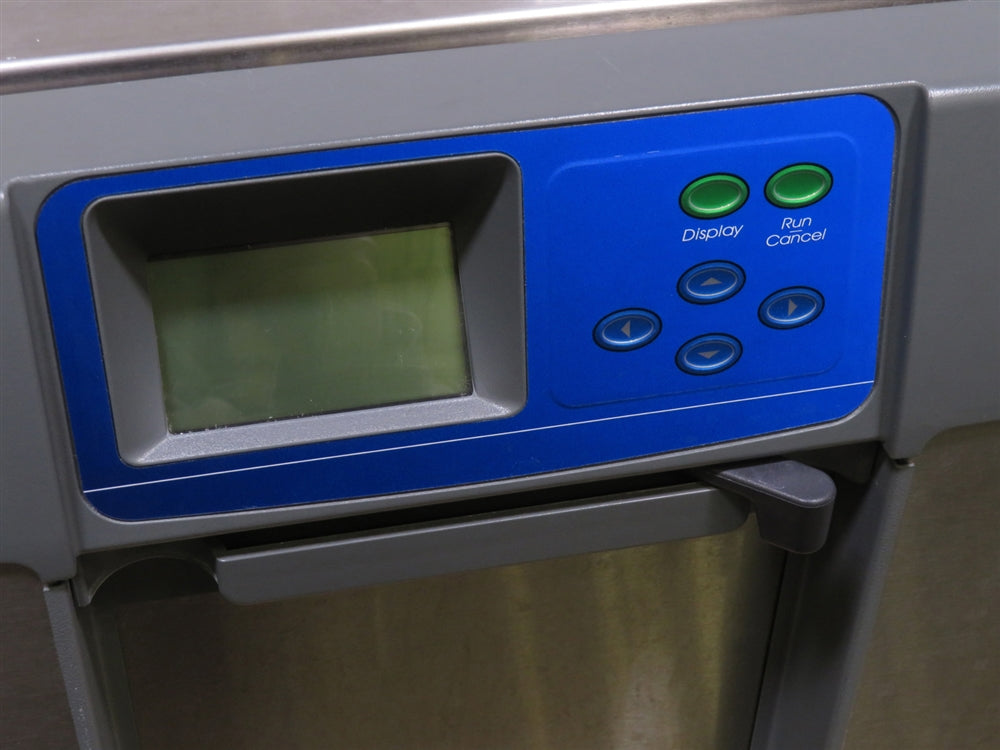

- LCD control panel allows easy programming and cycle monitoring
- Multiple factory-set and user-defined programs support flexible operation
- Programmable forced air drying enhances post-wash processing efficiency

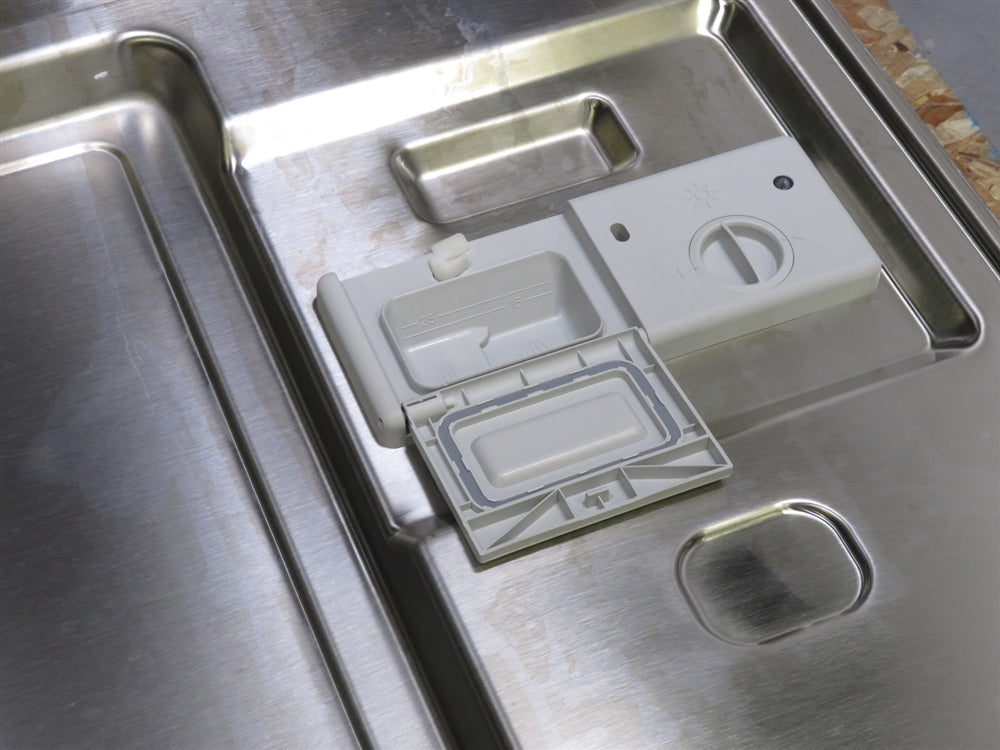

- Manual-fill detergent and rinse aid dispensers support convenient operation
- Integrated alarms provide alerts for key system conditions
- Low noise operation supports a comfortable laboratory environment
An intuitive LCD information center with selection and scroll controls allows users to easily program, monitor, and manage wash cycles, including multiple factory-set and user-defined programs. Features such as delayed start, programmable forced air drying, and lockable settings provide flexibility and control for standardized laboratory workflows. The system includes manual-fill detergent and rinse aid dispensers, along with a fine mesh drain filter to maintain optimal operation. Designed for safety and reliability, the unit features audible and visual alarms for key system conditions, operates at a low noise level, and includes thermal and sound insulation for improved performance. The Labconco 4420420 FlaskScrubber Glassware Washer offers dependable, efficient cleaning with advanced programmability for a wide range of laboratory glassware applications.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Labconco 4420420 FlaskScrubber Glassware Washer includes:
The Labconco 4420420 FlaskScrubber Glassware Washer includes:
- > Lower Spindle Rack
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
- > Please Note: Power Supply Requires Electrician to Hard-Wire Upon Installation
Labconco 4420420 FlaskScrubber Glassware Washer Specifications
| Minimum Fill Water Temperature | 49°C (120°F) |
| Maximum Fill Water Temperature | 82°C (180°F) |
| Pump Rating | 96 gal/min (363 L/min) at 115V, 60 Hz |
| Minimum Feed Water Pressure | 20 to 120 psig |
| Required Flow Rate | 1.25 gal/min (4.7 L/min) |
| Material | Type 304 Stainless Steel |
| Style | Freestanding |
| Drying System | Forced air drying, programmable up to 250 minutes, 38 to 70°C (100 to 158°F) |
| Detergent Compatibility | Liquid or Powder |
| Dimensions (W x D x H) | 24.2 x 27.5 x 34.2 to 36.2 in. (61.6 x 69.9 x 86.9 to 91.9 cm) |
| Weight | 239 lb. (107 kg) |

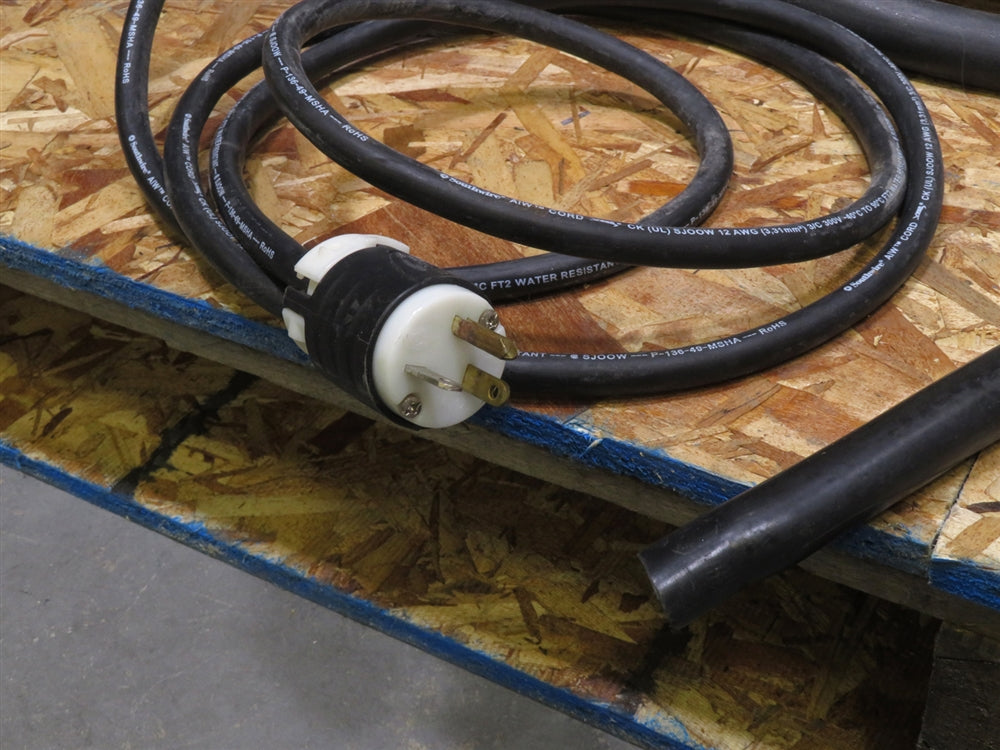

| Electrical Requirements | 115V, 60Hz, 16A, 1Ph, requires dedicated 20A circuit |
Recertification Inspection Protocol
- Inspect the display for pixel clarity and brightness issues; replace any dim or defective pixels for optimal performance.
- Test each button for responsiveness, resistance, and continuity, replacing any that do not meet operational standards.
- Verify touchscreen functionality (if applicable), ensuring consistent response across all touch points.
- Check the door seal and lock for airtight closure and secure operation, replacing any compromised parts.
- Inspect rubber hoses for wear, tears, or cracks, replacing any that compromise system integrity.
- Inspect for internal or external leakage, addressing and sealing any detected points of vulnerability.
- Check all wiring for integrity, inspecting for frays, tears, or breakages, and replace compromised sections.
- Run the system in continuous cycle mode, monitoring for operational errors to ensure reliable performance.
- Confirm all sensors are activated and responsive using internal diagnostics, recalibrating or replacing any faulty ones.
- Conduct a cosmetic inspection of external surfaces, verifying cleanliness and addressing visible wear to meet standards.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect display for pixel issues and replace if needed | Completed | |
| Test button functionality and replace any defective buttons | Completed | |
| Verify touchscreen functionality (if applicable) | Completed | |
| Check door seal and lock functionality; replace if compromised | Completed | |
| Inspect rubber hoses for wear, tears, or cracks | Completed | |
| Check for internal or external leakage and address as needed | Completed | |
| Inspect wiring for frays, tears, or breakages | Completed | |
| Run continuous cycle mode and monitor for errors | Completed | |
| Confirm all sensors are activated and functional | Completed | |
| Conduct cosmetic inspection and address visible wear | Completed |
