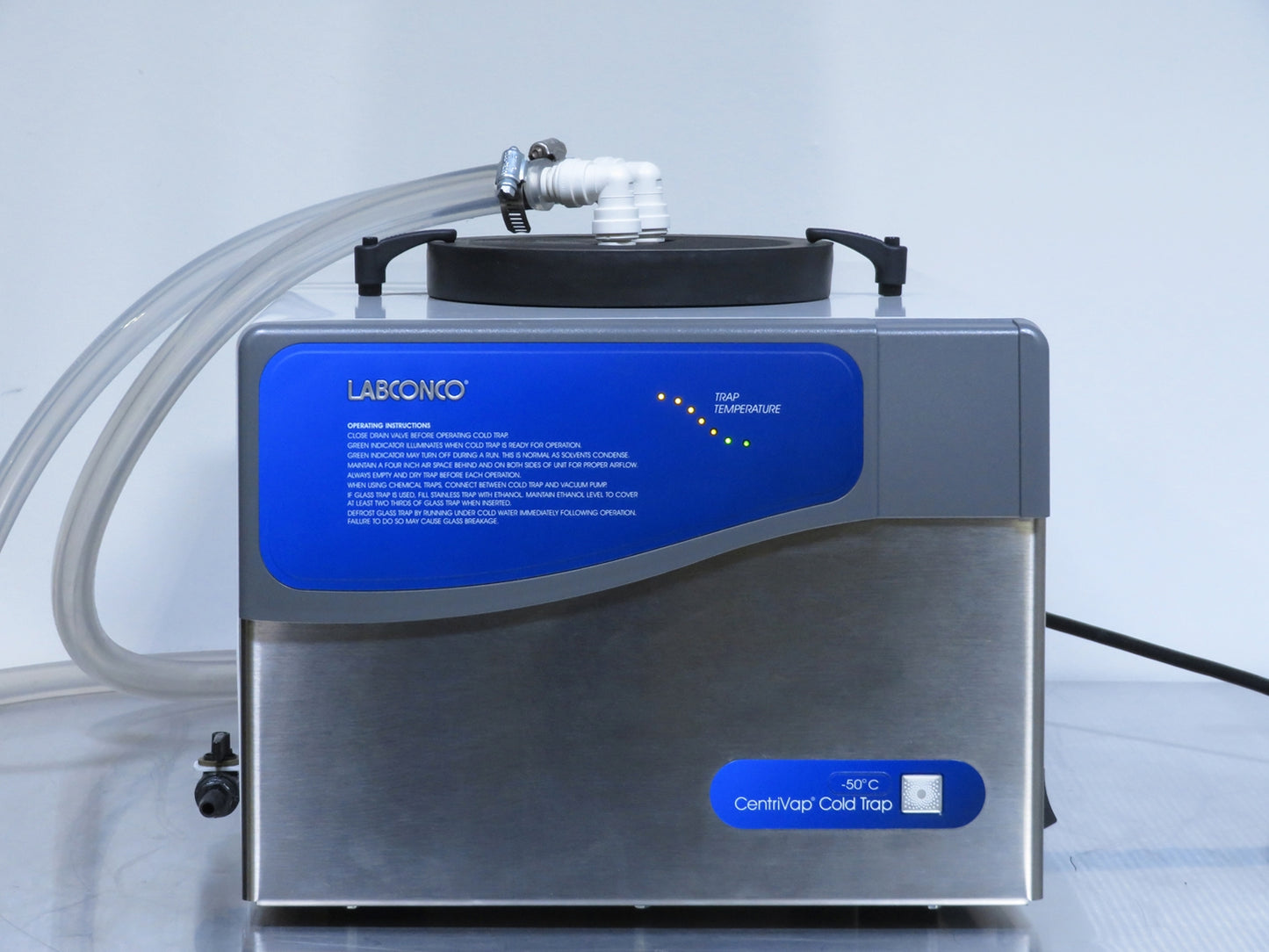

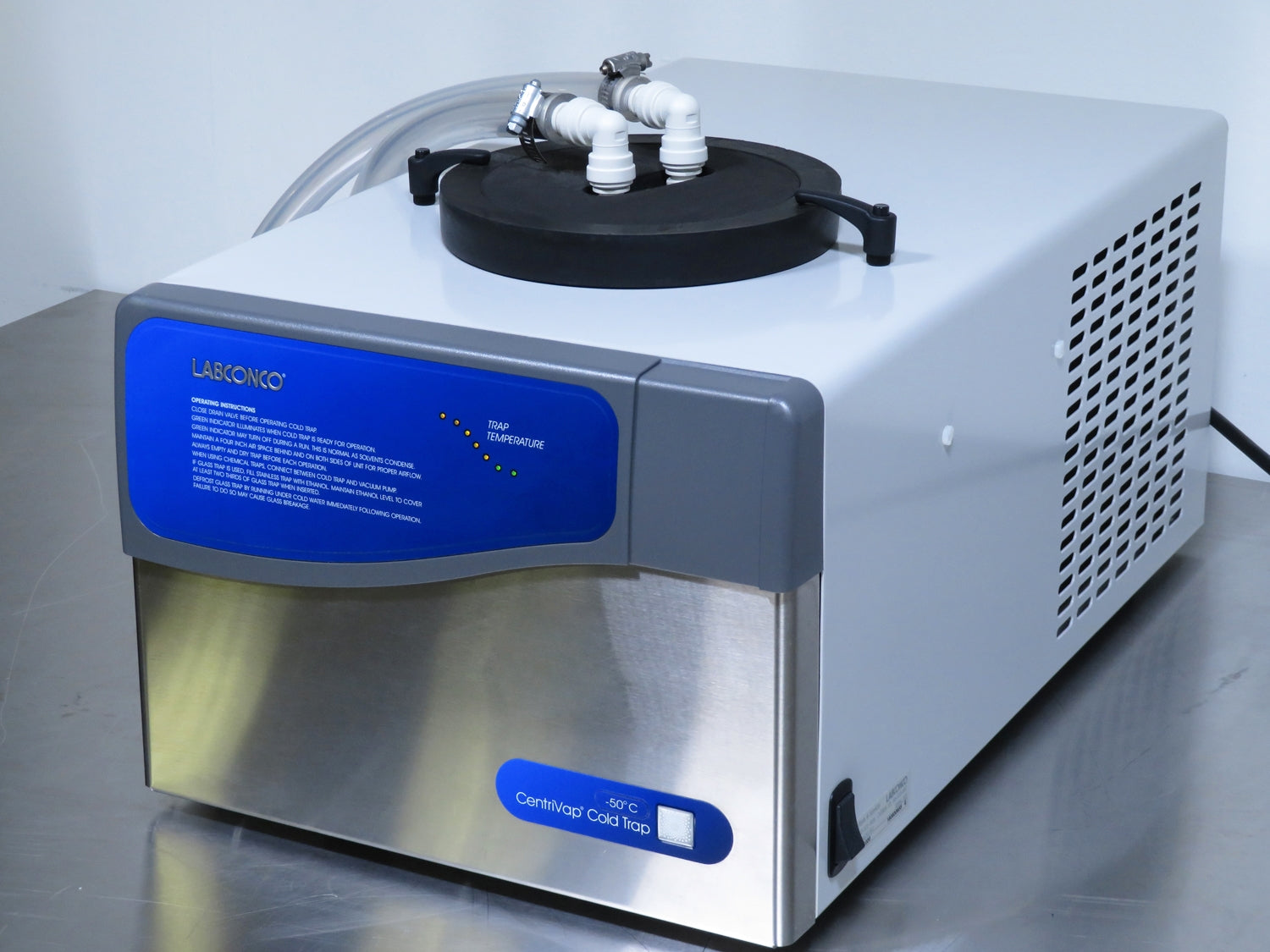

Labconco CentriVap -50C Cold Trap

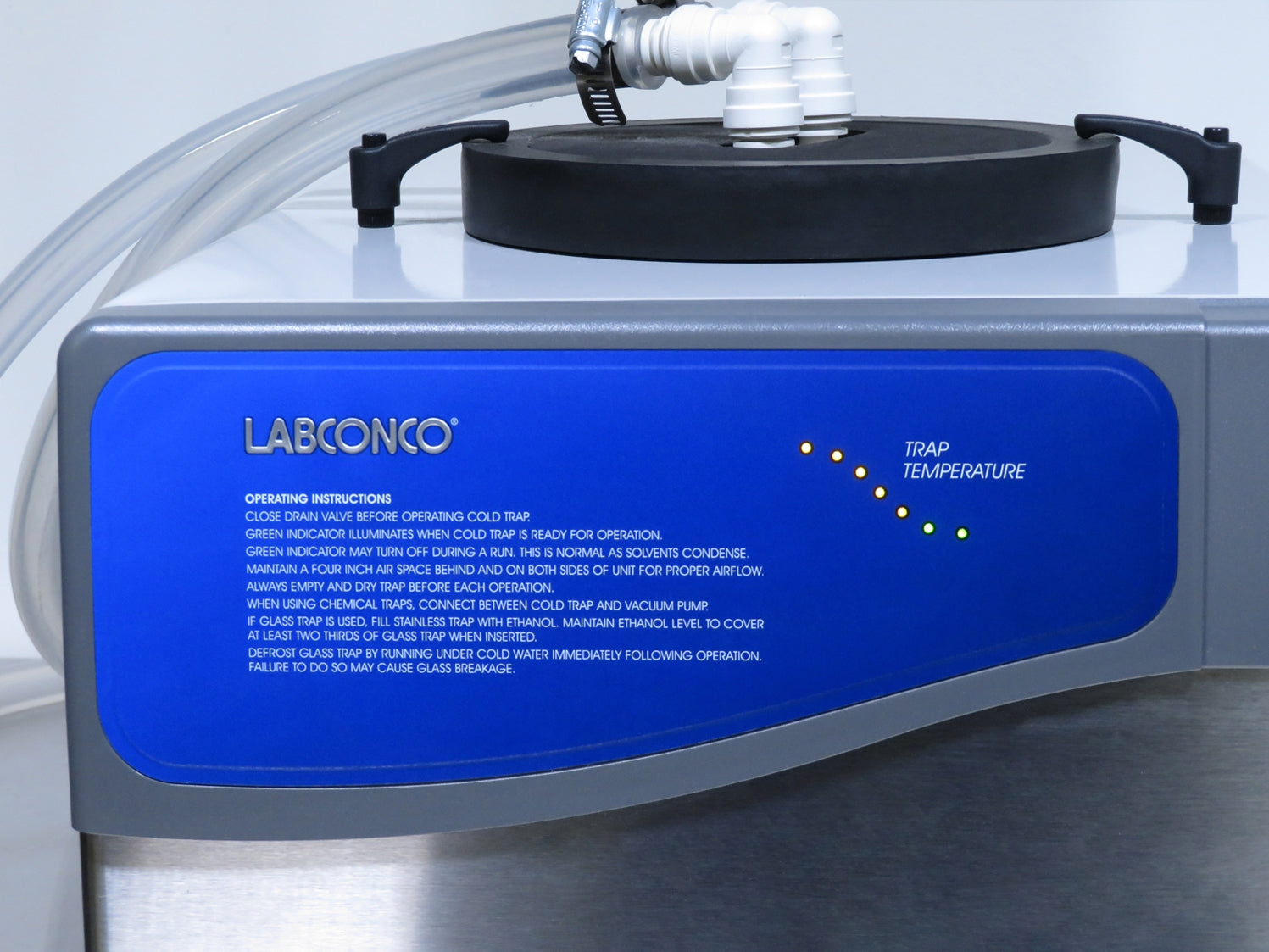

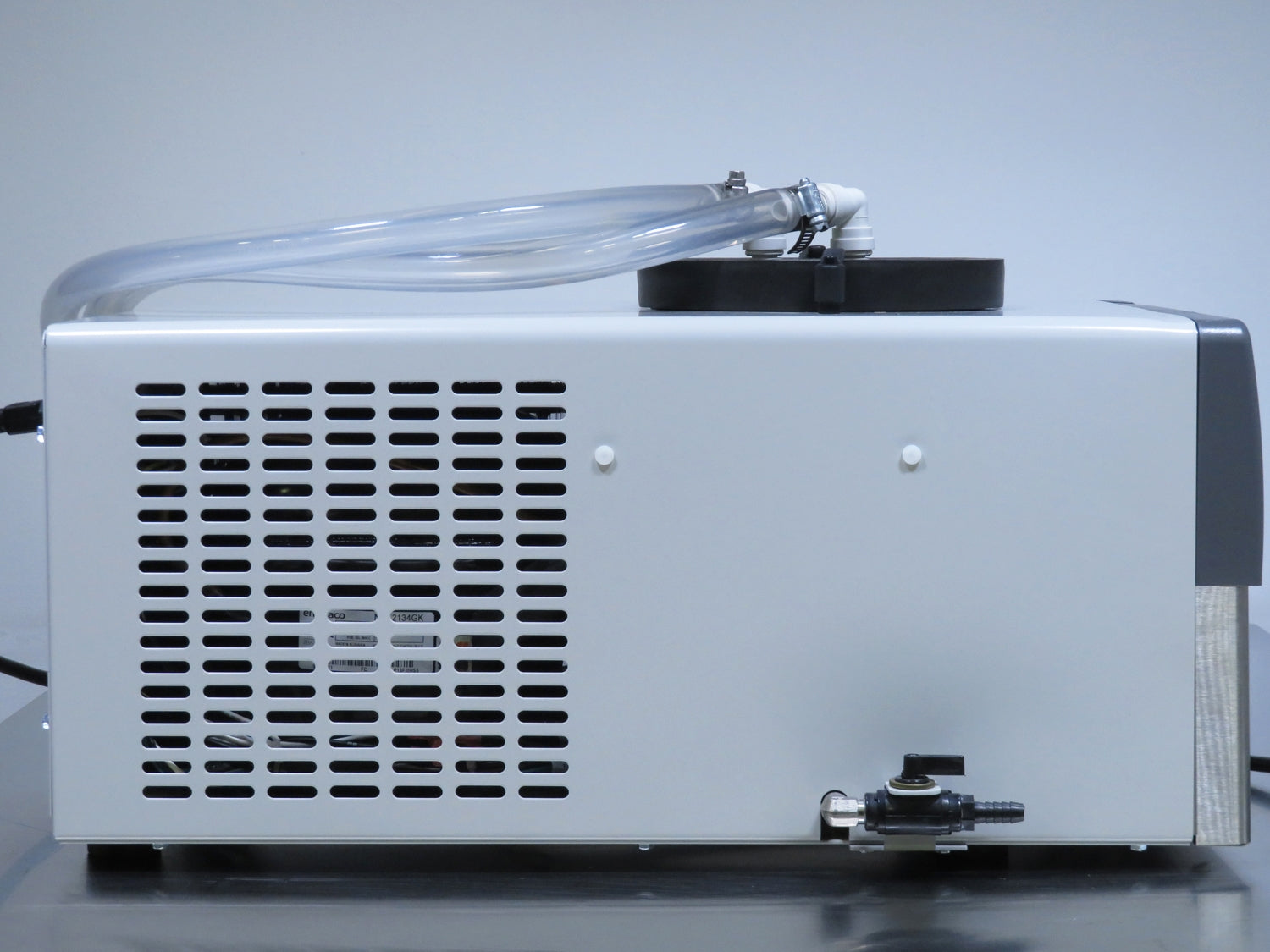

The Labconco CentriVap -50C Cold Trap, Cat. #: 7811020 collects evaporated liquid from a CentriVap Concentrator, protecting an accessory vacuum pump and the laboratory environment from the corrosive effects of vapors and fumes emitted from samples. The cold trap features a resilient exterior crafted from brushed stainless steel and powder-coated steel and displays temperature data with an illuminated graph. Utilizing an environmentally friendly HCFC-free refrigerant system, it houses a 1/3 hp compressor that efficiently reaches -50°C within half an hour. Inside, a 4-liter stainless steel collector accommodates samples, and users can select either an acrylic or stainless steel lid, both equipped with two quick-disconnect fittings for easy connection to a CentriVap Concentrator. Additionally, it includes a stainless steel drain port with a corrosion-resistant nylon valve to ensure reliability and durability.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Labconco CentriVap -50C Cold Trap includes:
The Labconco CentriVap -50C Cold Trap includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Labconco CentriVap -50C Cold Trap Specifications
| Cold Trap Temperature | -50°C |
| Collector Volume | 4L |
| Type / Application | Aqueous |
| Style | Benchtop |
| Lid Type | Acrylic |
| Conformance | ETL |
| CentriVap Optional Accessories | Clear canisters and chemical trap inserts, glass trap, two-port manifold |
| Material | Brushed stainless steel and powder-coated steel |
| Dimensions (W x D x H) | 14.5 x 24.2 x 13.8 in. (36.8 x 61.4 x 35 cm) |
| Weight | 80 lb. (36 kg) |
| Electrical Requirements | 115V, 60Hz, 5.4A |
Click Here to View the Technical Specs for the Labconco CentriVap -50C Cold Trap
