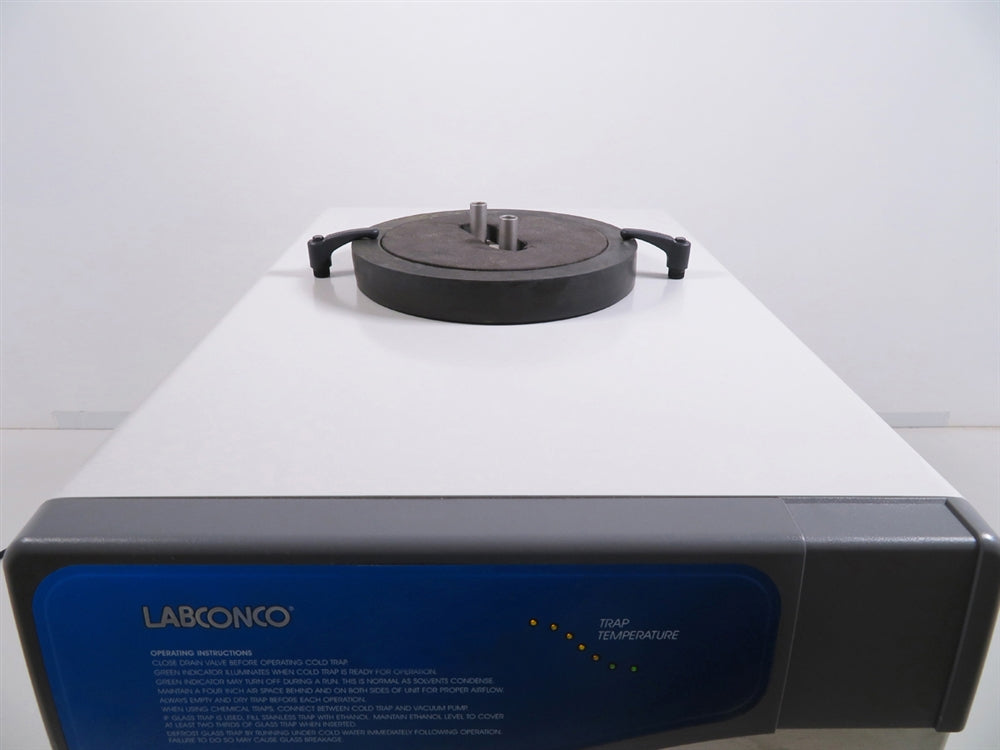

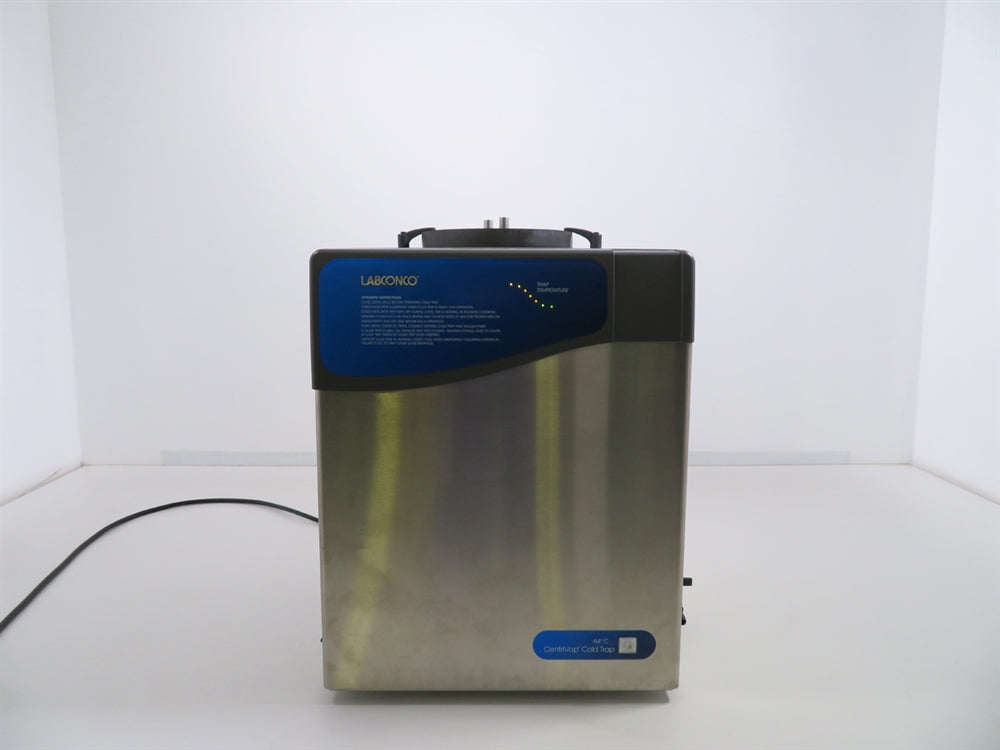

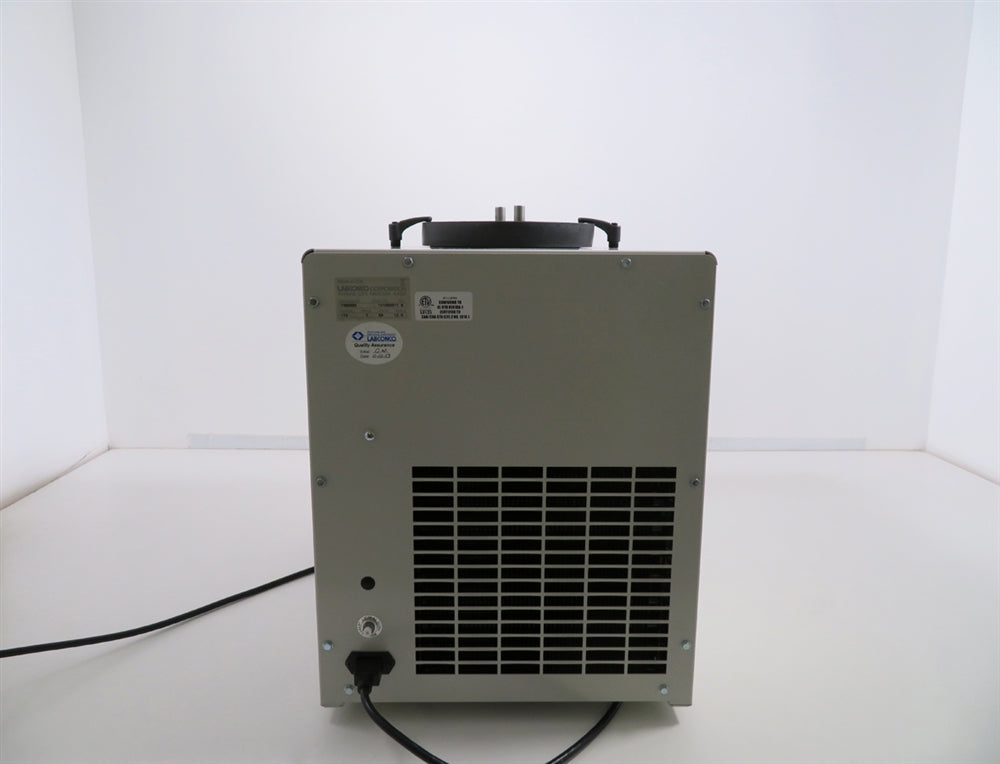

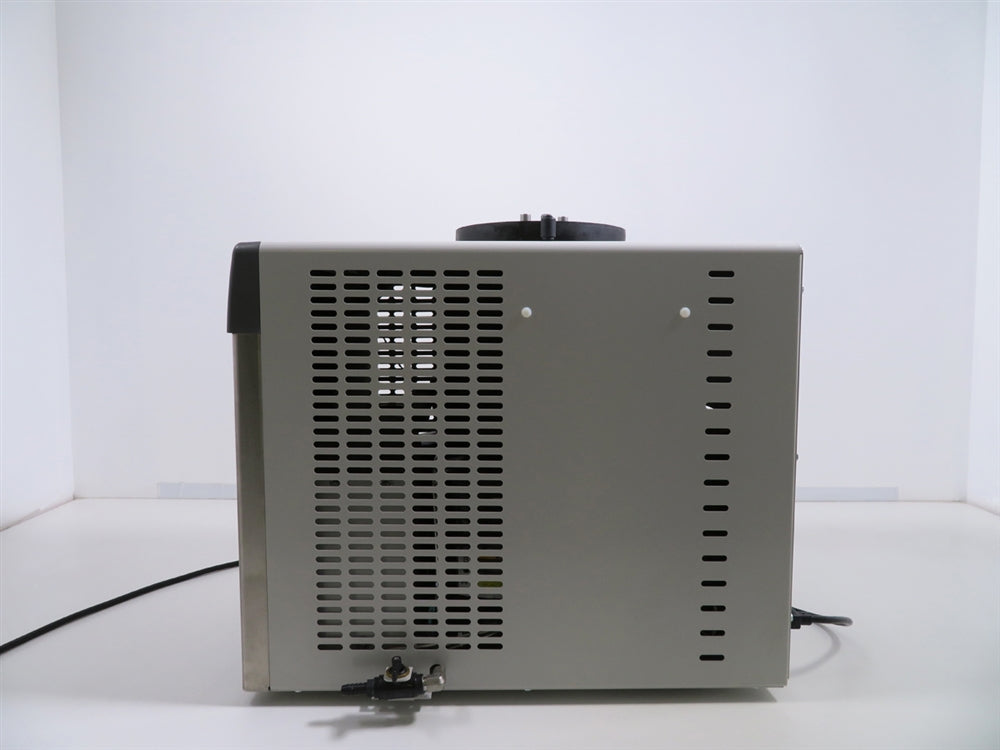

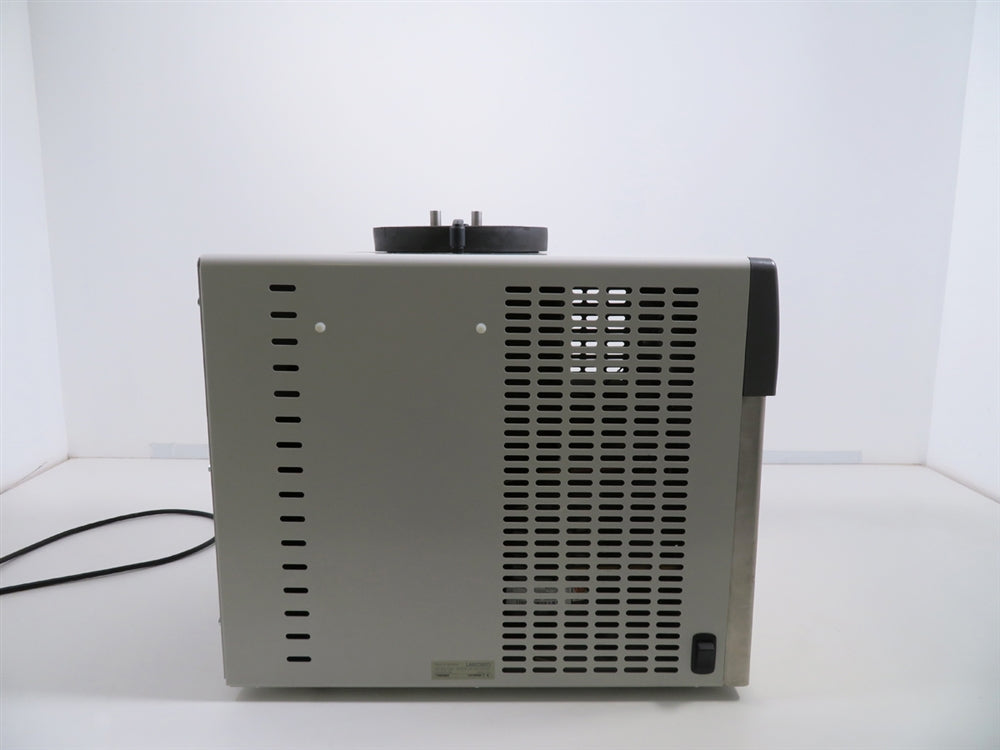

Labconco CentriVap -84C Cold Trap
The CentriVap -84C Cold Trap Cat # 7460020 collects evaporated liquid from a CentriVap Concentrator, protecting an accessory vacuum pump and the laboratory environment from the corrosive effects of vapors and fumes emitted from samples.
The Labconco CentriVap -84C Cold Trap features:
- A Brushed, Stainless Steel and Powder-Coated Steel Exterior

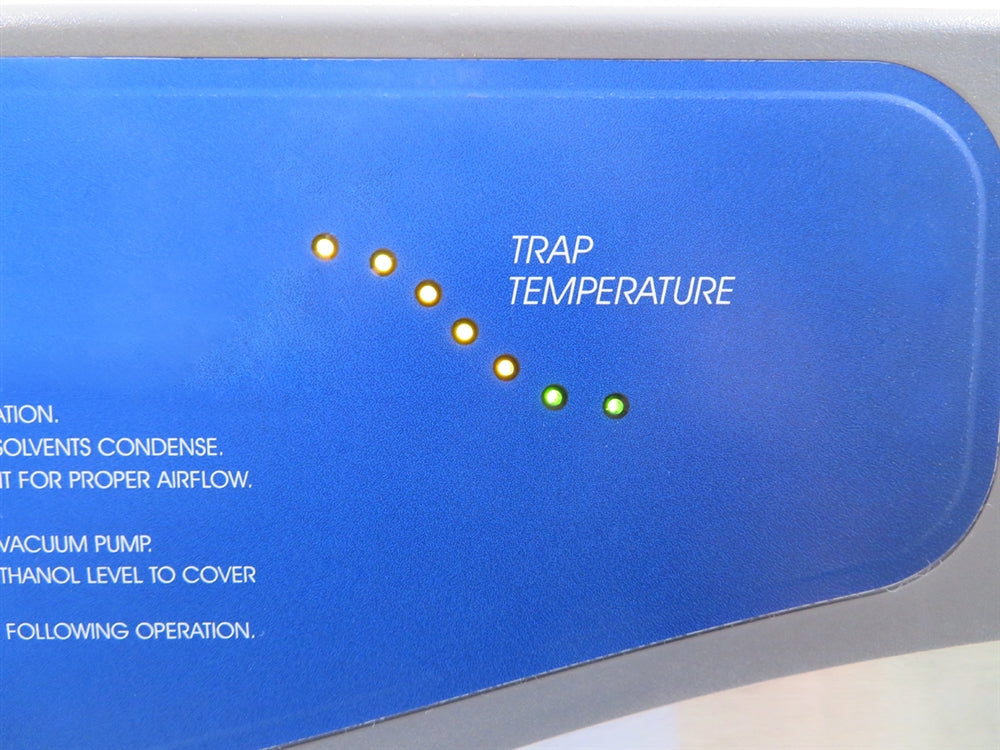

- Illuminated Temperature Graph with Endpoint Indication
- HCFC-Free Refrigerant System
- 1/3 hp Compressor (Reaches -84C in less than 40 min.)
- 4-liter, Stainless Steel Collector
- Acrylic or Stainless Steel Lid (with 2 Quick-Disconnect fittings for connection to a CentriVap Concentrator)
- Stainless Steel Drain Port (with corrosion-resistant, nylon valve)
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Labconco CentriVap -84C Cold Trap includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Labconco CentriVap -84C Cold Trap Specifications
|
Certifications |
CE, ETL, ETL-C |
|
Temperature Range (Metric) |
-84C |
|
Dimensions |
14.5w x 22.0d x 20.9h
36.8 x 55.9 x 53.1 cm |
|
Operating Temperature |
-65C |
|
Weight |
142 lb.(64kg) |
|
Electrical |
115V, 60 Hz, 12 amps |
|
For Use With (Equipment) |
Low freezing point solvent concentrator system |
|
Material |
Stainless Steel |
|
Product Type |
Benchtop |
|
Includes |
1/3hp Compressor, 4L Stainless Steel collector, Acrylic lid with two quick-disconnect fittings, Stainless Steel drain port with Nylon valve, grounding clip and on/off power switch |
|
Plug Type |
NEMA 5-15 |


Click Here to View the Technical Specs for the Labconco CentriVap -84C Cold Trap
