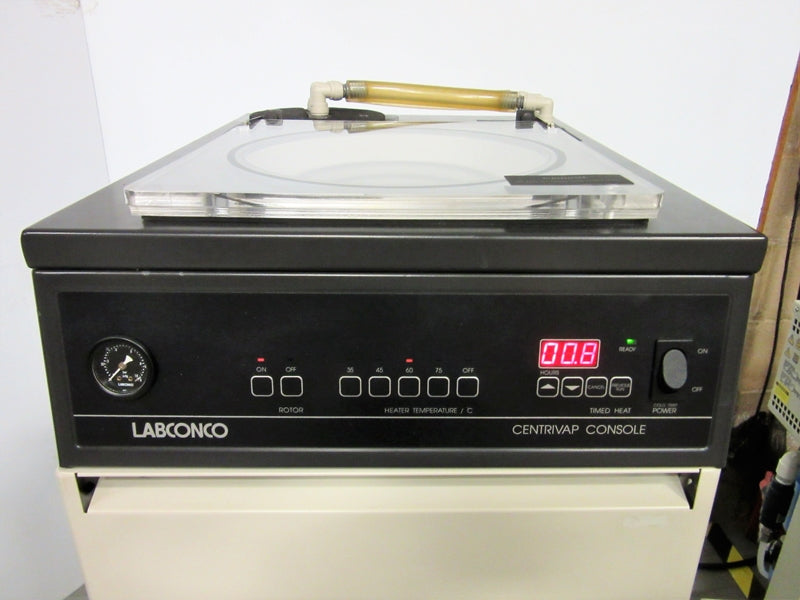

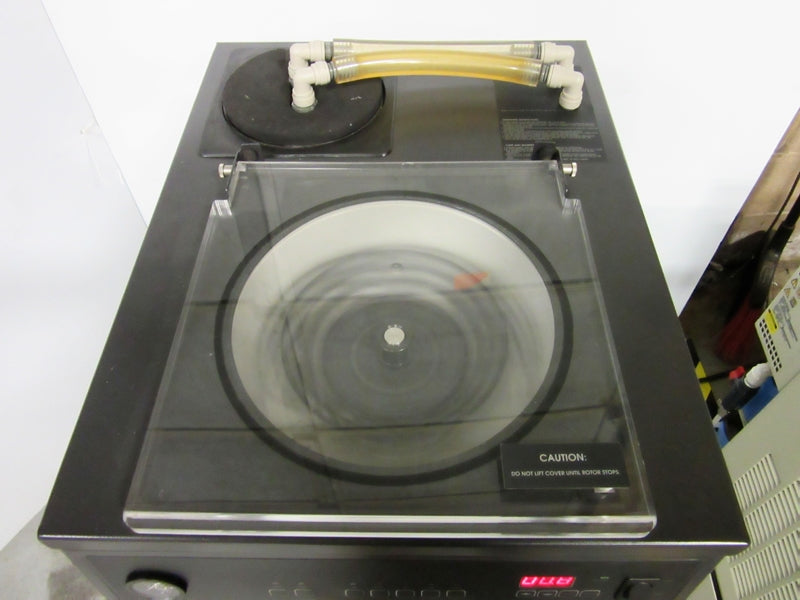

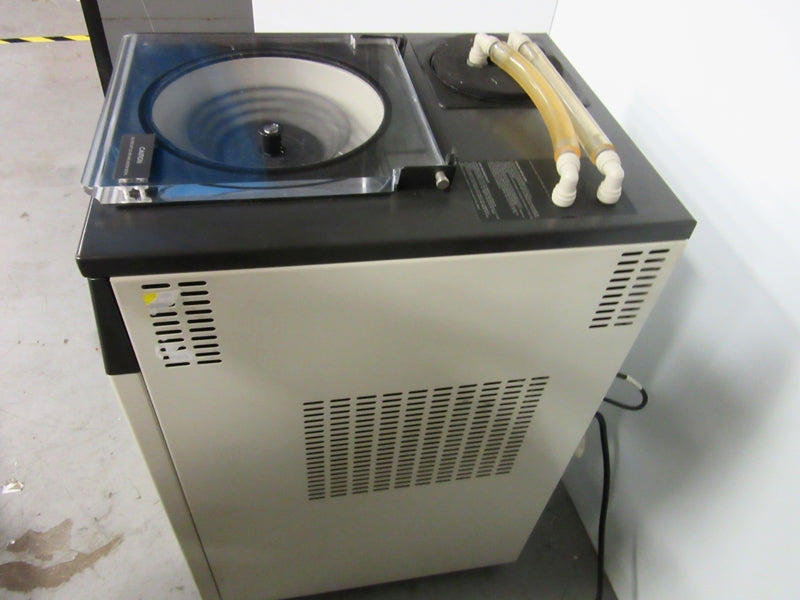

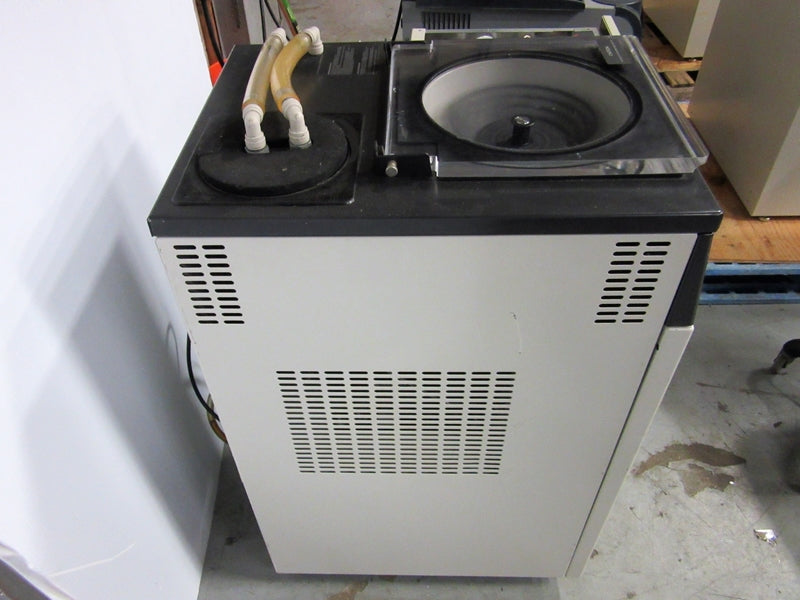

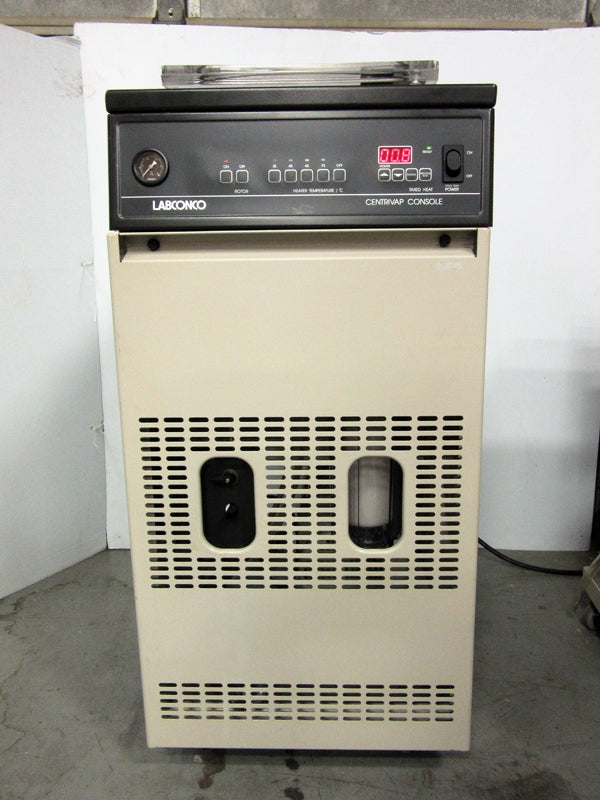

Labconco Centrivap Console 78120-00
The is Labconco Centrivap Console combines a concentrator and cold trap into one compact unit. The concentrator uses centrifugal force, heat, and vacuum to rapidly evaporate solvents. The addition of centrifugation keeps solvents from foaming or bumping, while also concentrating solutes in the tube bottoms. Microprocessor control provides accurate and reproducible operation. Save up to nine protocols for easy repeatability.
This unit is in excellent condition, and all of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Labconco Centrivap Console 78120-00 includes:
The Labconco Centrivap Console 78120-00 includes:

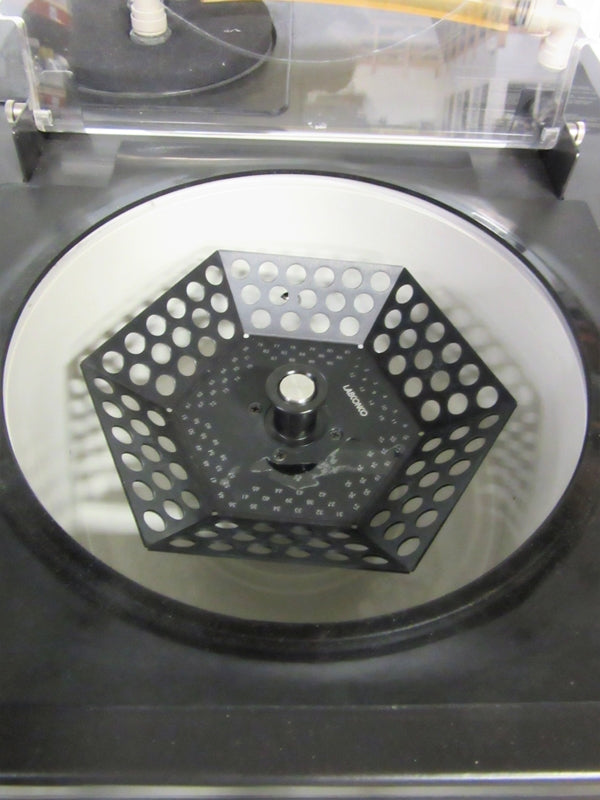

- > Fixed Angle Rotor
- > Vacuum Pump
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Labconco Centrivap Console 78120-00 Specifications:
|
Max. Speed |
1,725 RPM |
|
Temperature Range |
Up to 100C |
|
Time Range |
1 to 999 minutes |
|
Vacuum Level |
0 to 999 mbar |
|
Electrical Requirements |
115V, 60Hz, 17A |
|
Rotor Capacity |
90 x 1.5/2.0 ml Tubes |
| Cold Trap Temperature | -40C |
| Chamber Material | Epoxy-coated cast aluminum |
| Lid Material | Tempered Glass |
Centrifugal Evaporator Inspection and Recertification Checklist

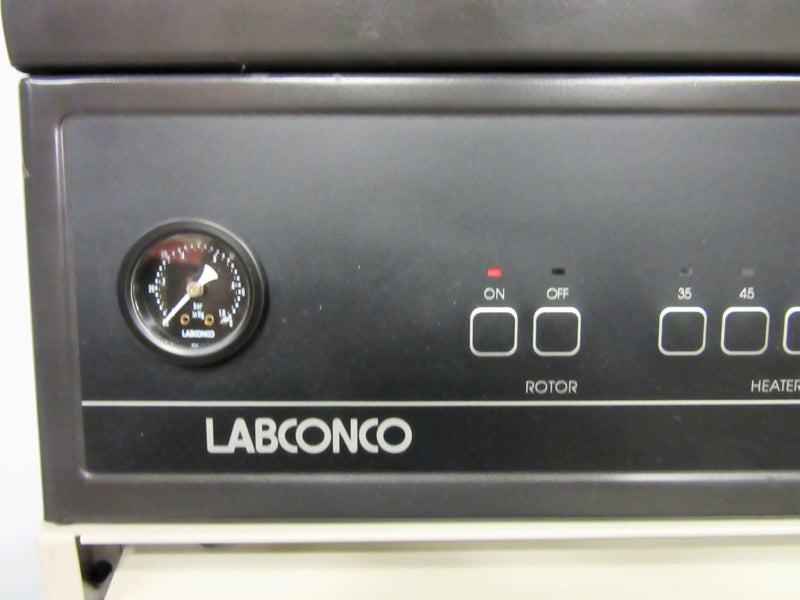

- Inspect The Display Panel and Replace Any Dim/Dead Pixels
- Confirm All Buttons Are Fully Functional
- Check Acrylic/Glass Lid for Cracks or Chips
- Inspect Vacuum Chamber Seal for Tears or Cracks
- Inspect Chamber Lid Functionality and Confirm All Micro Switches Are Reporting .04 Ohms
- Confirm External Connection to Pump or Cold Trap Are Functional Are Properly Sealed and Not Leaking
- Inspect And Clean Internal Fan and Condenser (If Applicable)
- Inspect All Wiring for Frays / Breakages
- Inspect Motor Functionality (Replace Motor/Replace Bearings If Needed)
- Inspect Internal Pump Seals and Replace If Needed
- Inspect All Internal Hose for Potential Leaks (Confirming All Seals Are Tight and Clean

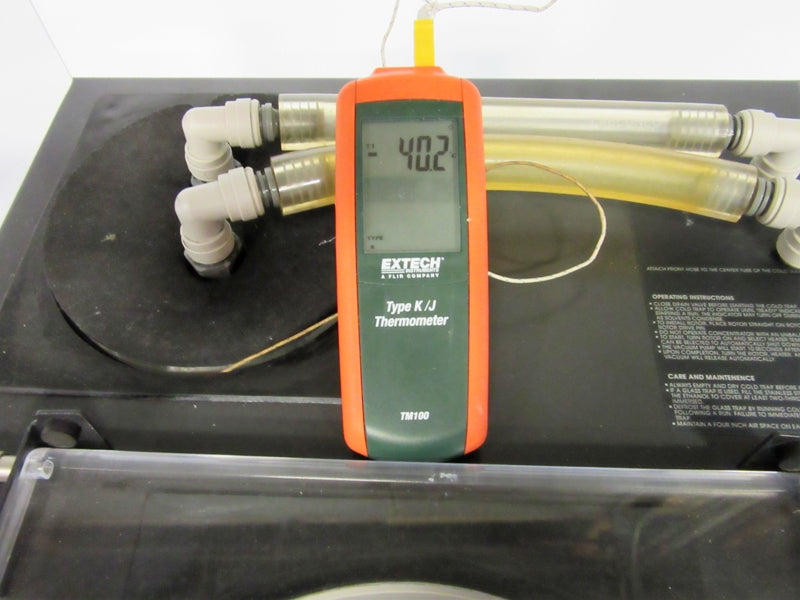

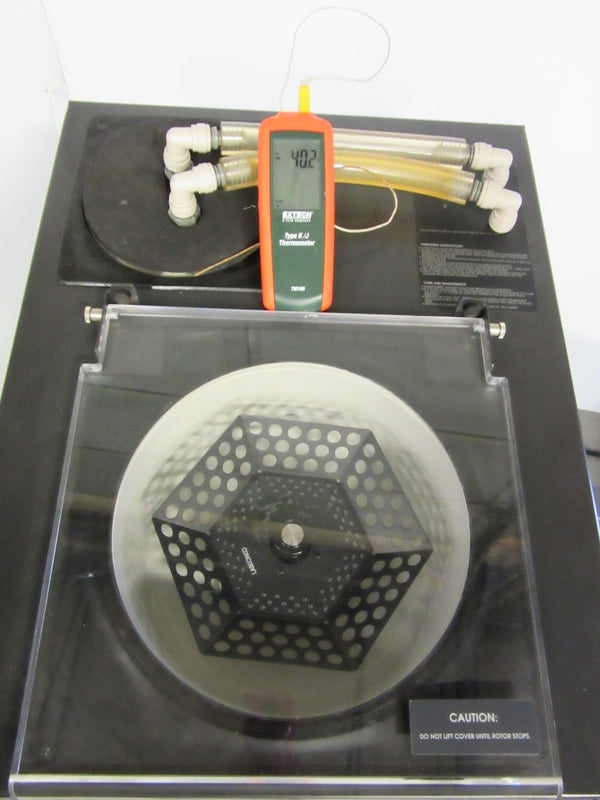

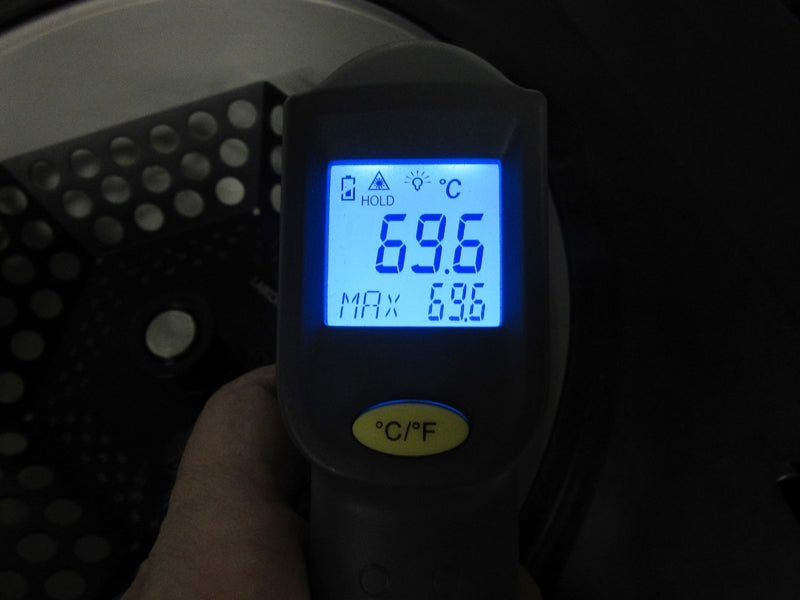

- Confirm The Unit Is Able to Achieve All Temperatures as Indicated by Manufacturer Specification
- Confirm Unit Is Able to Achieve Spec Vacuum Levels
- Cycle Test the Unit For 6-8 Hours
Click Here to View the Technical Specs for the Labconco Centrivap 78120-00
