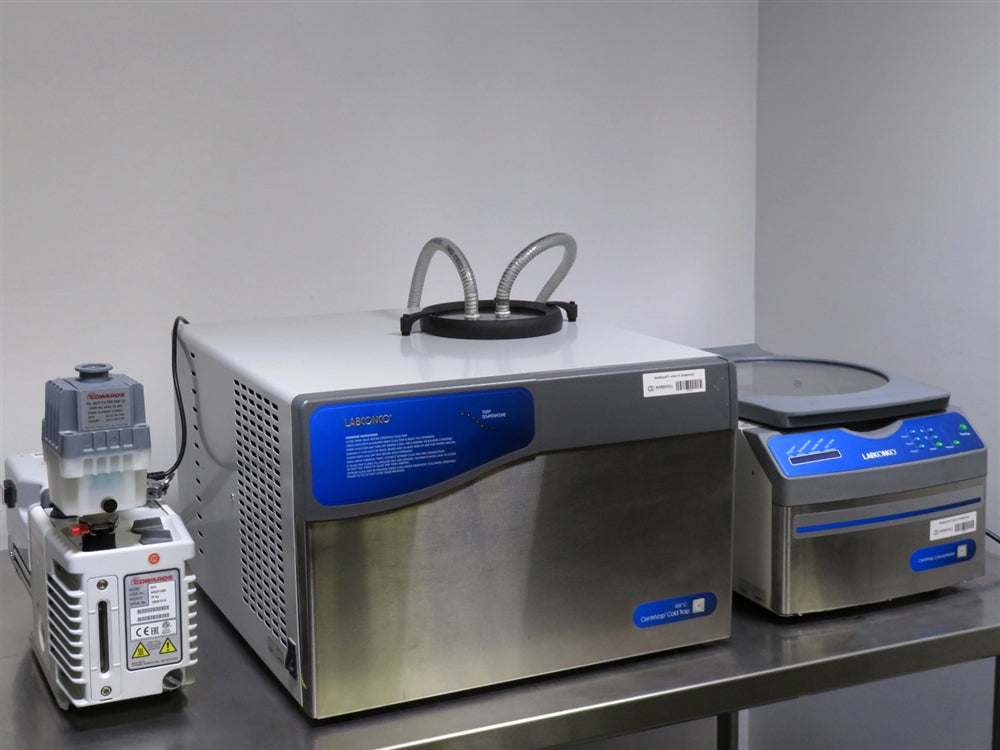

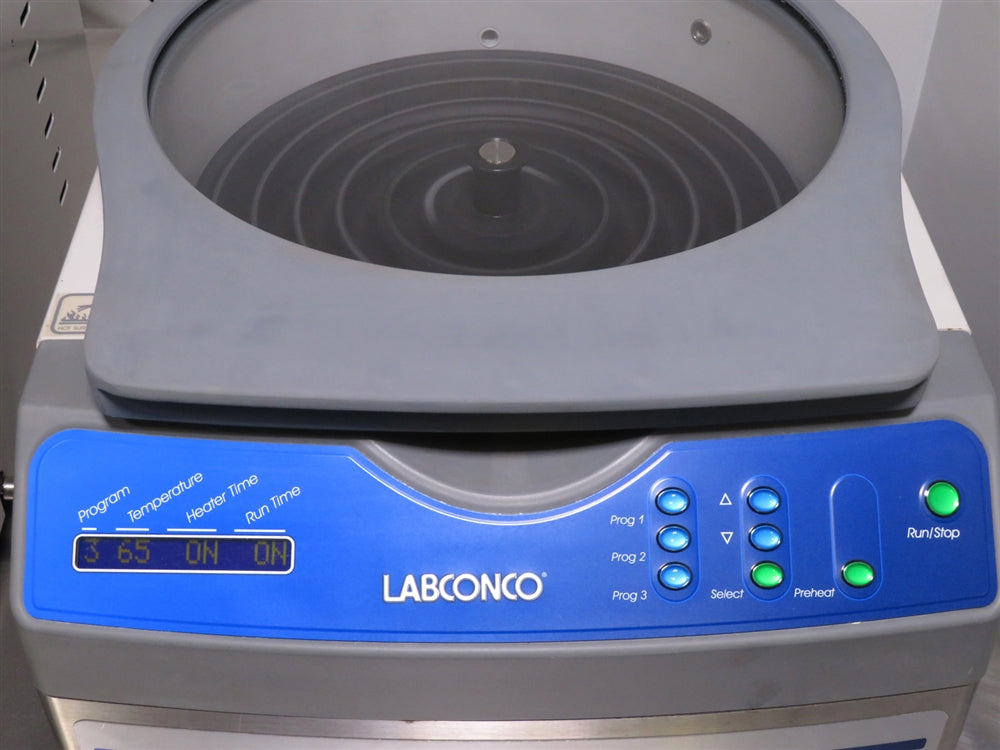

Labconco Centrivap Vacuum Concentrator System w/ -105C Cold Trap
Maximum Speed
1,725 RPM
Cold Trap Temperature
-105°C
Rotor Capacity
40 x 1.5/2.0 ml Tubes
Features
- Combines centrifugal force, vacuum, and controlled temperature for efficient sample concentration
- Prevents bumping and foaming by concentrating solutes while vacuum is applied
- Timed vacuum pump outlet delays activation until the rotor reaches optimal speed
- Safety switch prevents lid from opening while the rotor is in operation
- Microprocessor control ensures precise regulation and reproducibility of protocols
- Stores up to nine user-defined protocols for easy repeatability
- Compact benchtop design saves space while maintaining high functionality
Equipped with a safety switch the Labconco Centrivap Vacuum Concentrator System w/ -105C Cold Trap prevents the lid from being opened while the rotor is in operation. The compact, space saving design allows the system to be operable on a benchtop or other laboratory work surface. The included CentriVap -105°C Cold Trap collects evaporated liquid from the CentriVap Concentrator, protecting the vacuum pump and the laboratory environment from the corrosive effects of vapors and fumes emitted from very low freezing point liquids. This Cold Trap is recommended for Alcohol (e.g. Ethanol, Methanol) sample applications.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:

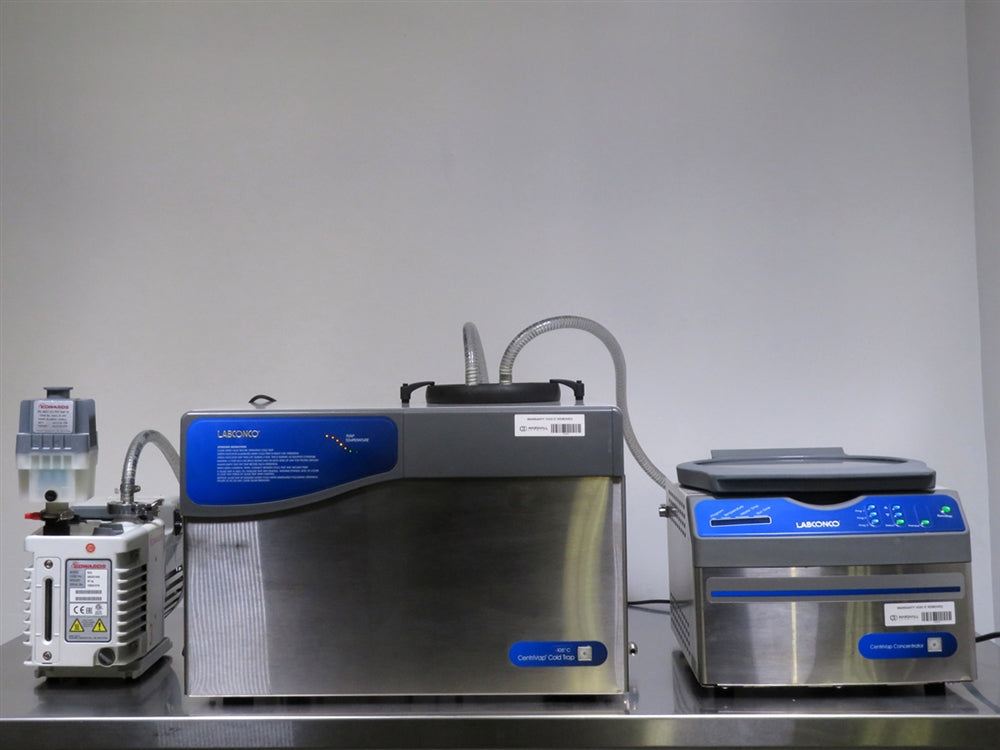

The Labconco Centrivap Vacuum Concentrator System w/ -105C Cold Trap includes:
The Labconco Centrivap Vacuum Concentrator System w/ -105C Cold Trap includes:

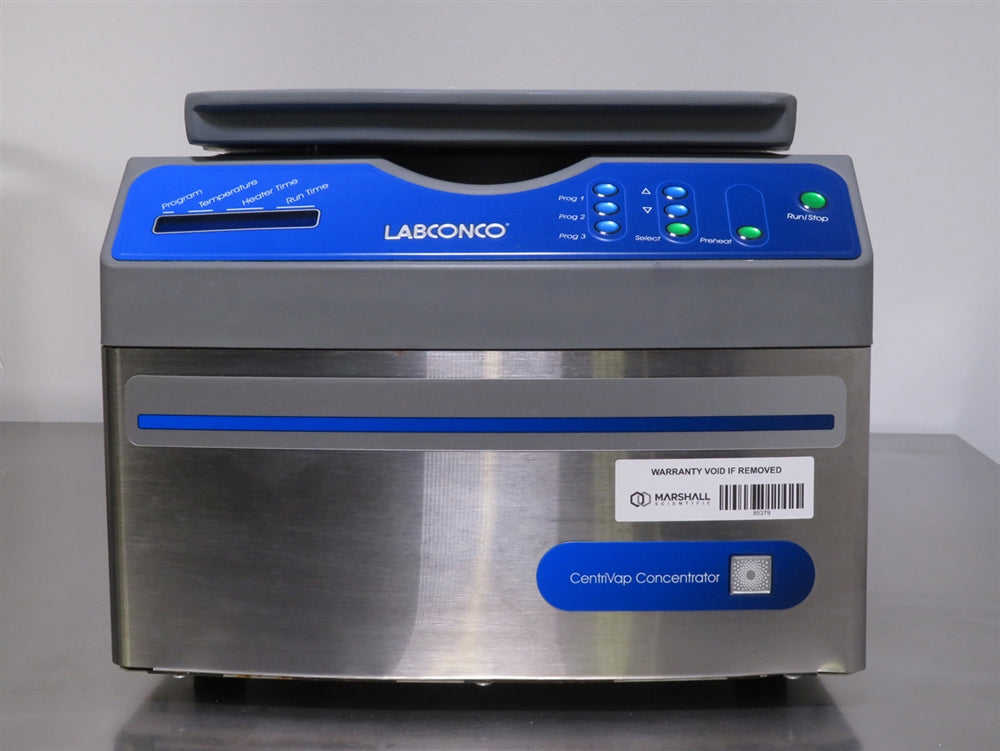

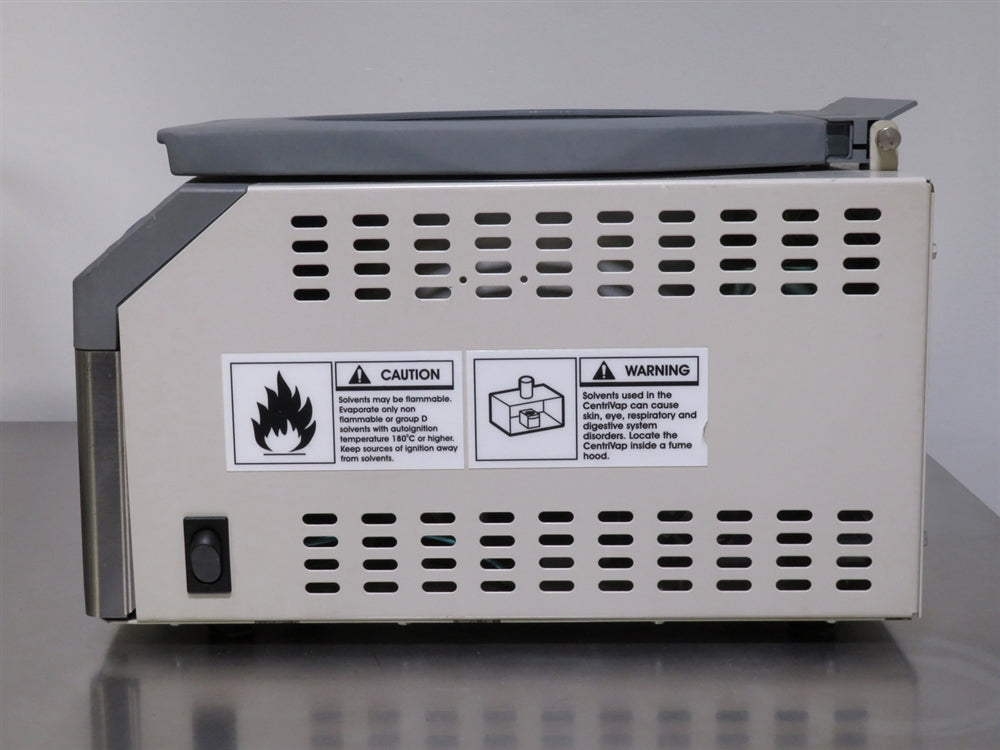

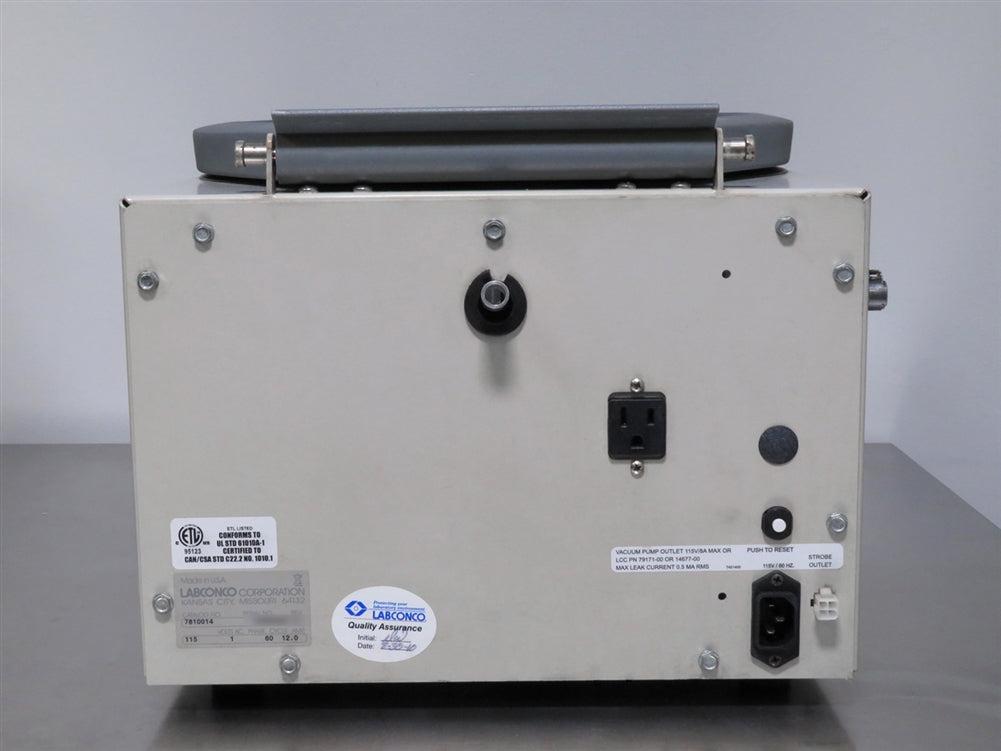

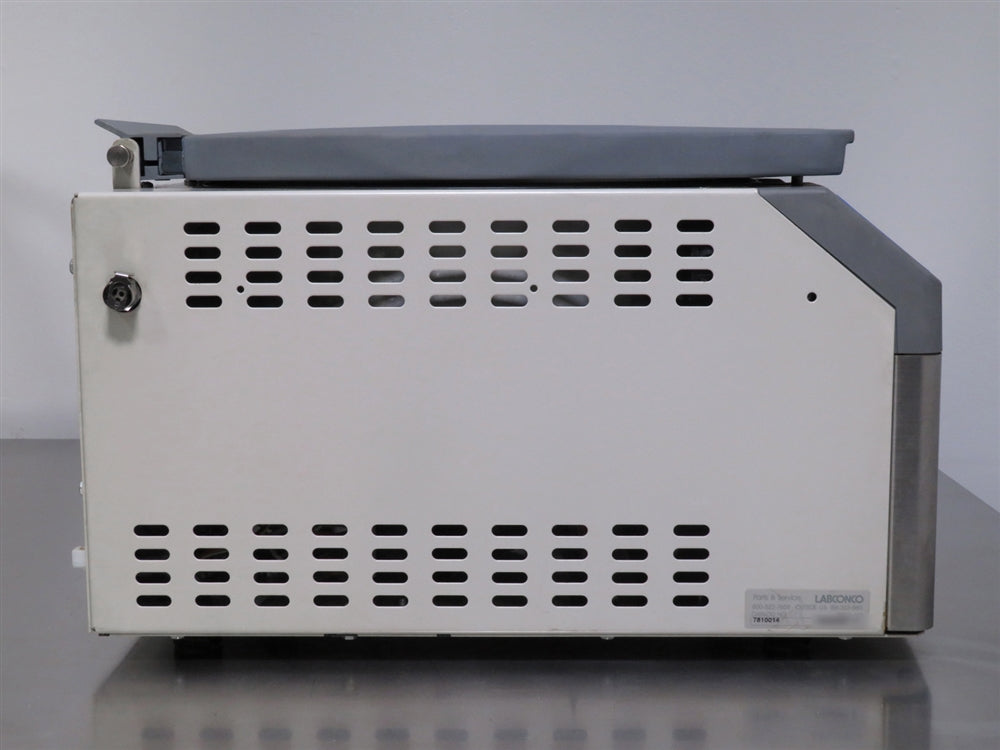

- > CentriVap Concentrator

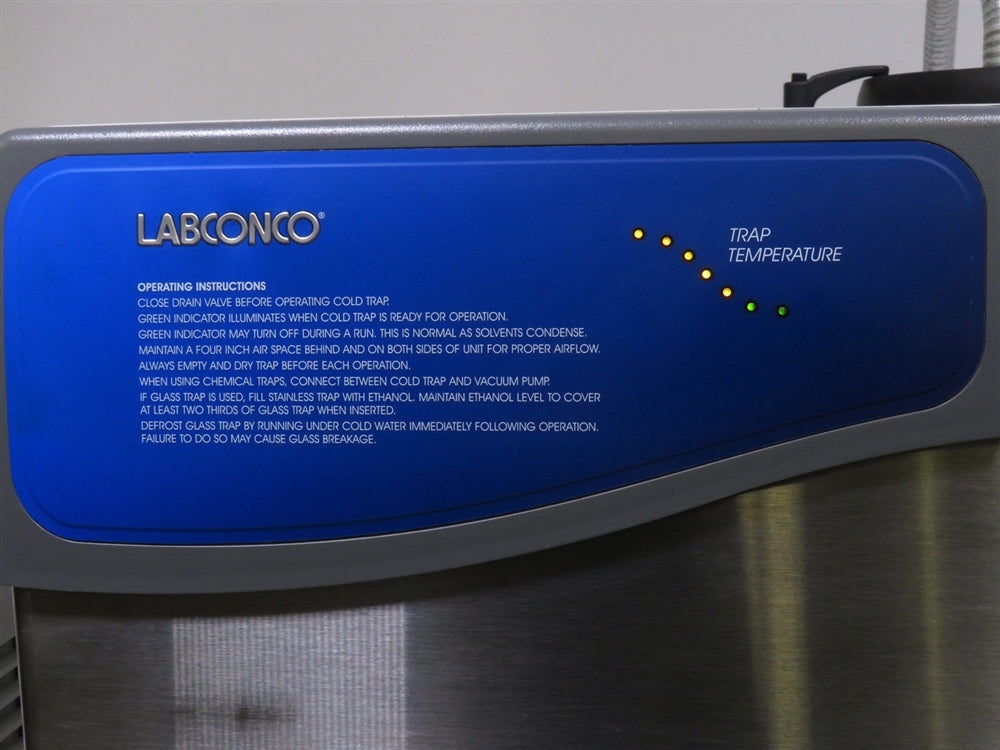

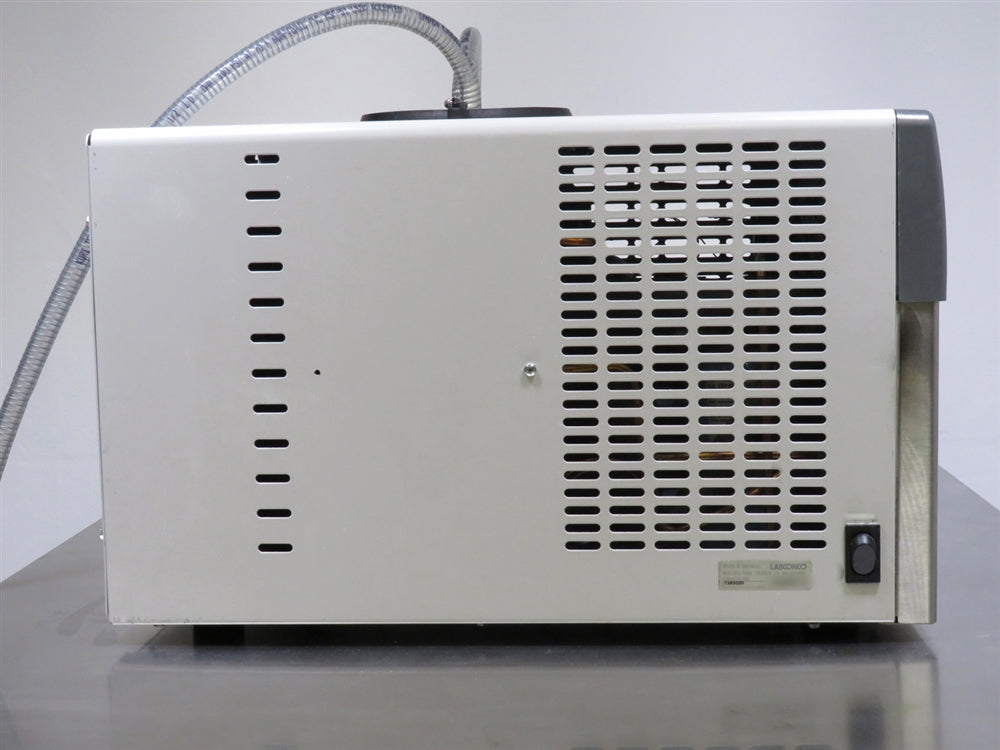

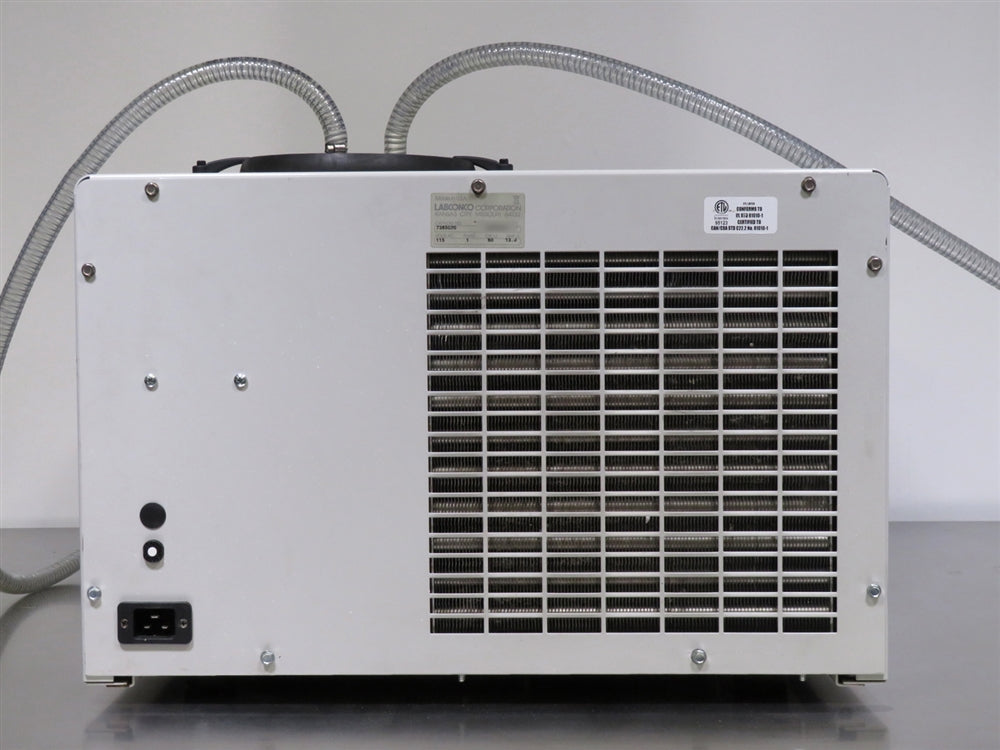

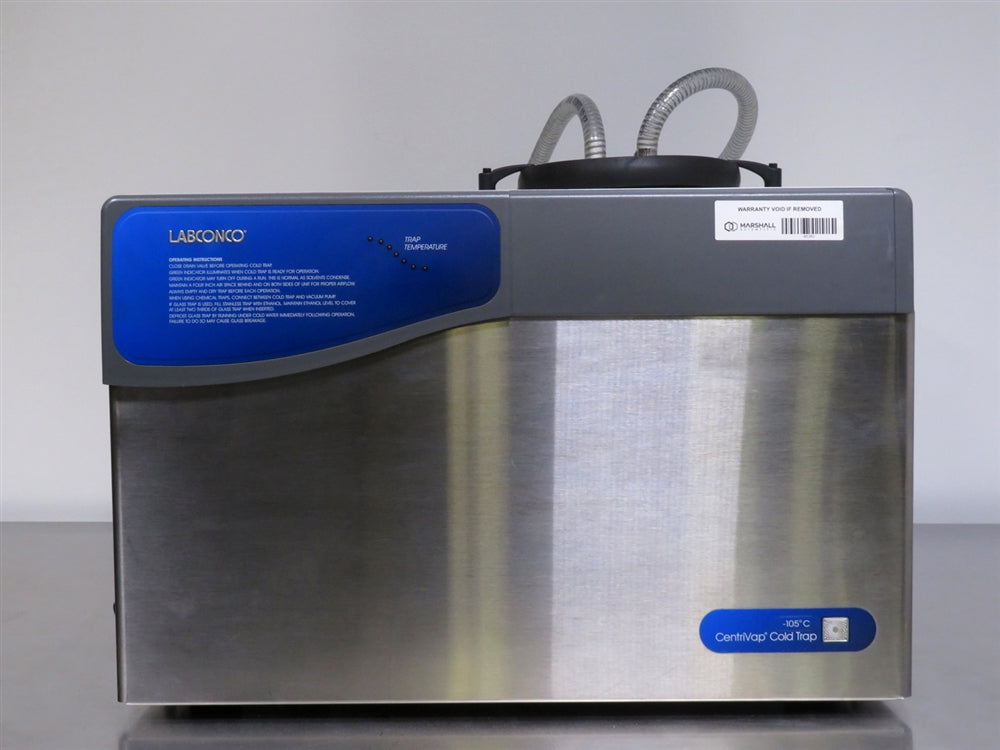

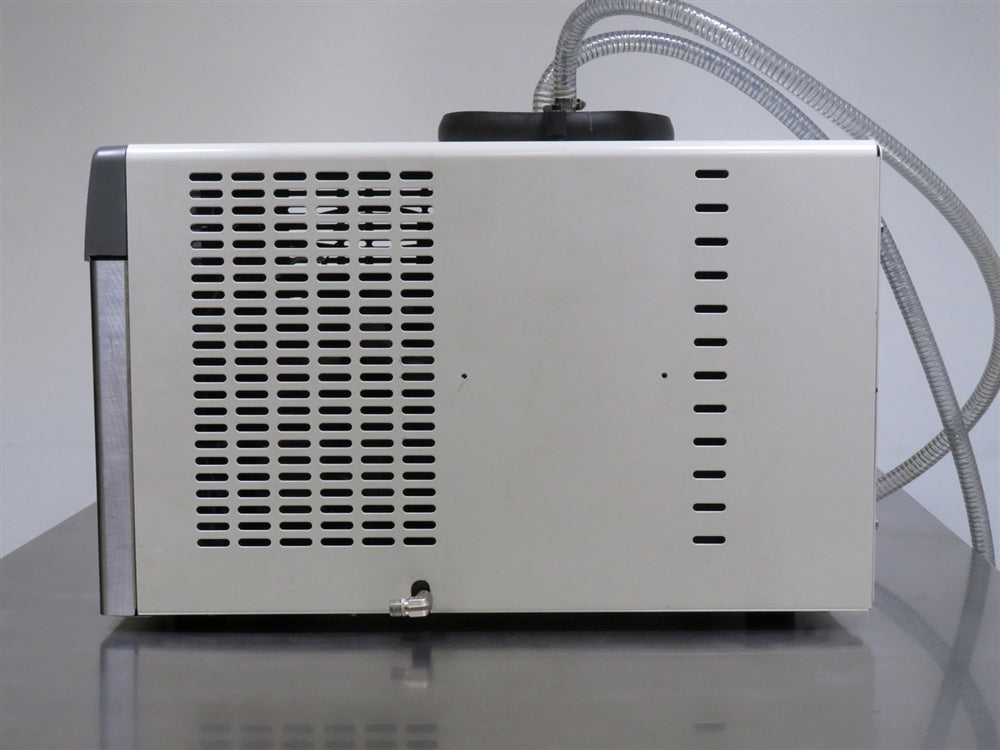

- > CentriVap Cold Trap -105C

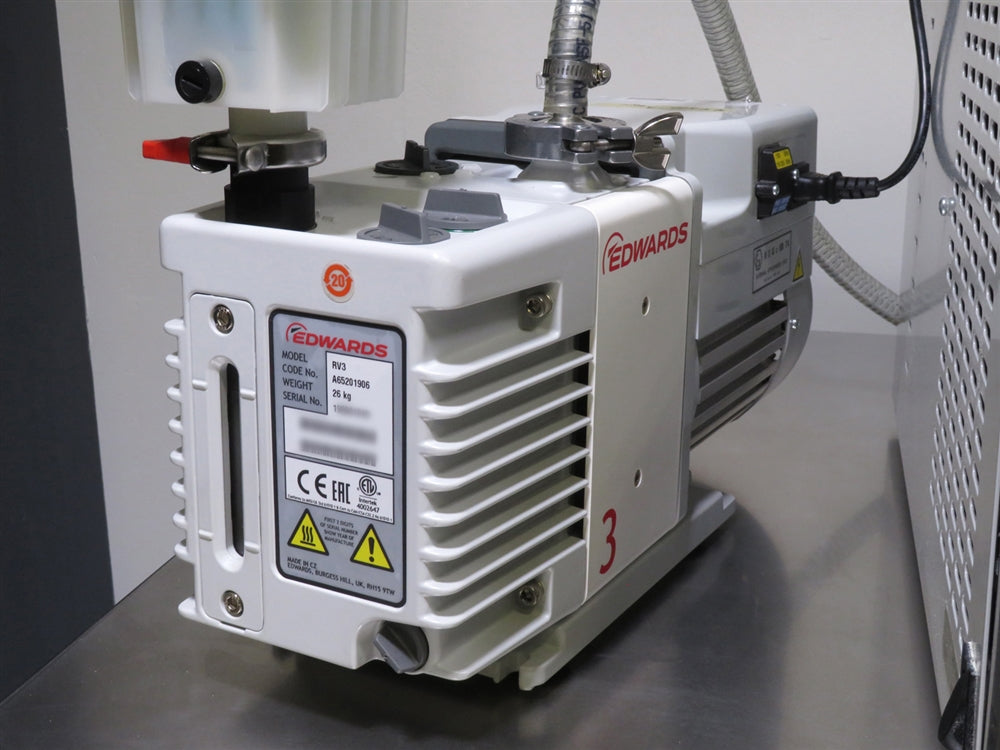

- > New Edwards RV3 Rotary Vane Vacuum Pump

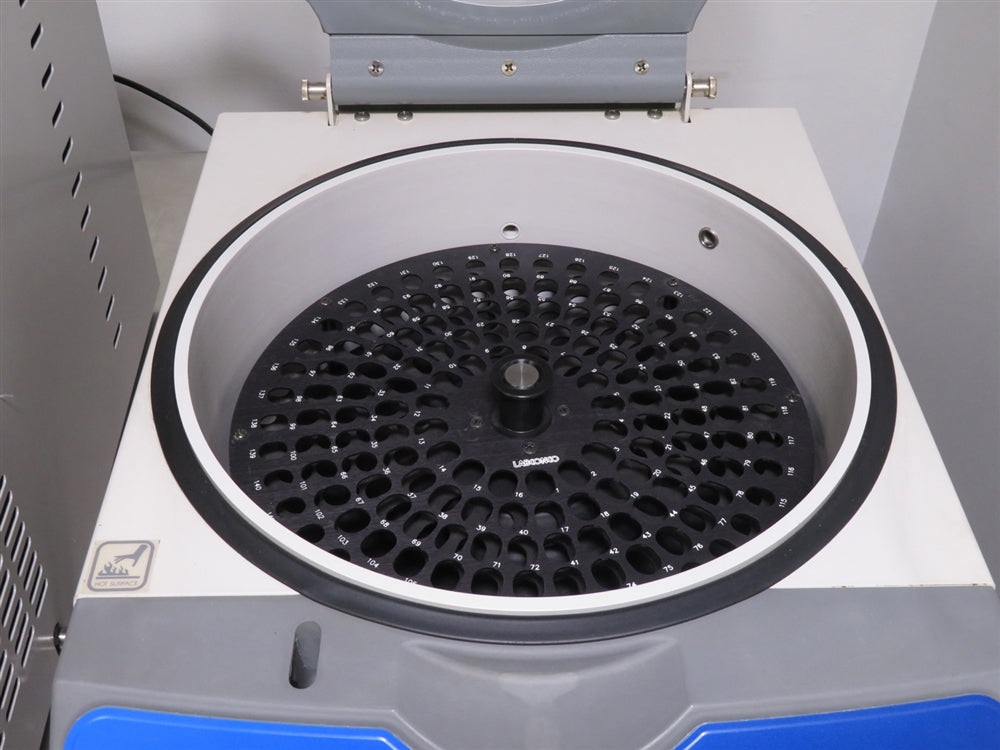

- > 7455100 12-13 mm Fixed Angle Rotor
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Labconco Centrivap Vacuum Concentrator System w/ -105C Cold Trap Specifications
| Max. Speed | 1,725 RPM |
| Temperature Range | Up to 100C |
| Time Range | 1 to 999 minutes |
| Vacuum Level | 0.002 mbar |
| Electrical Requirements | 115V, 60Hz, 7A |
| Rotor Capacity | 40 x 1.5/2.0 ml Tubes |
| Dimensions (W x D x H) | 14.7 x 19.3 x 11.7 in |
| Weight | 42 lbs. |
|
|
|
| Cold Trap Temperature | -105°C |
| Collector Volume | 4L |
| Type / Application | Very Low Freezing Point Solvents |
| Lid Type | Stainless Steel |
| Material | Brushed stainless steel and powder-coated steel |
| Dimensions (W x D x H) | 24.1 x 23.9 x 17.6 in. (61.2 x 60.7 x 44.7 cm) |
| Weight | 150 lb. (68 kg) |
|
|
|
| Peak Pumping Speed | 2.6 CFM at 60 Hz |
| Ultimate Pressure | 1.5x10-3 Torr (2x10-3 mbar) |
| Max water vapor inlet pressure | 60 torr (80 mbar) |
| Max water vapor capacity II | 220 grams/ hr |
| Weight | 47 pounds |
| Noise Level | 48 dB(A) |
| Dimensions | 16.9 L x 6.2 W x 8.9 H in |
| Electrical Supply | 1 Ph, 100-120/200-230 VAC 50/60 Hz |
| Operating temperature range | 12-40 Celsius |
| Oil Capacity | 0.70 Liters |
| Oil Type | Ultragrade 19 |
Centrifugal Evaporator Inspection and Recertification Checklist
- Inspect the display panel, replacing any dim or dead pixels to ensure clear visual feedback
- Verify full functionality of all buttons, confirming consistent responsiveness
- Examine the acrylic or glass lid for any cracks or chips, ensuring safety and integrity
- Check the vacuum chamber seal for any tears or cracks that could impact pressure retention
- Test chamber lid functionality, confirming all micro switches report a consistent .04 Ohms

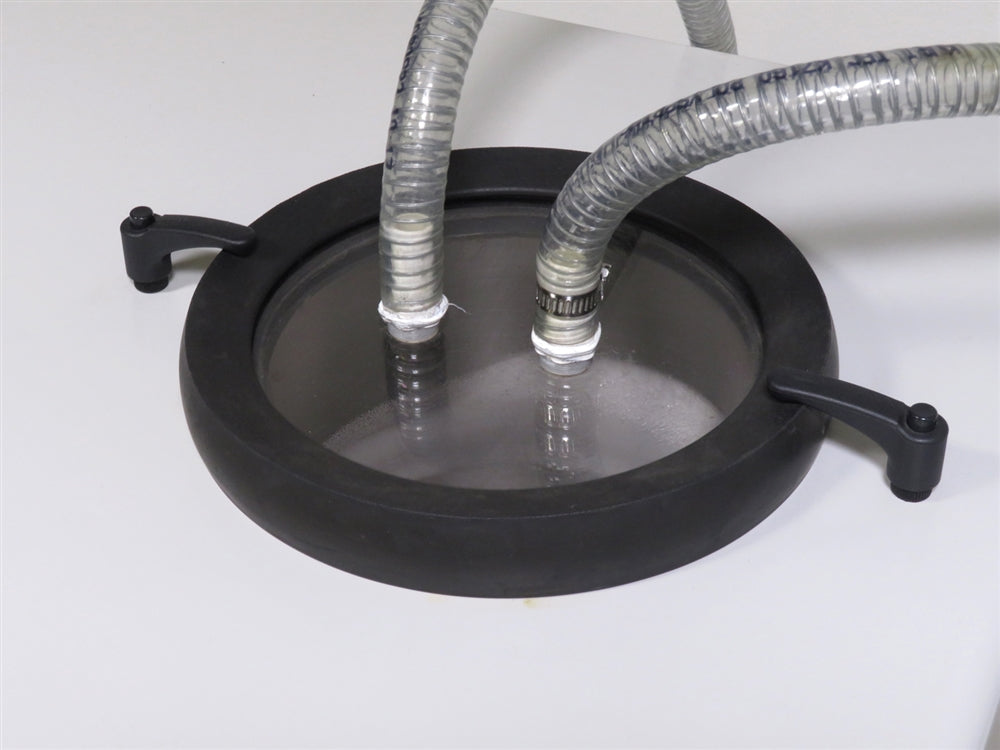

- Verify external connections to the pump or cold trap, ensuring they are properly sealed and leak-free
- Inspect and clean the internal fan and condenser (if applicable) for efficient cooling and airflow
- Examine all internal wiring for frays or breakages, confirming secure and intact connections
- Test motor functionality, replacing motor or bearings if performance is compromised
- Inspect internal pump seals, replacing any worn or damaged seals to maintain vacuum integrity
- Inspect all internal hoses for potential leaks, ensuring tight, clean seals
- Confirm unit is capable of achieving all manufacturer-specified temperature ranges
- Verify the unit can reach specified vacuum levels in accordance with manufacturer standards
- Conduct a 6-8 hour cycle test to confirm consistent operational performance
Technician Inspection and Recertification Checklist: Centrifugal Evaporators
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect display panel for dim or dead pixels | Completed | |
| Confirm functionality of all buttons | Completed | |
| Check acrylic/glass lid for cracks or chips | Completed | |
| Inspect vacuum chamber seal for tears or cracks | Completed | |
| Confirm chamber lid micro switches report .04 Ohms | Completed | |
| Verify pump or cold trap connections are sealed and leak-free | Completed | |
| Inspect and clean internal fan and condenser (if applicable) | Completed | |
| Inspect internal wiring for frays or breakages | Completed | |
| Test motor functionality, replace motor/bearings if needed | Completed | |
| Inspect internal pump seals, replace if needed | Completed | |
| Inspect all internal hoses for leaks, ensure clean seals | Completed | |
| Confirm unit achieves specified temperature ranges | Completed | |
| Verify unit reaches specified vacuum levels | Completed | |
| Conduct a 6-8 hour cycle test for operational performance | Completed |
