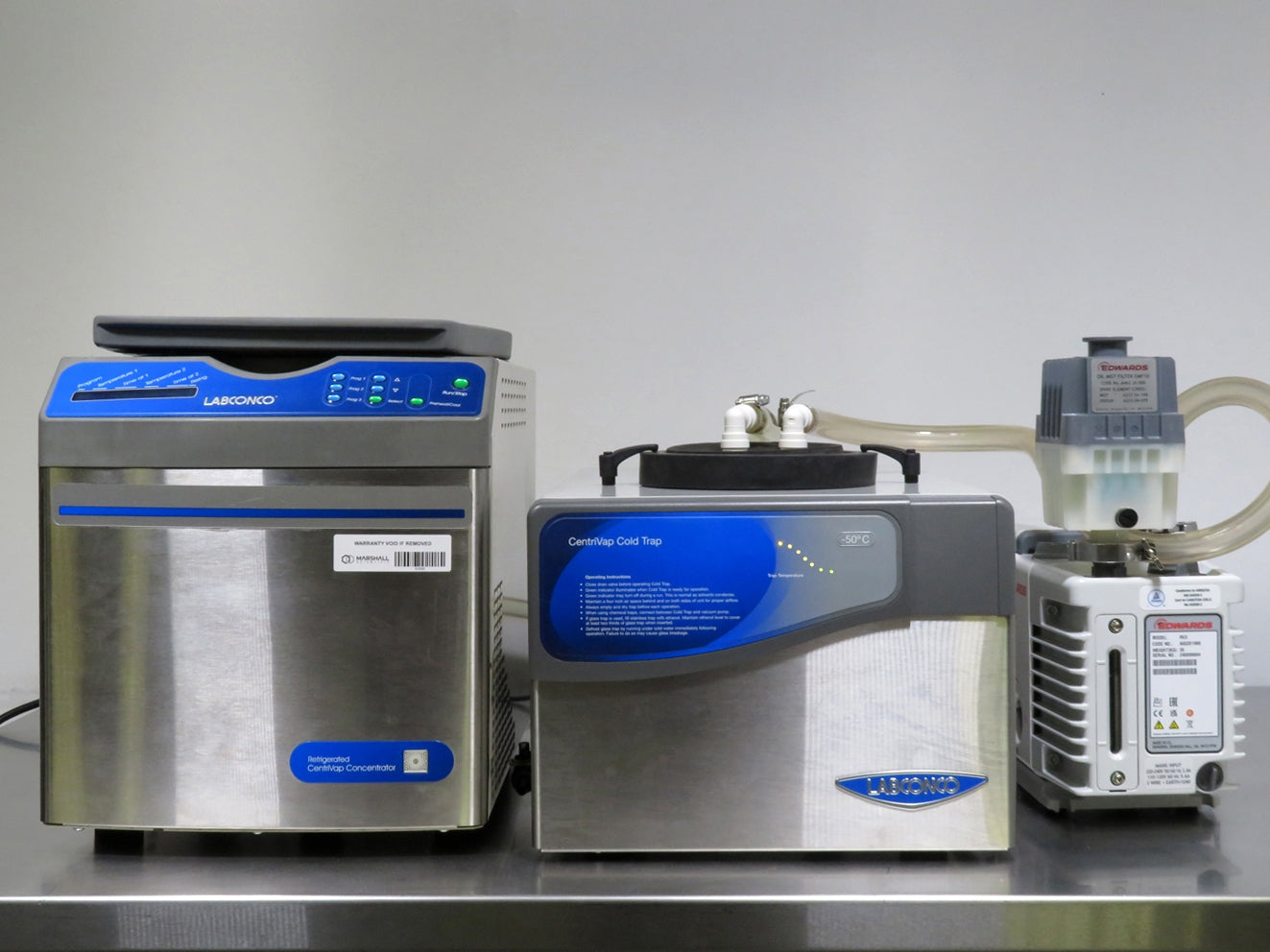

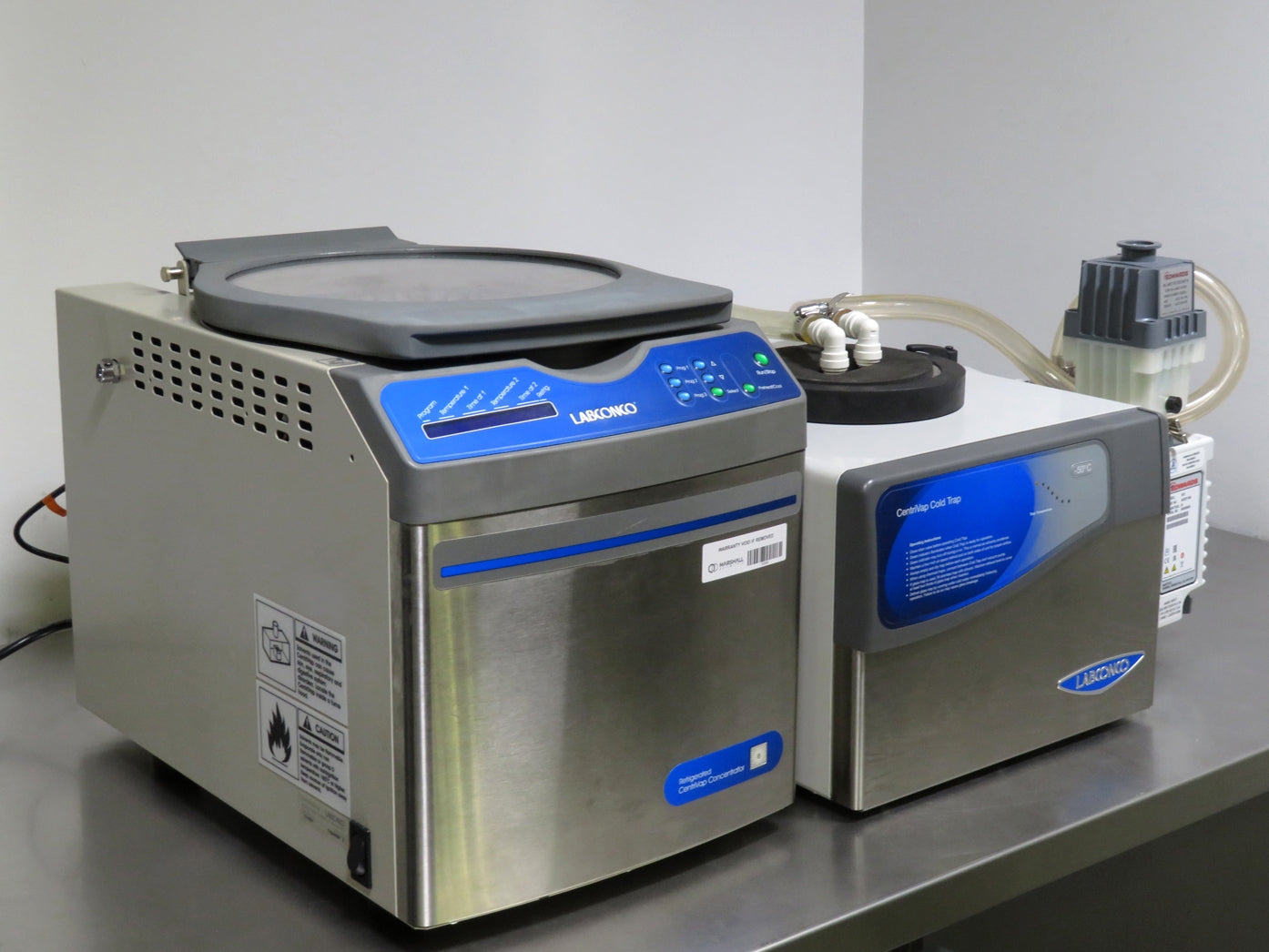

Labconco Refrigerated CentriVap Vacuum Concentrator System
Maximum Speed
1,725 RPM
Cold Trap Temperature
-50°C
Ultimate Vacuum
0.002 mbar (1.5 Torr)
Features
- Combines centrifugal force, vacuum, and controlled temperature for efficient sample concentration
- Integrated refrigeration system cools to -4C while the heater warms up to 100C for precise temperature control
- Prevents bumping and foaming by concentrating solutes while vacuum is applied
- Timed vacuum pump outlet delays activation until the rotor reaches optimal speed
- Safety switch prevents lid from opening while the rotor is in operation

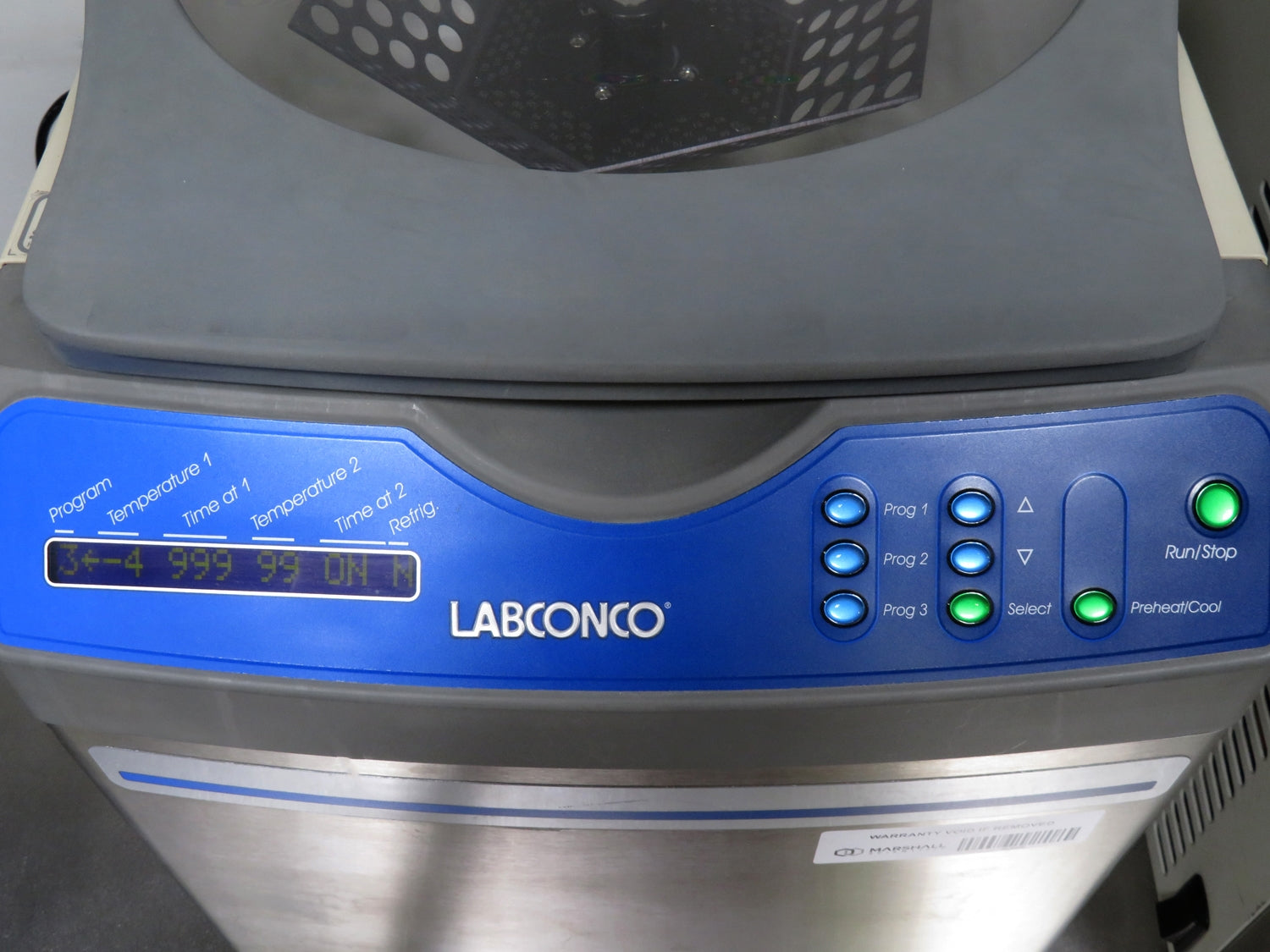

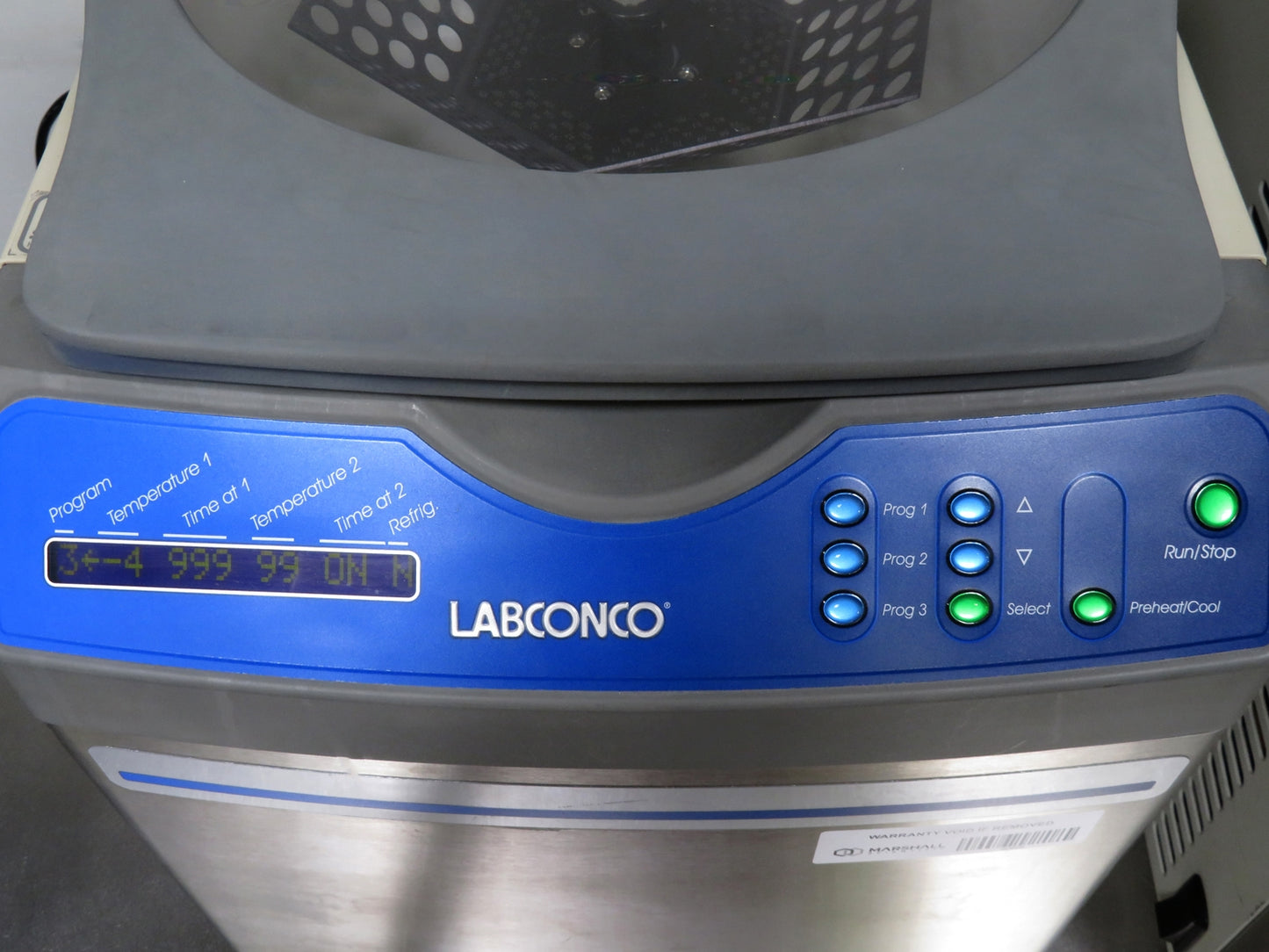

- Microprocessor control ensures precise regulation and reproducibility of protocols
- Stores up to nine user-defined protocols for easy repeatability
- Compact benchtop design saves space while maintaining high functionality
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Labconco Refrigerated CentriVap Vacuum Concentrator System includes:
The Labconco Refrigerated CentriVap Vacuum Concentrator System includes:

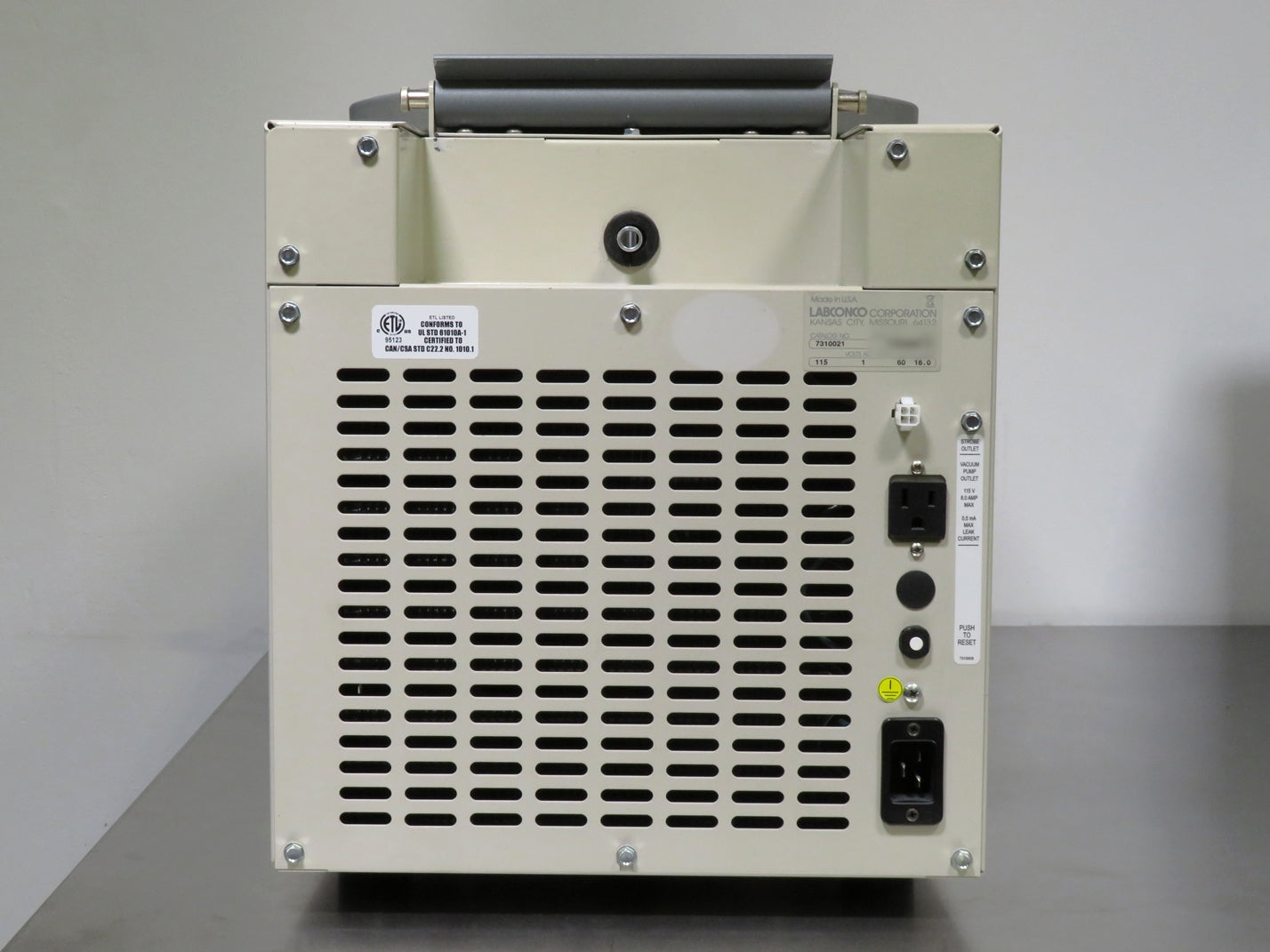

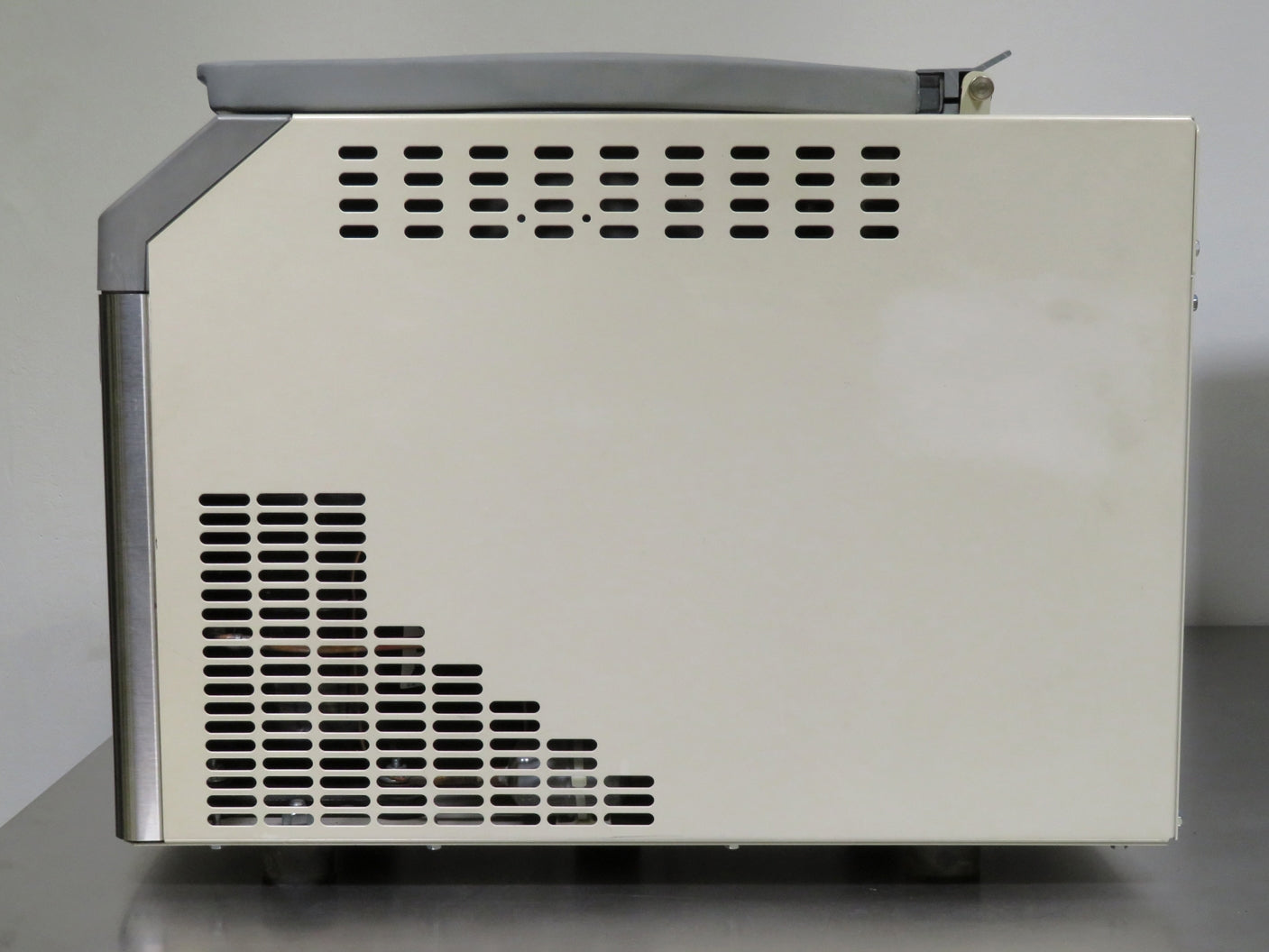

- > Refrigerated CentriVap Concentrator

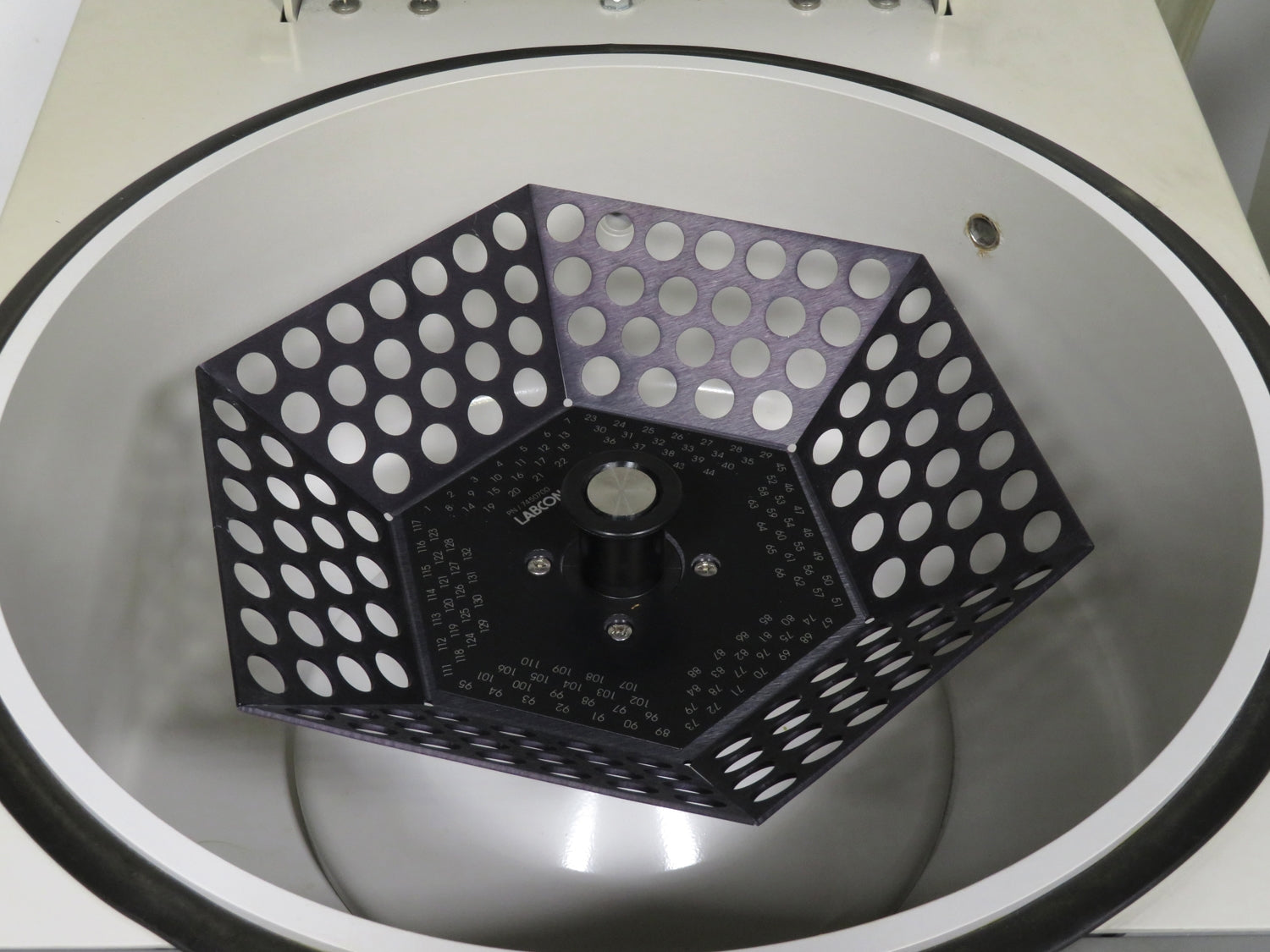

- > 7450700 Fixed Angle Rotor

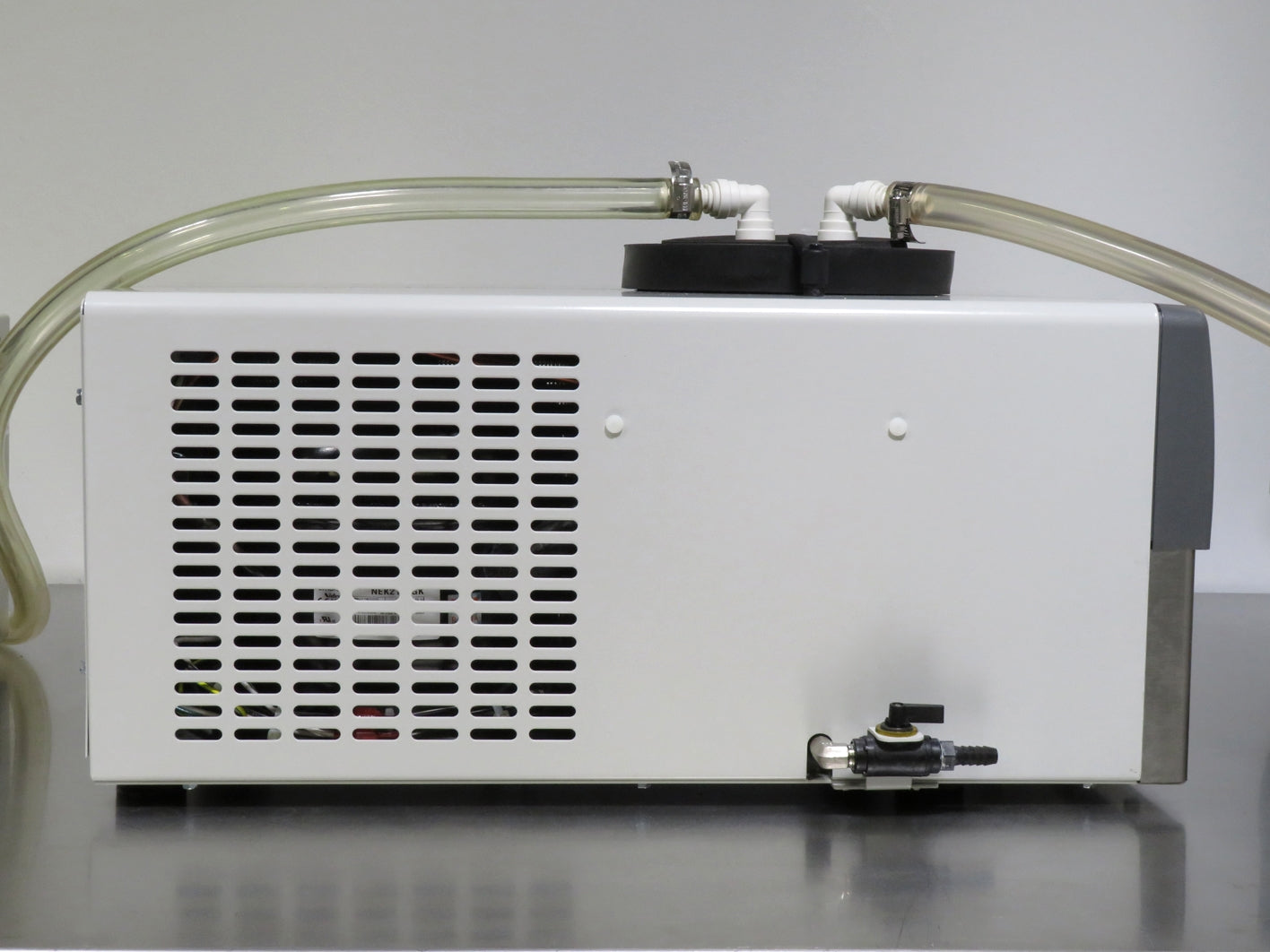

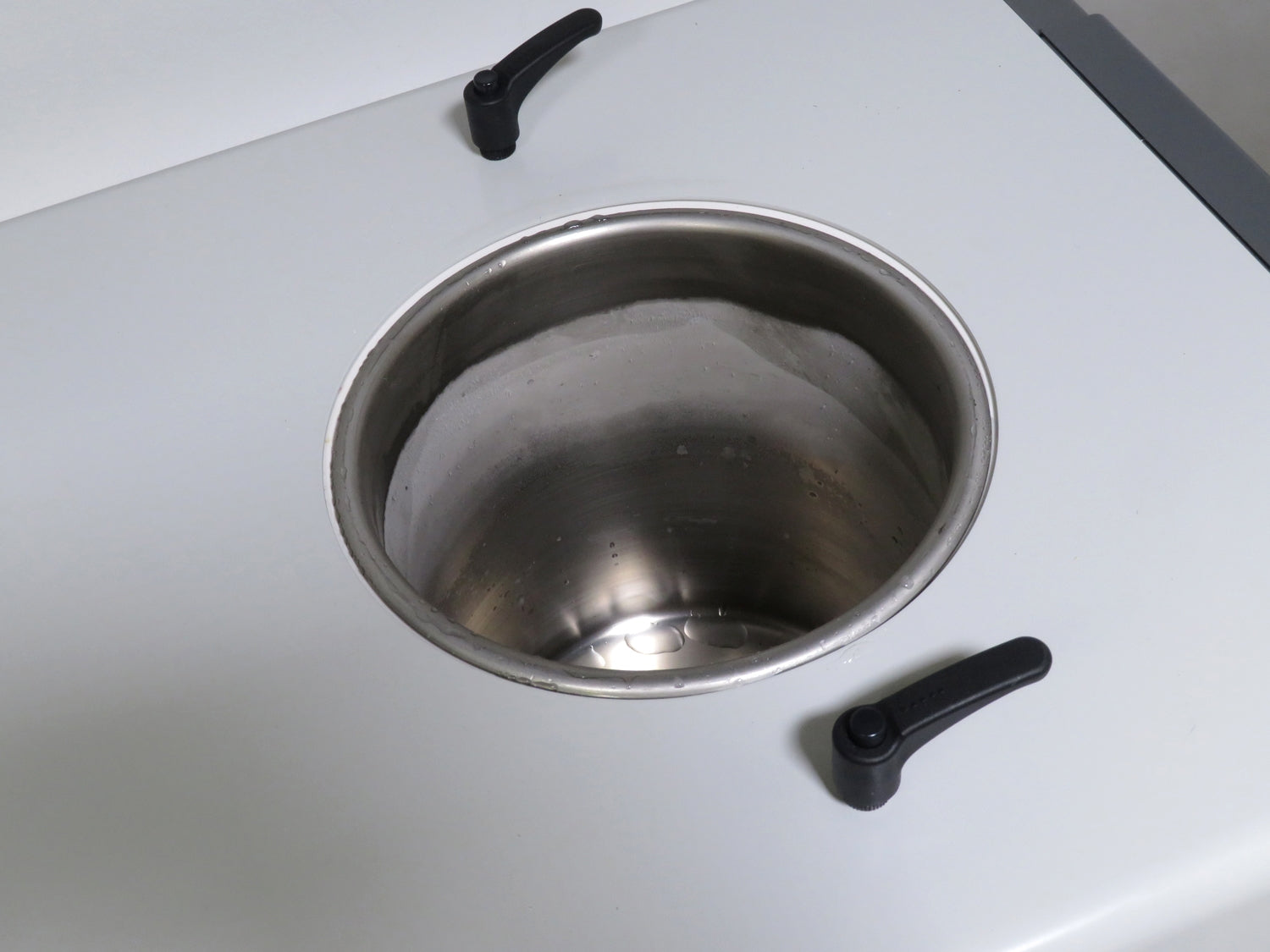

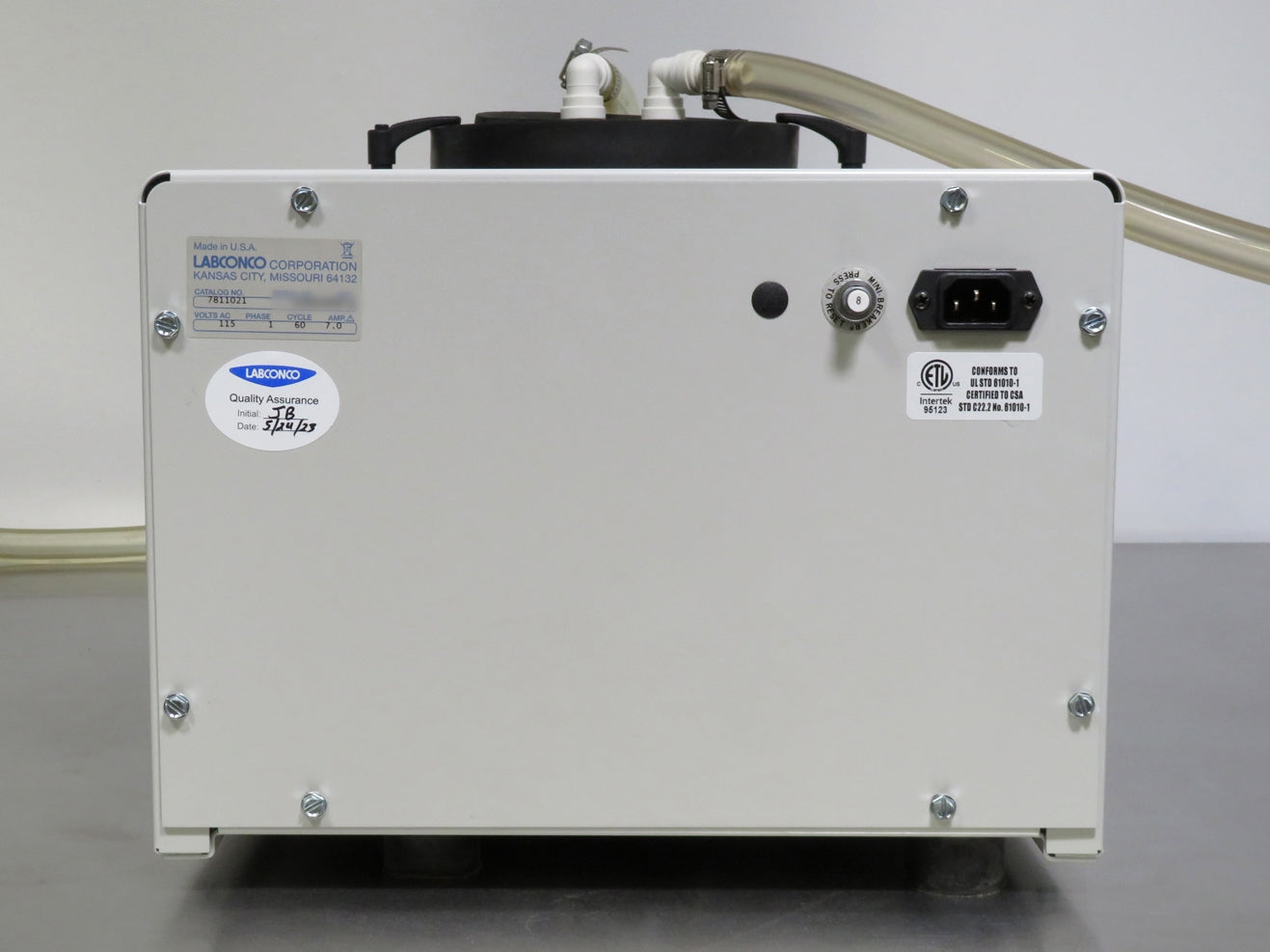

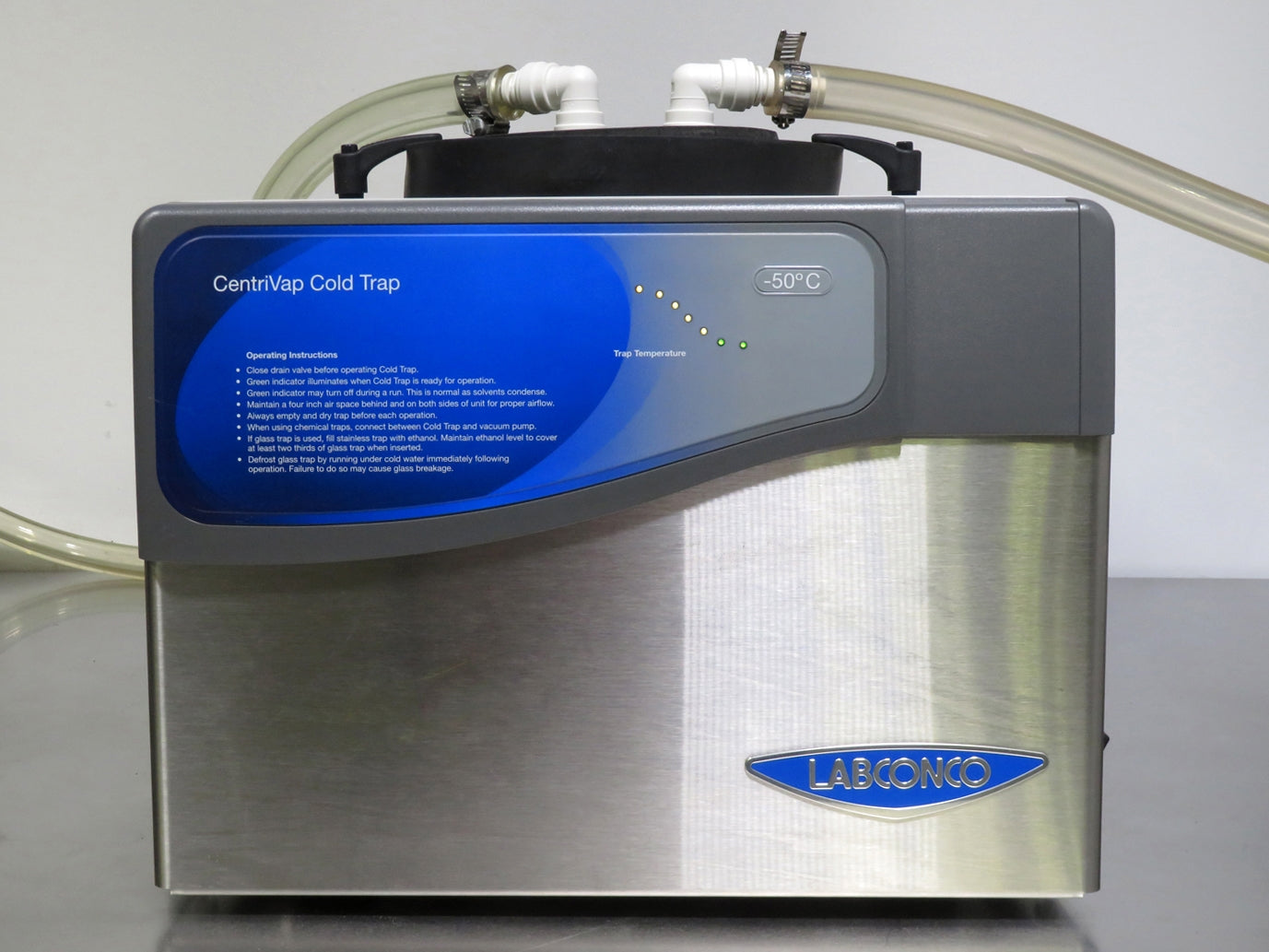

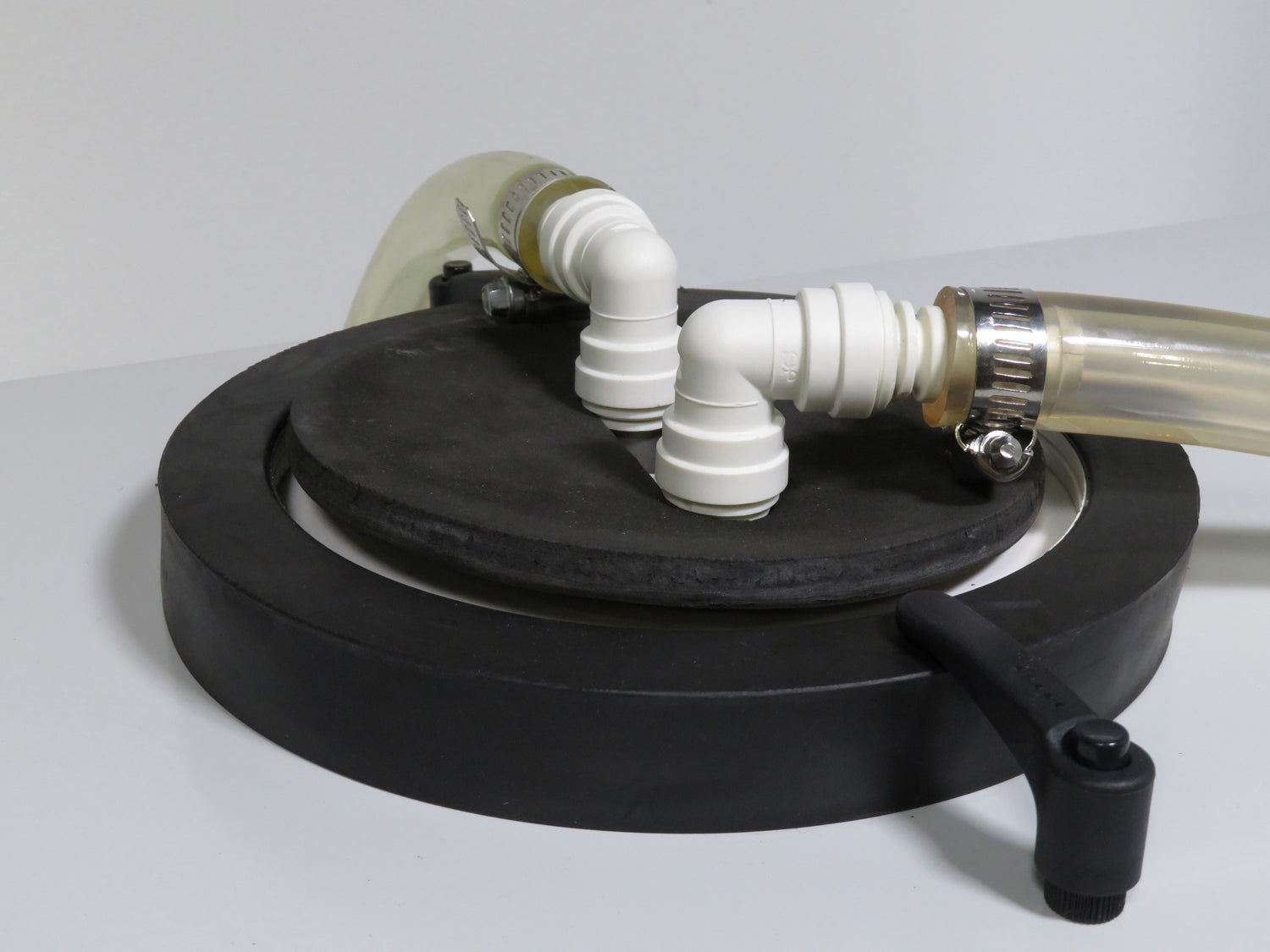

- > CentriVap Cold Trap -50C

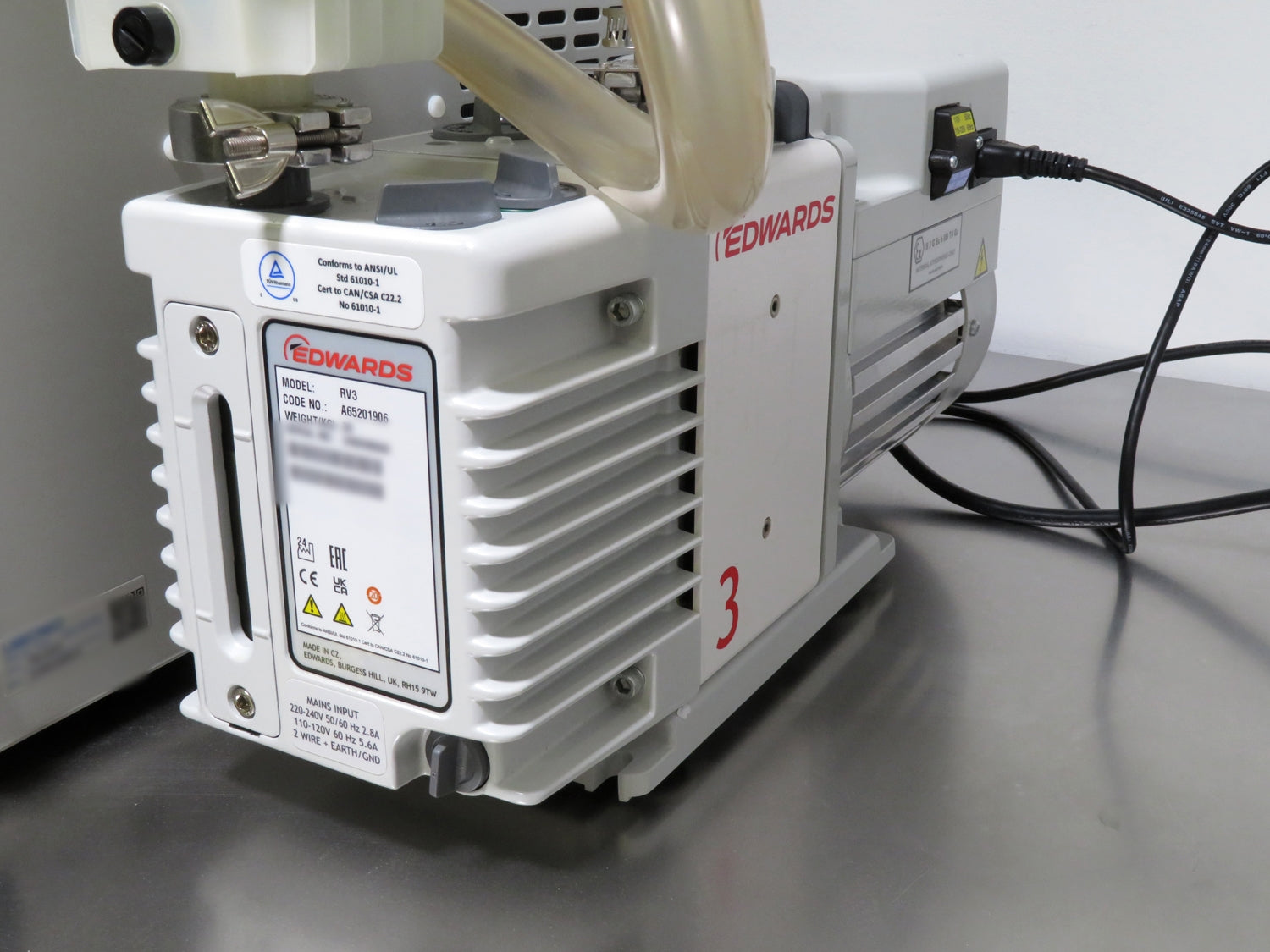

- > New Edwards RV3 Rotary Vane Vacuum Pump
- > Edwards EMF10 Oil Mist Filter
- > Power Cords
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Labconco Refrigerated CentriVap Vacuum Concentrator System Specifications
|
|
|
| Maximum Speed | 1,725 RPM |
| Temperature Range | -4°C to 100°C |
| Timer | 1 to 999 minutes |
| Ultimate Vacuum | 0.002 mbar with included external pump |
| Rotor Capacity | 132 x 1.5/2.0 ml |
| Dimensions (W x D x H) | 14.3 x 21.7 x 16.6 in. (36.3 x 55.1 x 42.2 cm) |
| Weight | 108 lb. (49.0 kg) |
| Electrical Requirements | 115V, 60Hz, 16A |
|
|
|
| Cold Trap Temperature | -50°C |
| Collector Volume | 4L |
| Type / Application | Aqueous |
| Lid Type | Acrylic |
| CentriVap Optional Accessories | Clear canisters and chemical trap inserts, glass trap, two-port manifold |
| Material | Brushed stainless steel and powder-coated steel |
| Dimensions (W x D x H) | 14.5 x 24.2 x 13.8 in. (36.8 x 61.4 x 35 cm) |
| Weight | 80 lb. (36 kg) |
| Electrical Requirements | 115V, 60Hz, 5.4A |
|
|
|
| Ultimate Vacuum | 0.002 mbar (1.5 Torr) |
| Peak Pumping Speed | 2.3 CFM at 60Hz |
| Water Vapour Tolerance | 80 mbar (60 Torr) |
| Oil Capacity | 0.7L |
| Oil Type | Ultragrade 19 |
| Noise Level | 48 dB(A) |
| Weight | 51.4 lb. (23.3 kg) |
| Electrical Requirements | 110/240V, 50/60Hz, 1Ph |
Centrifugal Evaporator Inspection and Recertification Checklist
- Inspect the display panel, replacing any dim or dead pixels to ensure clear visual feedback
- Verify full functionality of all buttons, confirming consistent responsiveness
- Examine the acrylic or glass lid for any cracks or chips, ensuring safety and integrity
- Check the vacuum chamber seal for any tears or cracks that could impact pressure retention
- Test chamber lid functionality, confirming all micro switches report a consistent .04 Ohms
- Verify external connections to the pump or cold trap, ensuring they are properly sealed and leak-free
- Inspect and clean the internal fan and condenser (if applicable) for efficient cooling and airflow
- Examine all internal wiring for frays or breakages, confirming secure and intact connections
- Test motor functionality, replacing motor or bearings if performance is compromised
- Inspect internal pump seals, replacing any worn or damaged seals to maintain vacuum integrity
- Inspect all internal hoses for potential leaks, ensuring tight, clean seals
- Confirm unit is capable of achieving all manufacturer-specified temperature ranges
- Verify the unit can reach specified vacuum levels in accordance with manufacturer standards
- Conduct a 6-8 hour cycle test to confirm consistent operational performance
Technician Inspection and Recertification Checklist: Centrifugal Evaporators
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect display panel for dim or dead pixels | Completed | |
| Confirm functionality of all buttons | Completed | |
| Check acrylic/glass lid for cracks or chips | Completed | |
| Inspect vacuum chamber seal for tears or cracks | Completed | |
| Confirm chamber lid micro switches report .04 Ohms | Completed | |
| Verify pump or cold trap connections are sealed and leak-free | Completed | |
| Inspect and clean internal fan and condenser (if applicable) | Completed | |
| Inspect internal wiring for frays or breakages | Completed | |
| Test motor functionality, replace motor/bearings if needed | Completed | |
| Inspect internal pump seals, replace if needed | Completed | |
| Inspect all internal hoses for leaks, ensure clean seals | Completed | |
| Confirm unit achieves specified temperature ranges | Completed | |
| Verify unit reaches specified vacuum levels | Completed | |
| Conduct a 6-8 hour cycle test for operational performance | Completed |
