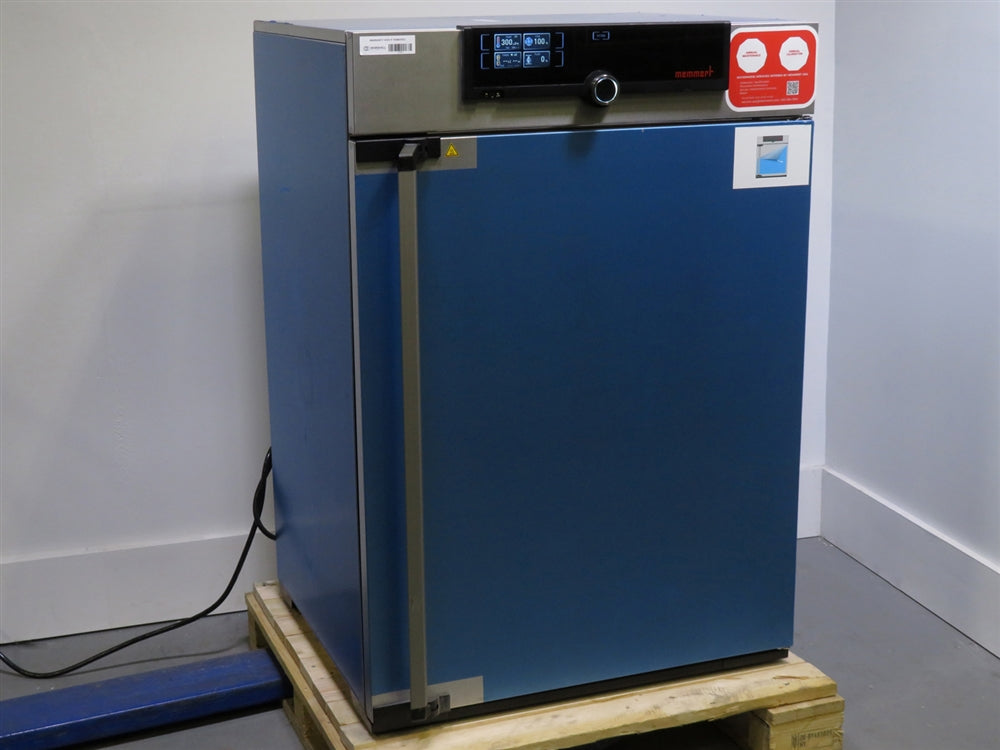

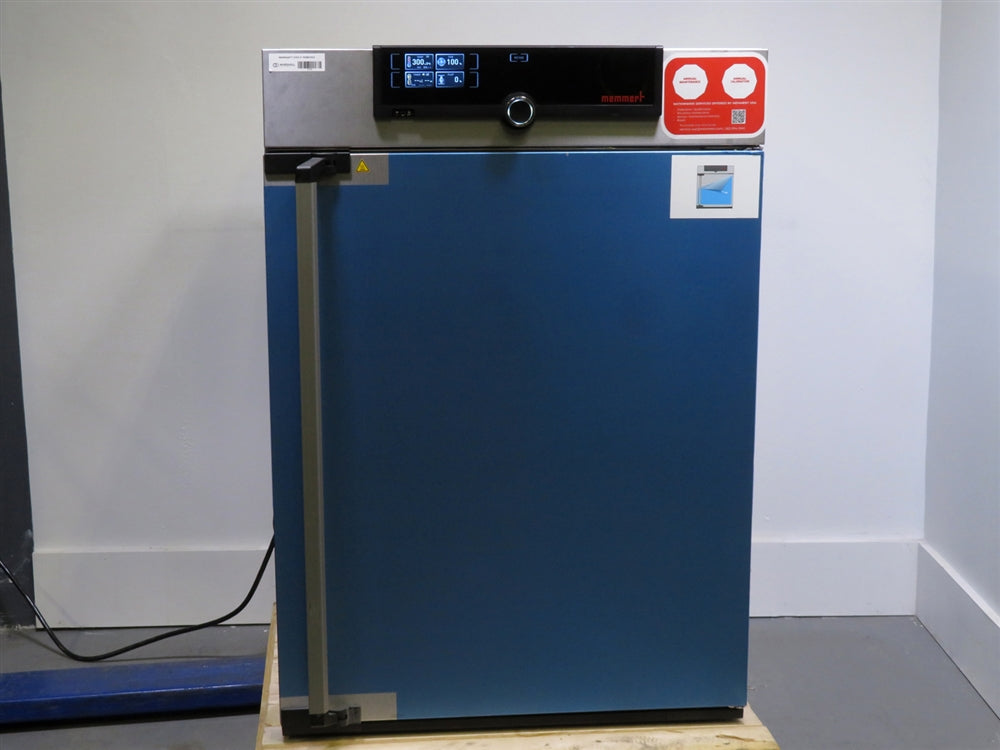

Memmert UF260 Forced Circulation Oven

The Memmert UF260 Forced Circulation Oven stands as a pinnacle of precision and durability in laboratory ovens. Engineered to maintain a broad setting temperature range from +20 to +300°C and a working temperature range that starts from just 10°C above ambient up to the maximum, this oven meets diverse heating requirements with flawless efficiency. Its high-definition TFT-color display coupled with the ControlCOCKPIT, an adaptive multifunctional digital PID-microprocessor controller, offers unparalleled user control and monitoring, ensuring optimal performance in any lab setting.

Safety and usability are at the core of the Memmert UF260 design. It features a robust stainless steel interior that is easy to clean and designed to withstand rigorous use, complete with deep-drawn ribbing and integrated heating on all four sides for uniform temperature distribution. The oven includes a sophisticated air circulation system controlled by a quiet air turbine that can be adjusted in 10% steps, along with a pre-heated fresh air admixture feature. Additionally, comprehensive safety mechanisms, such as an adjustable electronic overtemperature monitor and a mechanical temperature limiter, protect against overheating.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Memmert UF260 Forced Circulation Oven Specifications

Temperature Range	Ambient +20°C to +300°C
Working Temperature Range	Min 10°C above ambient up to +300°C
Volume	256 L (9.04 cu.ft.)
Setting Resolution (Temperature)	0.1°C up to 99.9°C, 0.5°C from 100°C and actual values 0.1°C (LED)
Temperature Sensor	1 Pt100 sensor DIN class A in 4-wire-circuit

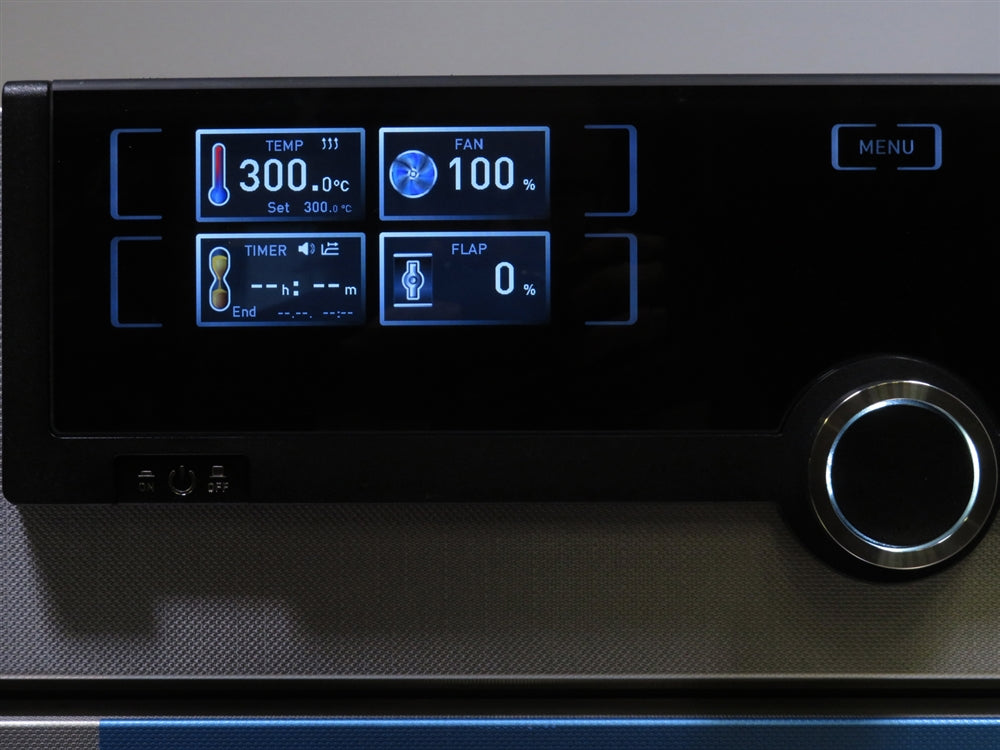

Control Panel	ControlCOCKPIT: Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display
Timer	Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAIT	The process time does not start until the set temperature is reached
Calibration	Three freely selectable temperature values
Adjustable Parameters	Temperature (Celsius or Fahrenheit), fan speed, air flap position, program time, time zones, summertime/wintertime
Fan	Forced air circulation by quiet air turbine, adjustable in 10% steps
Fresh Air Admixture	Adjustment of pre-heated fresh air admixture by air flap control in 10% steps
Vent	Vent connection with restrictor flap
Temperature Control	Adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
Door	Fully insulated stainless steel door with 2-point locking (compression door lock)

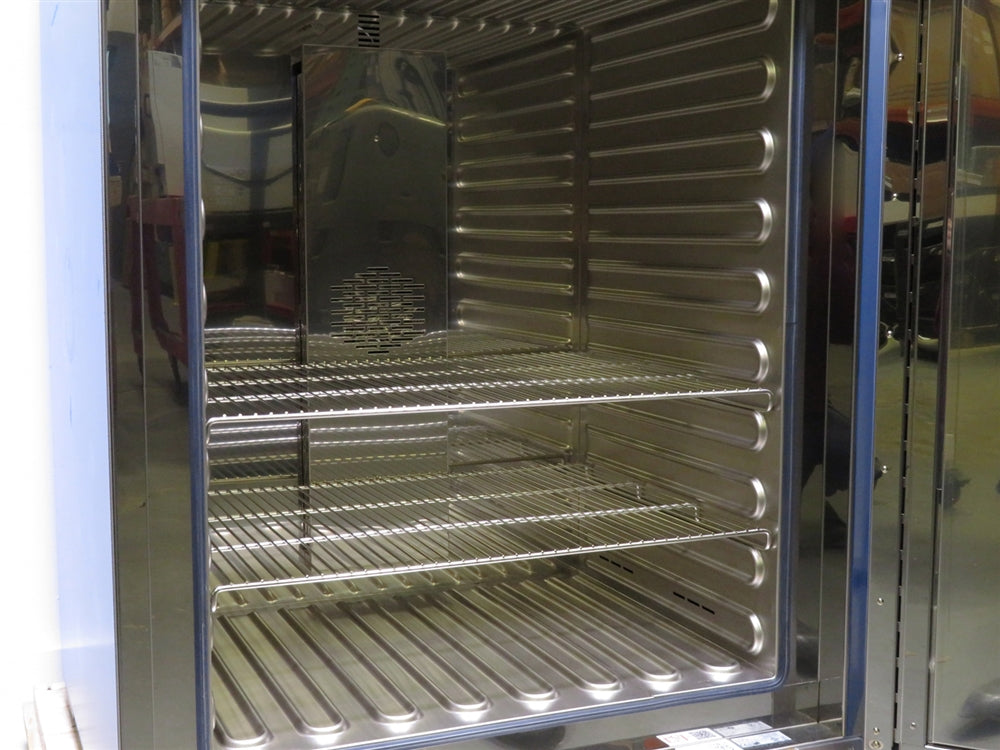

Interior	Easy-to-clean stainless steel, reinforced with deep drawn ribbing and integrated large-area heating on four sides
Max. Number of Shelves	9
Max. Loading of Chamber	661 lb. (229.8 kg)
Max. Loading Per Shelf	90 lb. (20 kg)
Interior Dimensions (W x D x H)	25.2 x 19.7 x 31.5 in. (64 x 50 x 80 cm)
Exterior Dimensions (W x D x H)	32.4 x 26.9 x 46.7 in. (82.3 x 68.3 x 118.6 cm)
Weight	243 lb. (110.2 kg)
Electrical Requirements	115V, 60Hz, 15.6A, approx. 1800 W
