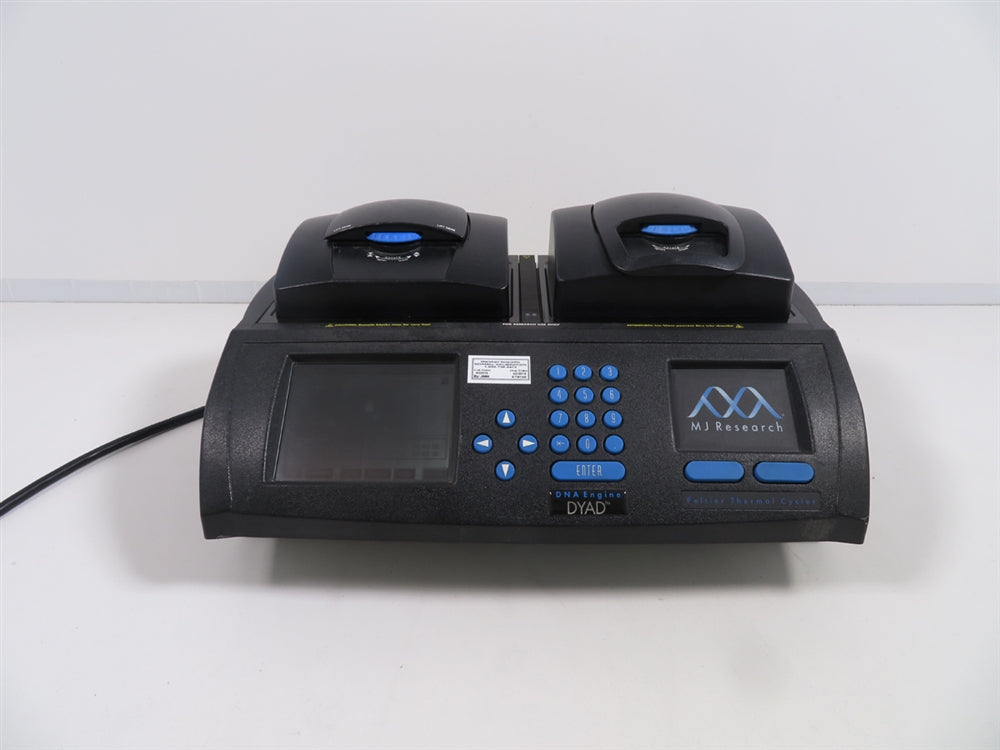

MJ Research PTC-220 Thermal Cycler DNA Engine Dyad
The MJ Research PTC-220 Thermal Cycler DNA Engine Dyad cycler delivers multiblock thermal cycling with superior thermal performance. The programmable Dyad cycler with its dual-bay chassis is ideal for running multiple protocols and accommodating multiple users. Other features include: interchangable sample block capacity, Hot Bonnet heated lid for oil-free cycling or Power Bonnet lide for automated systems, intuitive software with user-friendly interface programming, and instant incubate feature for continuous-temperature incubation.
The MJ Research PTC-220 Thermal Cycler DNA Engine Dyad includes:

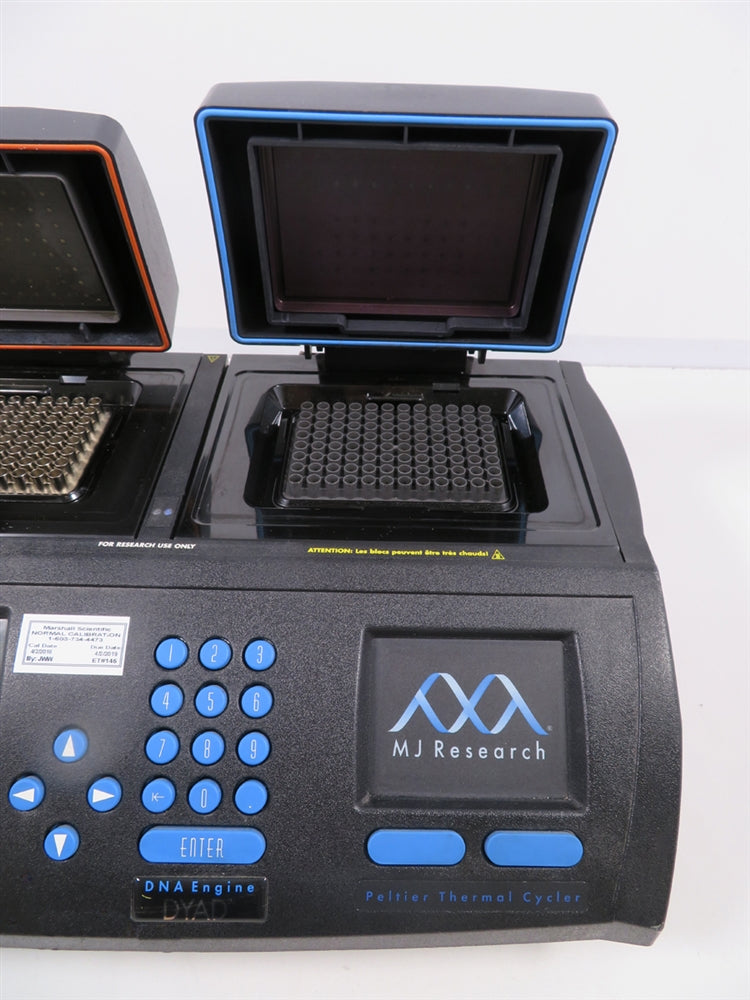

- > 2 x 96-Well Alpha Block
- > NIST Traceable Calibration Certificate
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
MJ Research PTC-220 Thermal Cycler DNA Engine Dyad Specifications
|
Thermal Range |
-5 to 105C, but no more than 30C below ambient temperature |
|
Thermal Accuracy |
0.3C of programmed target at 90C- NIST-traceable |
|
Thermal Uniformity |
0.4C well-to-well within 30 seconds of arrival at 90C (for most Alpha units; see specifications for individual Alpha Units) |
|
Ramping Speed |
Up to 3C/sec for all single and dual-block Alpha units |
|
Sample Capacity |
Varies with installed Alpha unit |
|
Line Voltage |
200-240VAC |
|
Frequency |
50-60Hz |
|
Fuses |
Two 6.3A, 250V, 5 x 20mm |
|
Displays |

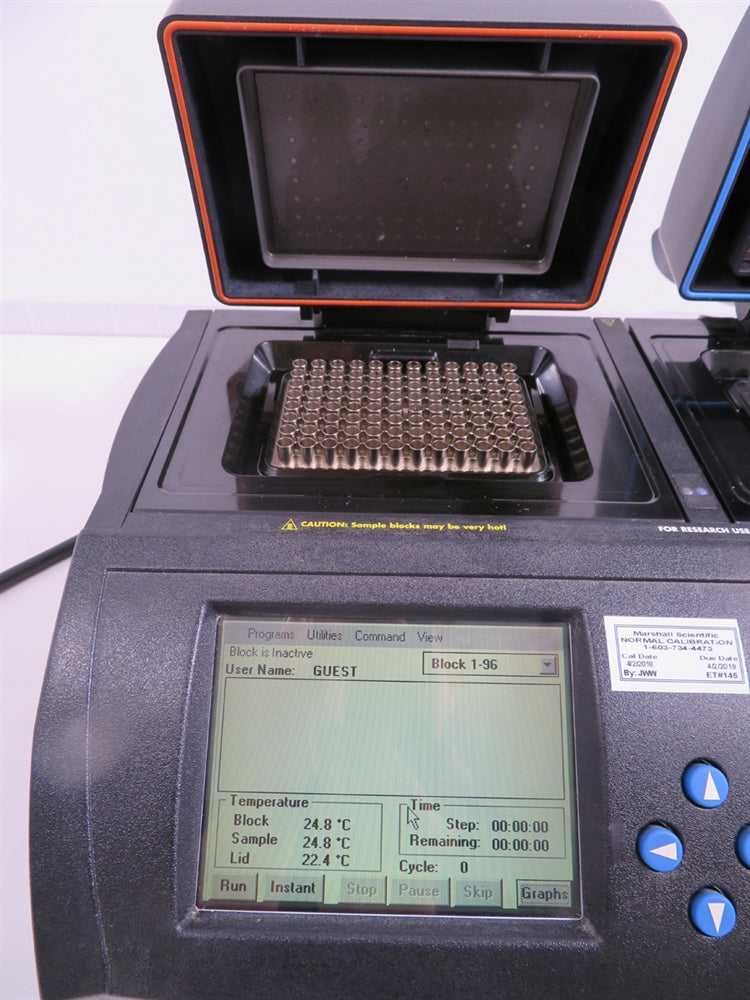

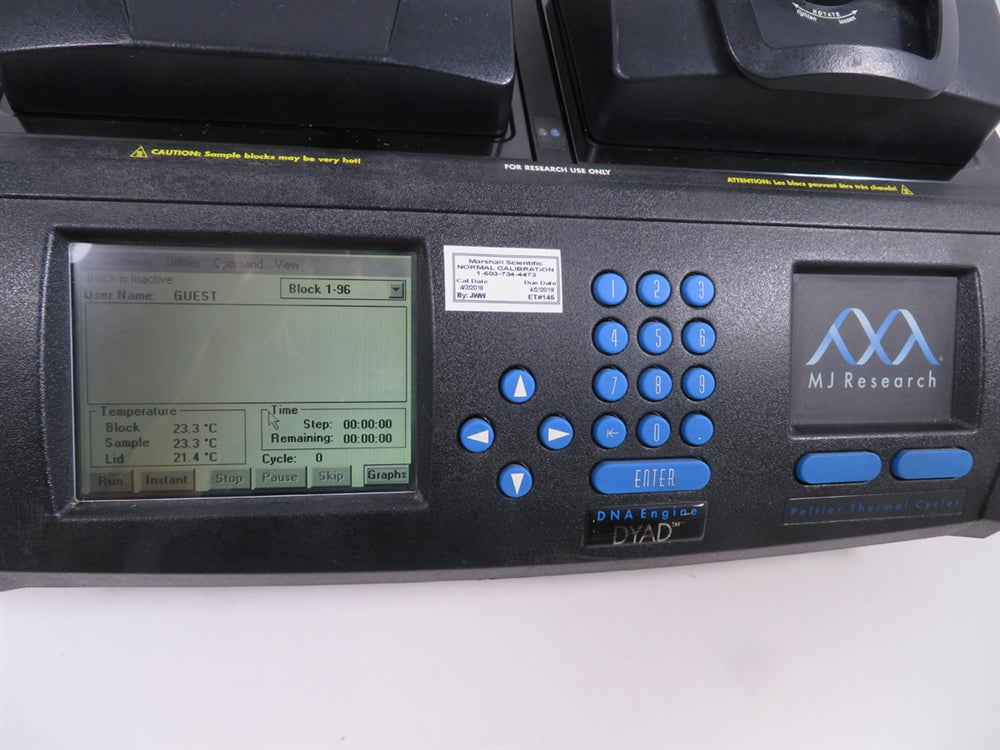

One size VGA screen (320x240), 16 colors |
|
Ports |

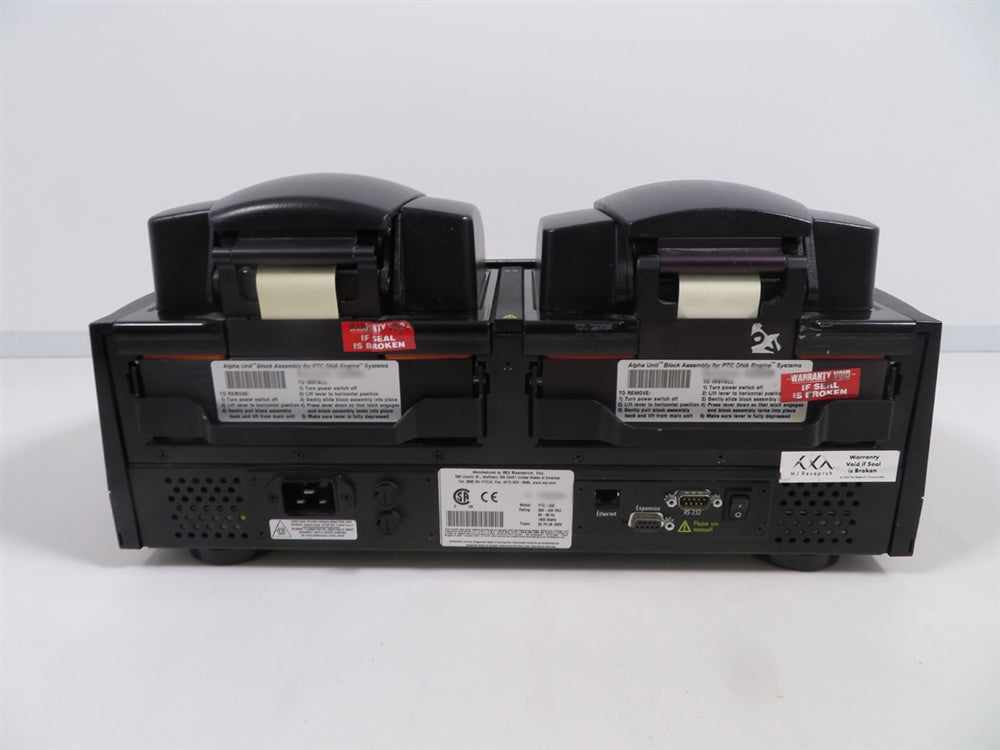

One 9-pin RS232 serial port, one Ethernet port |
|
Memory |
8 MB |
|
Weight |
11 kg |
|
Size (L x W x H) |
48 x 29 x 15 cm |
- Validate that the power supply and PCB consistently deliver accurate, stable voltages across all circuits and connections, confirming operational reliability
- Thoroughly inspect the display for any dim, flickering, or dead pixels, replacing compromised segments to ensure clear visibility and precise data display
- Verify complete functionality and responsiveness of all buttons and knobs, confirming accurate and reliable input across all controls
- Ensure the machine completes all internal diagnostic checks with zero errors, indicating system readiness and functional integrity
- Confirm the machine accurately identifies attached blocks (96-well, dual 48, etc.), with seamless recognition across different configurations
- Conduct a detailed inspection of internal wiring and all electrical connections, checking for any signs of breaks, disconnections, or tears; replace or repair any underperforming components
- Examine the connector between the block and base for bent or broken pins, replacing as needed to maintain secure, reliable connections
- Calibrate well temperatures with a NIST-traceable thermometer, verifying accuracy and uniformity across all wells to meet specification standards
- Perform a comprehensive cosmetic inspection, ensuring all exterior surfaces and components are free of damage, wear, or defects, maintaining aesthetic and professional quality
Technician Inspection and Recertification Checklist: Thermal Cycler
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Validate stable, accurate voltage outputs from power supply and PCB across circuits | Completed | |
| Inspect display for dim, flickering, or dead pixels; replace as needed for clarity | Completed | |
| Verify functionality and responsiveness of all buttons and knobs | Completed | |
| Confirm machine completes internal diagnostics with zero errors | Completed | |
| Ensure accurate block identification across configurations (96-well, dual 48, etc.) | Completed | |
| Inspect internal wiring and connections for integrity; repair or replace as needed | Completed | |
| Check connector between block and base for bent or broken pins; replace as necessary | Completed | |
| Calibrate well temperatures with a NIST-traceable thermometer for accuracy | Completed | |
| Conduct cosmetic inspection to ensure quality and professionalism of all surfaces | Completed |
