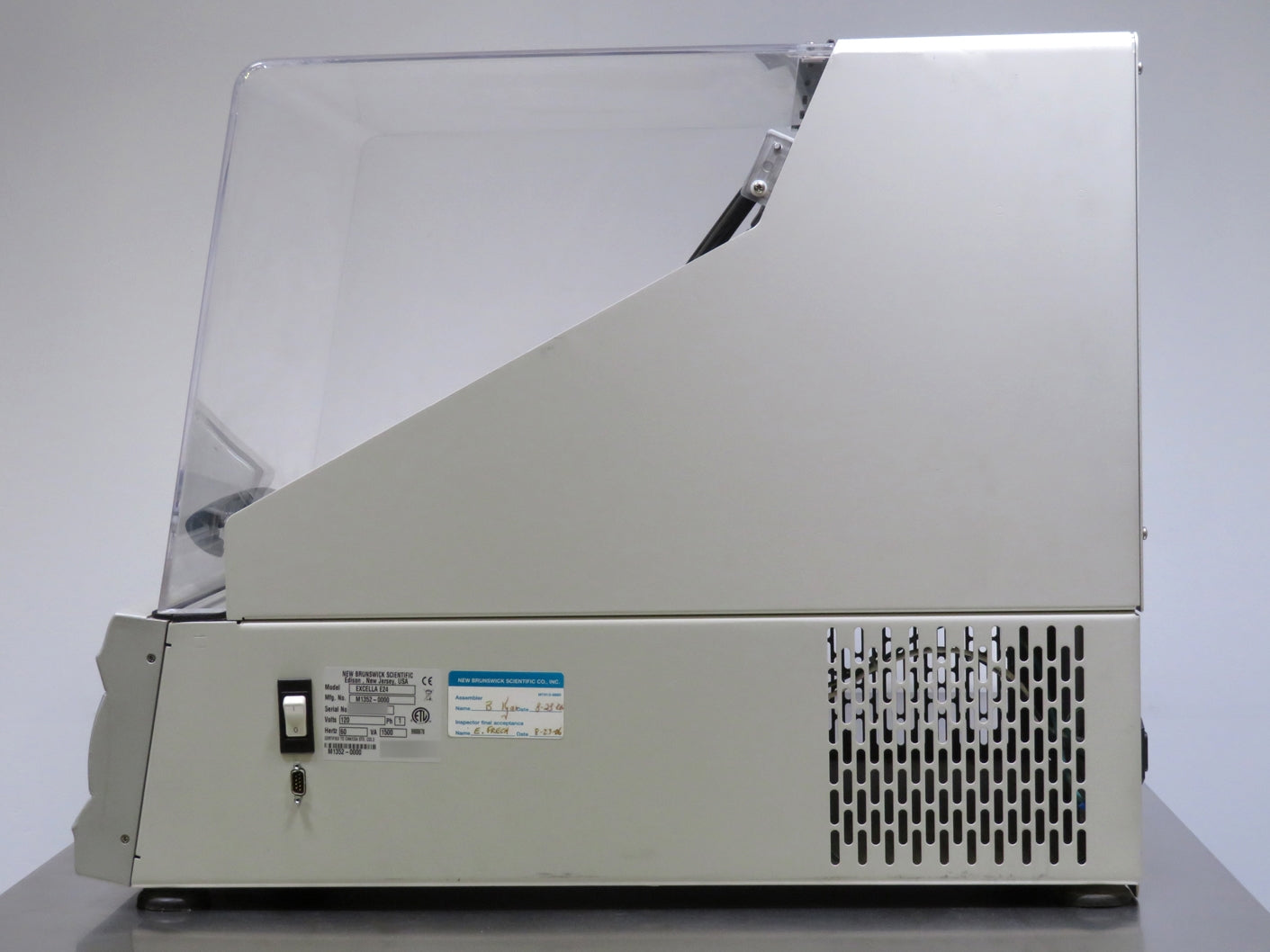

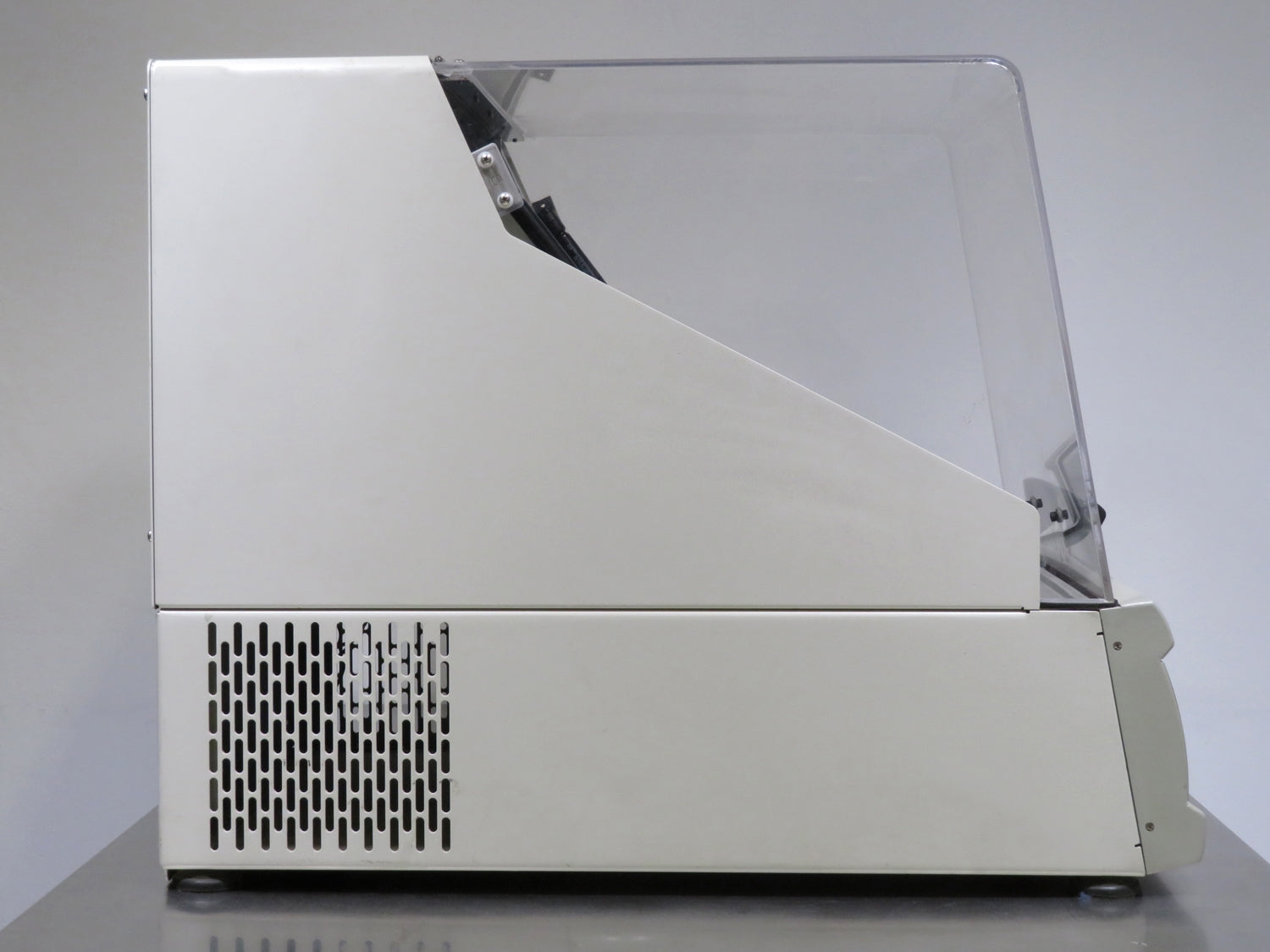

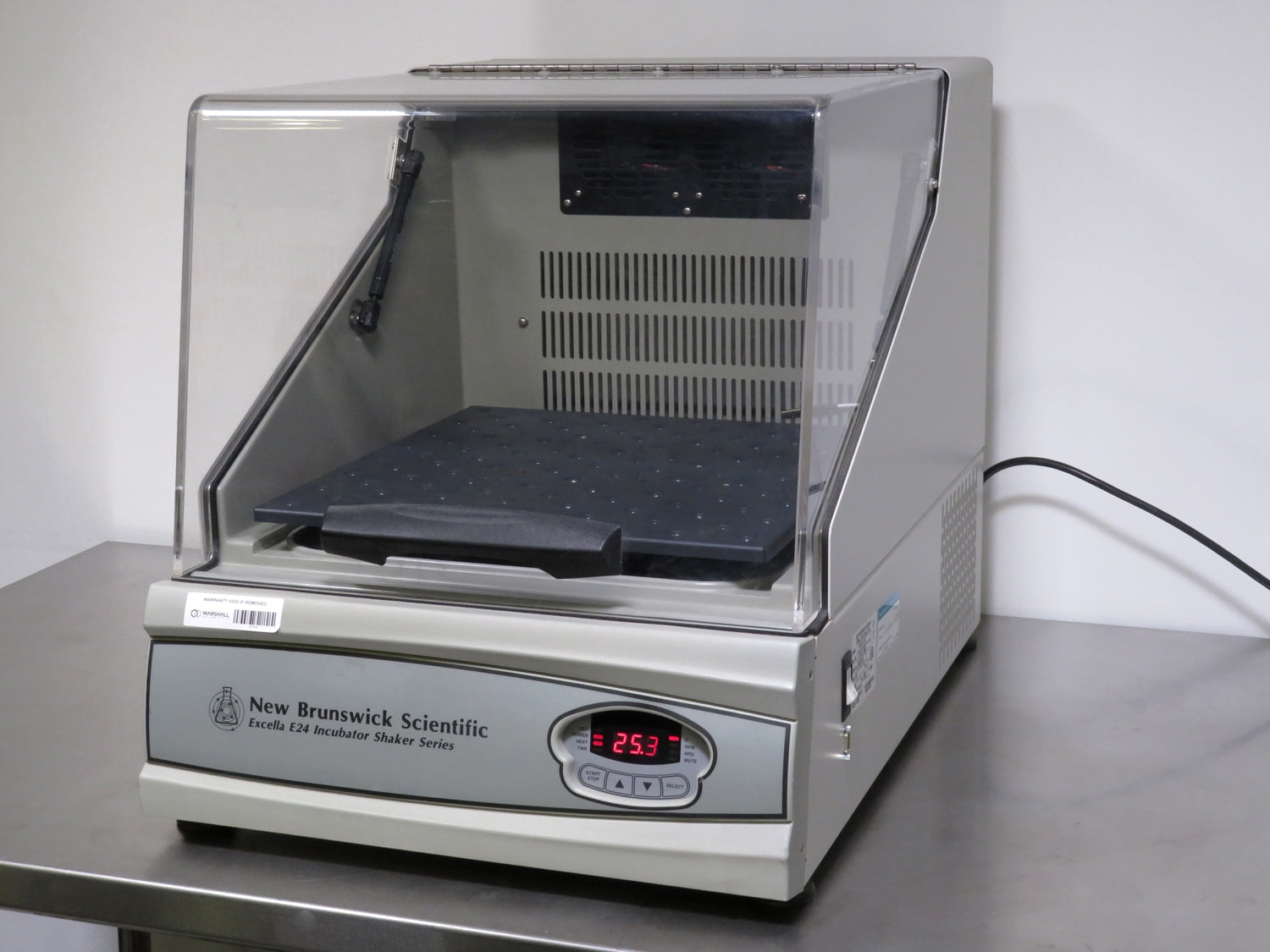

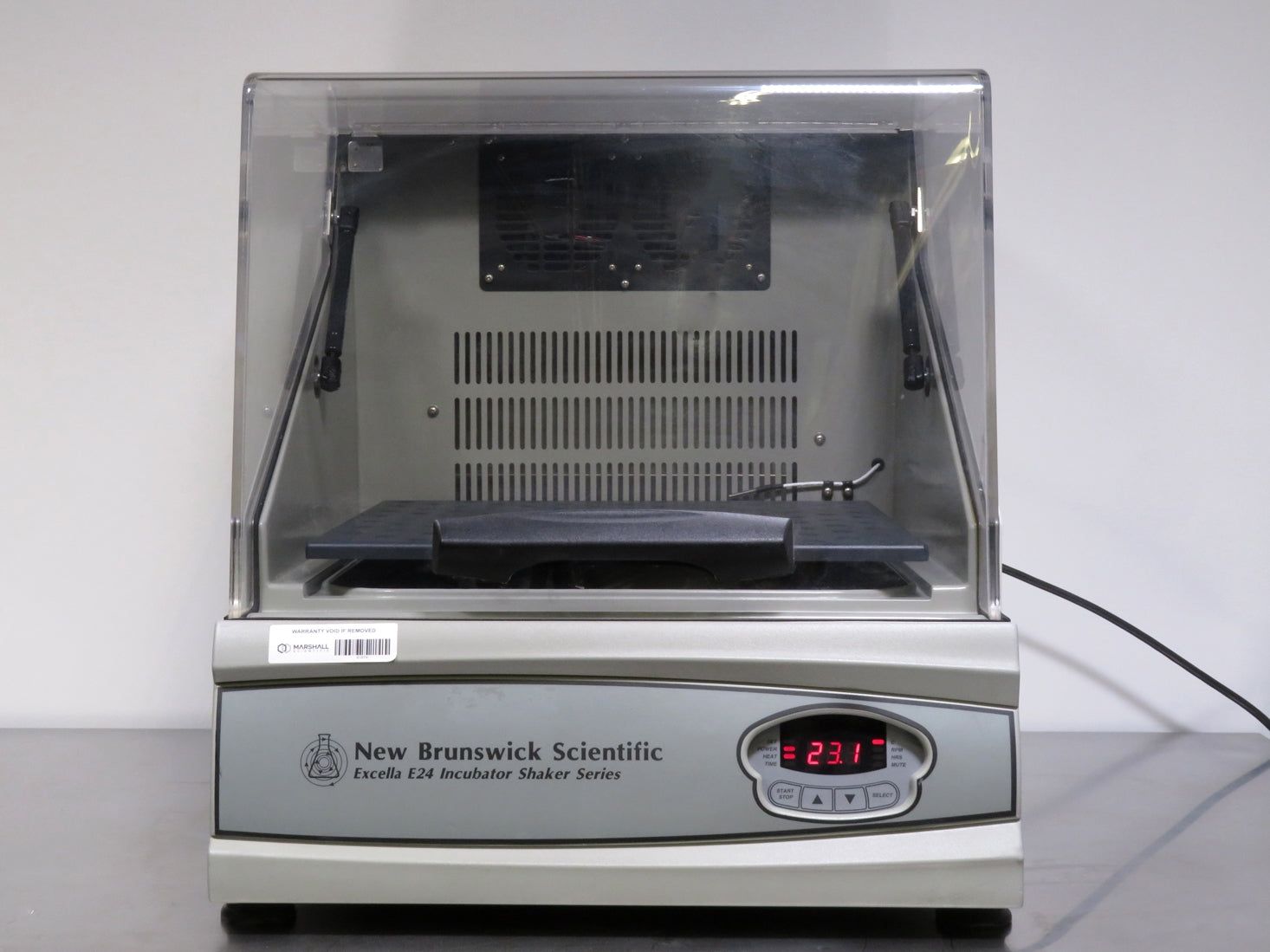

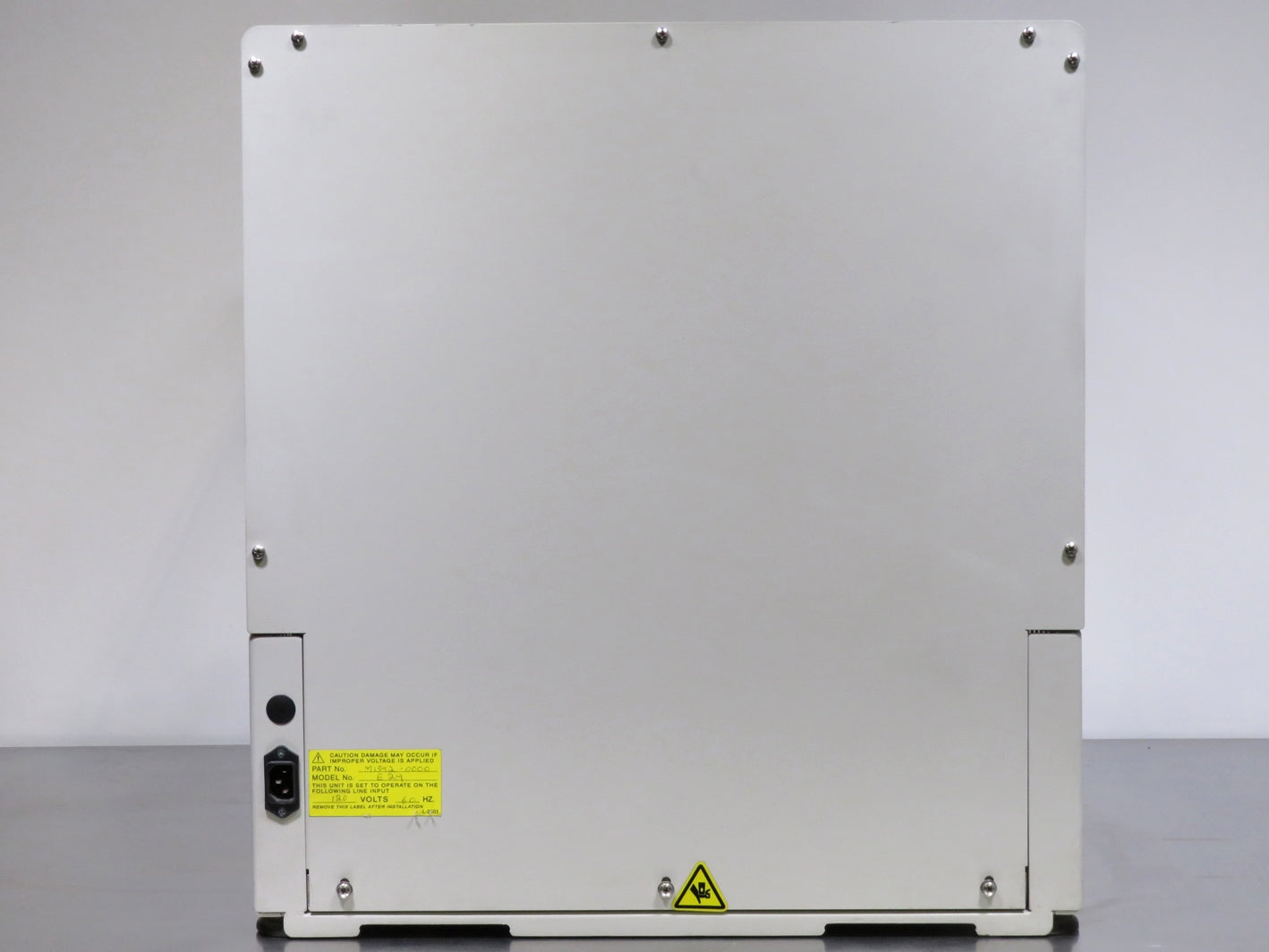

New Brunswick Excella E24 Incubator Shaker
The New Brunswick Excella E24 Incubator Shaker is a large capacity incubator shaker that utilizes a UniCentric counter-balanced drive mechanism which provides horizontal plane rotary motion in a 0.75 in (1.9 cm) diameter circular orbit. A proportional/integral microprocessor controls the speed and temperature over the speed range of 50 to 400 RPM, as well as the temperature range of Ambient +7°C to 60C.
The Excella E24 can also be operated in two modes, continuously which operates at a set speed and temperature until user intervention, or timed mode which runs at a set speed, time, and temperature for a period of up to 99.9 hours. This incubator shaker is also equipped with audible and visual alarms to alert the user of setpoint deviations.
All of our equipment will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The New Brunswick Excella E24 Incubator Shaker includes:
The New Brunswick Excella E24 Incubator Shaker includes:

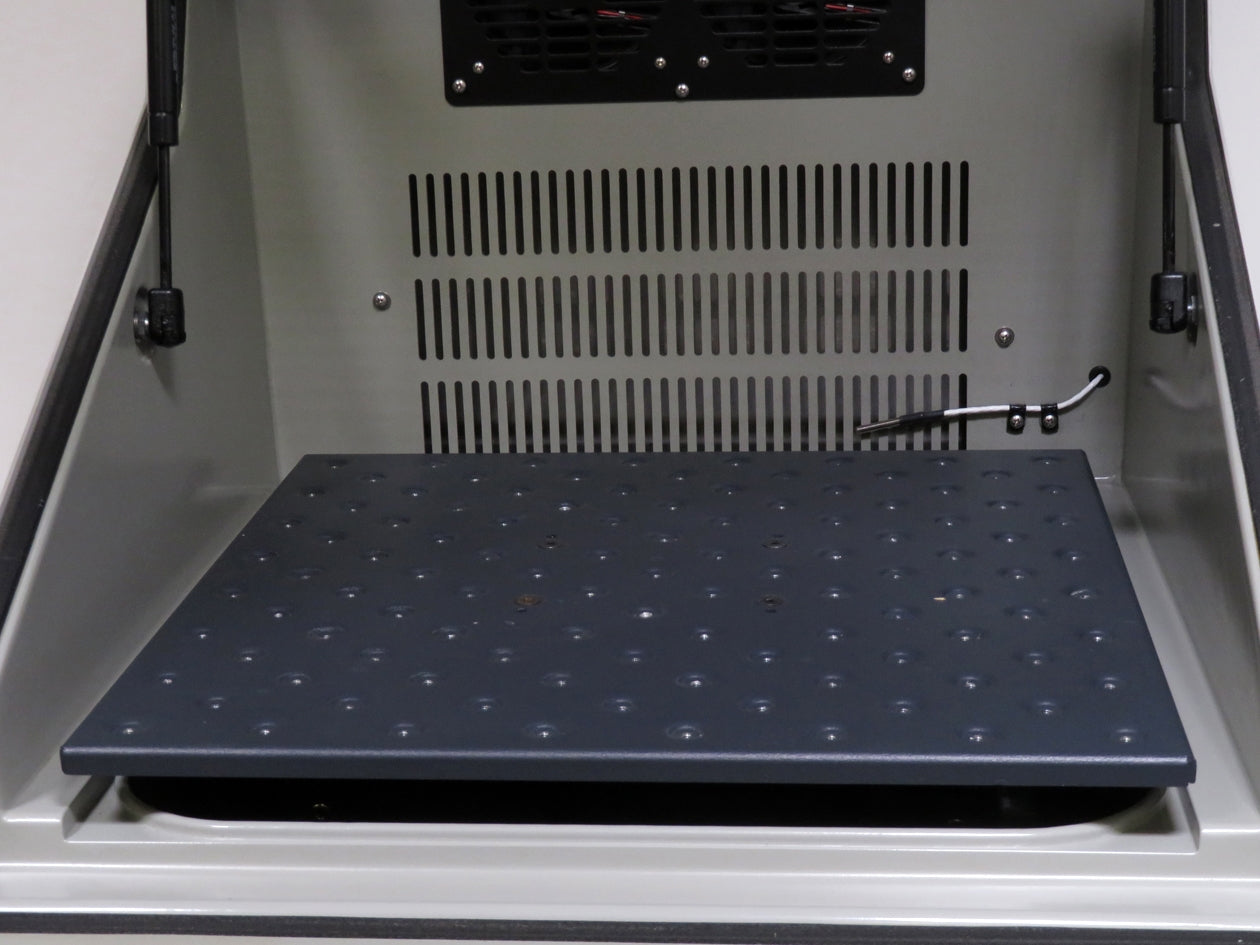

- > 18 x 18 in Platform
- > NIST Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
New Brunswick Excella E24 Incubator Shaker Specifications
|
Speed Range |
50 to 400 RPM |
| Speed Control Accuracy | ± 1 RPM |
|
Temperature Range |
Ambient +7°C to 60°C |
|
Temperature Uniformity |
± 0.1°C at 37°C |
| Timer | 0.1 to 99.9 hours |
| Orbit Size | 0.75 in (1.9 cm) |
|
Platform Size |
18 x 18 in |
| Drive Mechanism | Heavy-duty unicentric counterbalanced drive |
|
Dimensions (W x H x D) |
22 x 24 x 30 in (56 x 61 x 76 cm) |
| Weight | 133 lbs (60 kg) |
|
Electrical Requirements |
120V, 60Hz |
Inspection and Recertification Checklist
- Examine the chamber glass for cracks or chips, replacing it as needed to maintain structural integrity.
- Inspect door seals for signs of wear or damage, replacing them to ensure a tight seal.

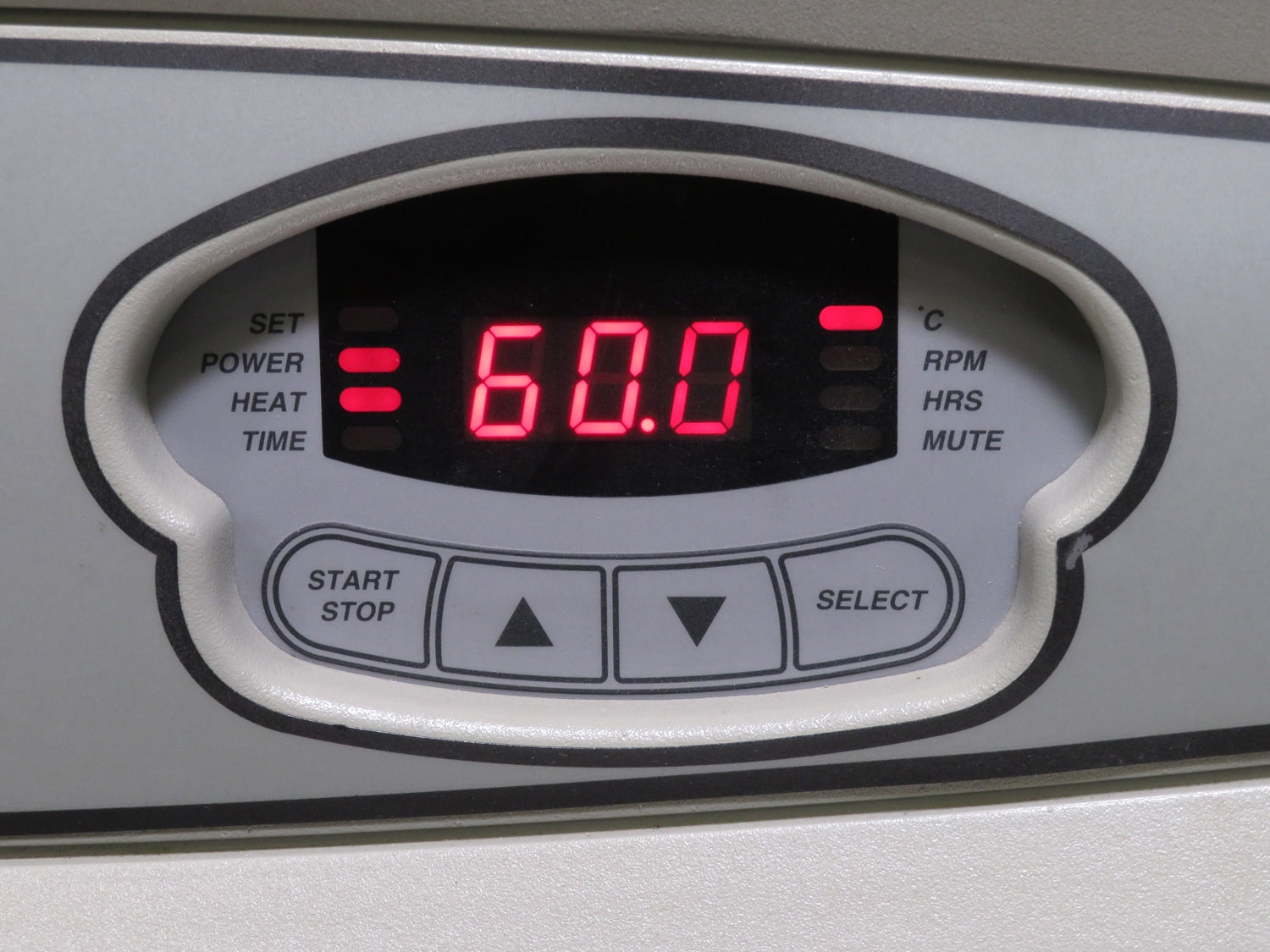

- Check the display for brightness and clarity, replacing any dim or dead pixels to maintain optimal visibility.
- Test all buttons to confirm full functionality and consistent responsiveness.
- Replace all platform assembly bearings to ensure smooth and reliable motion.
- Inspect the drive belt for wear, replacing it if torn or cracked to maintain performance.
- Examine all wiring for frays, tears, or breakages, addressing any issues for electrical safety.
- Verify each PCB test point, replacing any malfunctioning components to ensure system reliability.
- Check drive belt tension to confirm correct alignment and function.
- Confirm the compressor’s operation, cleaning condenser filter and fins for efficient cooling.
- Calibrate internal temperature accuracy using an NIST-traceable temperature probe.
- Measure and calibrate platform RPMs with an NIST-traceable tachometer to ensure precision.
- Conduct a final cosmetic inspection to verify all surfaces meet appearance standards.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Examine chamber glass for cracks or chips, replace as needed | Completed | |
| Inspect door seals for wear, replace to ensure tight seal | Completed | |
| Check display brightness, replace dim or dead pixels | Completed | |
| Test all buttons for full functionality and responsiveness | Completed | |
| Replace platform assembly bearings for reliable motion | Completed | |
| Inspect drive belt for wear, replace if torn or cracked | Completed | |
| Examine wiring for frays or breakages, repair as needed | Completed | |
| Verify PCB test points, replace faulty components | Completed | |
| Check drive belt tension for proper alignment | Completed | |
| Confirm compressor functionality, clean filter and fins | Completed | |
| Calibrate internal temperature with NIST probe | Completed | |
| Calibrate platform RPM with NIST-traceable tachometer | Completed | |
| Conduct cosmetic inspection for appearance standards | Completed |
