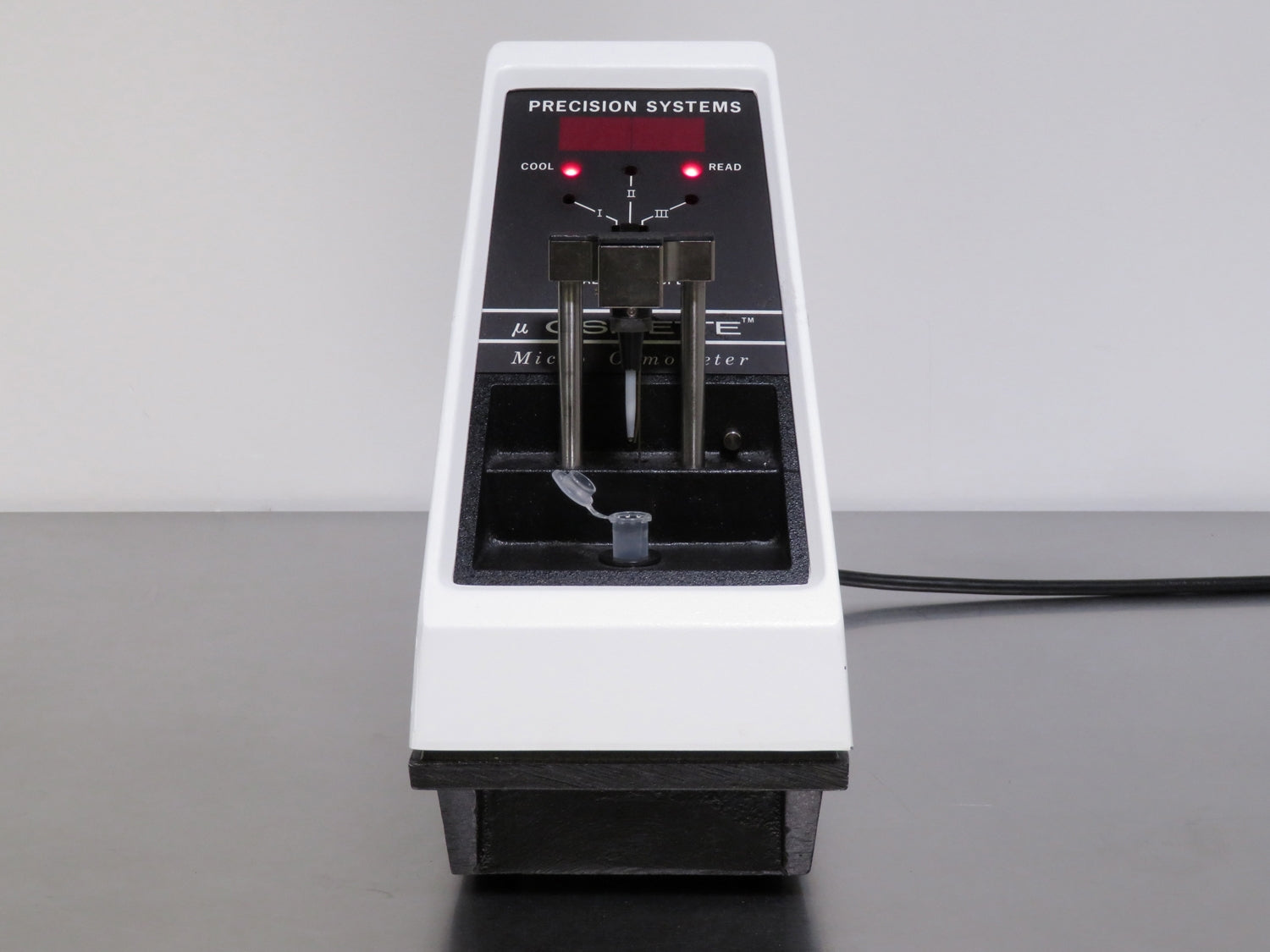

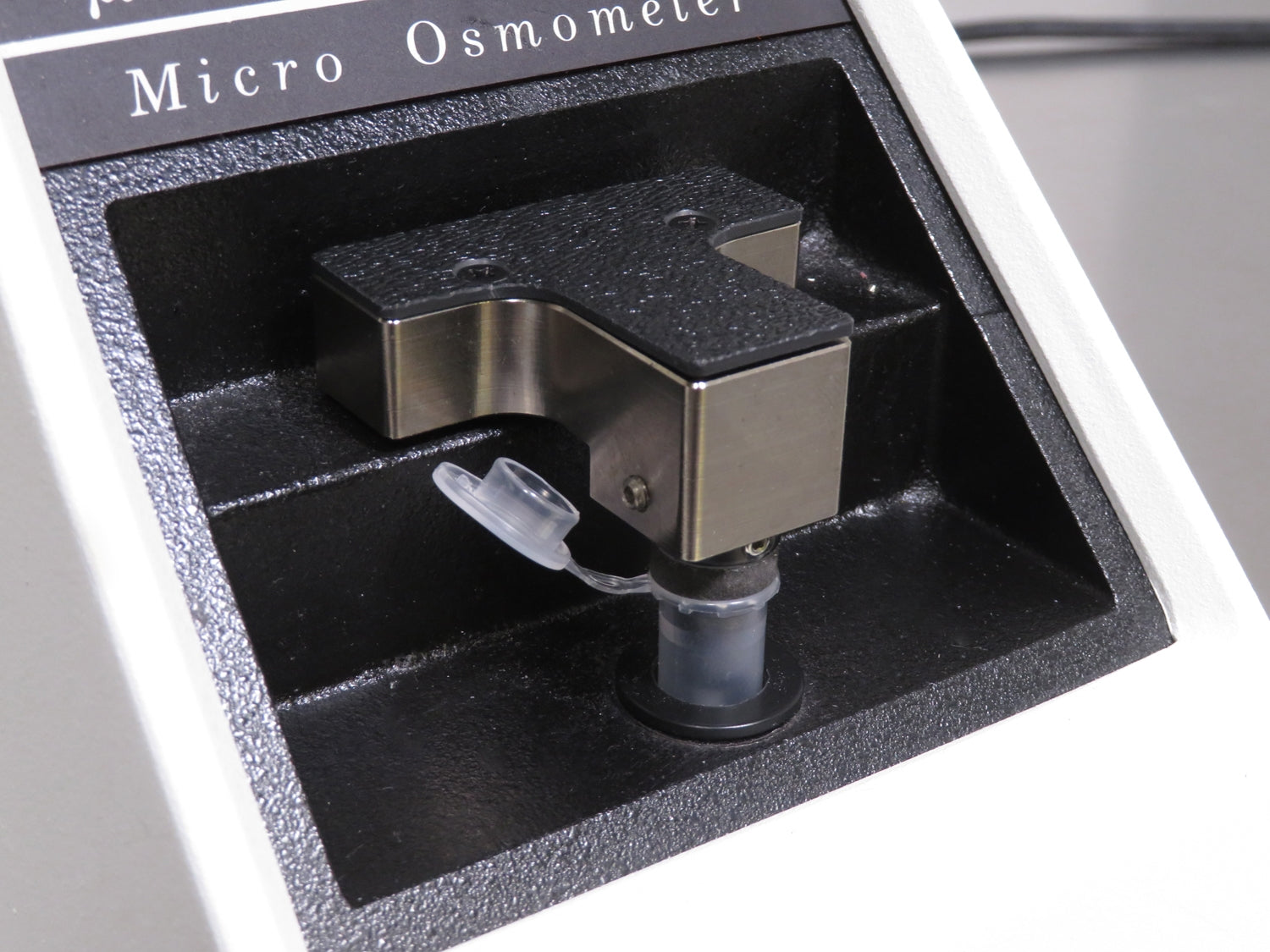

Precision Systems Micro-Osmette Micro Osmometer Model 5004
Sample Size
50 uL
Precision
<500 mOsm/kg: ± 2 mOsm/kg
>500 mOsm/kg: ± 0.5%
Range
0 to 3000 mOsm/kg
Features
- Freezing point depression method for rapid and reliable osmolality measurement
- Fully automatic operation with minimal user steps required
- Fast test cycle—complete results in under 70 seconds
- Electronic cooling system eliminates the need for ice baths or Dewar flasks
- Reaches operating temperature in under 15 minutes for quick startup

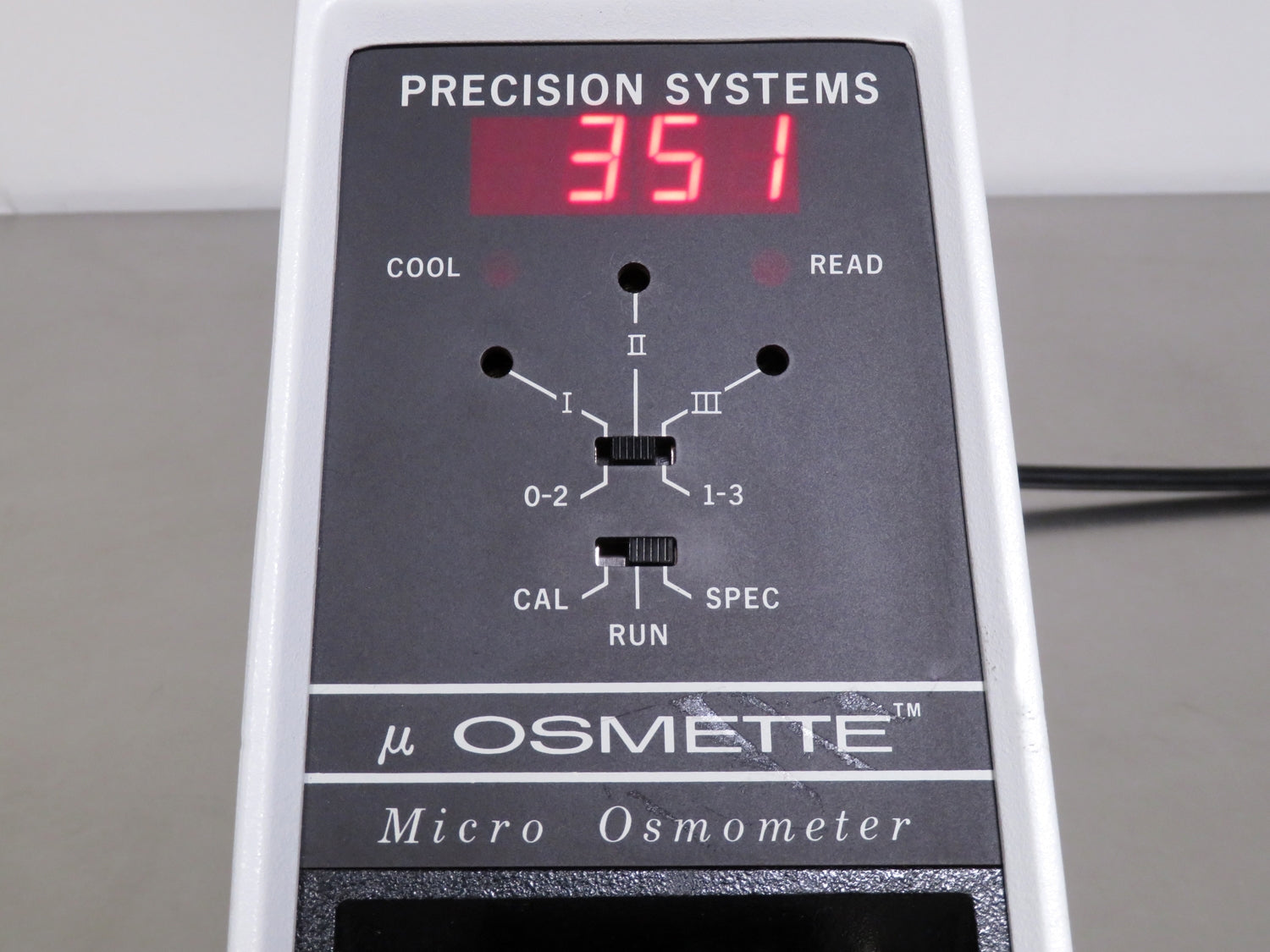

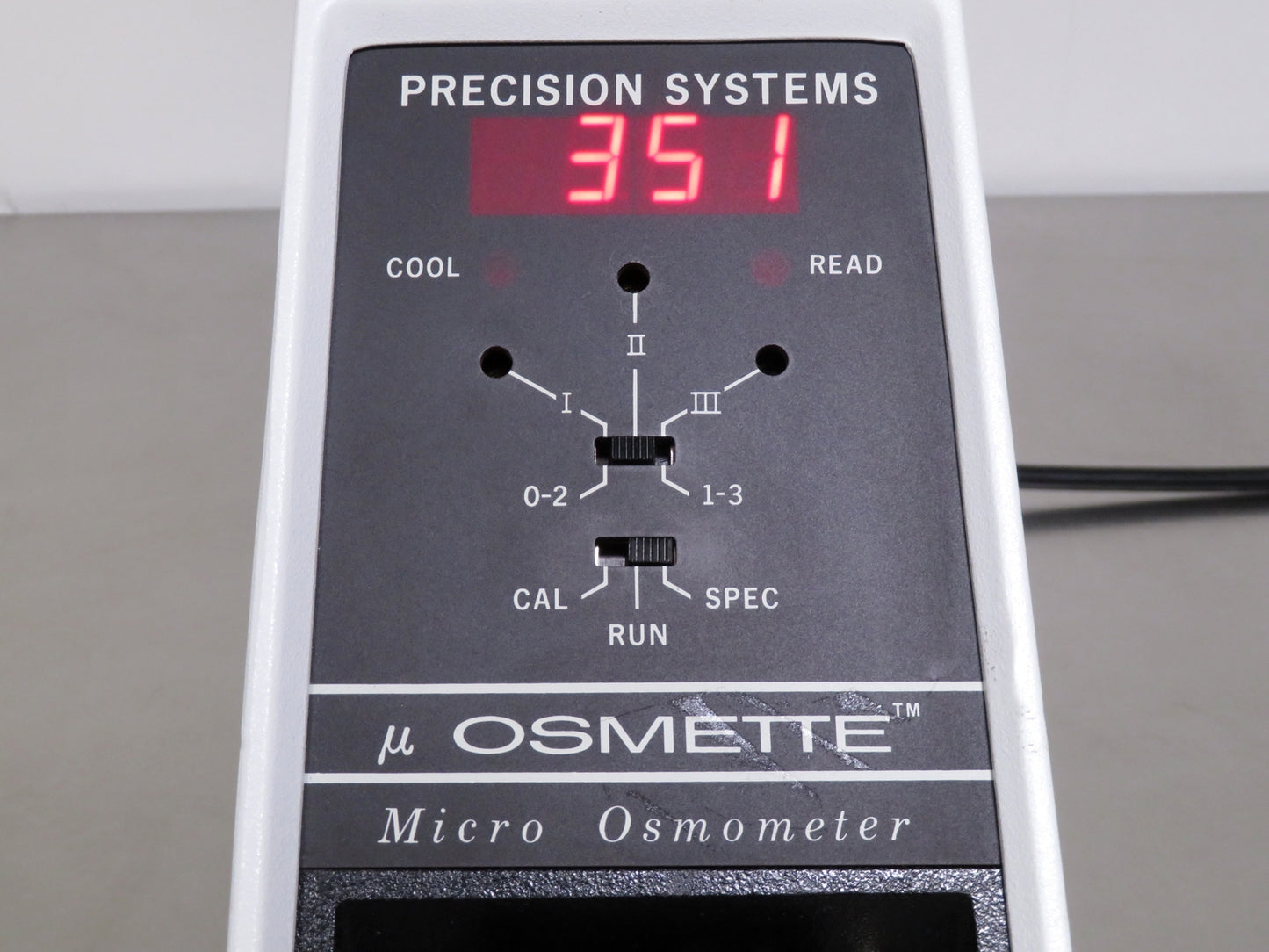

- Digital display provides direct readout in mOsm/kg H₂O
- Low-maintenance design with minimal moving parts for long-term reliability
- Streamlined narrow-profile housing saves valuable bench space
- Simple two-step calibration with long-term stability
- Ideal for clinical diagnostics, quality control, and research environments

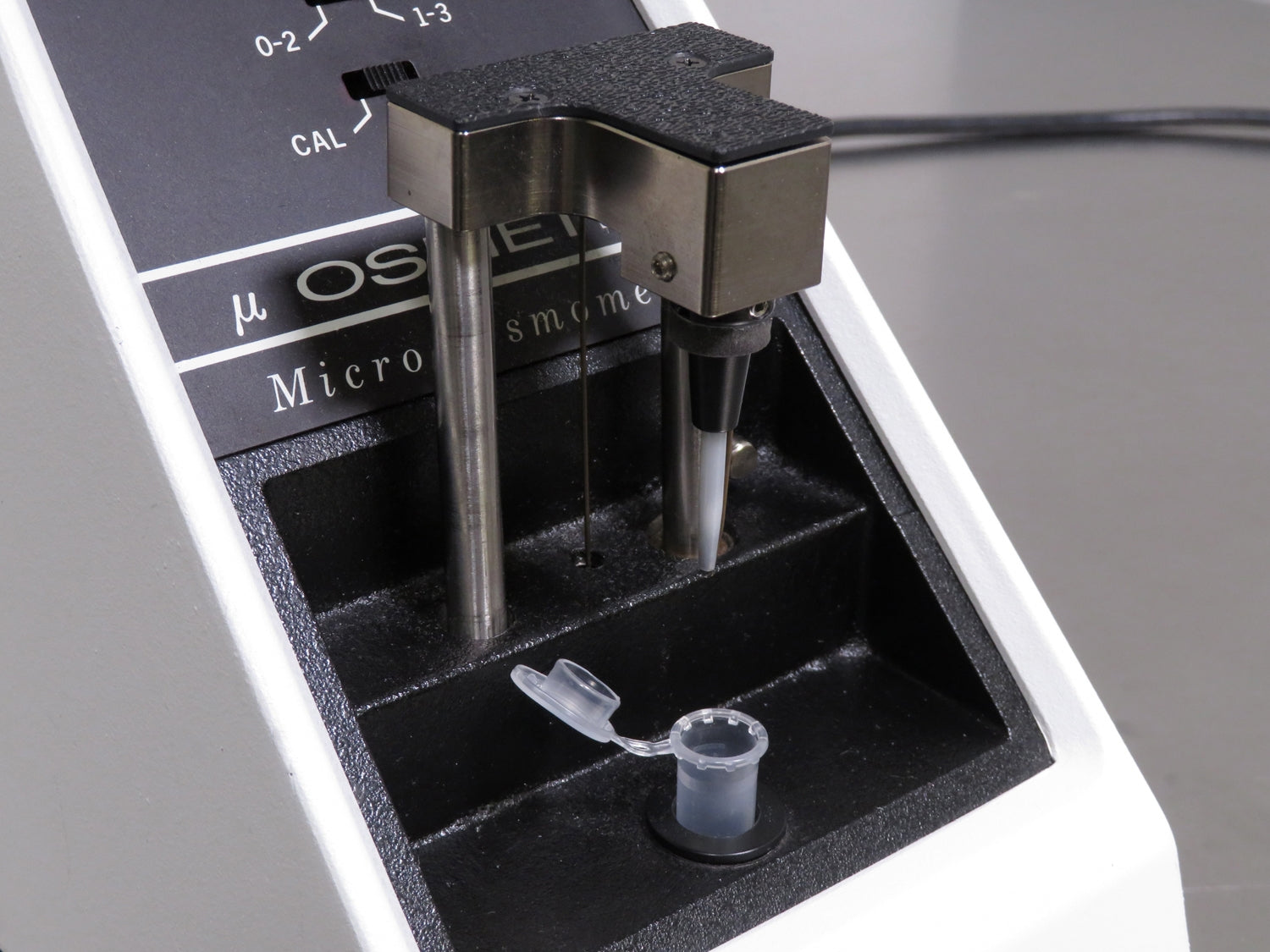

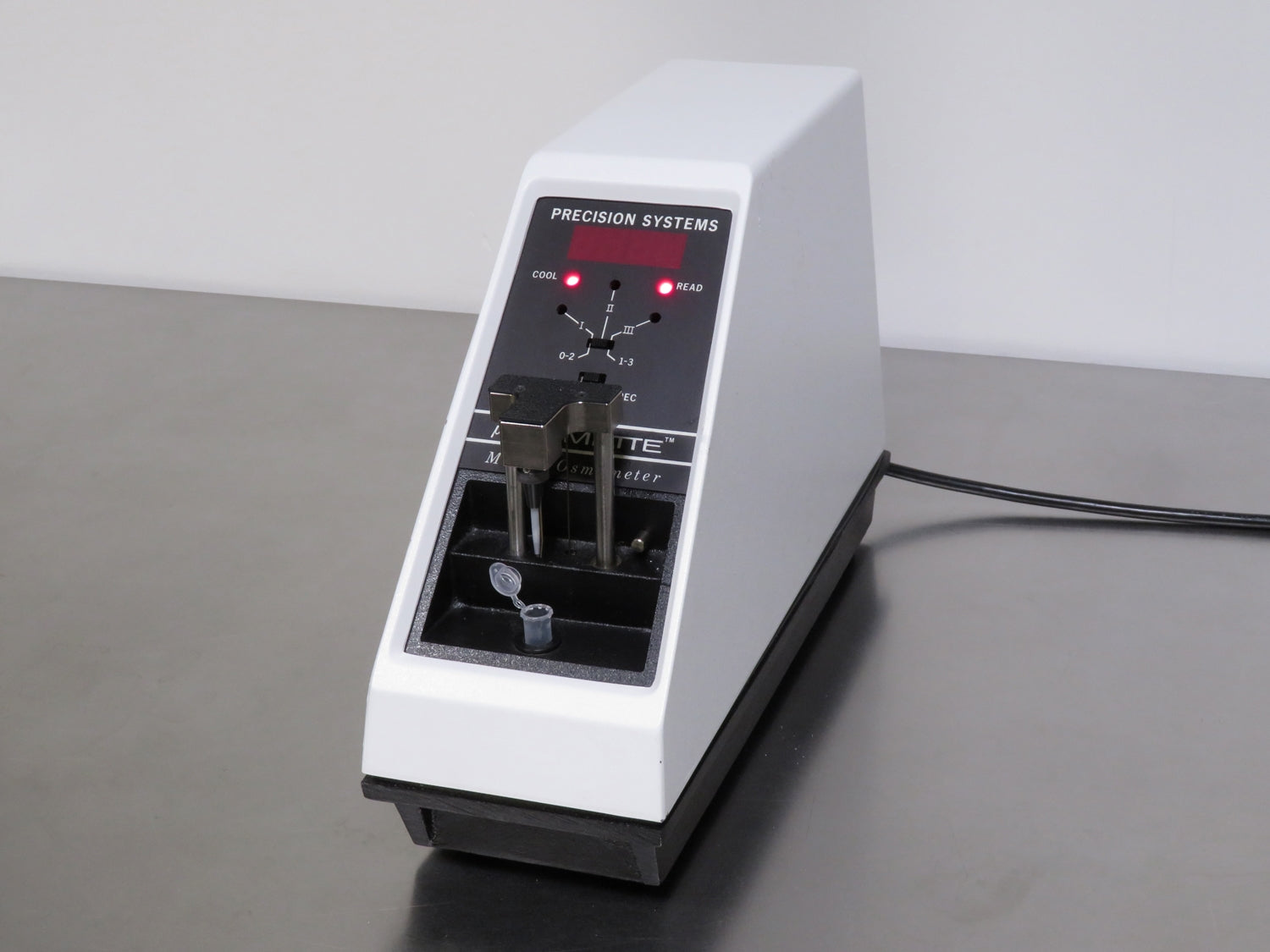

The Precision Systems Micro-Osmette Model 5004 is a compact, fast, and user-friendly freezing point osmometer designed for micro-sample analysis. Using a thermistor probe and electronic cooling system, it measures osmolality directly in mOsm/kg H₂O with precision down to ±0.001°C. With no need for ice baths or Dewar flasks, the system completes each analysis in just 50 to 70 seconds and reaches operating temperature in under 15 minutes. Ideal for both clinical and industrial labs, the 5004 supports high-throughput workflows, processing up to 60 samples per hour with minimal calibration and training.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Precision Systems Micro-Osmette Micro Osmometer Model 5004 includes:
The Precision Systems Micro-Osmette Micro Osmometer Model 5004 includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Precision Systems Micro-Osmette Micro Osmometer Model 5004 Specifications
| Sample Size | 50 uL |
| Precision <500 mOsm/kg | ± 2 mOsm/kg |
| Precision >500 mOsm/kg | ± 0.5% |
| Range | 0 to 3000 mOsm/kg |
| Calibration Standards | 2 |
| Calibration | User Acceptance of Calibration |
| Cooling Agent | Thermoelectric |
| Time per Measurement | 50 to 70 seconds |
| Initial Cool-Down Time | Approximately 5 minutes |
| Sample Tubes | Disposable Plastic |
| Display | Four-Digit Numeric |
| Dimensions (W x D x H) | 5 x 15 x 10 in. (13 x 38 x 24 cm) |
| Weight | 16.5 lbs. (7.5 kg) |
| Electrical Requirements | 110V, 50/60Hz, |
Downloads
Click Here to View the Technical Specs for the Precision Systems Micro-Osmette Micro Osmometer Model 5004
