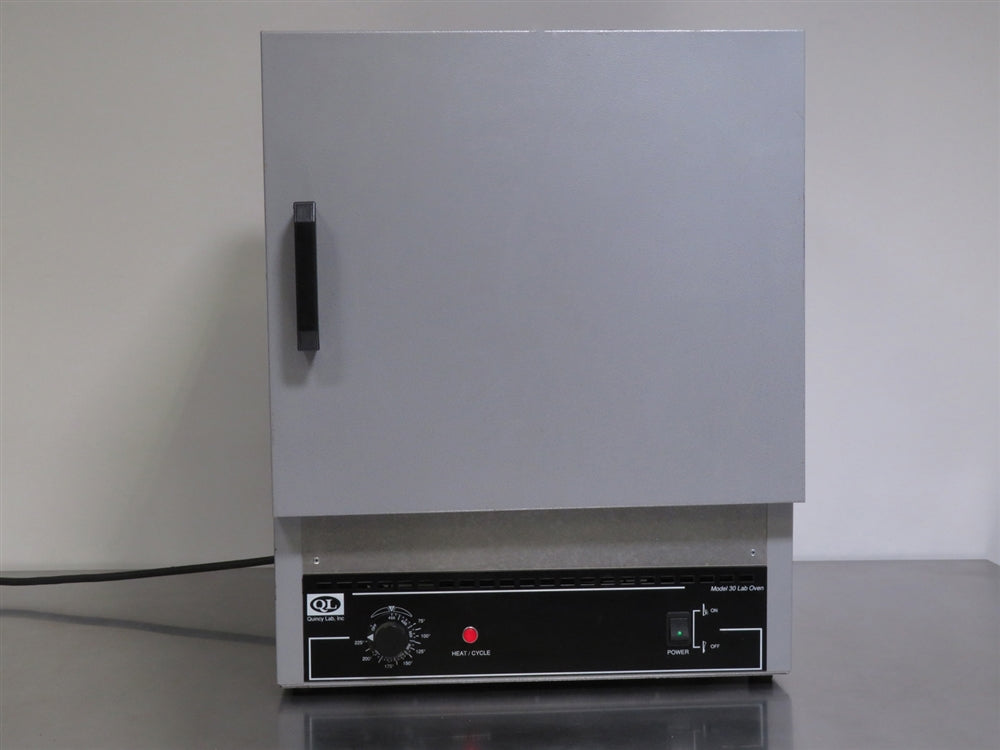

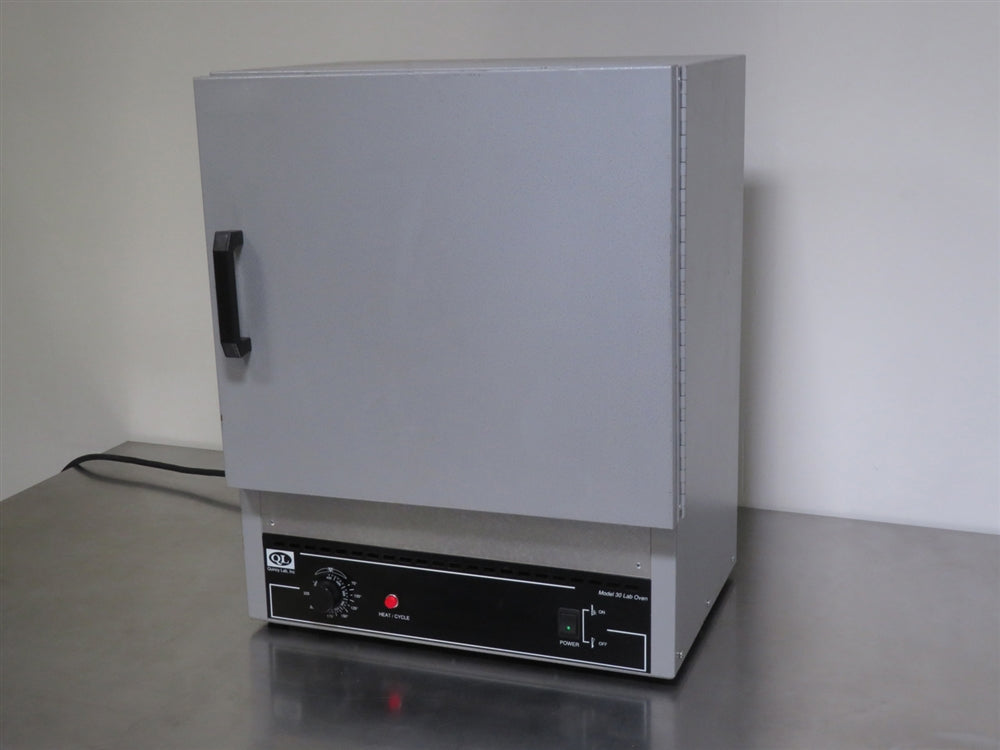

Quincy Lab 30GC Gravity Convection Oven
Maximum Temperature
232°C (450°F)
Temperature Stability
± 3°C
Chamber Volume
57L (2 cu. ft.)
Features
- Gravity convection design provides gentle, uniform heat distribution
- Suitable for drying, baking, curing, sterilizing, evaporating, and annealing

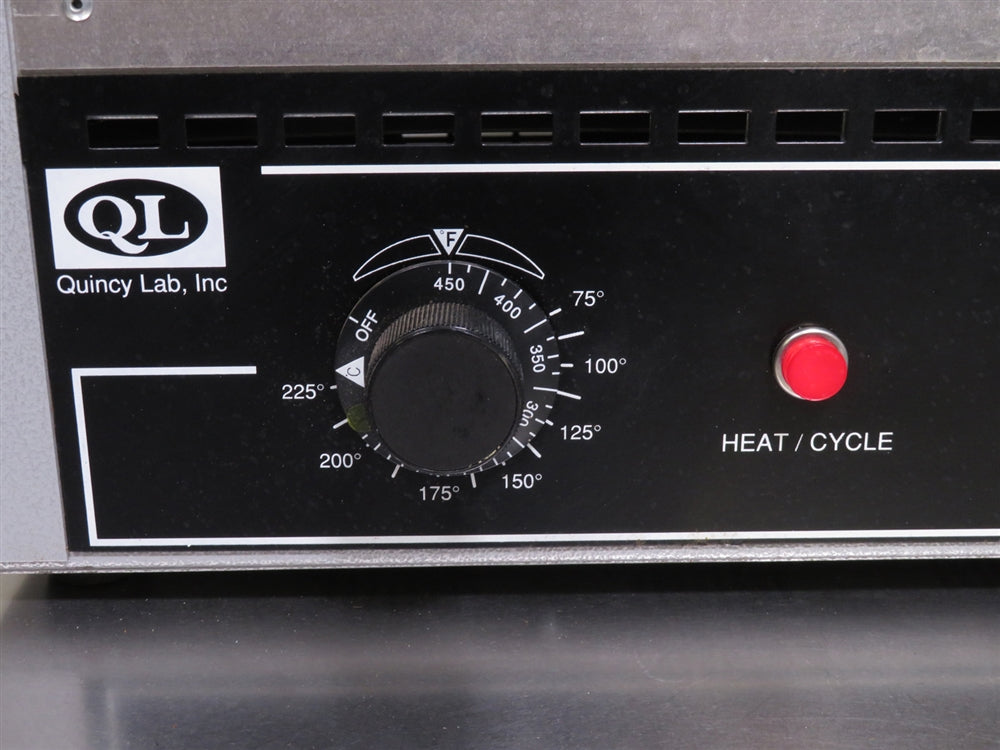

- Hydraulic thermostat ensures consistent and stable temperature control
- Built-in over-temperature safety system for reliable operation
- Corrosion-resistant aluminized steel interior for long-term durability
- Resistive tubular Incoloy heating elements deliver even heating performance
- Insulated steel door with high-impact thermoplastic handle for secure closure

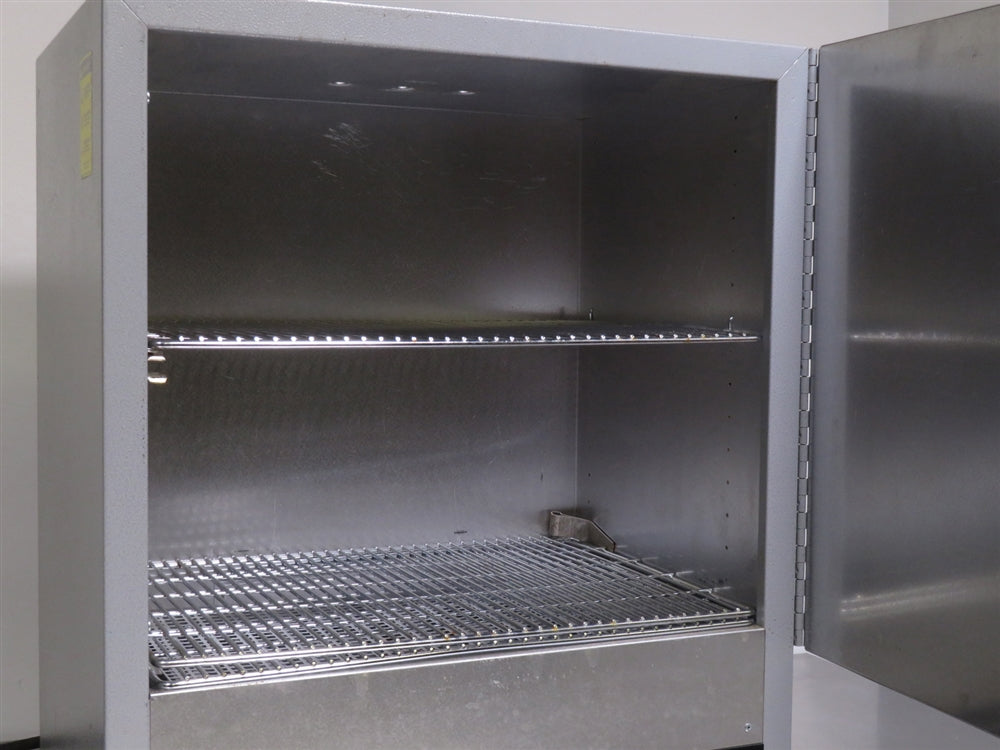

Engineered for precision and safety, the 30GC features a hydraulic thermostat with an accuracy of ± 3°C and an over-temperature safety system for added protection. Its corrosion-resistant aluminized interior and high-density mineral wool insulation ensure lasting durability and energy efficiency. The oven includes three nickel-plated shelves (two adjustable, one fixed), resistive tubular Incoloy heating elements, and an insulated steel door with a high-impact thermoplastic handle. Finished with a baked, scratch-resistant powder coating, the Quincy Lab 30GC delivers reliable performance and long-term value for a wide range of laboratory applications.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Quincy Lab 30GC Gravity Convection Oven includes:
The Quincy Lab 30GC Gravity Convection Oven includes:
- > 2 Shelves
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Quincy Lab 30GC Gravity Convection Oven Specifications
| Maximum Temperature | 232°C (450°F) |
| Temperature Stability | ± 3°C |
| Time to Temp. |
Ambient to 100°C: 6 min. Ambient to Max.: 28 min. |
| Recovery Time (at 150°C) |
4 min. (door opened 15 sec.) 6 min. (door opened 30 sec.) |
| Volume | 57L (2 cu. ft.) |
| Max. Shelf Load | 35 lbs. (15.9 kg) |
| Max. Shelf Qty. | 16 |
| Chamber Dimensions (W x D x H) | 18 x 12 x 15.6 in. (45.7 x 30.5 x 39.75 cm) |
| Overall Dimensions (W x D x H) | 20 x 14 x 25 in. (51 x 35.5 x 63.5 cm) |
| Electrical Requirements | 115V, 60Hz, 10.5A, 1200W |
Oven Inspection and Recertification Checklist
- Verify power supply and PCB outputs are within specified voltage ranges
- Inspect display for any dim or dead pixels, replacing as needed to ensure visibility
- Confirm full functionality and responsiveness of all control buttons
- Examine all internal wiring for frays, cuts, or damage, ensuring secure and reliable connections
- Inspect door seals and gaskets for integrity, replacing any compromised components
- Evaluate door handle and locking mechanism for wear or issues, replacing if performance is impaired
- Inspect and clean internal fan; replace if performance does not meet requirements
- Calibrate set temperature using a NIST-traceable probe for precise accuracy
- Confirm functionality of over-temperature alarm and indicator light
- Verify internal outlet functionality, if applicable, to ensure it meets operational standards
- Inspect internal lighting for full functionality and brightness, if applicable
- Perform a cosmetic inspection to confirm the oven’s exterior and interior meet quality standards
Technician Inspection and Recertification Checklist: Ovens
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Verify power supply and PCB outputs are within specified voltage ranges | Completed | |
| Inspect display for dim or dead pixels; replace if needed | Completed | |
| Confirm full functionality of all control buttons | Completed | |
| Examine internal wiring for damage; ensure secure connections | Completed | |
| Inspect door seals and gaskets, replacing any compromised components | Completed | |
| Evaluate door handle and locking mechanism, replacing if worn | Completed | |
| Inspect and clean internal fan; replace if performance is insufficient | Completed | |
| Calibrate set temperature using a NIST-traceable probe | Completed | |
| Confirm over-temperature alarm and indicator light functionality | Completed | |
| Verify internal outlet functionality, if applicable | Completed | |
| Inspect internal lighting for full functionality and brightness | Completed | |
| Perform cosmetic inspection to confirm quality standards of exterior and interior | Completed |
