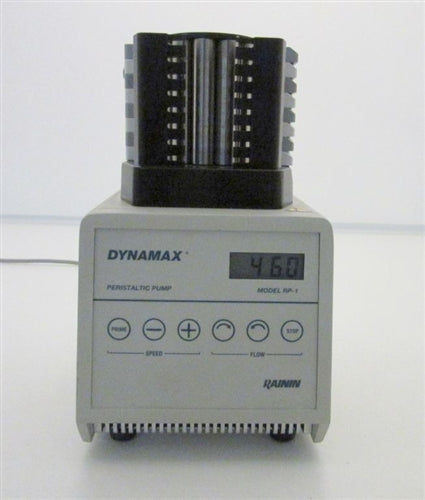

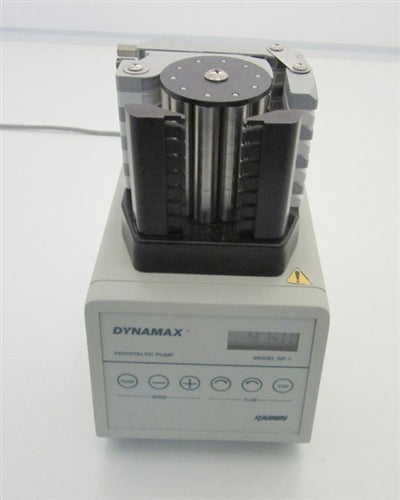

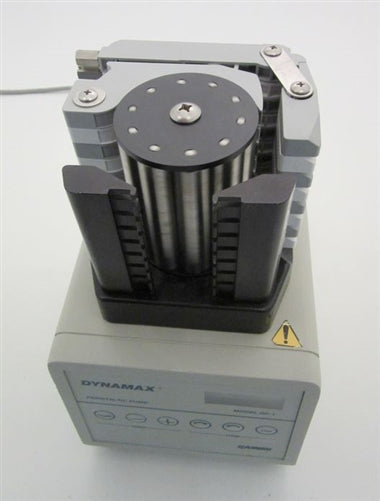

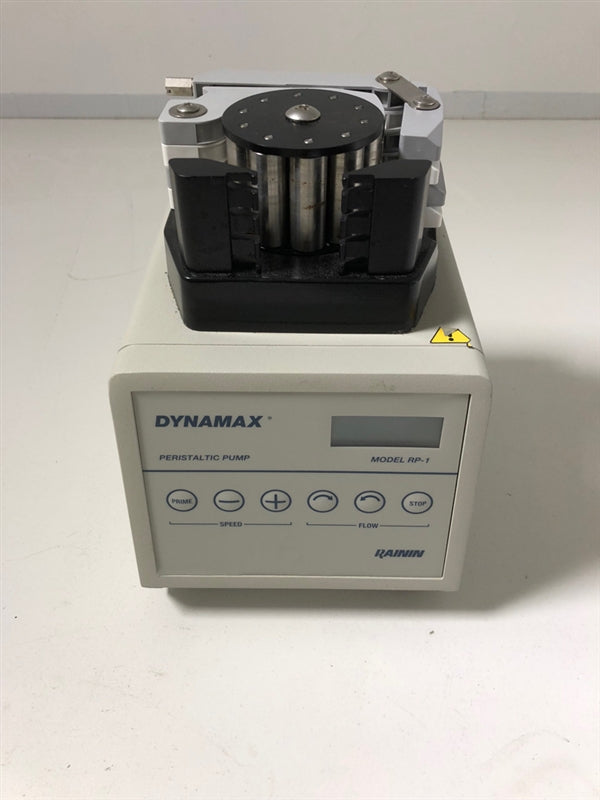

Rainin Dynamax RP-1 Peristaltic Pump
"
Head Speed
0 to 48 RPM
Speed Stability
0.005
Flow Rate
0 to 37 mL/min max at 0 backpressure
- Autostart function that automatically restarts the pump at the same speed after a power interruption.
- Idle Mode Post Power Interruption function keeps pump idle under power fluctuations.
- Multi-channel head ensures low pulsation, smooth flow, and high pressure.

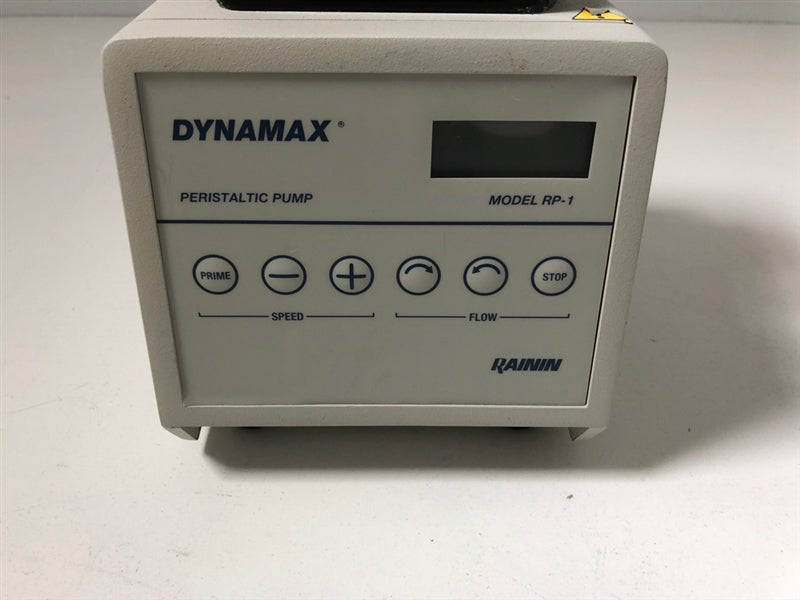

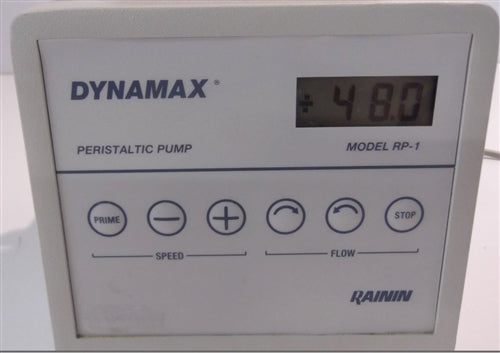

- Provides clear and precise readouts for easy monitoring of the pump settings.
- Offers both clockwise and counterclockwise operation, with easy switching between these modes for diverse application needs.

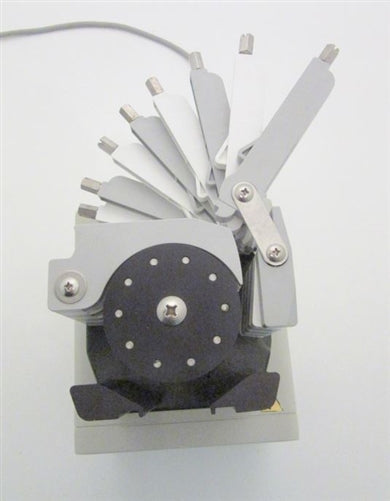

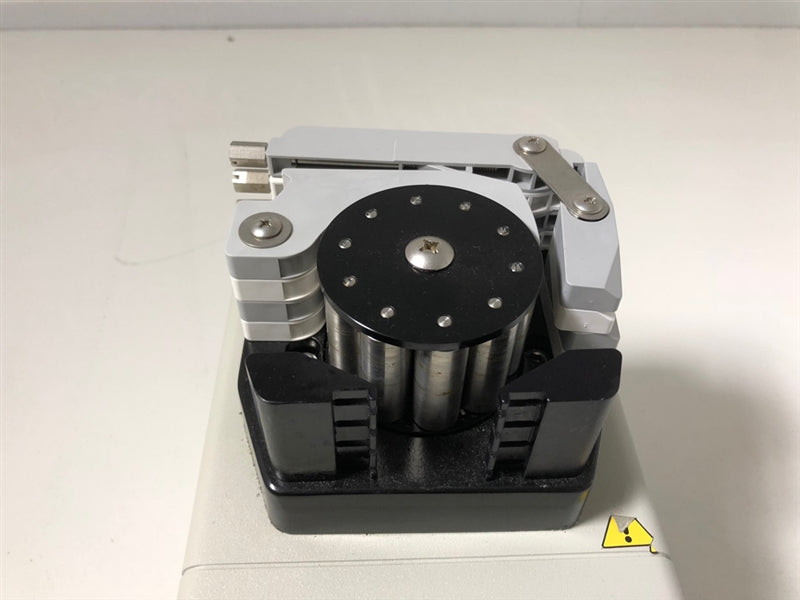

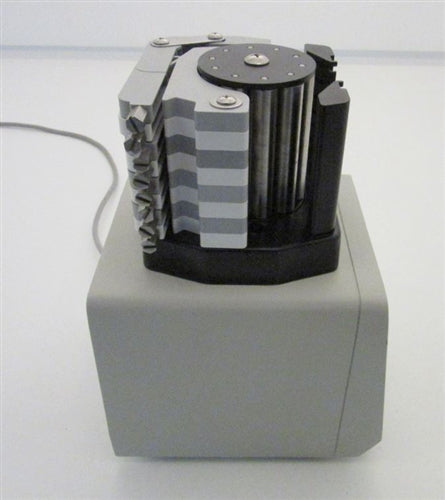

The Rainin Dynamax RP-1 Peristaltic Pump is in excellent condition. The Rainin Dynamax RP-1 Peristaltic Pump has a maximum speed of 48 rpm. Flow rates up to 37 ml per minute. The Dynamax RP-1's multi-channel head ensures low pulsation, smooth flow, and high pressure for a variety of fluid transfer applications, especially ideal for critical liquid chromatography, gradient generation, and flow analyzer applications and can accommodate a 4 or 8 channel head.
The Rainin Dynamax RP-1 Peristaltic Pump will be fully tested to perform at factory specifications before being shipped.
The Rainin Dynamax RP-1 Peristaltic Pump includes:
- > 4 Channel Head
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Rainin Dynamax RP-1 Peristaltic Pump Specifications
|
Head Speed |
0 to 48 RPM |
|
Torque |
>3 N-m across full operating range at 115VAC |
|
Speed Stability |
0.5% |
|
Speed Adjustment |
0.00 to 9.99 RPM in 0.01 RPM increments; 10.0 to 48.0 RPM in 0.1 RPM increments |
|
Flow Rate |
0 to 37 mL/min max at 0 backpressure (depending on tubing diameter) |
|
Flow Tubing Diameter |
0.25 mm ID - 4 mm ID |
|
Dimensions (W x D x H) |
160 x 190 x 275 mm (6.3 x 7.5 x 10.83 in) |
- Verify power supply and PCB voltage outputs for accuracy and stability
- Inspect display for dim or dead pixels, replacing any compromised segments
- Test full functionality of speed, time, and start/stop buttons
- Confirm proper bidirectional rotation of the pump head
- Examine all internal wiring within the casing for secure and intact connections
- Inspect pump head for any blockages or obstructions that could hinder rotation
- Confirm functionality of the fan, replacing if performance is suboptimal
- Inspect and clean the internal casing to maintain optimal conditions
- Verify RPM of pump head using a NIST-traceable tachometer
- Conduct a cosmetic inspection to ensure all surfaces meet quality standards
Technician Inspection and Recertification Checklist: Peristaltic Pumps
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Verify power supply and PCB voltage outputs for accuracy and stability | Completed | |
| Inspect display for dim or dead pixels; replace any compromised segments | Completed | |
| Test full functionality of speed, time, and start/stop buttons | Completed | |
| Confirm proper bidirectional rotation of the pump head | Completed | |
| Examine all internal wiring for secure and intact connections | Completed | |
| Inspect pump head for blockages or obstructions | Completed | |
| Confirm fan functionality, replacing if performance is suboptimal | Completed | |
| Inspect and clean internal casing to maintain optimal conditions | Completed | |
| Verify RPM of pump head using a NIST-traceable tachometer | Completed | |
| Conduct cosmetic inspection to ensure all surfaces meet quality standards | Completed |
