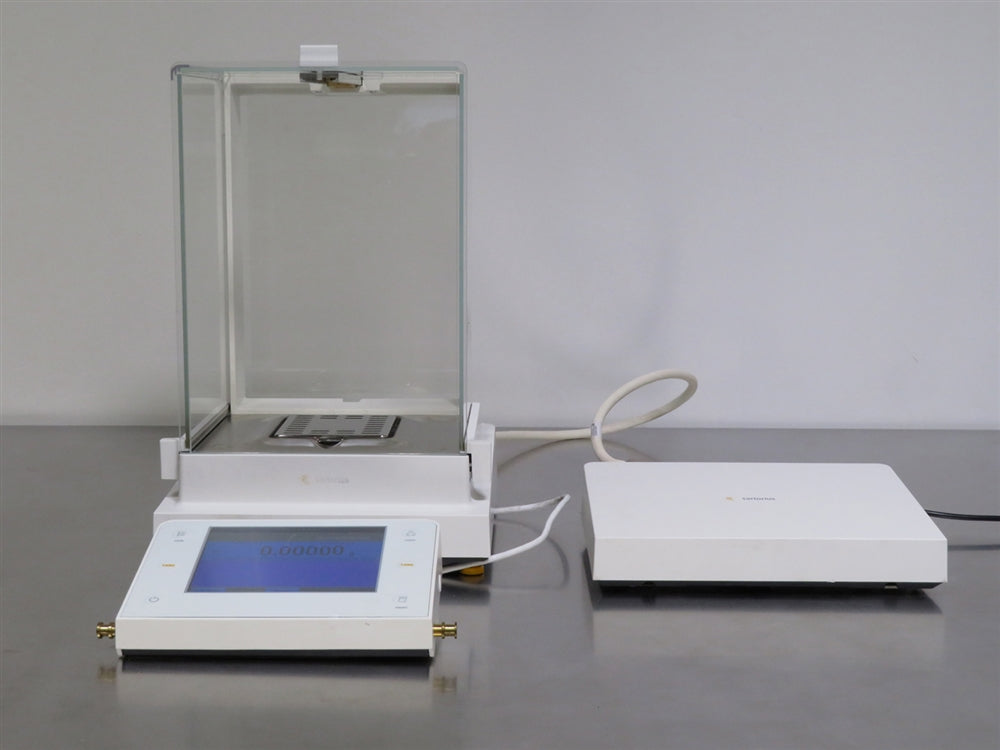

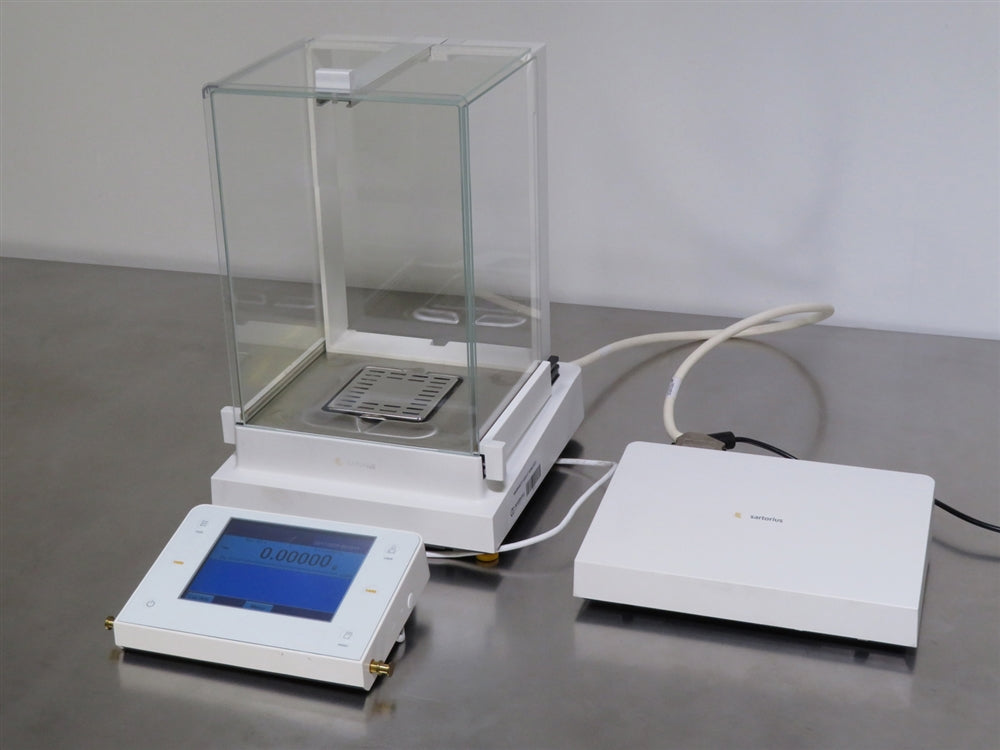

Sartorius Cubis MSA125P-100-DU Semi-Micro Analytical Balance

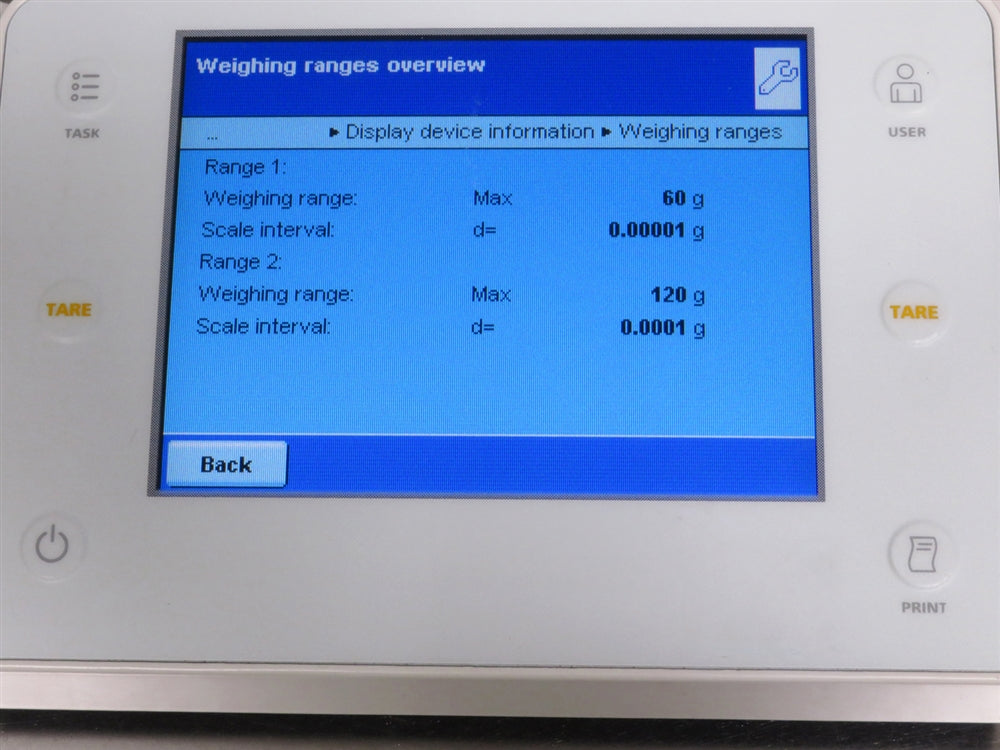

Maximum Capacity
60 g / 120 g
Readability
0.01 mg / 0.1 mg
Repeatability
± 0.06 mg
Features

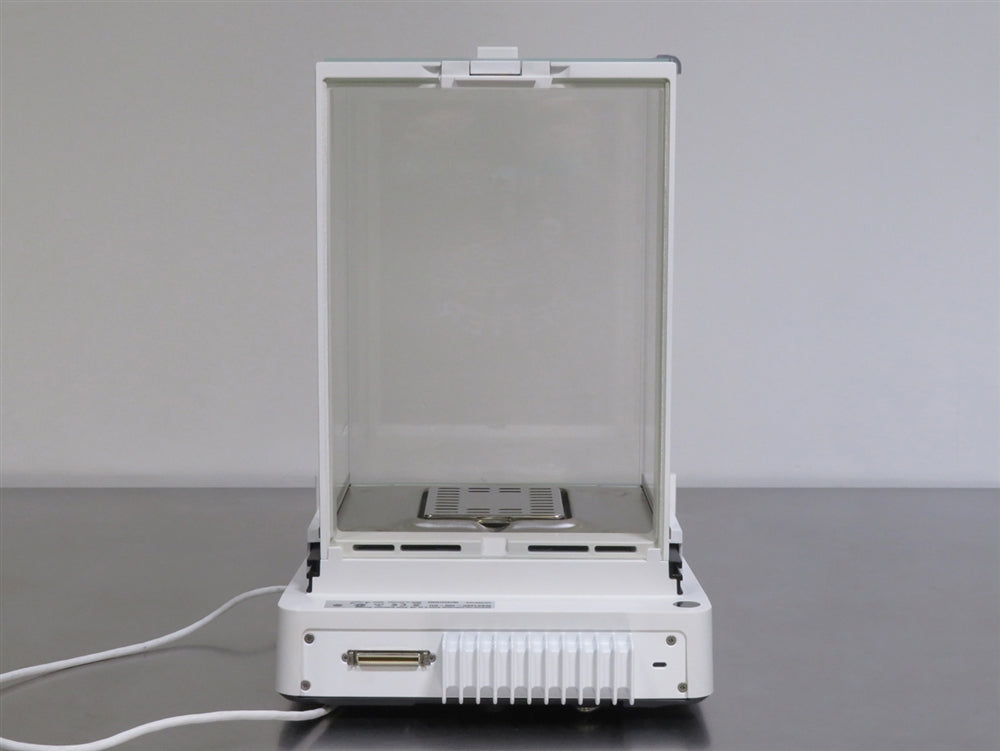

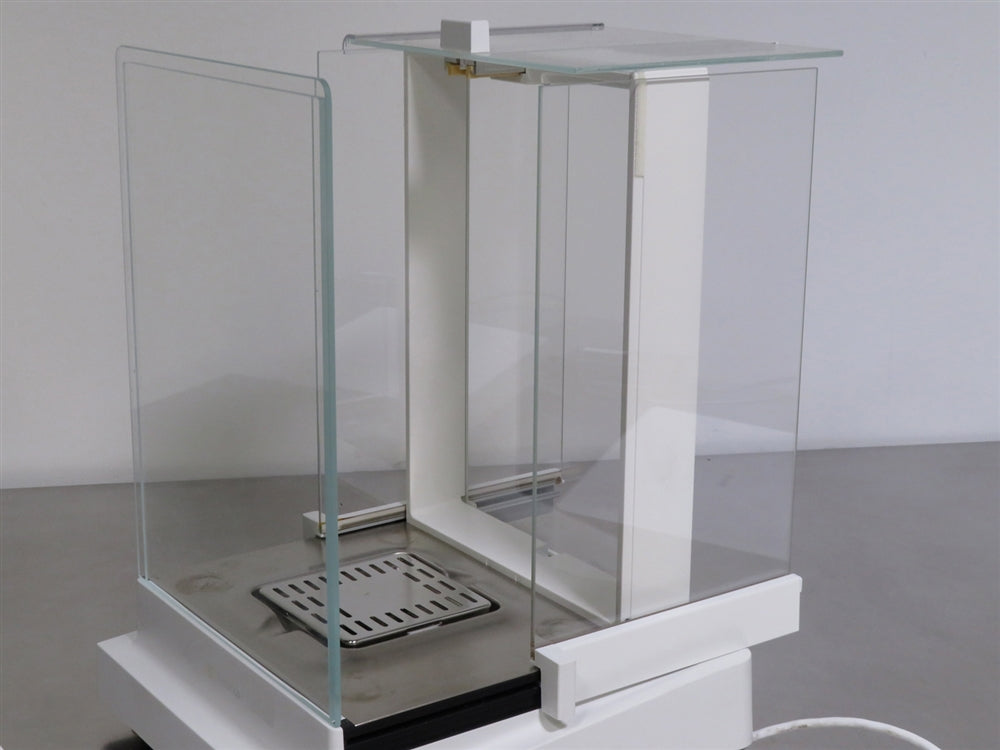

- Manual glass draft shield with 261 mm (10.3 in.) chamber height for optimal sample access and protection from air currents
- Fully automatic motorized leveling ensures consistent balance alignment at the touch of a button

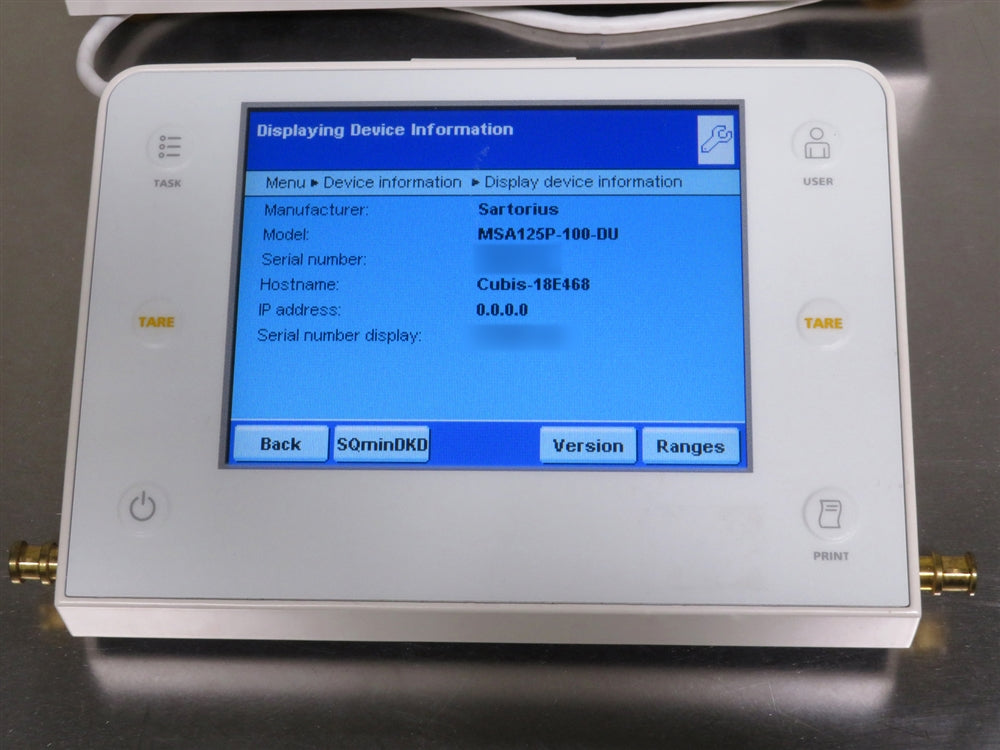

- High-resolution color touchscreen interface provides intuitive control and clear parameter visibility
- isoCAL automatic calibration and adjustment compensates for temperature or time-based changes
- SQmin monitoring in accordance with USP Chapter 41 verifies operational accuracy
- Integrated applications include density determination, formulation, check weighing, totalizing, and counting
- Advanced functions for unit conversion, time-controlled operations, second tare memory, and statistical analysis
- Alibi memory and audit trail logging provide full traceability of weighing data
- DKD measurement uncertainty tracking supports compliance and quality assurance

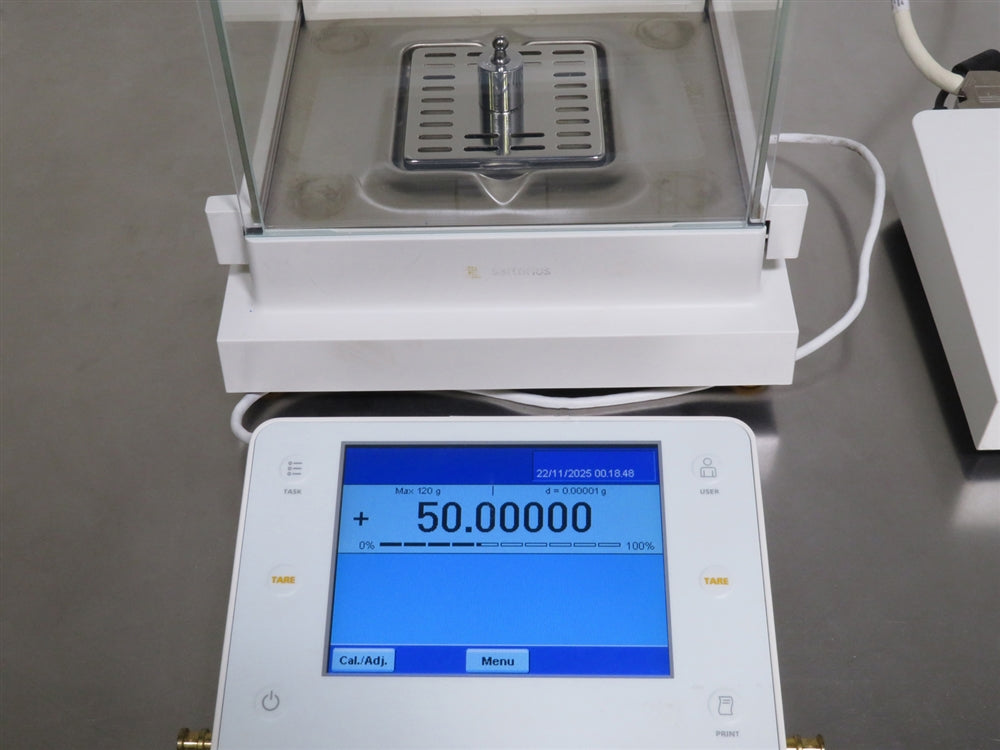

- Durable stainless steel pan (85 × 85 mm) suited for semi-micro and analytical weighing tasks

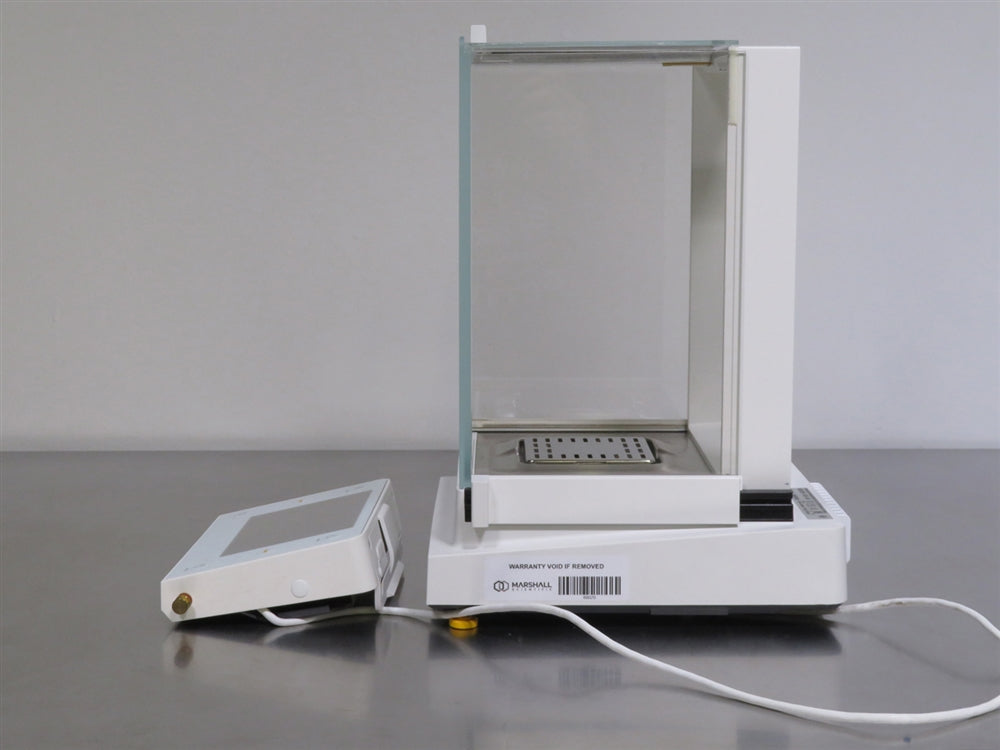

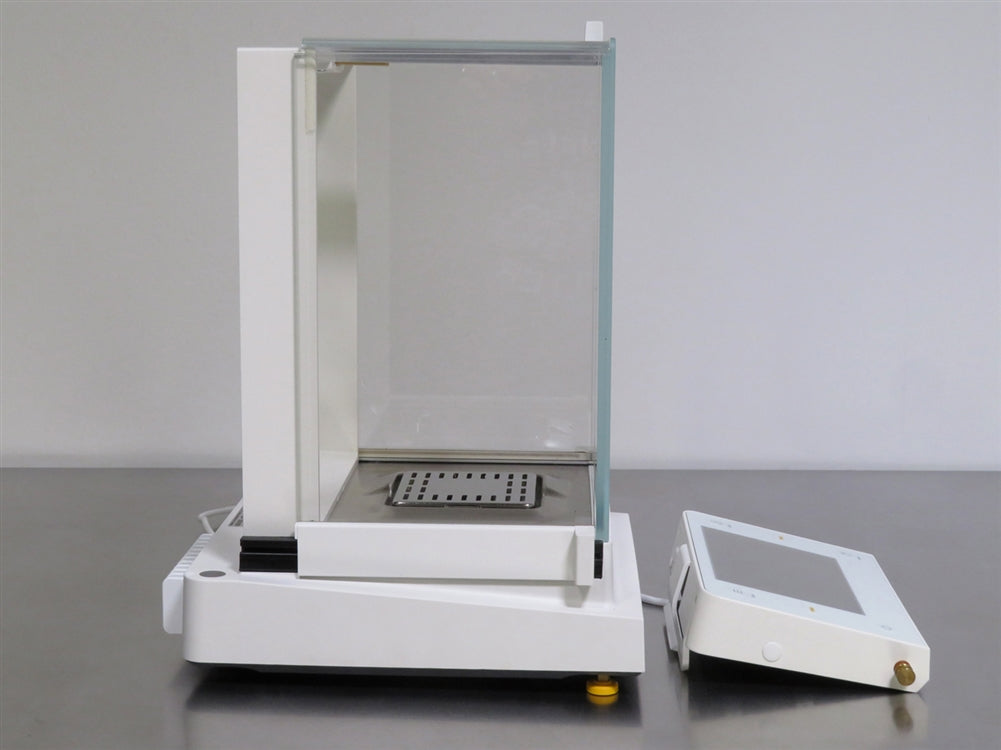

The Sartorius Cubis MSA125P-100-DU Semi-Micro Analytical Balance combines precision engineering with intelligent automation to deliver exceptional weighing performance for analytical and research environments. Designed with a manual glass draft shield and a spacious 261 mm (10.3 in.) chamber height, this balance provides excellent protection from environmental influences while allowing comfortable access for sample placement. The 85 × 85 mm stainless-steel pan accommodates both semi-micro and analytical weighing applications, ensuring consistent results across a wide range of tasks.

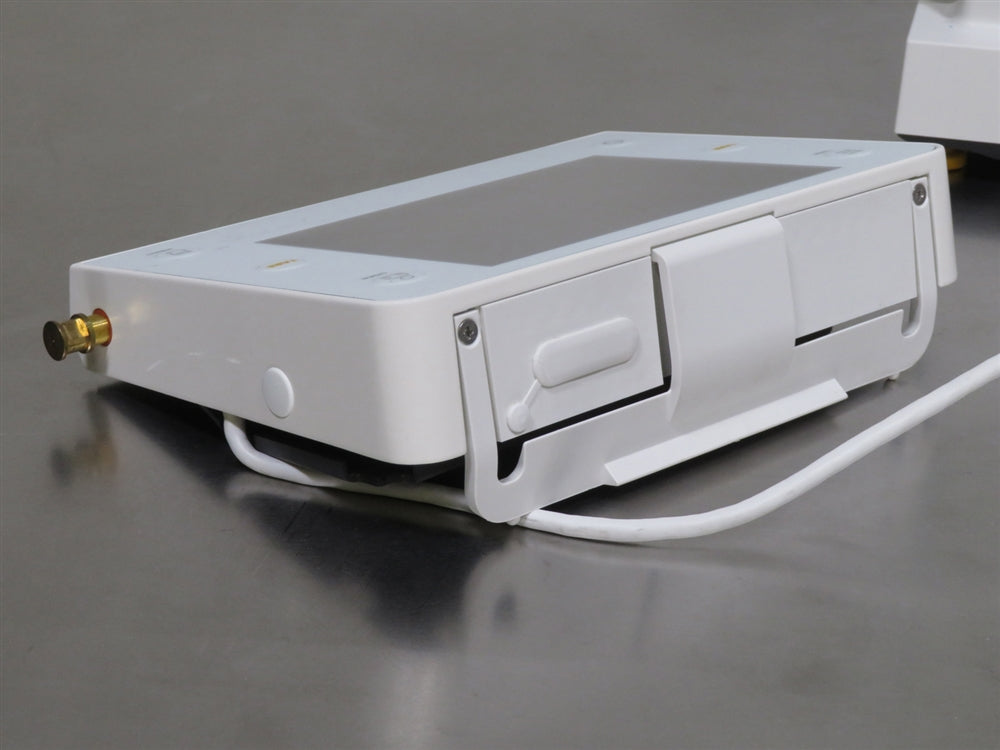

Featuring the advanced MSA control unit, the balance includes a high-resolution color touchscreen interface for intuitive operation, fast setup, and clear visibility of weighing parameters. Its isoCAL automatic internal calibration and adjustment function ensures continuous accuracy by compensating for temperature or time-based changes, while SQmin monitoring in compliance with USP Chapter 41 provides reliable verification of operating conditions. The Cubis MSA125P-100-DU also offers fully automatic motorized leveling, allowing the unit to self-level at the touch of a button guaranteeing optimal balance alignment and measurement precision. Additional built-in functions include density determination, formulation, check weighing, totalizing, counting, and statistical analysis, as well as unit conversion, time-controlled operations, and second tare memory.
For comprehensive data integrity, the balance supports Alibi memory, audit trail logging, and DKD measurement uncertainty tracking, enabling full compliance with laboratory quality standards. With its durable construction, intelligent automation, and wide functional range, the Cubis MSA125P-100-DU offers a superior solution for laboratories demanding accuracy, reproducibility, and operational efficiency.
All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Sartorius Cubis MSA125P-100-DU Semi-Micro Analytical Balance includes:
The Sartorius Cubis MSA125P-100-DU Semi-Micro Analytical Balance includes:

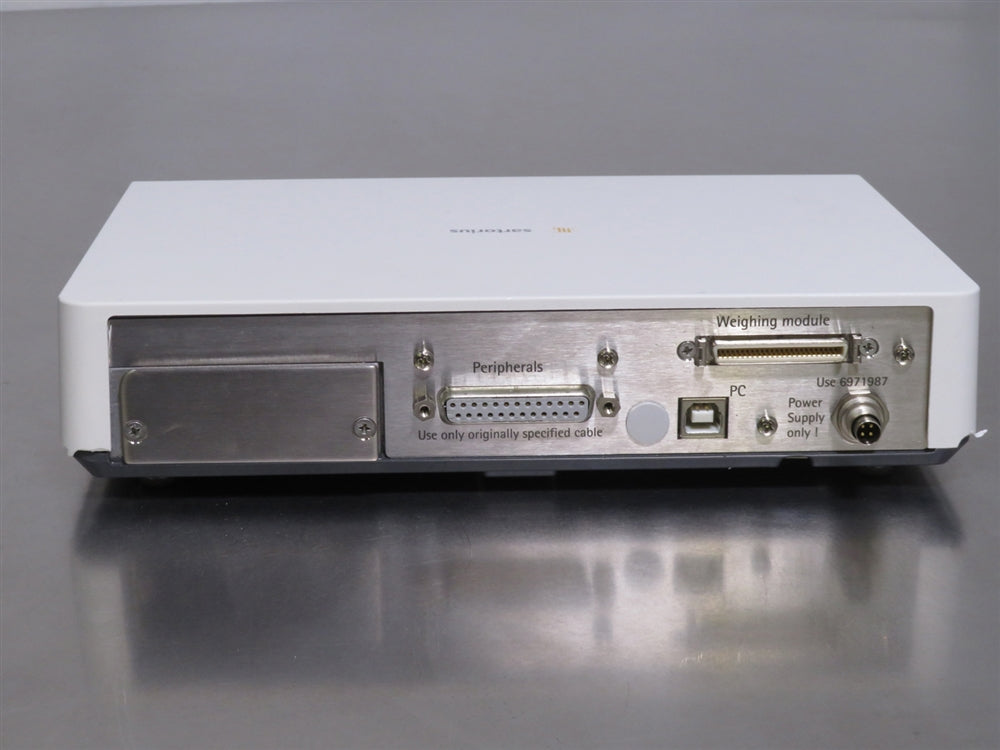

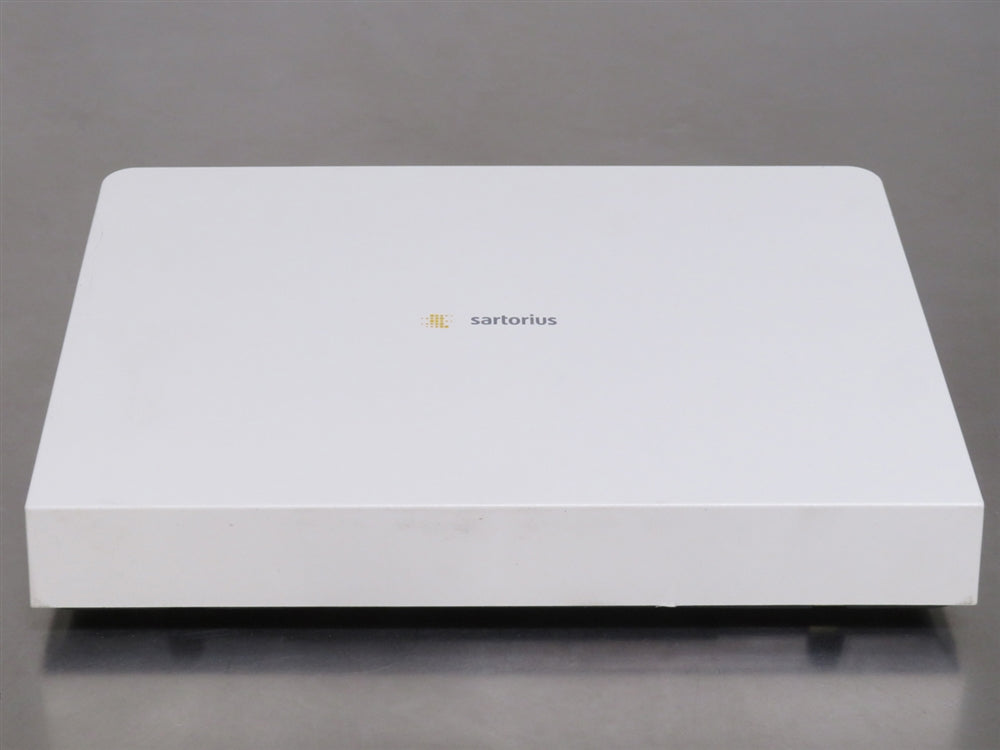

- > Electronics Module w/ Connection Cable
- > Calibration Label
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Sartorius Cubis MSA125P-100-DU Semi-Micro Analytical Balance Specifications
| Maximum Capacity | 60 g / 120 g |
| Readability | 0.01 mg / 0.1 mg |
| Repeatability | ± 0.06 mg |
| Linearity | ± 0.15 mg |
| Calibration Type | Internal (isoCAL) |
| Stabilization Time | ≤ 2 seconds |
| Minimum Weight (USP31-NF26) | 20 mg |
| Interfaces | USB, RS232, and Ethernet (LAN) |
| Display | 5.7 in. color TFT touchscreen |
| Weighing Pan Size | 85 mm x 85 mm |
| Electronic Module Dimensions (W x D x H) | 9.4 x 8.3 x 2.2 in. (24 x 21.1 x 5.6 cm) |
| Balance Dimensions (W x D x H) | 9.5 x 17.7 x 14.7 in. (24 x 45 x 37.3 cm) |
| Electrical Requirements | 100 to 240V, 50/60Hz, 1.0A |
Balance Inspection and Recertification Checklist
- Verify power supply output for precise voltage delivery in accordance with equipment specifications
- Assess full functionality of display and control buttons, replacing any defective or deteriorating components as necessary
- Confirm balance is properly leveled to ensure measurement accuracy and stability
- Examine windscreen glass for cracks or chips, replacing if structural integrity is compromised
- Inspect all internal wiring and electrical connections for secure attachment and check for any loose connections or damaged connectors
- Check power cord integrity, ensuring there are no frays, cuts, or damage affecting function or safety
- Execute internal or external calibration to confirm accuracy of weighing measurements
- Review cosmetic condition, confirming no visible damage or wear that affects functionality
- Verify successful taring of the weighing pan to zero out prior measurements accurately
- Ensure RS232/printer communication functions correctly, validating connection and data transmission (if applicable)
Technician Inspection and Recertification Checklist: Balances
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Verify power supply output voltage | Completed | |
| Assess display and control button functionality, replacing faulty components | Completed | |
| Confirm balance leveling for measurement accuracy | Completed | |
| Inspect windscreen glass for cracks, replace if necessary | Completed | |
| Check internal wiring and electrical connections for security | Completed | |
| Inspect power cord for frays or damage | Completed | |
| Execute internal/external calibration for measurement accuracy | Completed | |
| Review cosmetic condition for visible damage | Completed | |
| Verify weighing pan tares successfully | Completed | |
| Ensure RS232/printer communication is functional (if applicable) | Completed |
