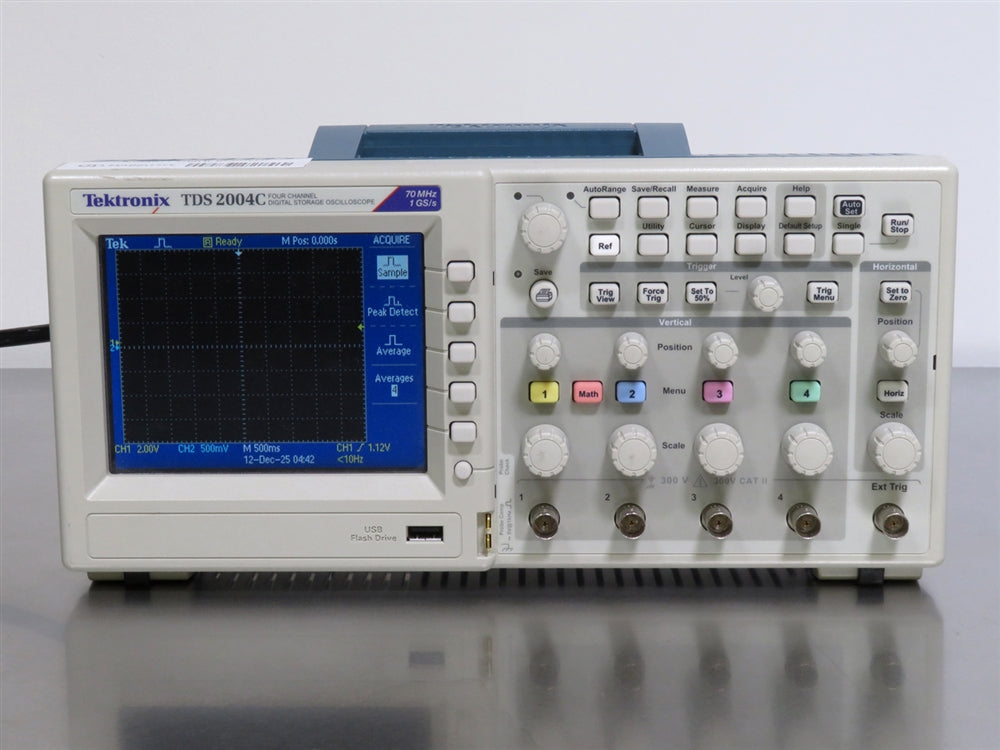

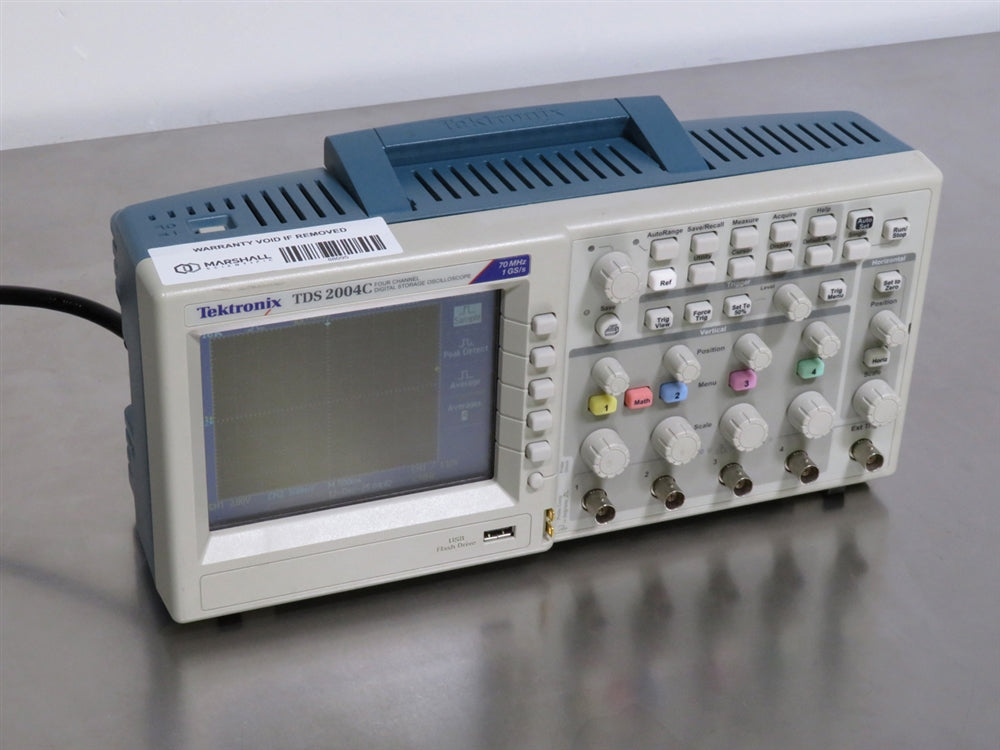

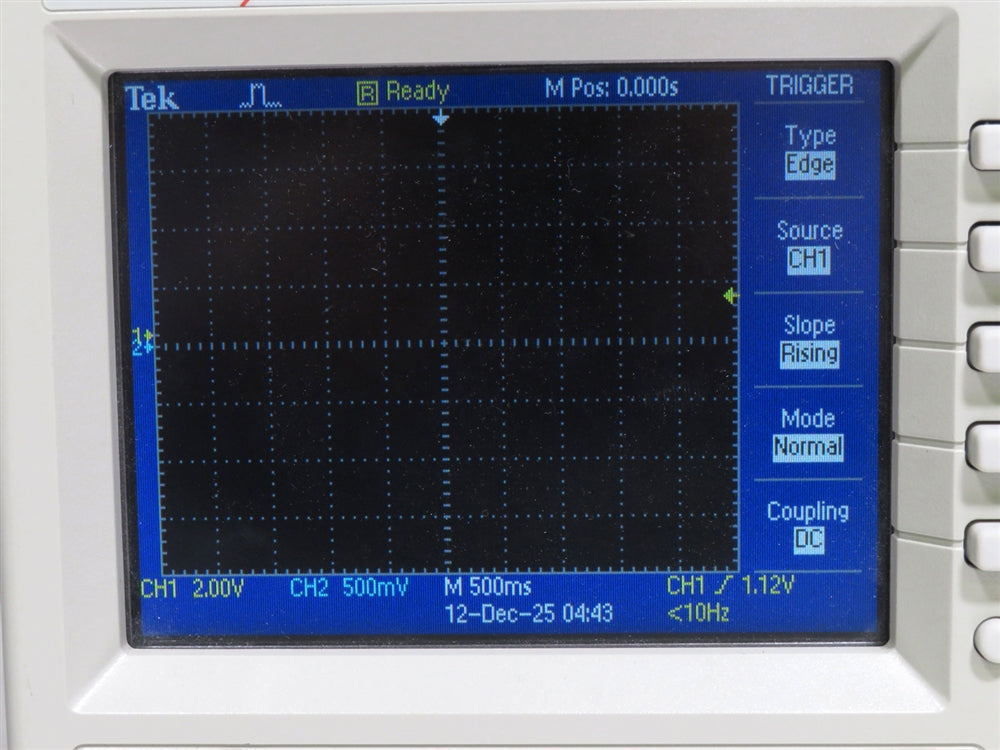

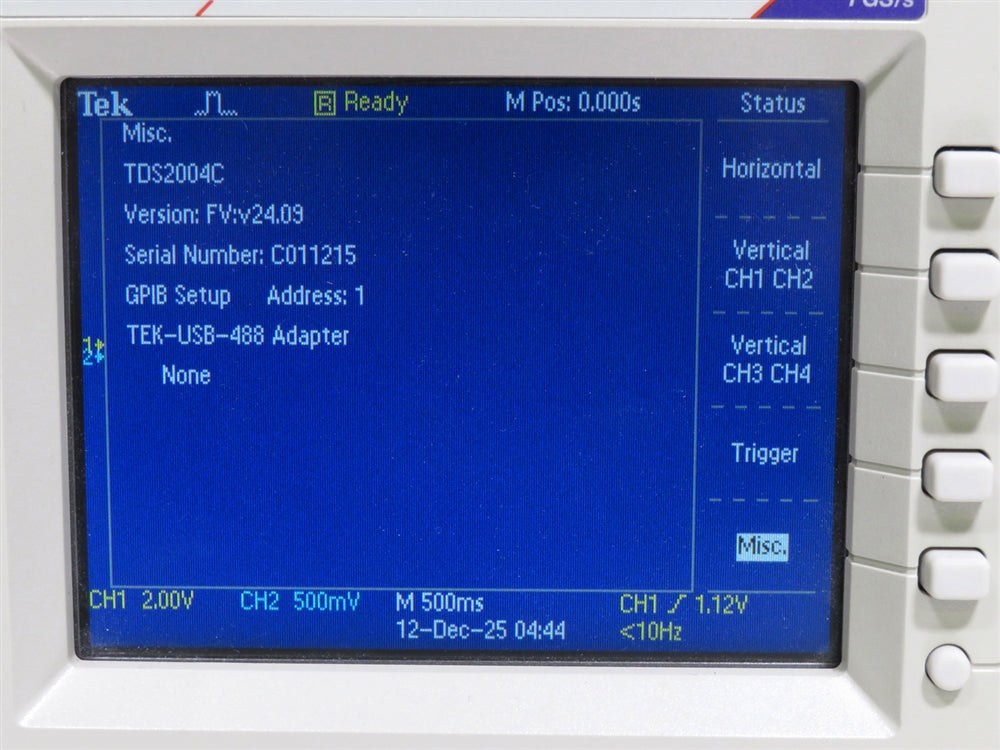

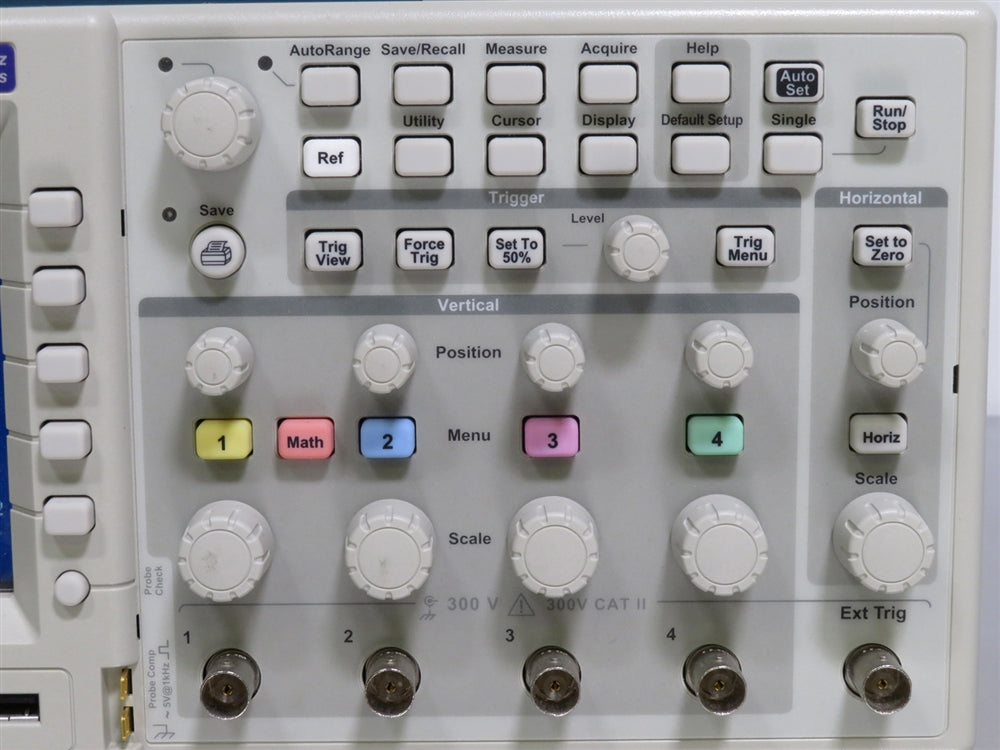

Tektronix TDS 2004C Four Channel Digital Storage Oscilliscope
Bandwidth
70 MHz for 5 mV/div
20 MHz for < 5 mV/div
Number of Channels
4
Sensitivity Range
2 mV/div to 5 V/div
Features
- 1.0 GS/s real-time sample rate delivers accurate waveform capture across all inputs
- 8-bit vertical resolution supports clear, detailed signal representation
- 2,500-sample record length enables extended waveform viewing and analysis
- Wide 5 ns/div to 50 s/div time base range enhances flexibility for fast and slow signals
- ± 50 ppm time base accuracy provides stable and reliable timing measurements
- DC, AC, and GND input coupling options accommodate varied test requirements
- 300 VRMS maximum input rating offers robust protection when working with higher-level signals
- USB host and device ports simplify data transfer, PC communication, and printing
- Lightweight 4.4 lb construction and compact footprint fit easily onto crowded benches
- 100 to 240 VAC power compatibility ensures dependable operation in global settings
All of our equipment will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Tektronix TDS 2004C Four Channel Digital Storage Oscilliscope includes:
The Tektronix TDS 2004C Four Channel Digital Storage Oscilliscope includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Tektronix TDS 2004C Four Channel Digital Storage Oscilliscope Specifications
| Bandwidth |
70 MHz for 5 mV/div
20 MHz for < 5 mV/div |
| Number of Channels | 4 |
| Sample Rate on Each Channel | 1.0 GS/s |
| Sensitivity Range | 2 mV/div to 5 V/div |
| Vertical Resolution | 8 bits except at 2 mV/div |
| Record Length | 2,500 samples / record |
| Seconds/Division Range | 5 ns/div to 50 s/div in 1–2.5–5 sequence |
| Time Base Accuracy | ± 50 ppm over any ≥ 1 ms interval |
| Position Range |
2 mV/div to 200 mV/div: ± 1.8V
> 200 mV/div to 5 V/div: ± 45V |
| Bandwidth Limit | 20 MHz |
| Input Coupling | DC, AC, or GND |
| Input Impendance | 1 MΩ ± 2% in parallel with 20 pF ± 3 pF |
| Maximum Input Voltage | 300 VRMS, Installation Category II; derate at 20 dB/decade above 100 kHz to 13 V peak AC at 3 MHz and above |
| I/O Interface |
USB host port on front panel supports USB flash drives

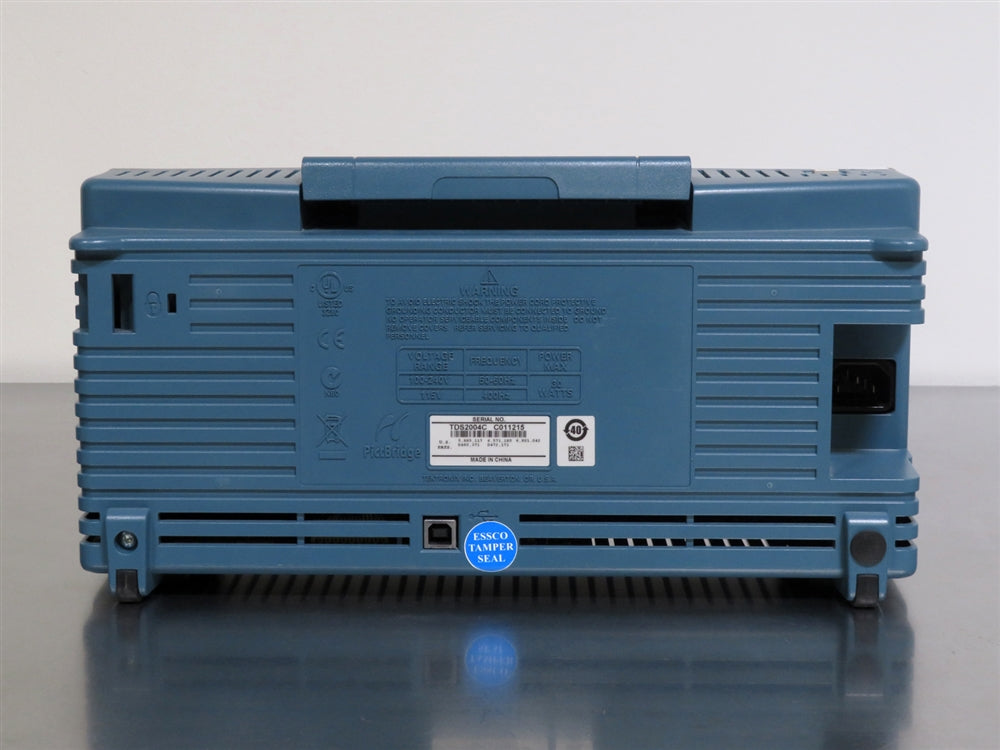

USB device port on back of instrument supports connection to PC and all PictBridge-compatible printers |
| Dimensions (W x D x H) |
12.9 x 4.9 x 6.2 in. (32.6 x 12.4 x 15.8 cm) |
|
Weight |
4.4 lb. (2 kg) |
| Electrical Requirements | 100 to 240 VAC, RMS ± 10% |
