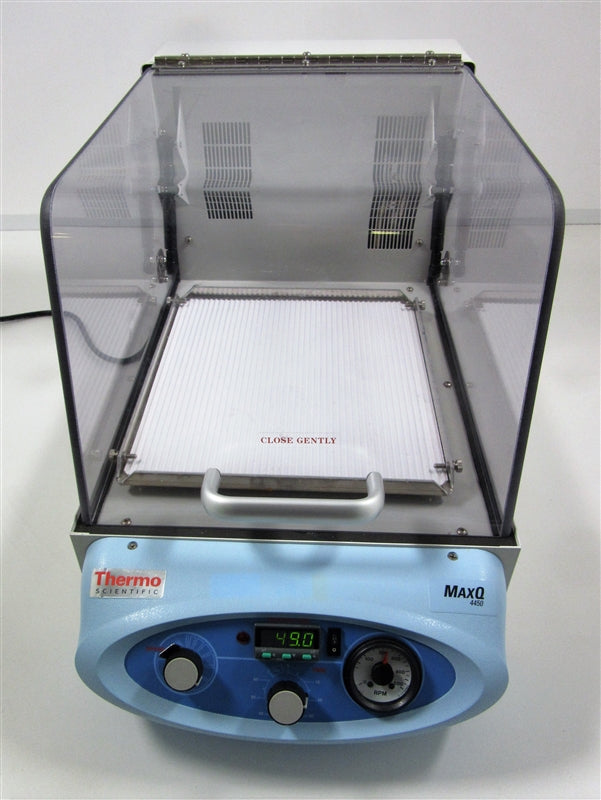

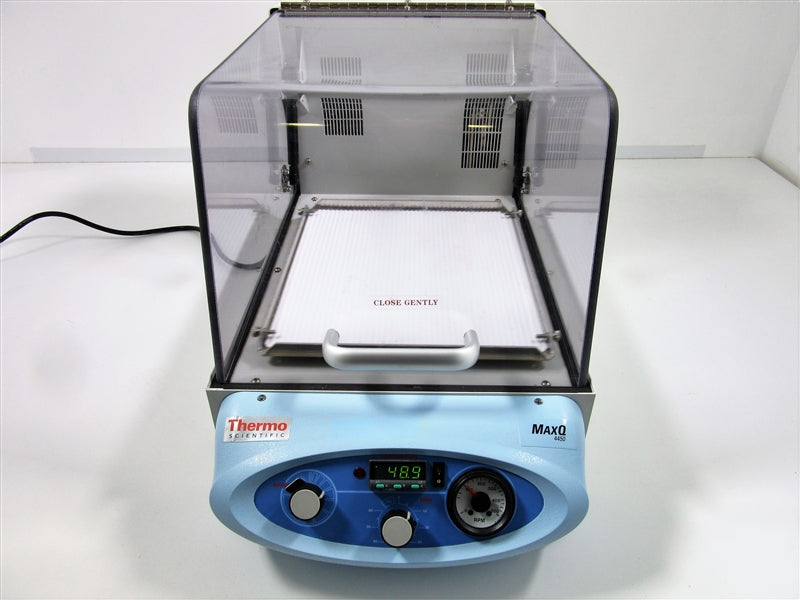

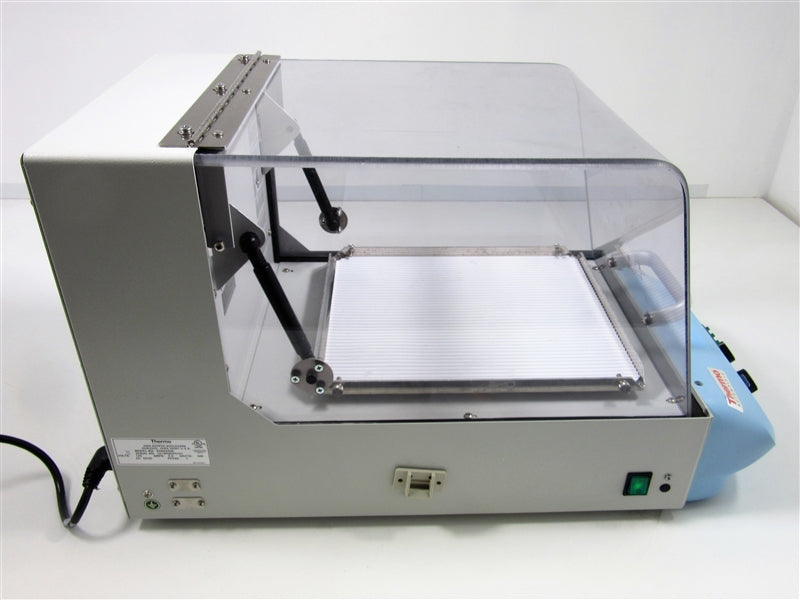

Thermo MaxQ 4450 Orbital Incubator Shaker
Speed Range
40 to 400 RPM
Temperature Range
Ambient +5C to 80C
Maximum Capacity
4 x 1L flasks
Features
- Compact benchtop design suitable for a variety of laboratory applications
- Clear scratch-resistant lid allows sample observation without disrupting the chamber
- PID temperature controller ensures precise control with 0.1°C accuracy
- Independent over-temperature backup controller enhances safety
- Durable platform supports various vessel types up to 35 lbs
- 0.75-inch orbital shaking motion ensures even sample mixing

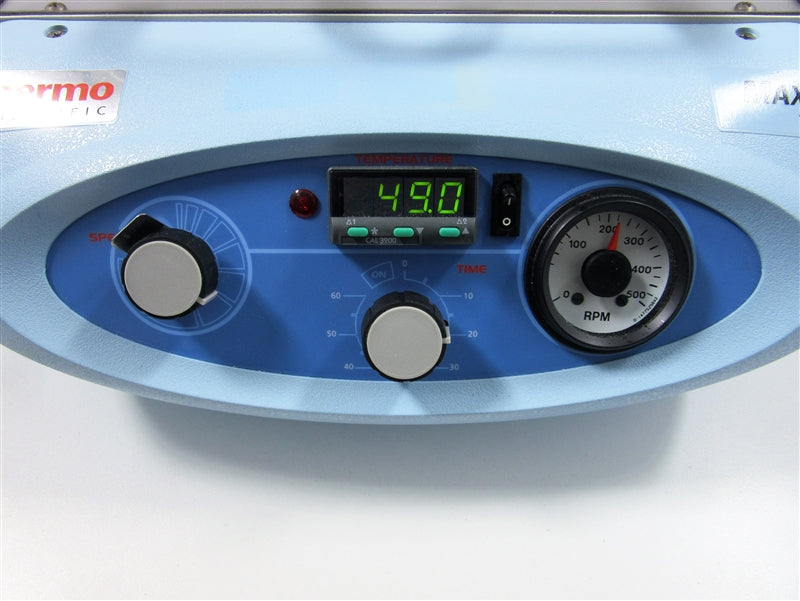

- LED display provides easy monitoring of temperature in 0.1°C increments
- Analog tachometer enables real-time speed tracking in RPM
The Thermo MaxQ 4450 combines orbital shaking technology with a small footprint benchtop design for a versatile shaker ideal for cell culture, solubility studies, extraction procedures, protein expression, and many other applications. The MaxQ 4450 features shaking speeds from 40 to 400 RPM around a 0.75 inch orbit with a temperature range of 5C above ambient to 80C. Includes 11 x 13 inch platform for vessel capacity up to four 1L flasks. The MaxQ 4450's clear, scratch-resistant lid allows for unobstructed sample viewing without disturbing the chamber. PID temperature controller provides 0.1C temperature accuracy at 37C, and an independent over temperature feature provides a backup temperature controller for added safety.
This incubator shaker will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Thermo MaxQ 4450 Orbital Incubator Shaker includes:
The Thermo MaxQ 4450 Orbital Incubator Shaker includes:
- > 11" x 13" Platform
- > NIST Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Thermo MaxQ 4450 Orbital Incubator Shaker Specifications
|
Speed Range |
40 to 400 RPM |
|
Temperature Range |
Ambient +5C to 80C |
|
Temperature Accuracy |
0.1C |
|
Orbit |
1.9 cm (0.75 in) |
|
Load Capacity |
35 lbs (15.9 kg) |
|
Capacity |
4 x 1L flasks |
|
Platform Dimensions (L x W) |
11 x 13 in (28 x 33 cm) |
|
Overall Dimensions (L x W x H) |
27.2 x 14.1 x 15.8 in (69.1 x 35.8 x 40.1 cm) |
|
Electrical Requirements |
120V, 50/60Hz |
Inspection and Recertification Checklist
- Examine the chamber glass for cracks or chips, replacing it as needed to maintain structural integrity.
- Inspect door seals for signs of wear or damage, replacing them to ensure a tight seal.
- Check the display for brightness and clarity, replacing any dim or dead pixels to maintain optimal visibility.
- Test all buttons to confirm full functionality and consistent responsiveness.
- Replace all platform assembly bearings to ensure smooth and reliable motion.
- Inspect the drive belt for wear, replacing it if torn or cracked to maintain performance.
- Examine all wiring for frays, tears, or breakages, addressing any issues for electrical safety.
- Verify each PCB test point, replacing any malfunctioning components to ensure system reliability.
- Check drive belt tension to confirm correct alignment and function.
- Confirm the compressor’s operation, cleaning condenser filter and fins for efficient cooling.
- Calibrate internal temperature accuracy using an NIST-traceable temperature probe.
- Measure and calibrate platform RPMs with an NIST-traceable tachometer to ensure precision.
- Conduct a final cosmetic inspection to verify all surfaces meet appearance standards.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Examine chamber glass for cracks or chips, replace as needed | Completed | |
| Inspect door seals for wear, replace to ensure tight seal | Completed | |
| Check display brightness, replace dim or dead pixels | Completed | |
| Test all buttons for full functionality and responsiveness | Completed | |
| Replace platform assembly bearings for reliable motion | Completed | |
| Inspect drive belt for wear, replace if torn or cracked | Completed | |
| Examine wiring for frays or breakages, repair as needed | Completed | |
| Verify PCB test points, replace faulty components | Completed | |
| Check drive belt tension for proper alignment | Completed | |
| Confirm compressor functionality, clean filter and fins | Completed | |
| Calibrate internal temperature with NIST probe | Completed | |
| Calibrate platform RPM with NIST-traceable tachometer | Completed | |
| Conduct cosmetic inspection for appearance standards | Completed |
102 Tide Mill Road, Hampton NH 03842
customerservice@marshallscientific.com | (603) 601-8511 |
www.marshallscientific.com
Copyright © 2024 by Marshall Scientific LLC. All rights reserved.
Downloads
Click Here to View all the Technical Specs for the MaxQ 4450
