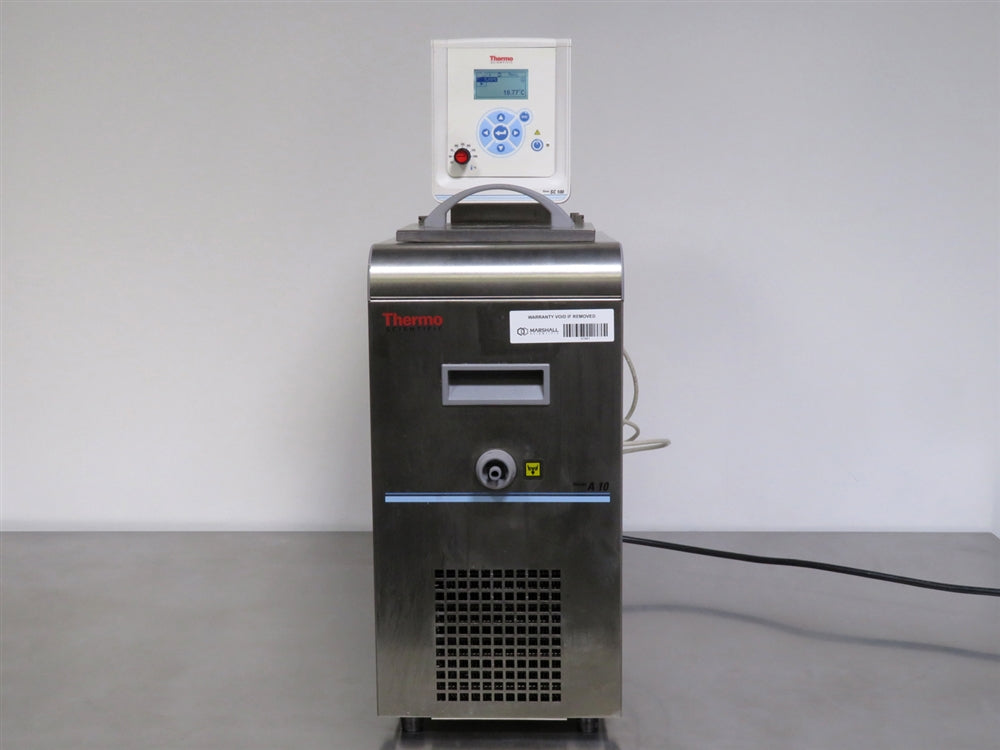

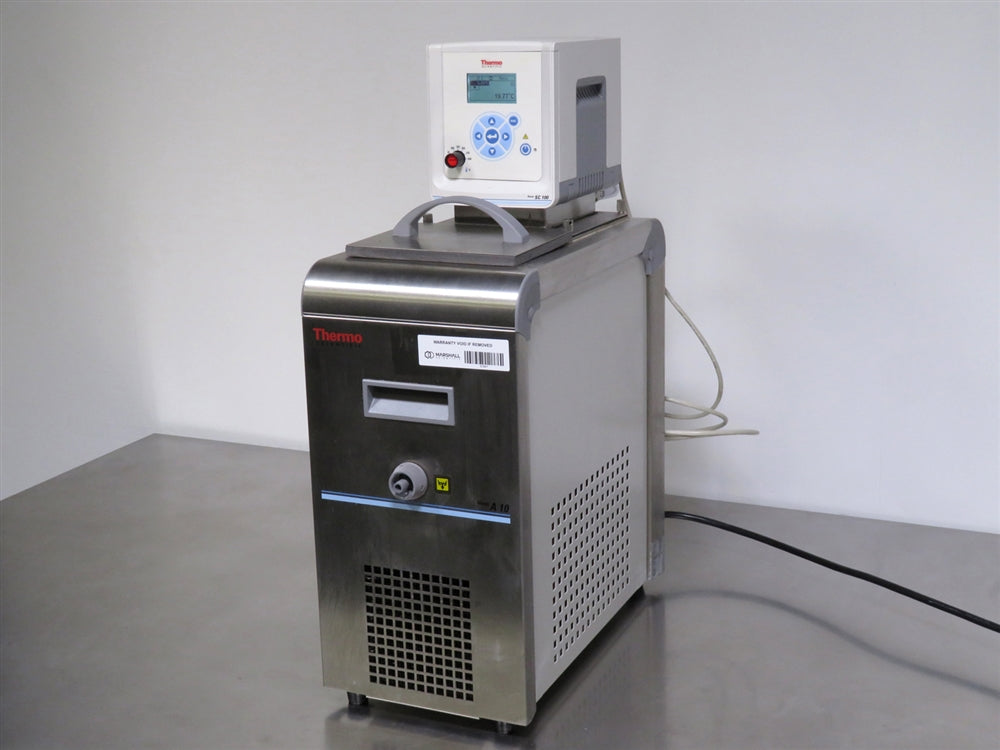

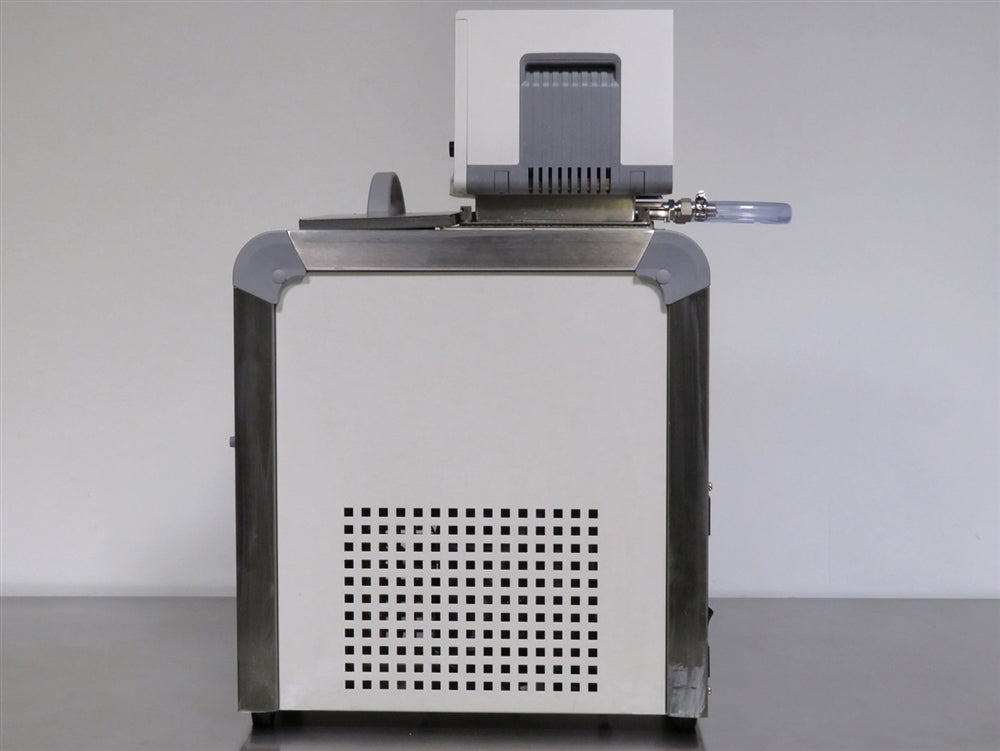

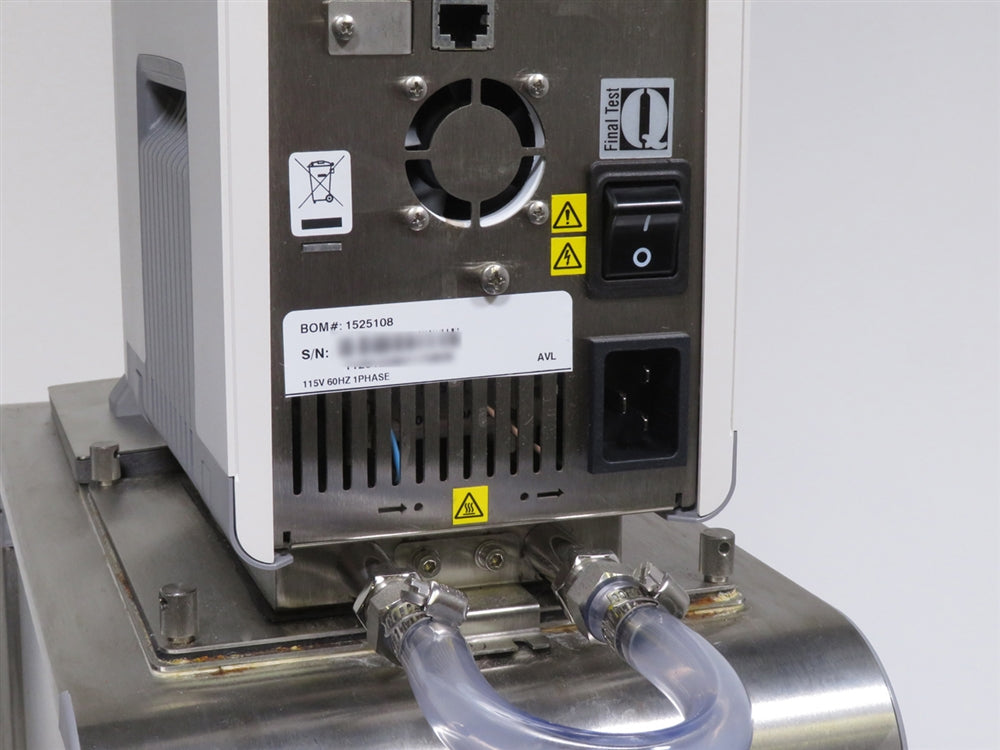

Thermo Scientific Haake A10/SC100 Refrigerated Circulator
Temperature Range
-10 to 100°C
Cooling Capacity
240W at 20°C
Pump Maximum Flow Rate
17L/min (4.5 gpm)
Features
- Designed for reliable heating and cooling performance across a wide range of laboratory workflows

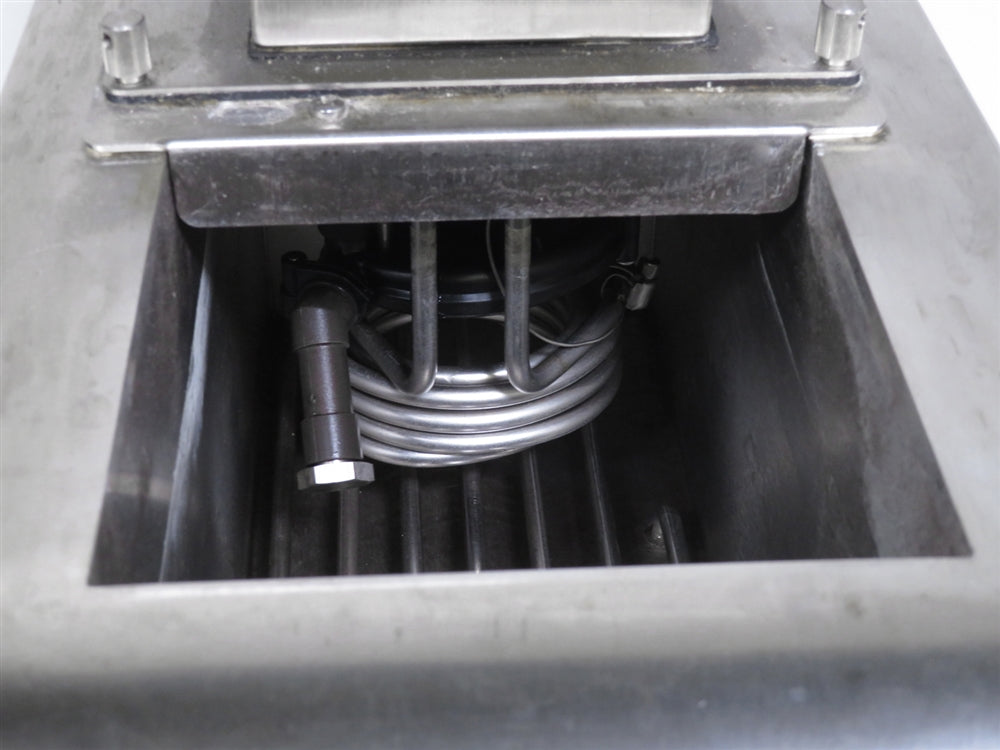

- Durable stainless steel bath construction ensures long-term use and chemical resistance

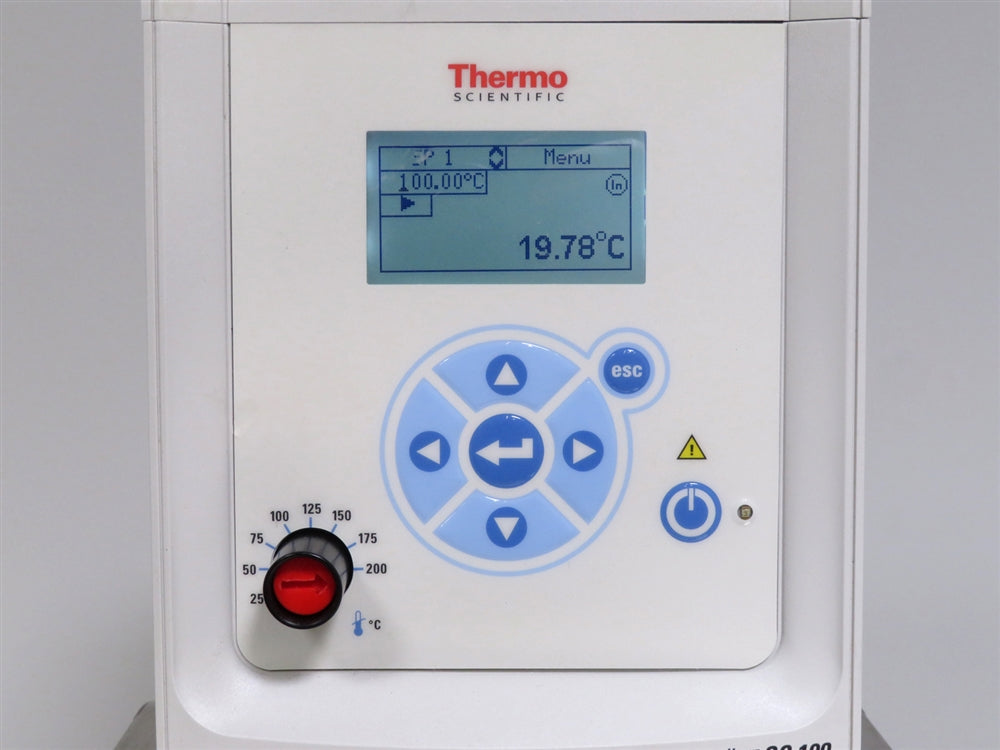

- SC100 Immersion Circulator provides precise temperature control and stability for consistent results
- Compact footprint conserves bench space while providing a 4 to 6L reservoir volume

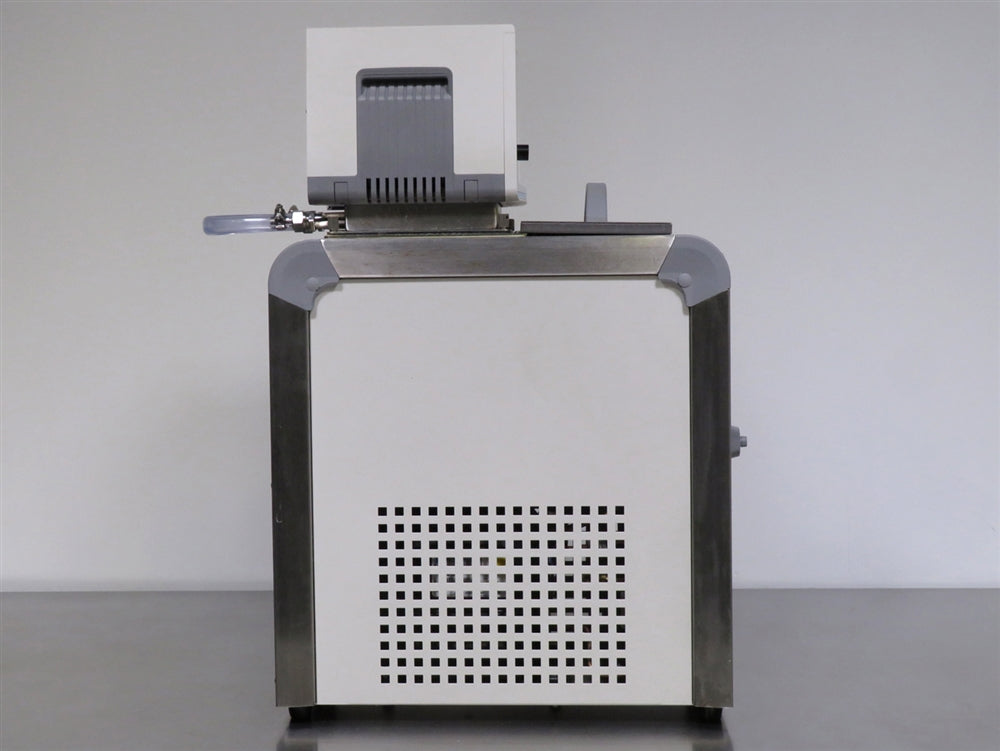

- Three sided ventilation design allowing for operation with up to two sides blocked while maintaining refrigeration performance
All of our equipment will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Thermo Scientific Haake A10/SC100 Refrigerated Circulator includes:
The Thermo Scientific Haake A10/SC100 Refrigerated Circulator includes:
- > Reservoir Cover
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Thermo Scientific Haake A10/SC100 Refrigerated Circulator Specifications
| Temperature Range | -10 to 100°C |
| Cooling Capacity | 240W at 20°C |
| Reservoir Volume | 4 to 6L (1.1 to 1.6 gal.) |
| Maximum Flow Rate | 17L/min (4.5 gpm) |
| Maximum Pressure | 300 mbar (4.3 psi) |
| Heater Capacity | 1200W |
| Dimensions (W x D x H) | Refrigerated Circulator: 8.7 x 16.3 x 24.9 in. (22 x 41.4 x 63.1 cm) Immersion Circulator: 5.4 x 7.8 x 13.2 in. (13.8 x 19.9 x 33.6 cm) |
| Weight | 60.6 lb. (27.5 kg) |
| Electrical Requirements | 115V, 60Hz, 11.5A |
Recirculating Chiller Inspection and Recertification Checklist
- Inspect display for dimming or dead pixels and replace as necessary to maintain clear visual feedback
- Verify functionality of all buttons and input devices, ensuring reliable and responsive control
- Check that all external hosing connections are secure and properly installed to prevent leakage
- Test unit flow rate on a closed-loop system to confirm consistent fluid dynamics
- Examine all external surfaces for leaks, confirming a sealed and contained system
- Inspect internal components for any signs of leaks to ensure system integrity
- Verify power supply output for accurate voltage delivery per operational specifications
- Inspect all internal wiring, checking for any frays, tears, or compromised insulation
- Replace internal filters to maintain optimal fluid purity and system performance
- Confirm that the fan operates at proper speeds to provide effective cooling
- Verify compressor functionality for consistent performance and cooling efficiency
- Test cooling capacity, confirming it meets performance specifications at 20°C
- Measure water pump output to confirm correct PSI for stable fluid flow
- Determine the lowest achievable temperature, verifying against manufacturer standards
- Ensure cosmetic condition meets standards with no damage affecting functionality or aesthetics
Technician Inspection and Recertification Checklist: Recirculating Chiller
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect display for dimming or dead pixels, replace if necessary | Completed | |
| Verify functionality of all buttons and input devices | Completed | |
| Ensure external hosing connections are secure | Completed | |
| Test flow rate on closed-loop system | Completed | |
| Inspect for external leaks | Completed | |
| Inspect for internal leaks | Completed | |
| Verify power supply output voltage | Completed | |
| Inspect internal wiring for frays or tears | Completed | |
| Replace internal filters | Completed | |
| Confirm fan functionality | Completed | |
| Verify compressor functionality | Completed | |
| Test cooling capacity at 20°C | Completed | |
| Confirm water pump PSI output | Completed | |
| Determine lowest achievable temperature | Completed | |
| Ensure cosmetic condition meets standards | Completed |
