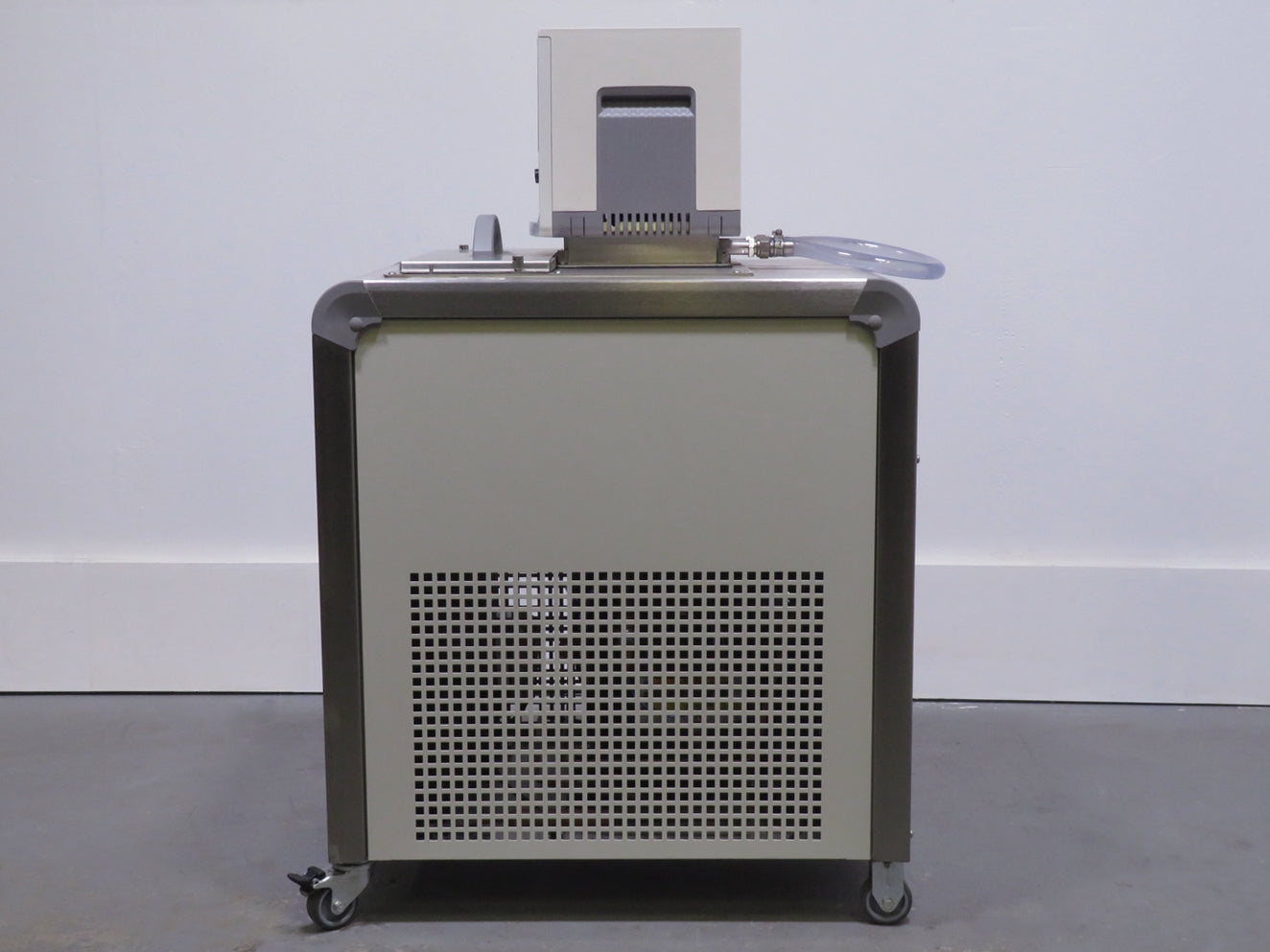

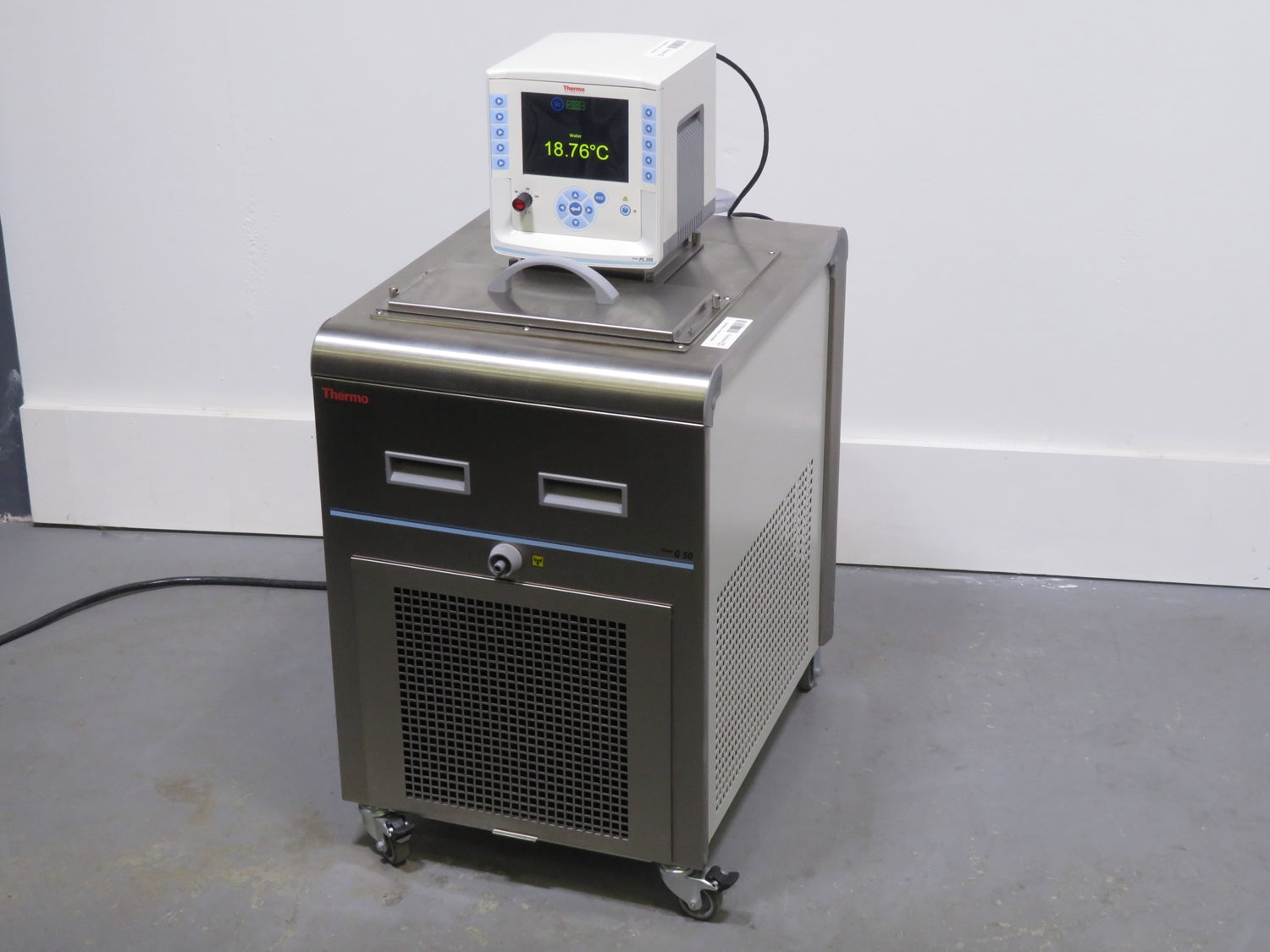

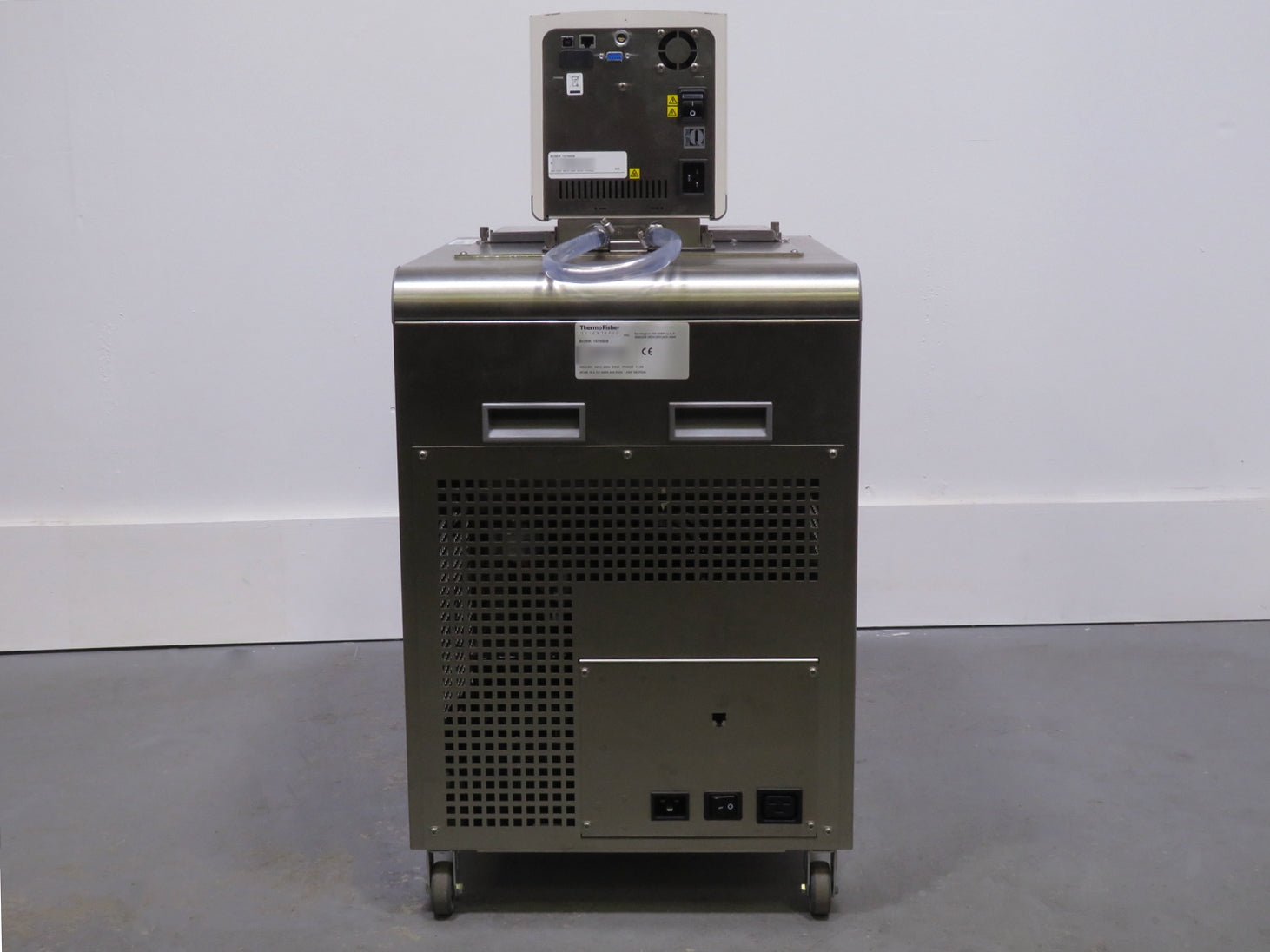

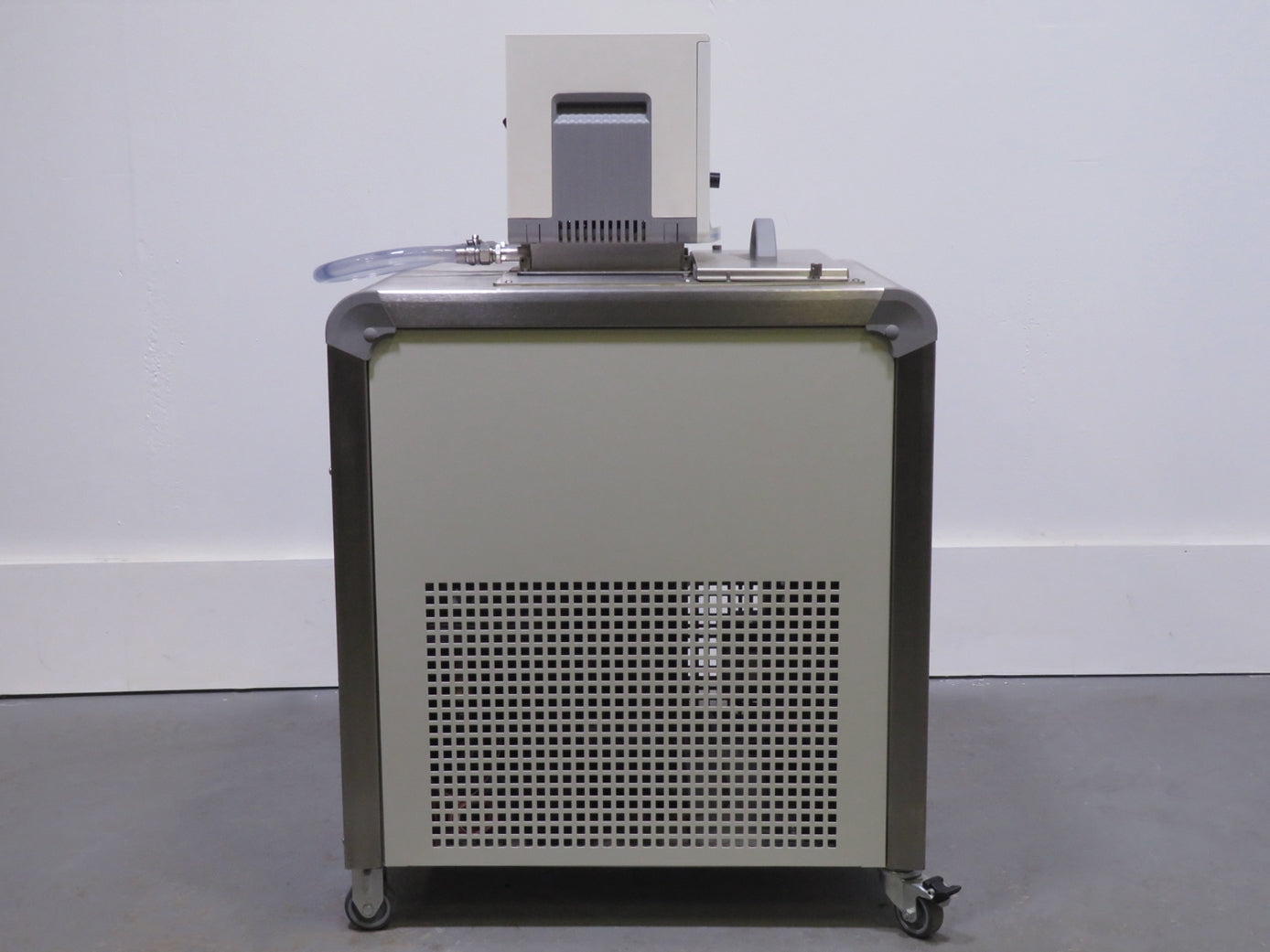

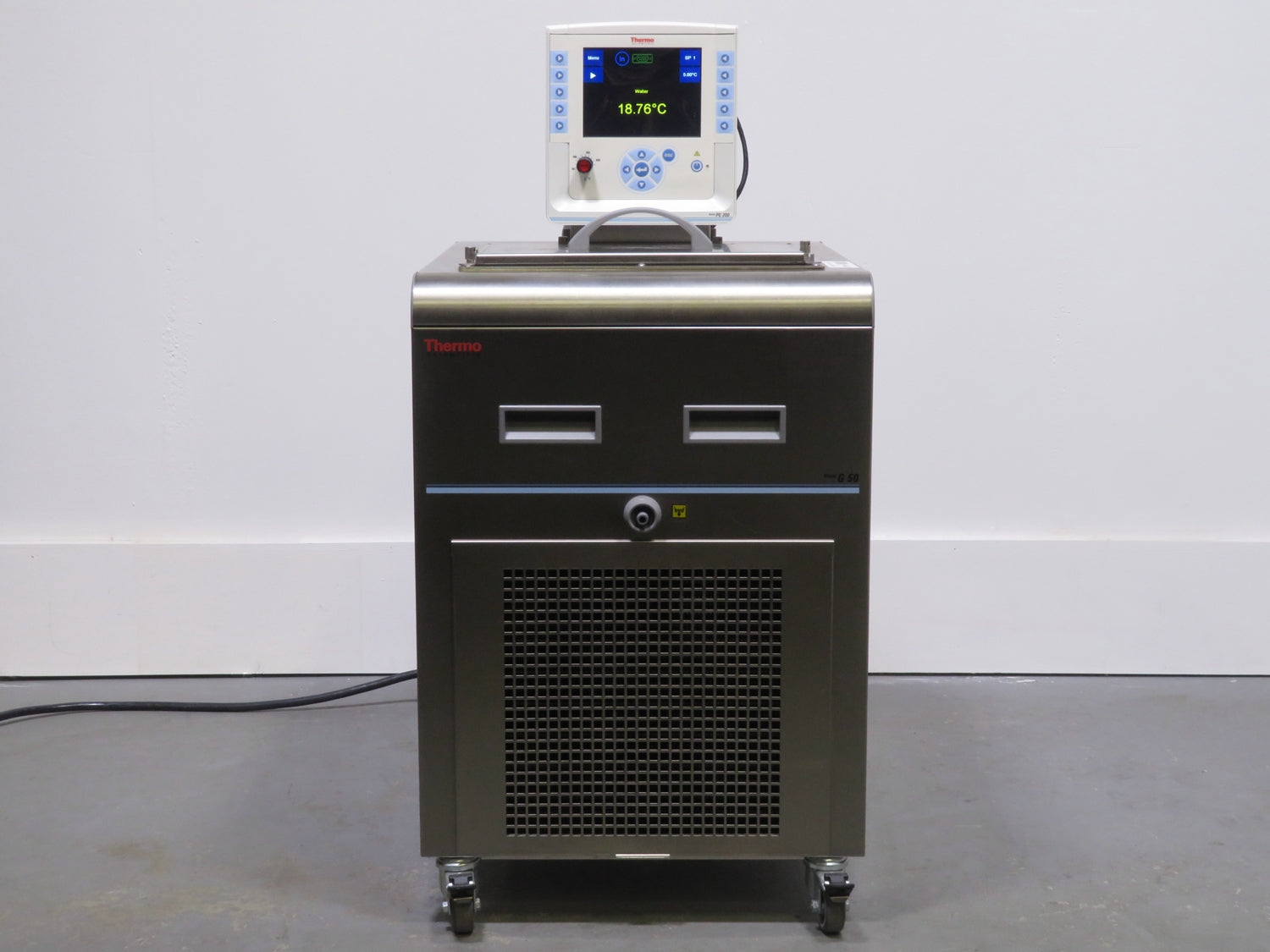

Thermo Scientific Haake G50/PC200 Refrigerated Circulator
Temperature Range
-50 to 200°C
Cooling Capacity
1000W at 20°C
Pump Maximum Flow Rate
24L/min (6.3 gpm)
Features
- Exceptional temperature stability of ± 0.01°C ensures consistent and precise control
- Powerful 2000W heating capacity with integrated pressure and suction pump for efficient fluid circulation

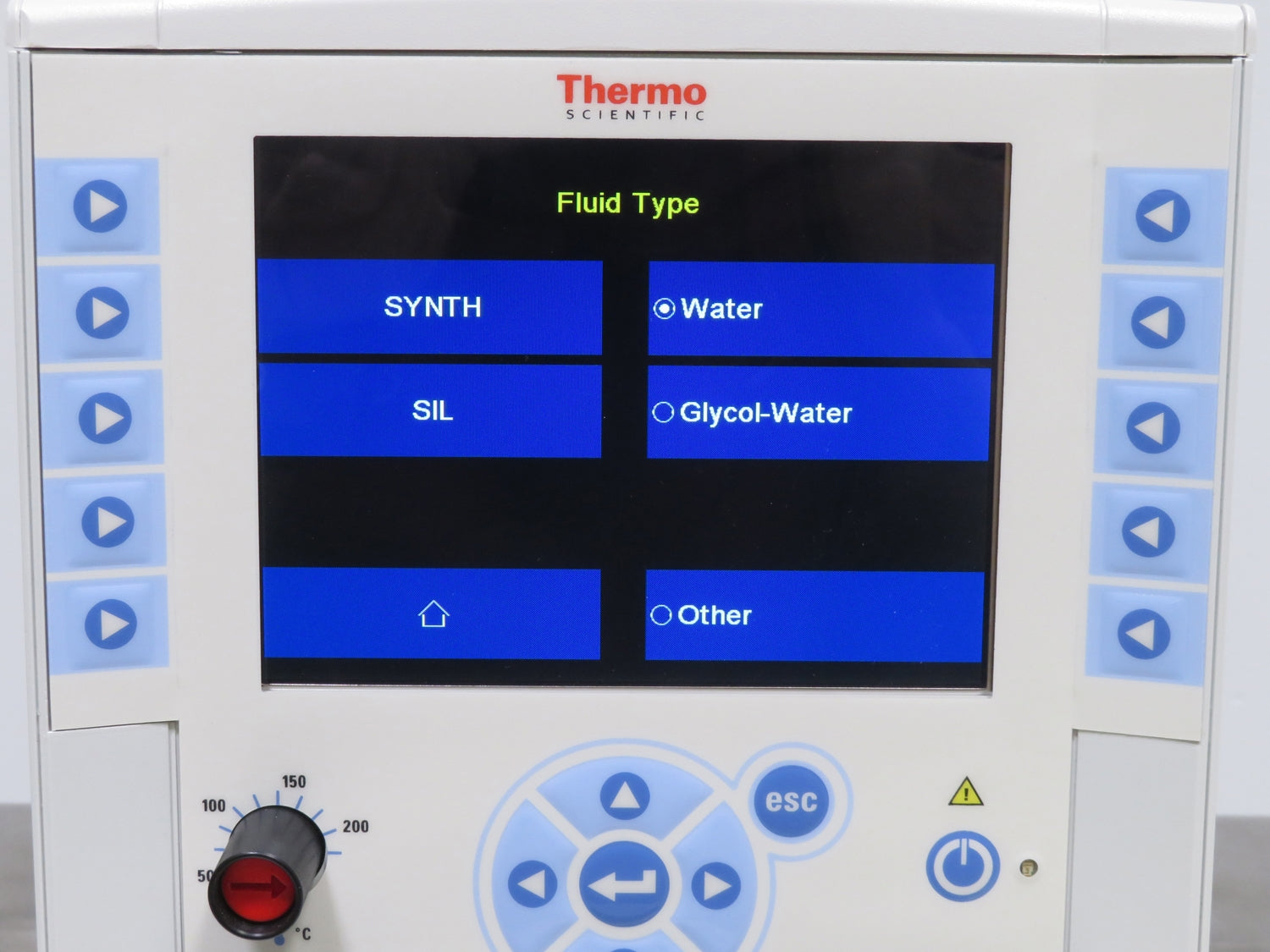

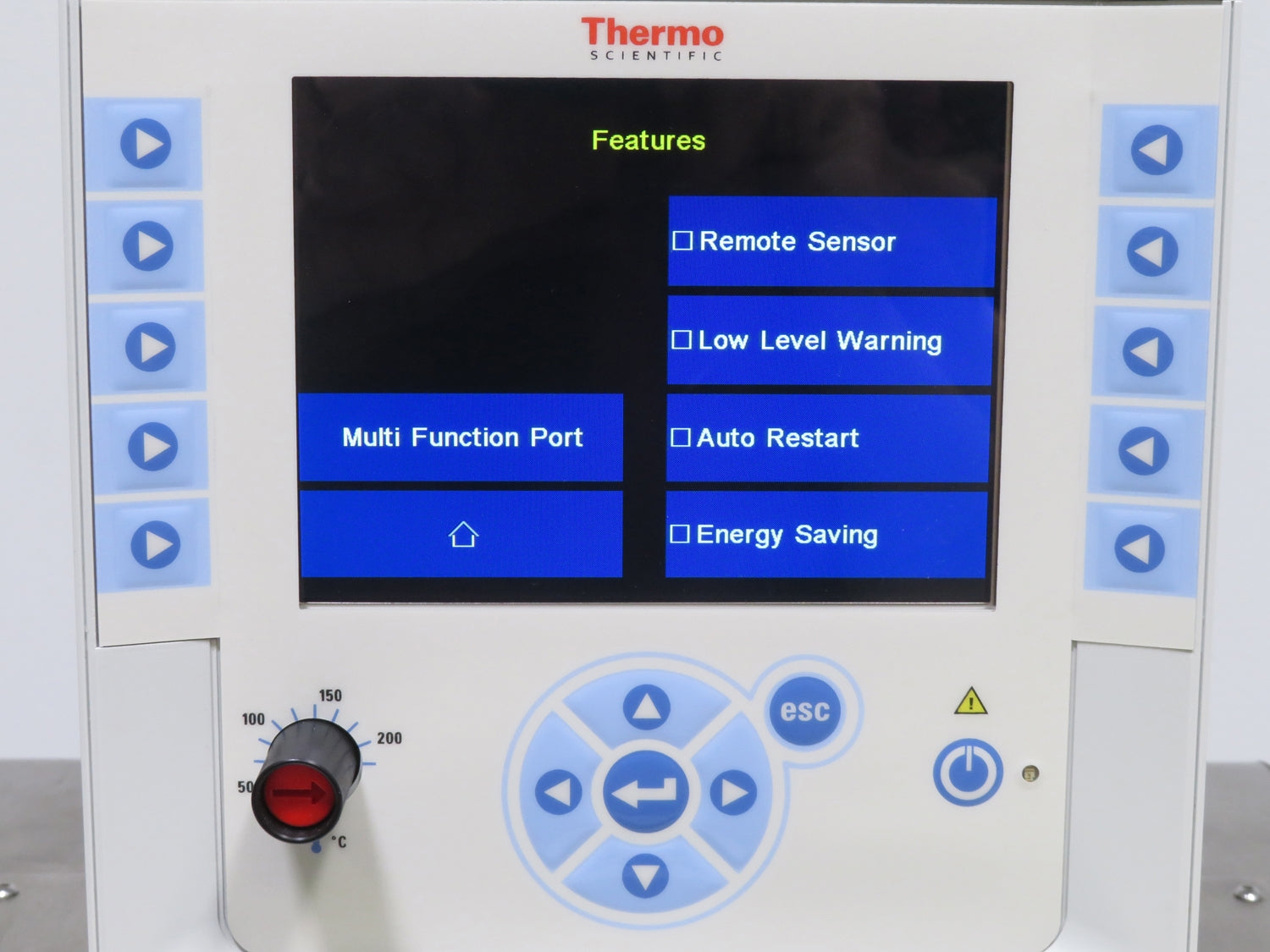

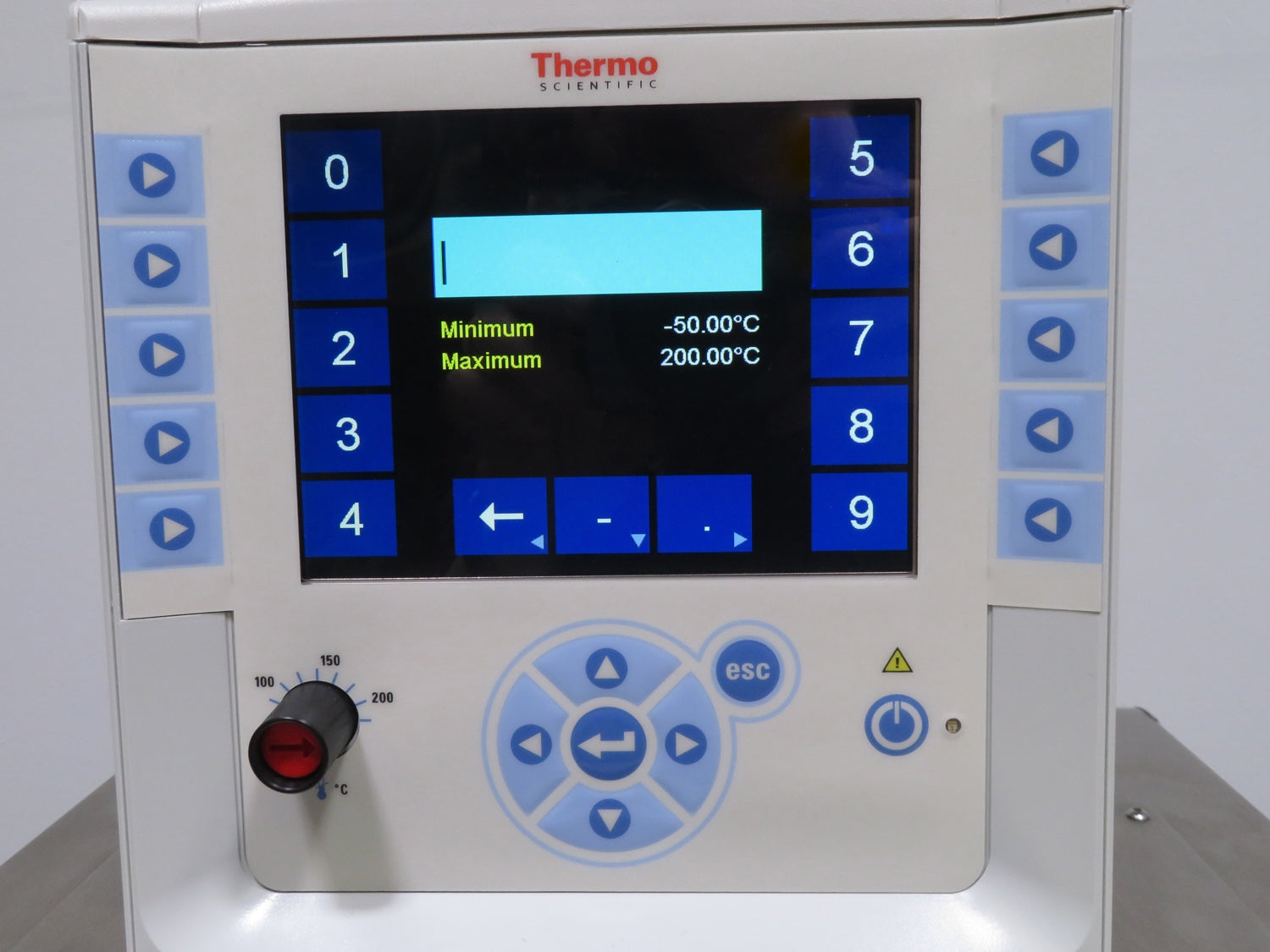

- Digital display with touch pad, five programmable setpoints, and acoustic/optical alarms for easy monitoring
- Adjustable high-temperature protection and compliance with clean laboratory standards
- Ideal for jacketed reaction vessels, analytical instrumentation, calibration, and material testing
All of our equipment will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Thermo Scientific Haake G50/PC200 Refrigerated Circulator includes:
The Thermo Scientific Haake G50/PC200 Refrigerated Circulator includes:
- > Reservoir Cover
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Thermo Scientific Haake G50/PC200 Refrigerated Circulator Specifications
| Temperature Range | -50 to 200°C |
| Temperature Stability | ± 0.01°C |
| Cooling Capacity | 1000W at 20°C |

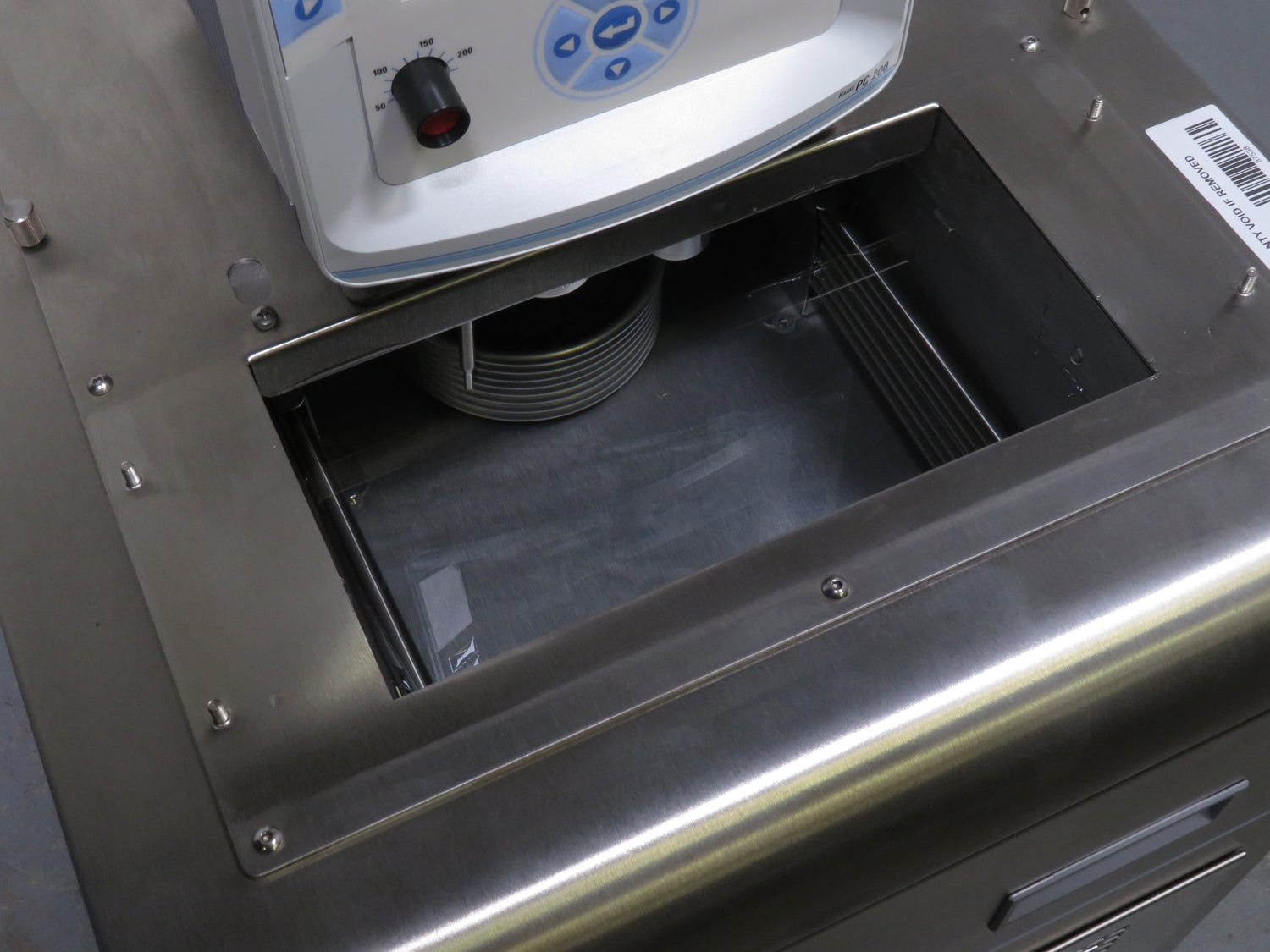

| Reservoir Volume | 6 to 12L (1.6 to 3.2 gal.) |
| Pump Type | Pressure/suction |
| Maximum Flow Rate | 24L/min (6.3 gpm) |
| Maximum Pressure | 560 mbar (8.1 psi) |
| Heater Capacity | 2000W |
| Dimensions (W x D x H) | 16.5 x 21.5 x 33.5 in. (41.5 x 55 x 85 cm) |
| Weight | 117 lb. (53 kg) |

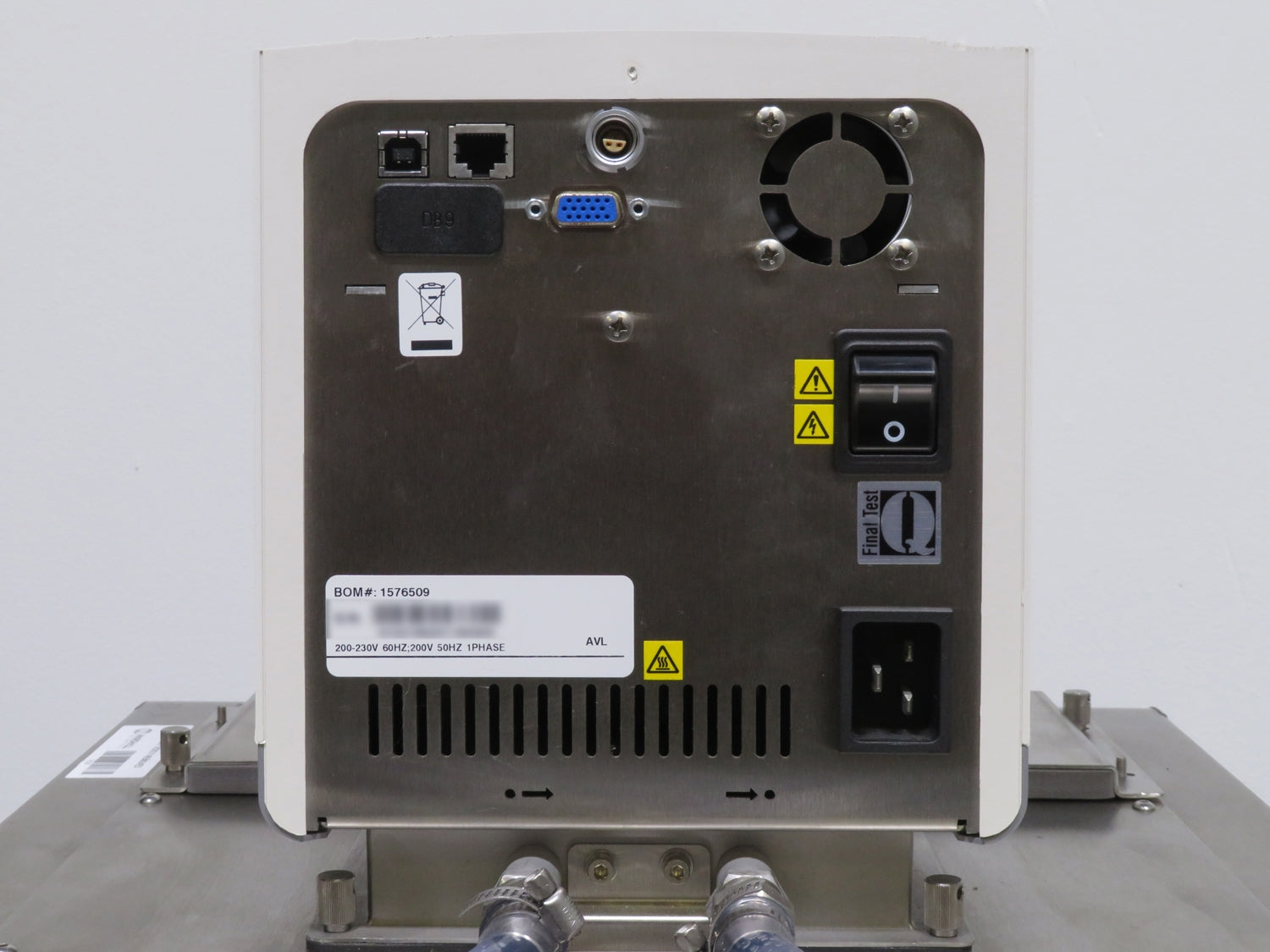

| Electrical Requirements | 200-230V, 50/60Hz, 1.9A, 1Ph |
Recirculating Chiller Inspection and Recertification Checklist
- Inspect display for dimming or dead pixels and replace as necessary to maintain clear visual feedback
- Verify functionality of all buttons and input devices, ensuring reliable and responsive control
- Check that all external hosing connections are secure and properly installed to prevent leakage
- Test unit flow rate on a closed-loop system to confirm consistent fluid dynamics
- Examine all external surfaces for leaks, confirming a sealed and contained system
- Inspect internal components for any signs of leaks to ensure system integrity
- Verify power supply output for accurate voltage delivery per operational specifications
- Inspect all internal wiring, checking for any frays, tears, or compromised insulation
- Replace internal filters to maintain optimal fluid purity and system performance
- Confirm that the fan operates at proper speeds to provide effective cooling
- Verify compressor functionality for consistent performance and cooling efficiency
- Test cooling capacity, confirming it meets performance specifications at 20°C
- Measure water pump output to confirm correct PSI for stable fluid flow
- Determine the lowest achievable temperature, verifying against manufacturer standards
- Ensure cosmetic condition meets standards with no damage affecting functionality or aesthetics
Technician Inspection and Recertification Checklist: Recirculating Chiller
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect display for dimming or dead pixels, replace if necessary | Completed | |
| Verify functionality of all buttons and input devices | Completed | |
| Ensure external hosing connections are secure | Completed | |
| Test flow rate on closed-loop system | Completed | |
| Inspect for external leaks | Completed | |
| Inspect for internal leaks | Completed | |
| Verify power supply output voltage | Completed | |
| Inspect internal wiring for frays or tears | Completed | |
| Replace internal filters | Completed | |
| Confirm fan functionality | Completed | |
| Verify compressor functionality | Completed | |
| Test cooling capacity at 20°C | Completed | |
| Confirm water pump PSI output | Completed | |
| Determine lowest achievable temperature | Completed | |
| Ensure cosmetic condition meets standards | Completed |
