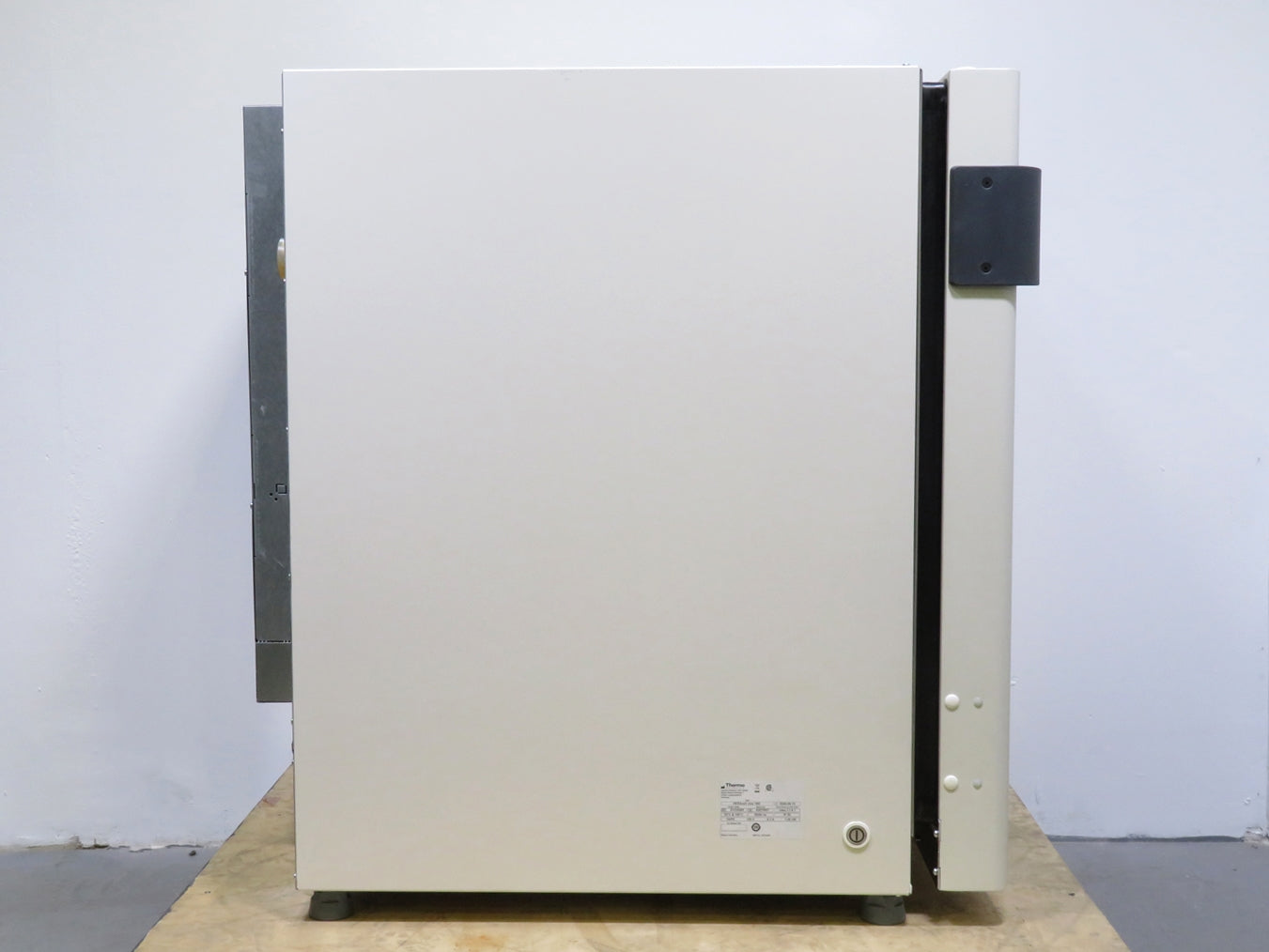

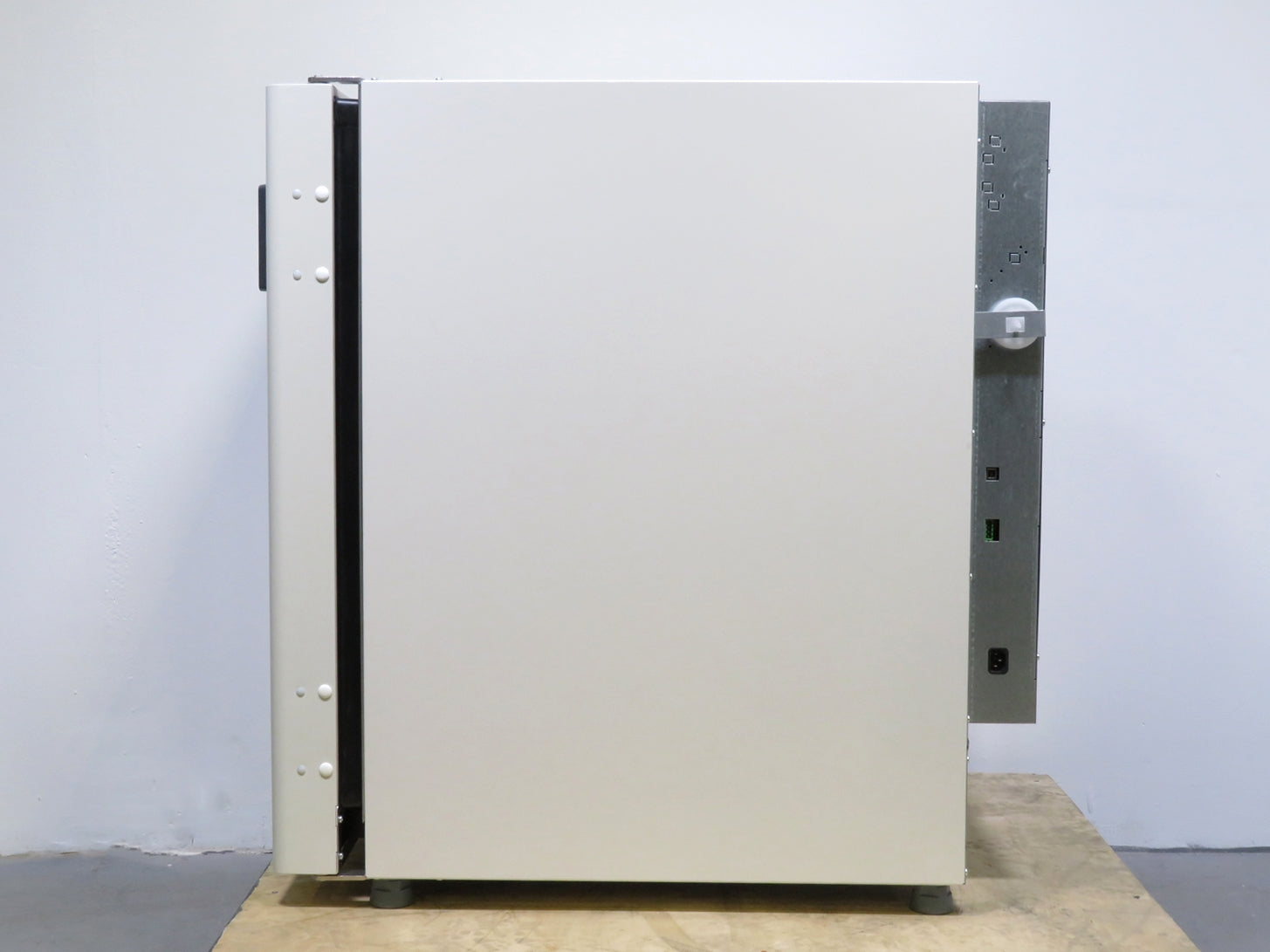

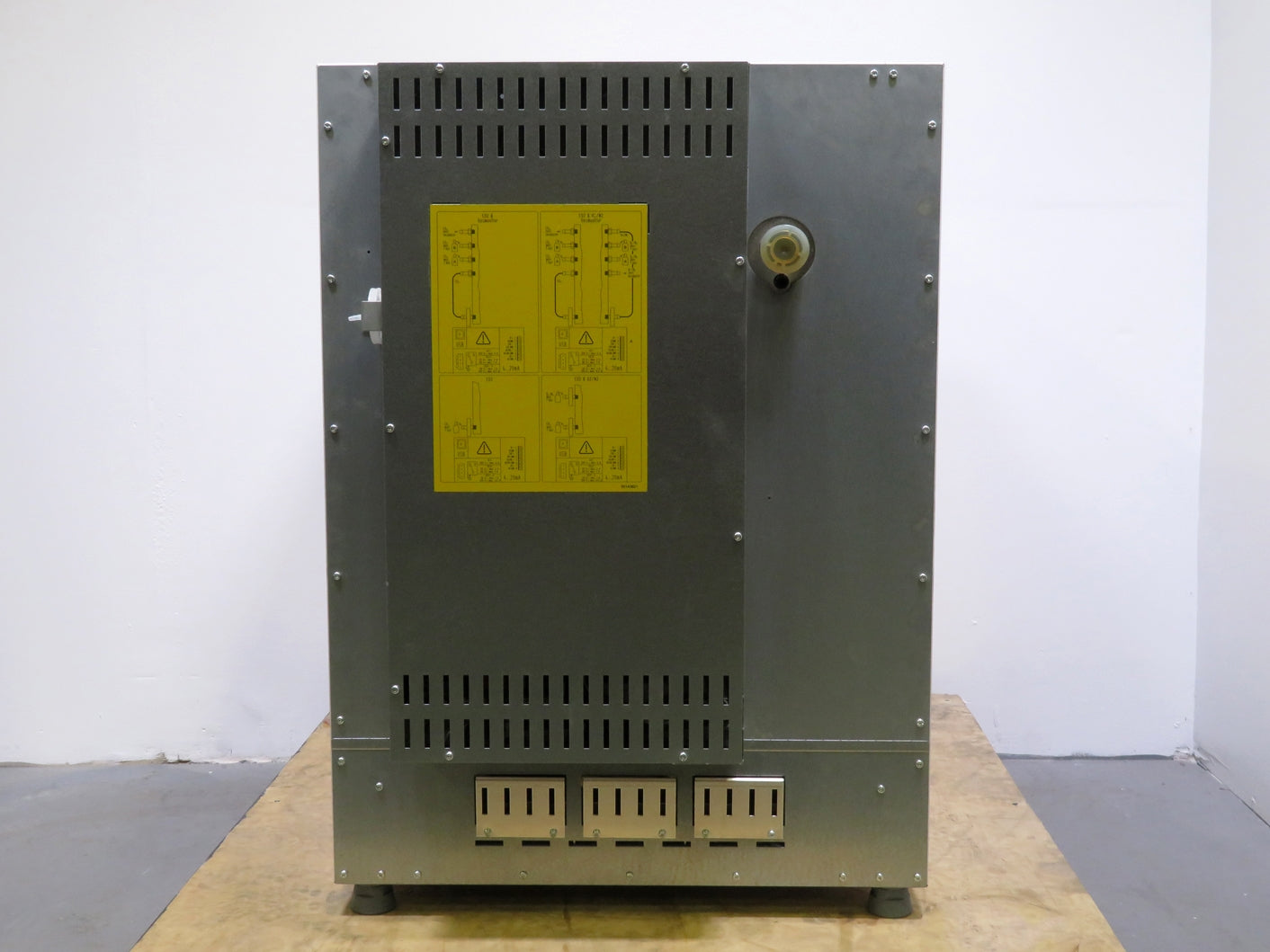

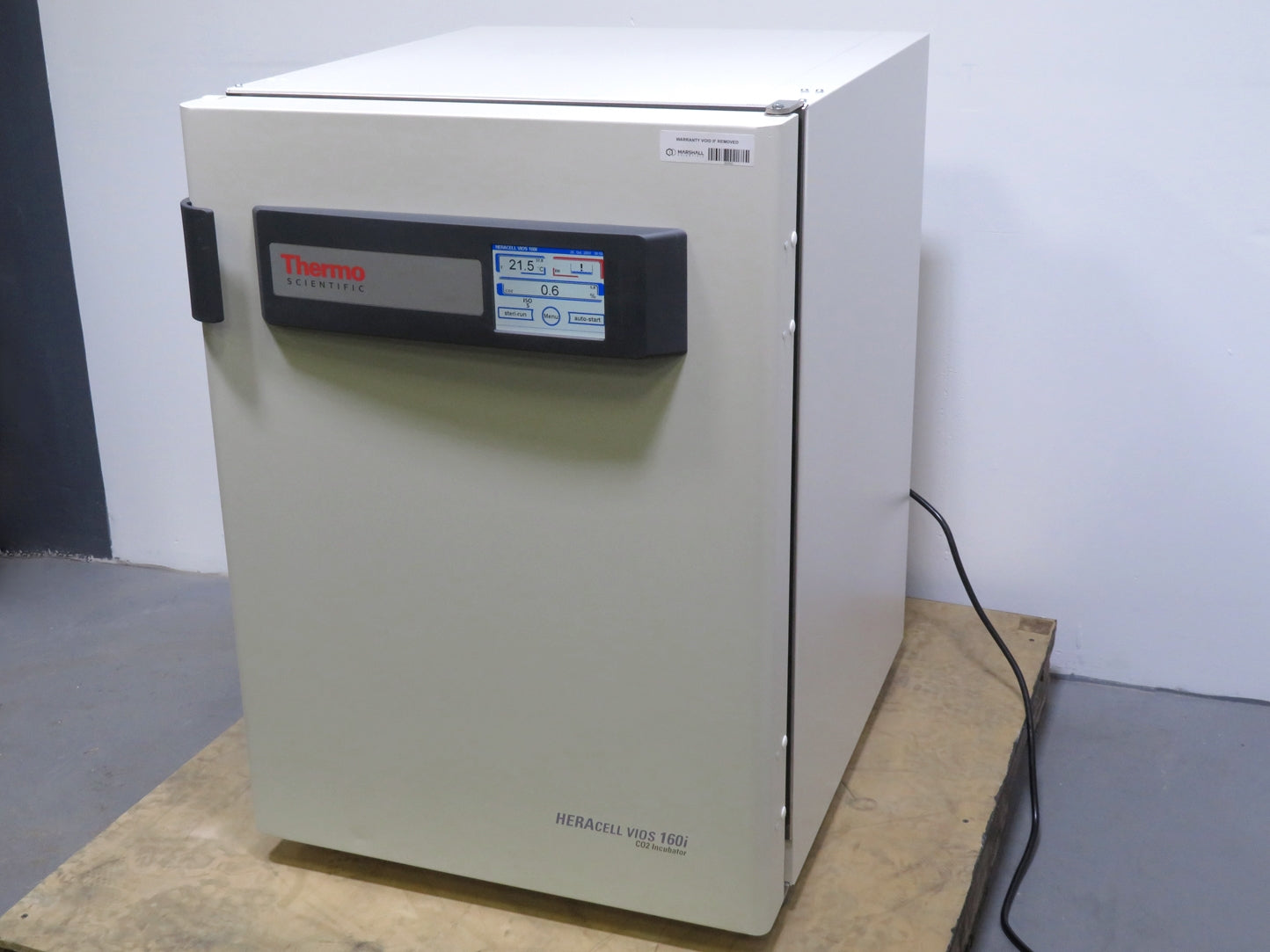

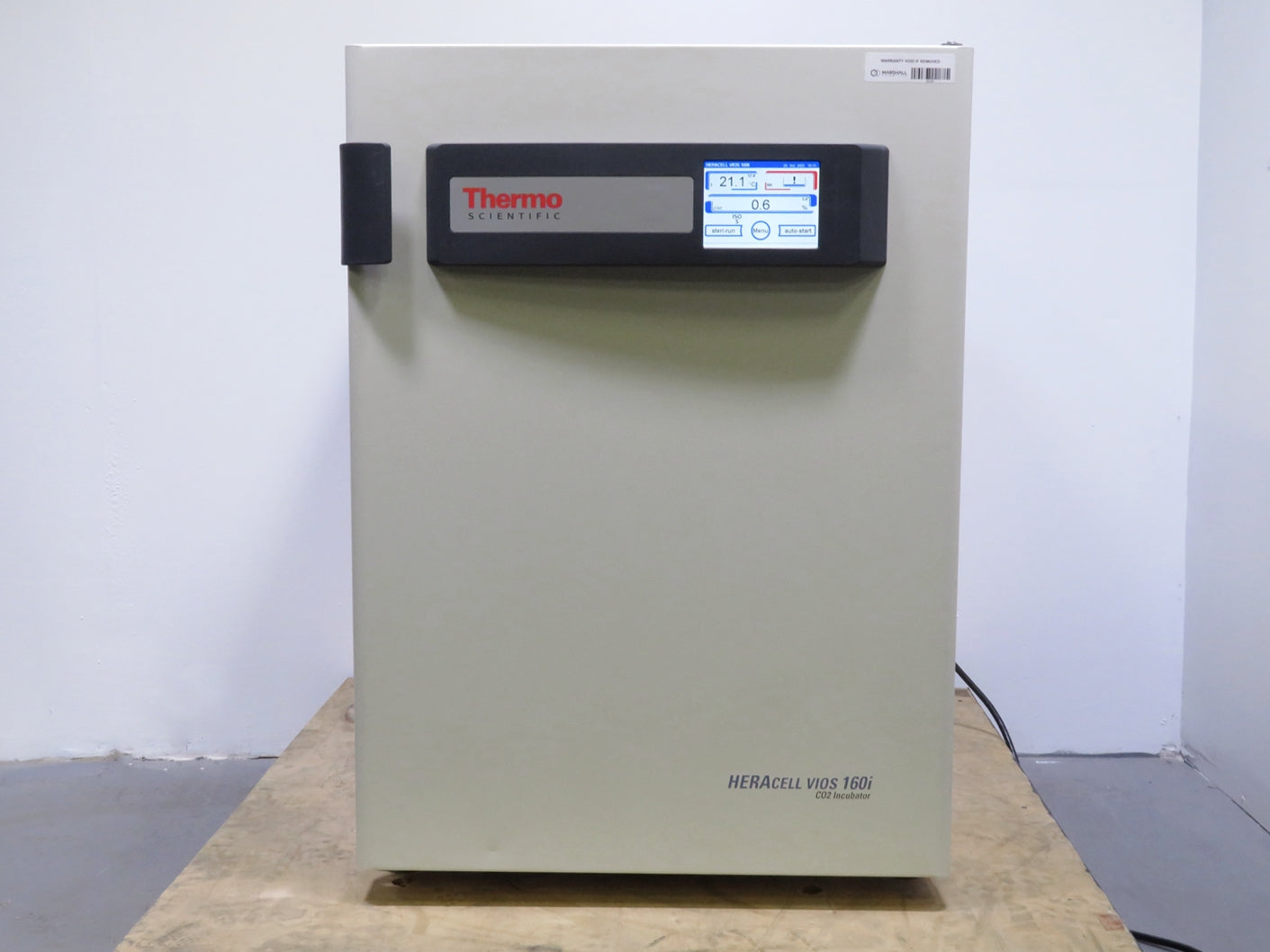

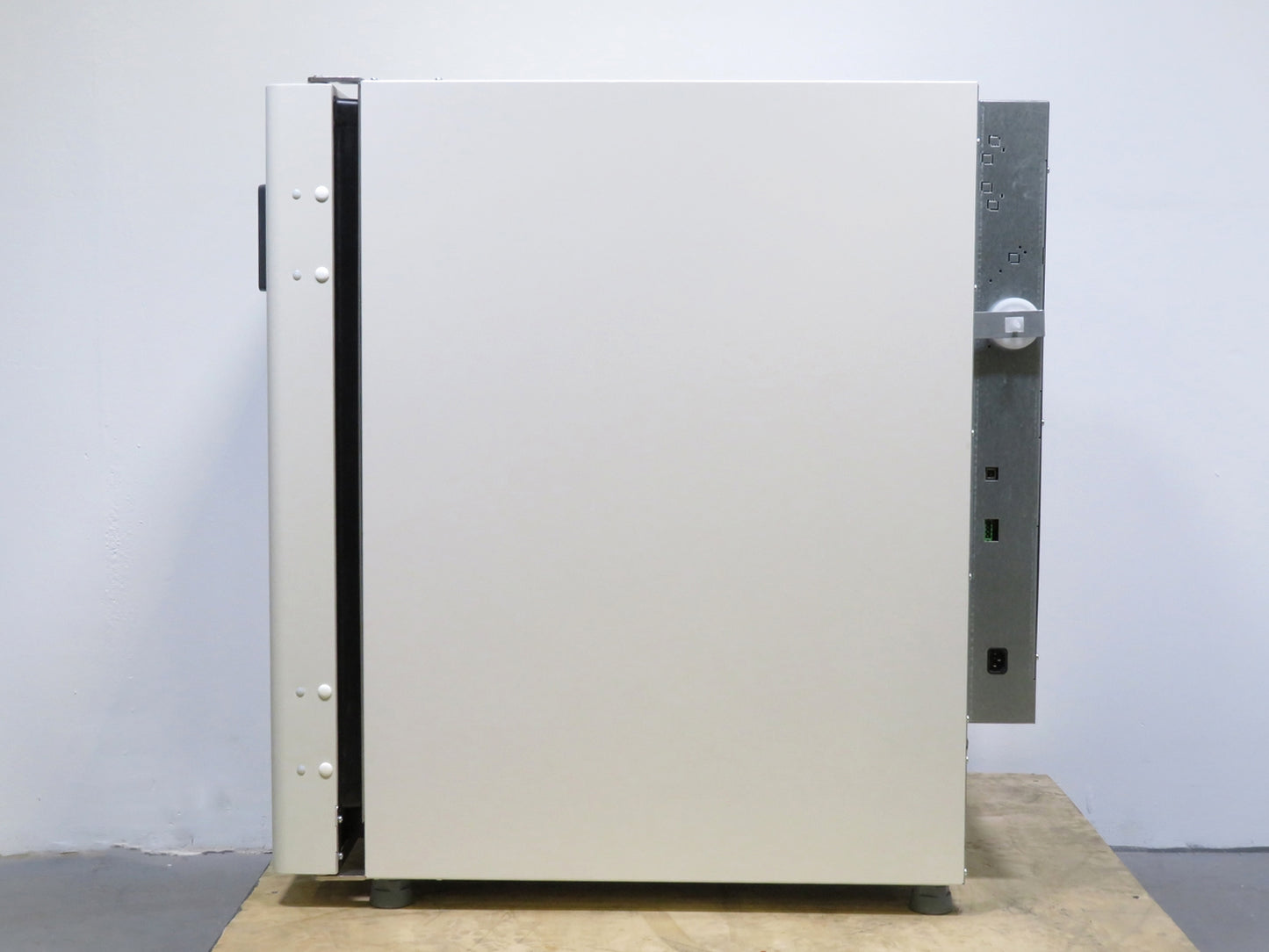

Thermo Scientific Heracell VIOS 160i CO2 Incubator
CO2 Range
1 to 20%
Capacity
5.8 cu ft (165 L)
Temperature Range
3°C above ambient to 55°C
Features
- Designed to deliver the performance reliability, ease of operation, and value to support a range of culturing needs from basic to advanced applications
- THRIVE Active Airflow ensures even air distribution and fast recovery of all parameters ten minutes or less
- Auto-stop function disables fan operation to minimize air exchange during door openings
- ISO 5 HEPA filtration continuously filters air every 60 seconds and can achieve ISO 5 clean room air quality in 5 minutes
- Protected humidity reservoir prevents culture desiccation and contamination with 5X faster humidity recovery than traditional water pan designs
- Dual temperature probes for over-temperature protection
- Steri-Run cycle heats to 180°C for uniform 6-log sterilization on all chamber surfaces

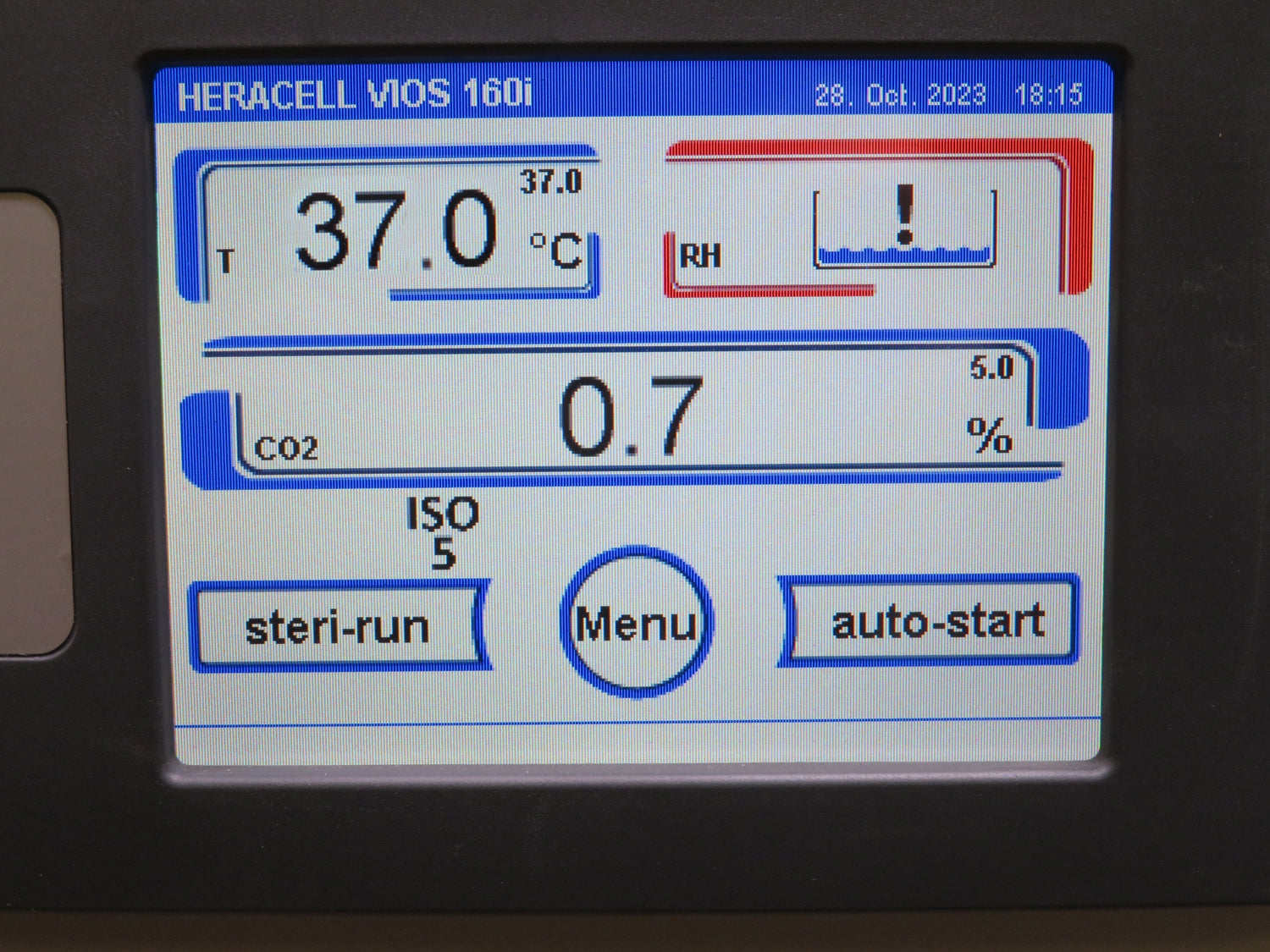

- iCAN™ touchscreen control allows for easy accessibility and viewing
All of our equipment is fully tested to perform at factory
specifications before being shipped.
INCLUDED:
The Thermo Scientific Heracell VIOS 160i CO2 Incubator includes:
The Thermo Scientific Heracell VIOS 160i CO2 Incubator includes:
- > 2 Shelves Per Unit
- > Power Cord
- > Calibration Report
- > Full 180 Day Parts and Labor Warranty
Thermo Scientific Heracell VIOS 160i CO2 Incubator Specifications
| Temperature Range | Ambient +3°C to 55°C |
| Temperature Uniformity | ± 0.1°C @ +37°C |

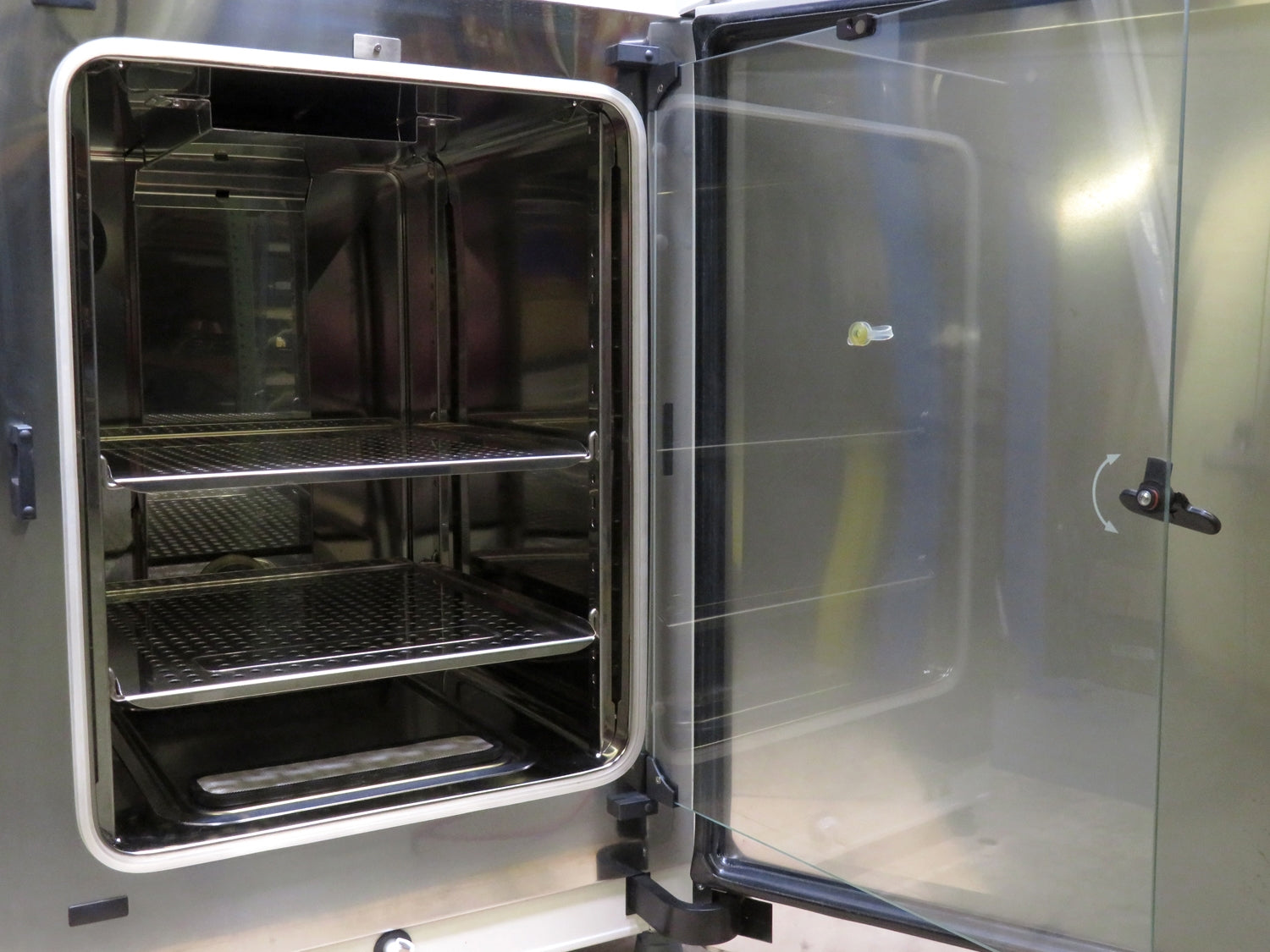

| Chamber Material | Electropolished stainless steel |
| Disinfection Time | Under 12 hours |
| CO2 Concentration Range | 1 to 20% |
| CO2 Sensor Technology | TC sensor |
| CO2 Concentration Control | ± 0.1% |
| Humidity Delivery | Integrated reservoir |
| Relative Humidity | >93% @ 37°C |
| Capacity | 5.8 cu ft (165 L) |
| Weight | 183 lb. (83 kg) |
| Interior Dimensions (H x D x W) | 23.9 x 22.7 x 18.5 in (607 x 576 x 470 mm) |
| Exterior Dimensions (H x W x L) | 35.6 x 25.1 x 31.1 in (905 x 637 x 790 mm) |
| Electrical Requirements | 120V, 50/60Hz, 4.6A/8.3A |
Incubator Inspection and Recertification Checklist
- Inspect the display for any dim, flickering, or dead pixels, replacing any affected areas to maintain full readability and operational clarity
- Thoroughly examine external regulators for any signs of damage, wear, or malfunction (if applicable), replacing any compromised parts
- Inspect temperature, COâ‚‚, and Hâ‚‚O sensors (if applicable), ensuring each sensor is functioning correctly and accurately reporting conditions
- Conduct a detailed inspection of all internal wiring for frays, tears, or breakages; replace any compromised wires to ensure safe and reliable connections
- Verify that software settings align with the internal components and calibration specifications, adjusting configurations as needed for accurate operation
- Inspect and clean the fan, ensuring it is free from dust or obstructions; replace if performance is below required standards
- Examine wheels and leveling mounts for structural integrity, ensuring proper balance and stability for safe operation
- Inspect door gaskets and latches for any signs of wear or damage, replacing if necessary to maintain a secure seal and optimal environmental control
- Calibrate temperature accuracy at 37°C using a NIST-traceable probe, confirming it meets required tolerances
- Calibrate COâ‚‚ level to 5% using a Fyrite combustion test kit (if applicable), ensuring precise atmospheric conditions
- Monitor temperature and COâ‚‚ stability over a 24-hour period, verifying consistent operation within specified ranges
- Conduct a thorough cosmetic inspection to confirm all external surfaces and components meet quality standards, free from visible damage or wear
Technician Inspection and Recertification Checklist: Incubator
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Inspect display for dim, flickering, or dead pixels; replace for readability | Completed | |
| Examine external regulators for damage or malfunction; replace compromised parts | Completed | |
| Inspect temperature, COâ‚‚, and Hâ‚‚O sensors for correct function and accuracy | Completed | |
| Inspect internal wiring for frays, tears, or breakages; replace compromised wires | Completed | |
| Verify software settings align with components and calibration specs; adjust if needed | Completed | |
| Clean fan and remove dust/obstructions; replace if performance is substandard | Completed | |
| Examine wheels and leveling mounts for structural integrity and balance | Completed | |
| Inspect door gaskets and latches for wear or damage; replace to maintain seal | Completed | |
| Calibrate temperature at 37°C with NIST-traceable probe to confirm accuracy | Completed | |
| Calibrate COâ‚‚ level to 5% with Fyrite test kit for atmospheric precision | Completed | |
| Monitor temperature and COâ‚‚ stability over 24-hour period to verify consistency | Completed | |
| Conduct cosmetic inspection to confirm quality of external surfaces and components | Completed |
