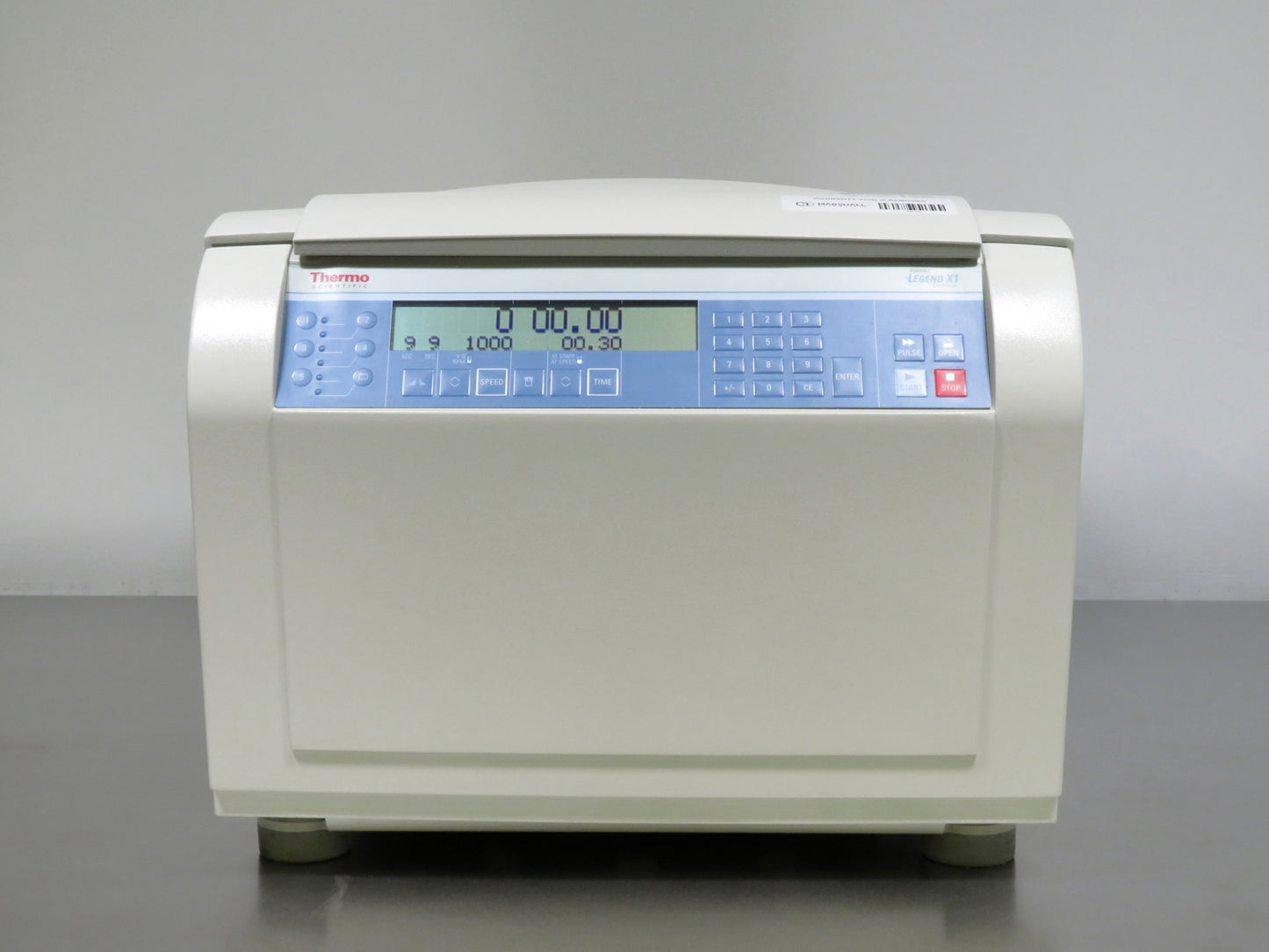

Thermo Scientific Legend X1 Centrifuge
Maximum Speed
15,200 RPM
Maximum Capacity
15,200 RPM (25,830 x g RCF)
Timer
1 to 99 minutes, adjustable in 1 min. increments and continuous
Features
- Microprocessor-controlled system for precise operation and easy parameter adjustments

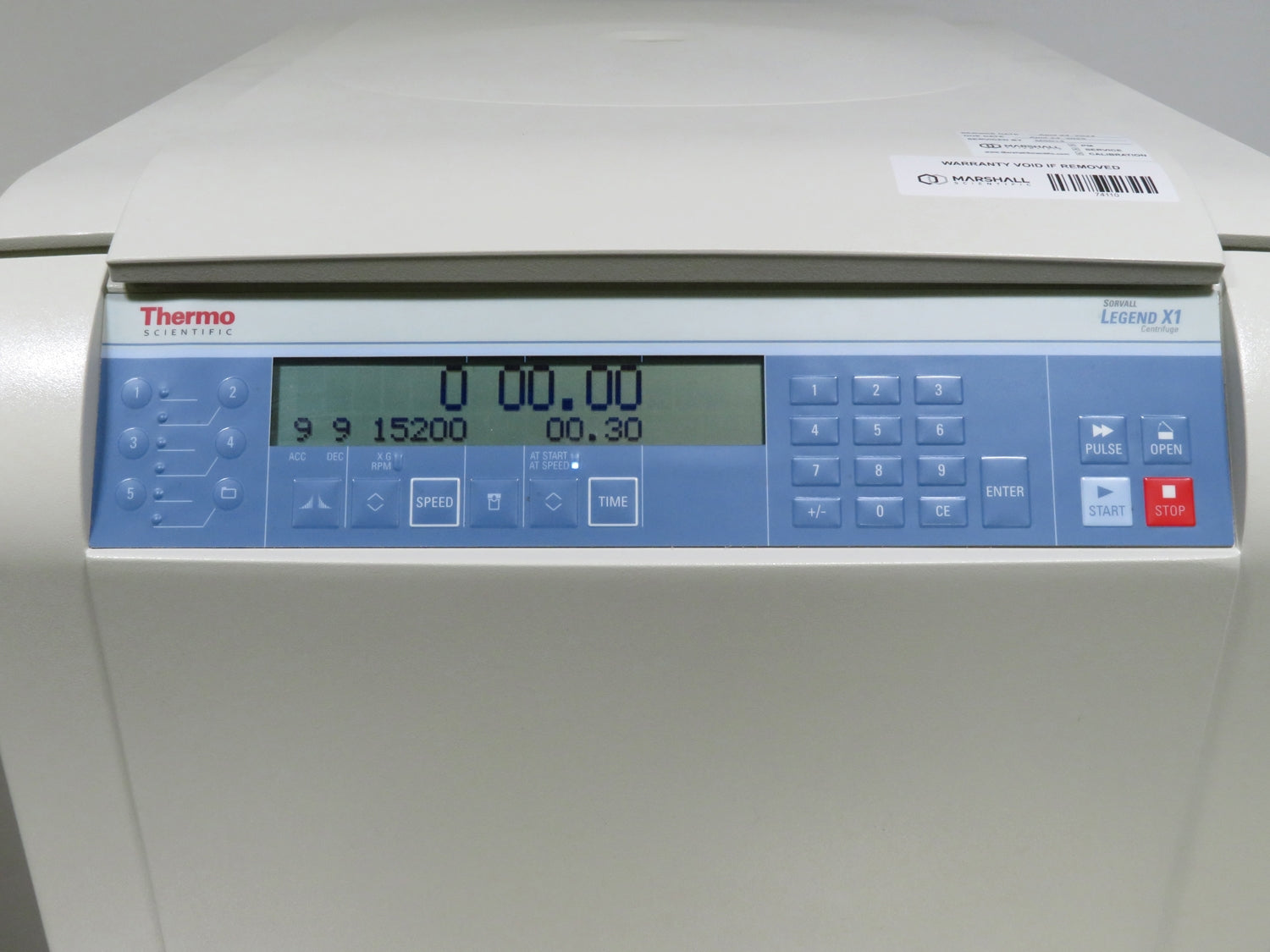

- LCD display provides clear visibility of settings and real-time monitoring
- Auto-Lock III Rotor System enables secure push-button rotor installation and quick exchange
- Integrated rotor detection system prevents incorrect speed settings for enhanced safety
- Electronic imbalance recognition ensures smooth and reliable operation
- Durable steel housing and rotor chamber with a high-impact resistant plastic front panel
- Secure locking lid with a view port prevents unauthorized access while in operation
Please confirm the selected rotor meets your application needs and request a different rotor, if necessary. Available rotors can be found in our Rotor Compatibility Guide.
INCLUDED:
The Thermo Scientific Legend X1 Centrifuge includes:
The Thermo Scientific Legend X1 Centrifuge includes:
- > Rotor Selected Above
- > NIST Centrifuge Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Guide
- > Full 180 Day Parts and Labor Warranty
Thermo Scientific Legend X1 Centrifuge Specifications
| Maximum Speed | 15,200 RPM |
| Maximum RCF | 25,830 x g |
| Maximum Capacity | 4 x 400ml |
| Temperature Range | N/A |
| Controller Type | Microprocessor-controlled |
| Timer | 1 to 99 minutes, adjustable in 1 min. increments and continuous |
| Noise Level | < 63 dB(A) |
| Heat Dissipation | 3901 BTU/h |
| Dimensions (W x D x H) | 17.32 x 23.82 x 14.17 in. (44 x 60.5 x 36 cm) |
| Weight | 126 lb. (57.5 kg.) |
| Electrical Requirements | 120V, 60Hz, 9.5A, 850W |
| Refrigeration | No Refrigeration |
Click Here to Expand Rotor Specifications
|
TX-200 Rotor Specs |
|
|
Capacity |
4 x 180 mL bottles |
|
Max RPM |
5,500 |
|
Max RCF |
5,580 x g |
|
Fiberlite F-15-8x50Cy Rotor Specs |
|
|
Capacity |
8 x 50 mL Conical Tubes |
|
Max RPM |
14,500 |
|
Max RCF |
24,446 x g |
|
Fiberlite F15-6x100Y Rotor Specs |
|
|
Capacity |
6 x 100 mL Tubes |
|
Max RPM |
15,000 |
|
Max RCF |
24,652 x g |
|
M-20 Microplate Rotor Specs |
|
| Capacity |
2 x 3 Standard or 2 x 1 Deepwell Plates |
|
Max RPM |
4,000 |
|
Max RCF |
2,272 x g |
|
TX-400 Rotor Specs |
|
| Capacity |
4 x 400 mL Bottles |
|
Max RPM |
5,000 RPM |
|
Max RCF |
4,696 x g |
Centrifuge Inspection and Recertification Checklist
- Confirm the power supply output voltages match specified requirements for stable distribution to all internal components
- Measure and verify voltages at PCB test points to ensure accurate power delivery and circuit integrity
- Confirm rotor compatibility with the centrifuge model and check that rotor detection systems recognize the rotor type
- Inspect the exterior for any cosmetic or structural damage that could affect performance or safety
- Check the door mechanism alignment to ensure secure and smooth opening and closing
- Inspect and replace the gas strut with an OEM part to maintain proper door support and safety

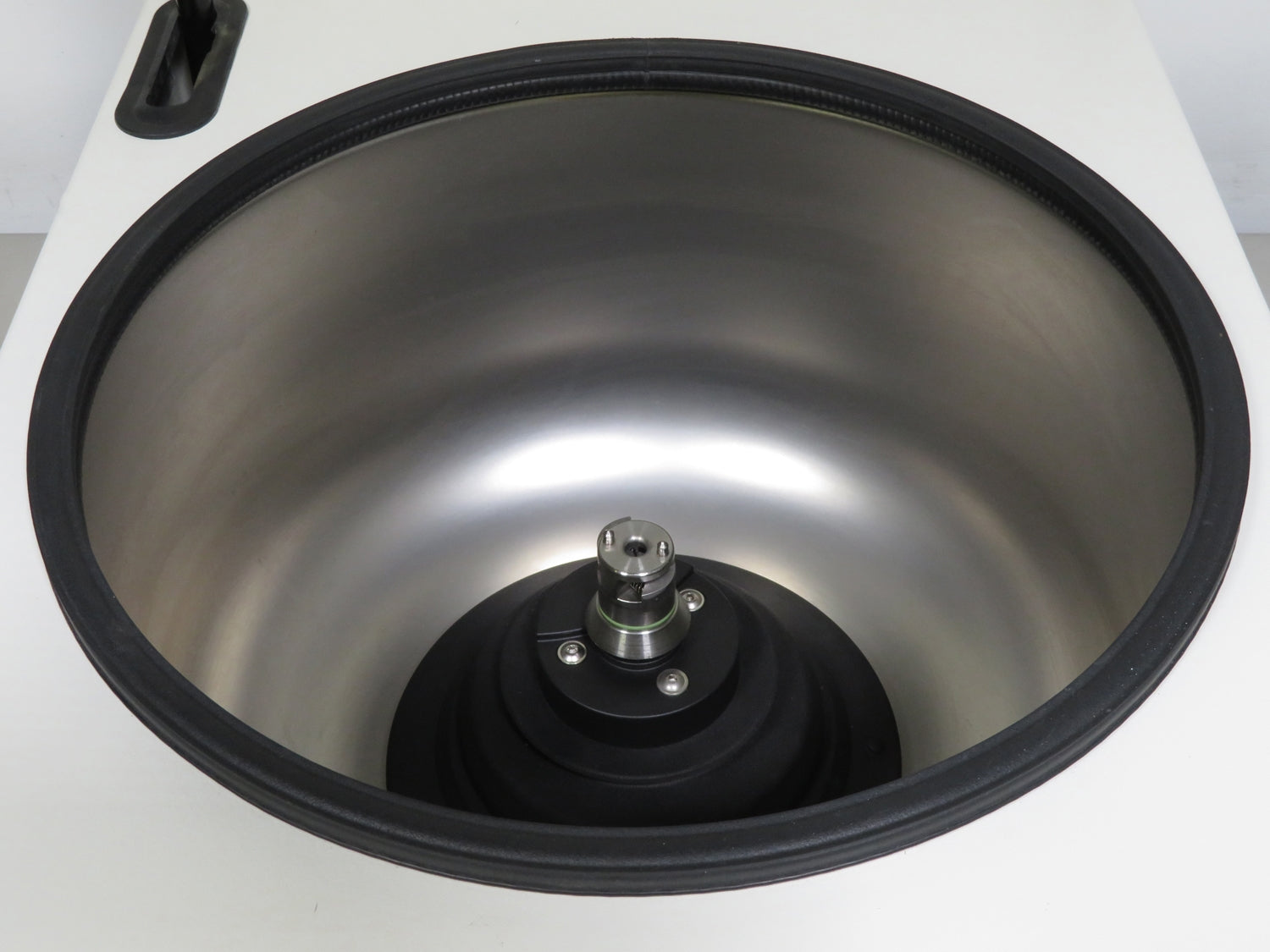

- Examine the rotor chamber bowl for dents or damage and replace as needed to ensure safe operation
- Replace and confirm full functionality of all lid lock switches to maintain secure closure
- Inspect and lubricate the door lock mechanism, applying grease to the lid lock rail for smooth operation
- Test compressor functionality (if applicable) to ensure proper operation and consistent temperature control
- Conduct an 8-12 hour cycle test to validate consistent performance over prolonged use
- Confirm rotor motor stability, check for unusual noise, and assess mechanical integrity during operation
- Inspect the condensation drain and clear any clogs to prevent moisture buildup in the rotor chamber
- Verify RPM accuracy using an NIST-traceable tachometer and perform calibration as necessary
- Check the centrifuge error log to ensure zero recorded issues, confirming system reliability
Technician Inspection and Recertification Checklist: Centrifuges
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Confirm power supply output voltages match specified requirements | Completed | |
| Measure and verify voltages at PCB test points for accuracy | Completed | |
| Confirm rotor compatibility and detection for proper identification | Completed | |
| Inspect exterior for cosmetic or structural damage | Completed | |
| Check door mechanism alignment for secure opening and closing | Completed | |
| Inspect and replace gas strut with OEM part as needed | Completed | |
| Examine rotor chamber for dents or damage and replace if necessary | Completed | |
| Replace and confirm functionality of all lid lock switches | Completed | |
| Lubricate door lock mechanism and lid lock rail for smooth operation | Completed | |
| Test compressor (if applicable) for proper operation and cooling | Completed | |
| Run 8-12 hour cycle test to ensure consistent performance | Completed | |
| Check rotor motor for stability, noise, and integrity | Completed | |
| Inspect and clear condensation drain to prevent buildup | Completed | |
| Verify RPM accuracy with NIST traceable tachometer and calibrate | Completed | |
| Check centrifuge error log for zero recorded issues | Completed |
102 Tide Mill Road, Hampton NH 03842
customerservice@marshallscientific.com | (603) 601-8511 |
www.marshallscientific.com
Copyright © 2024 by Marshall Scientific LLC. All rights reserved.
Preventative Maintenance Performed on The Thermo Scientific Legend X1 Centrifuge
- Door Latch Assembly Checked for Full Function
- Door Hinges are Checked and Lubed as Needed
- Drive Belt is Checked for Rips and Tears and Replaced if Needed
- Rotors and O-rings are Lubed as Needed
- Lamps and Display are Checked and Replaced if Dim
- Line Cord is Checked Signs of Fray or Damage and Replaced Accordingly
- Internal Circuitry is Checked for Faulty/Shorted Components and Replaced Accordingly
Click Here to View the Technical Specs for the Thermo Scientific Legend X1 Centrifuge
