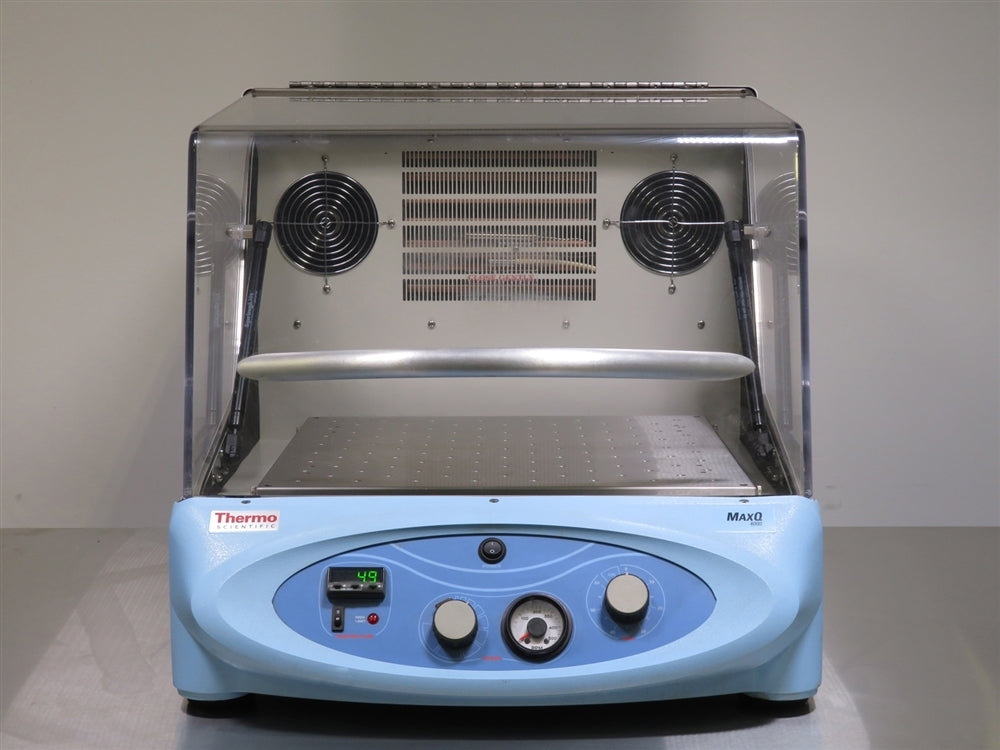

Thermo Scientific MaxQ 4000 Orbital Incubator Shaker
Temperature Range
Ambient +10°C to 60°C
Speed Range
40 to 400 RPM
Temperature Uniformity
0.5 at 37C
Features
- Combines orbital shaking with benchtop design for versatility in various applications like cell culture and protein expression
- Shaking speeds range from 40 to 400 RPM with a 0.75-inch orbit, adaptable for multiple research needs
- Temperature range from 10°C above ambient to 60°C, suitable for temperature-sensitive applications

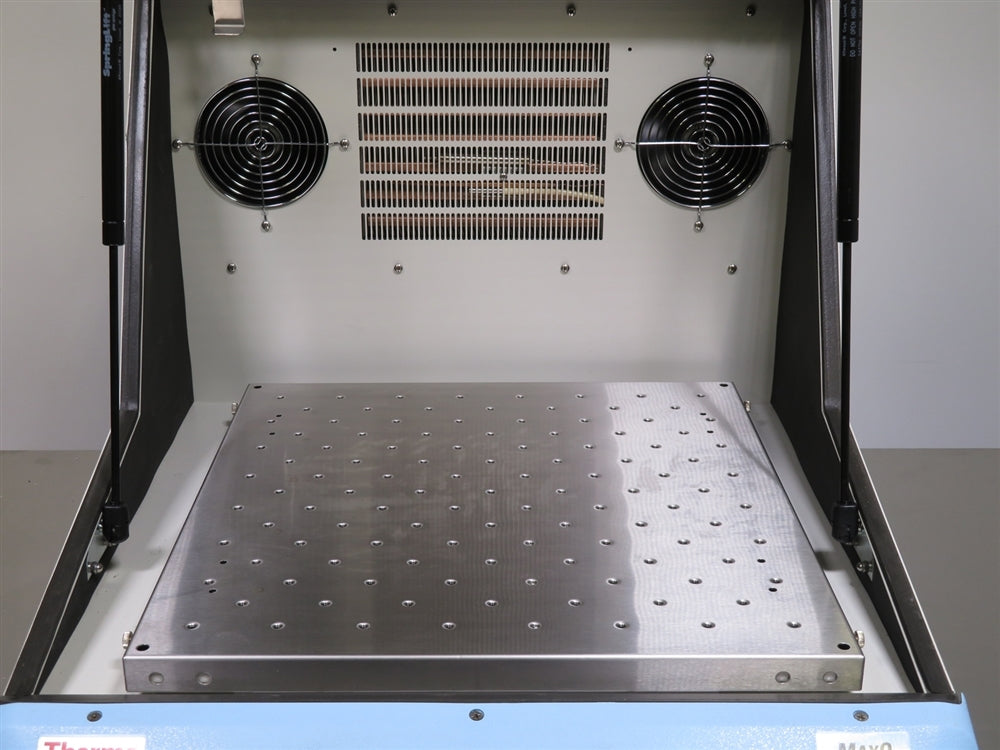

- Spacious 18 x 18 inch platform holds up to six 2L flasks, accommodating larger vessel capacities

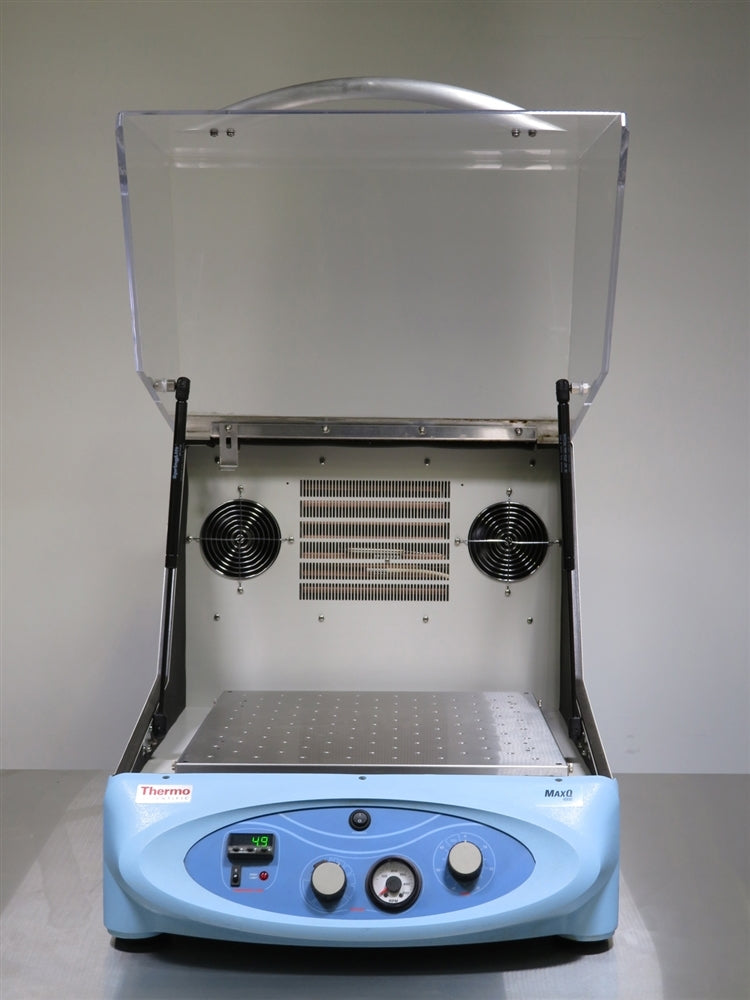

- Clear, scratch-resistant lid provides unobstructed sample viewing without disrupting chamber conditions

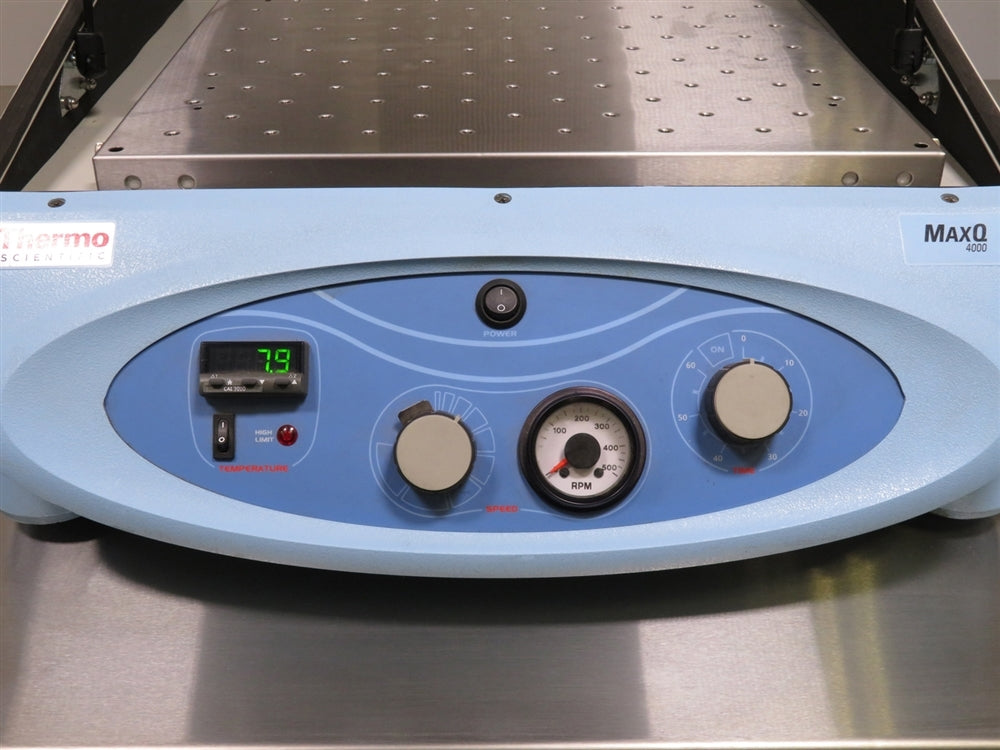

- PID temperature controller ensures precise 0.1°C accuracy at 37°C for consistent environmental conditions
- Backup over-temperature feature offers additional safety by independently controlling temperature
- Temperature uniformity of 0.5°C at 37°C, maintaining stable conditions across the platform
- Timer options for continuous or timed operation from 1 to 60 minutes, ideal for varied experimental durations
- Compact design with dimensions of 32 x 22.5 x 22 inches, fitting comfortably on most benchtops
This incubator shaker will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Thermo Scientific MaxQ 4000 Orbital Incubator Shaker includes:
The Thermo Scientific MaxQ 4000 Orbital Incubator Shaker includes:
- > 18 x 18 in Platform
- > NIST Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Thermo Scientific MaxQ 4000 Orbital Incubator Shaker Specifications
|
Speed Range |
40 to 400 RPM |
|
Speed Accuracy |
10 RPM |
|
Temperature Range |
Ambient +10 to 60C |
|
Temperature Uniformity |
0.5 at 37C |
|
Temperature Accuracy |
0.1 at 37C |
|
Timer |
Continuous or timed operation from 1 to 60 minutes |
|
Dimensions (L x W x H) |
32 x 22.5 x 22 in (81.3 x 57.2 x 55.9 cm) |
Inspection and Recertification Checklist
- Examine the chamber glass for cracks or chips, replacing it as needed to maintain structural integrity.
- Inspect door seals for signs of wear or damage, replacing them to ensure a tight seal.
- Check the display for brightness and clarity, replacing any dim or dead pixels to maintain optimal visibility.
- Test all buttons to confirm full functionality and consistent responsiveness.
- Replace all platform assembly bearings to ensure smooth and reliable motion.
- Inspect the drive belt for wear, replacing it if torn or cracked to maintain performance.
- Examine all wiring for frays, tears, or breakages, addressing any issues for electrical safety.
- Verify each PCB test point, replacing any malfunctioning components to ensure system reliability.
- Check drive belt tension to confirm correct alignment and function.
- Confirm the compressor’s operation, cleaning condenser filter and fins for efficient cooling.
- Calibrate internal temperature accuracy using an NIST-traceable temperature probe.
- Measure and calibrate platform RPMs with an NIST-traceable tachometer to ensure precision.
- Conduct a final cosmetic inspection to verify all surfaces meet appearance standards.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Examine chamber glass for cracks or chips, replace as needed | Completed | |
| Inspect door seals for wear, replace to ensure tight seal | Completed | |
| Check display brightness, replace dim or dead pixels | Completed | |
| Test all buttons for full functionality and responsiveness | Completed | |
| Replace platform assembly bearings for reliable motion | Completed | |
| Inspect drive belt for wear, replace if torn or cracked | Completed | |
| Examine wiring for frays or breakages, repair as needed | Completed | |
| Verify PCB test points, replace faulty components | Completed | |
| Check drive belt tension for proper alignment | Completed | |
| Confirm compressor functionality, clean filter and fins | Completed | |
| Calibrate internal temperature with NIST probe | Completed | |
| Calibrate platform RPM with NIST-traceable tachometer | Completed | |
| Conduct cosmetic inspection for appearance standards | Completed |
