Thermo Scientific Steri-Cult 3310 CO2 Incubator w/ Sterilization Cycle Dual Stack
Temperature Range
Ambient +5°C to 50°C
CO2 Range
0 to 20%
Volume (Per Unit)
11.4 cu. ft. (322.8L)
Features
- Dual-stacked design maximizes lab space for high-throughput culturing applications
- 140°C high-temperature sterilization cycle effectively eliminates bacteria, mold, yeast, and mycoplasma
- ISO Class 5 HEPA filtration system ensures clean air circulation, filtering the entire chamber every 60 seconds
- Active airflow system promotes even distribution of environmental conditions and reduces cross-contamination risks
- Enviro-Scan Microprocessor Control with an intuitive alphanumeric LED display for easy monitoring and adjustments

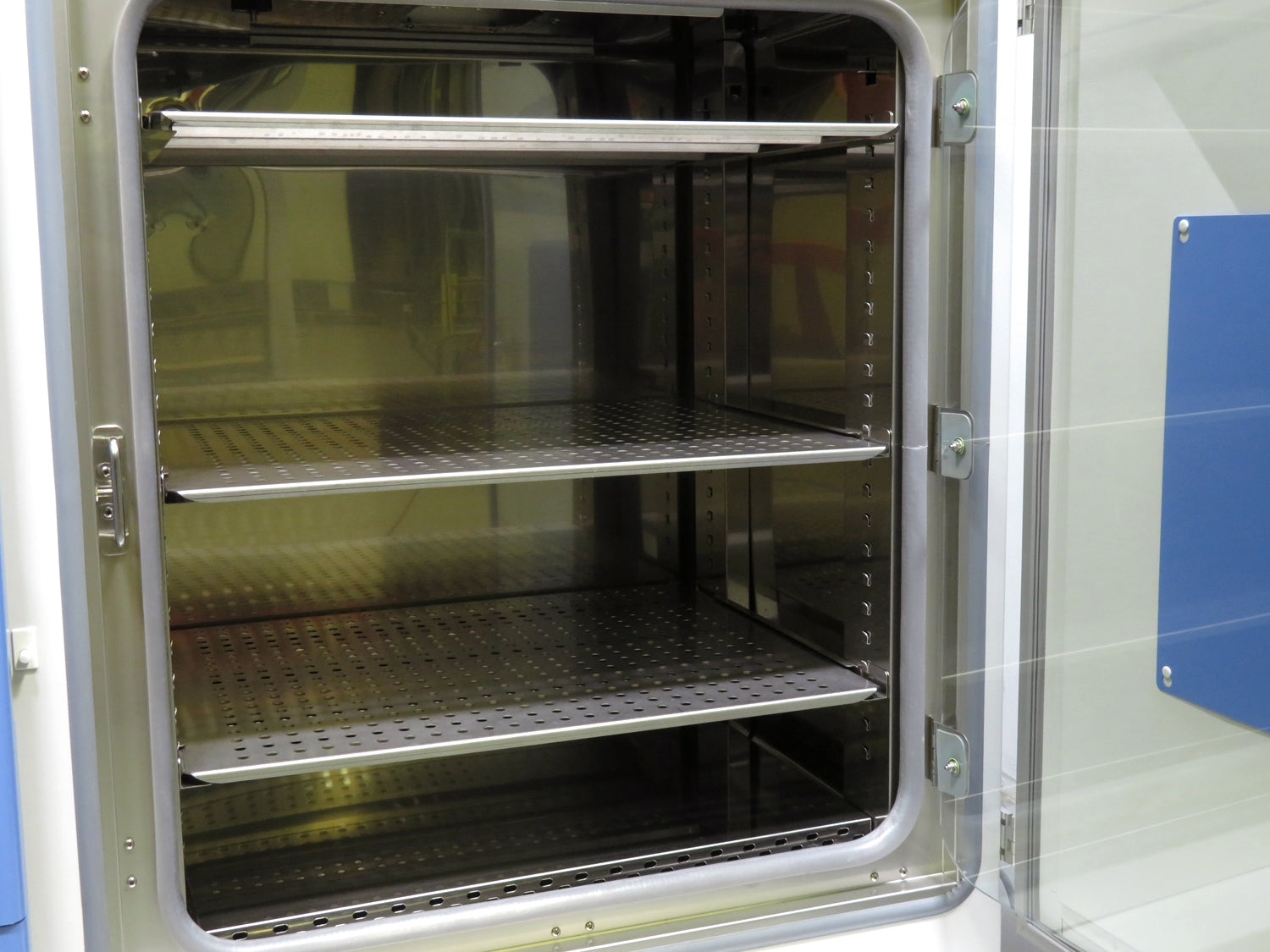

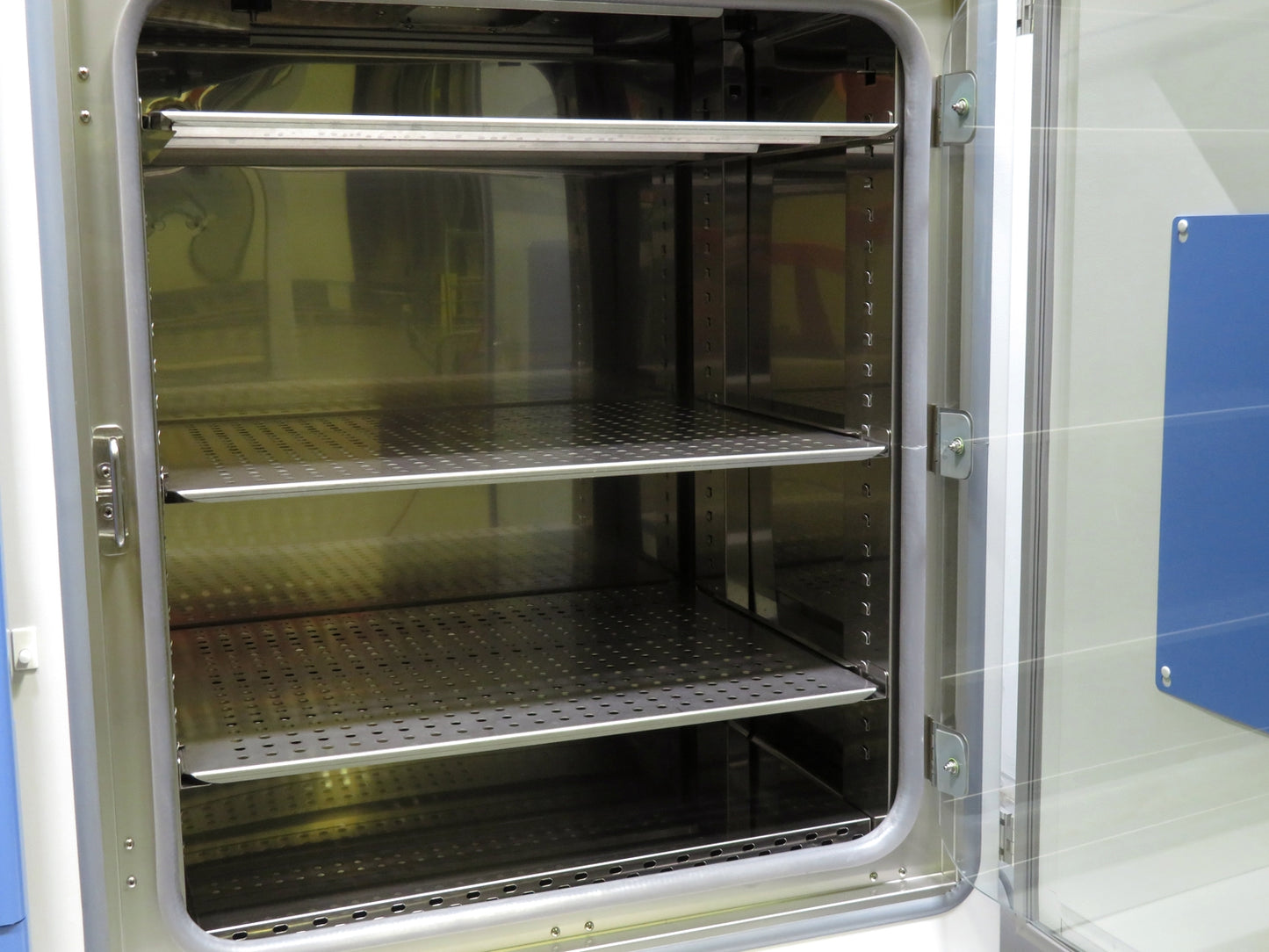

- Polished stainless-steel interior with coved corners and removable shelves for easy cleaning and maintenance

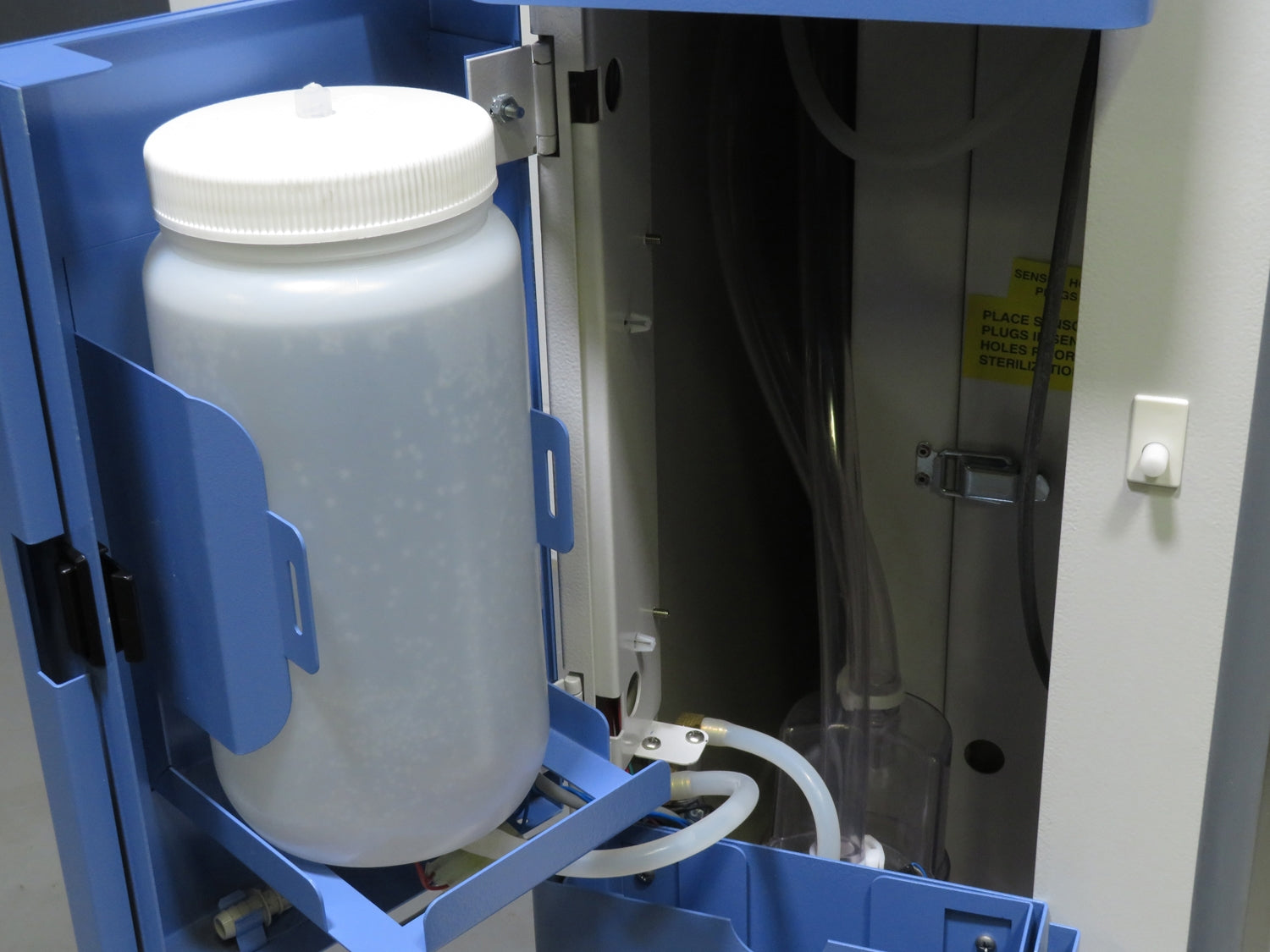

- Active humidity control with an external water reservoir minimizes contamination and eliminates the need for a water pan
- Integrated alarm system for deviations in temperature, CO2, humidity, and power failure ensures sample protection

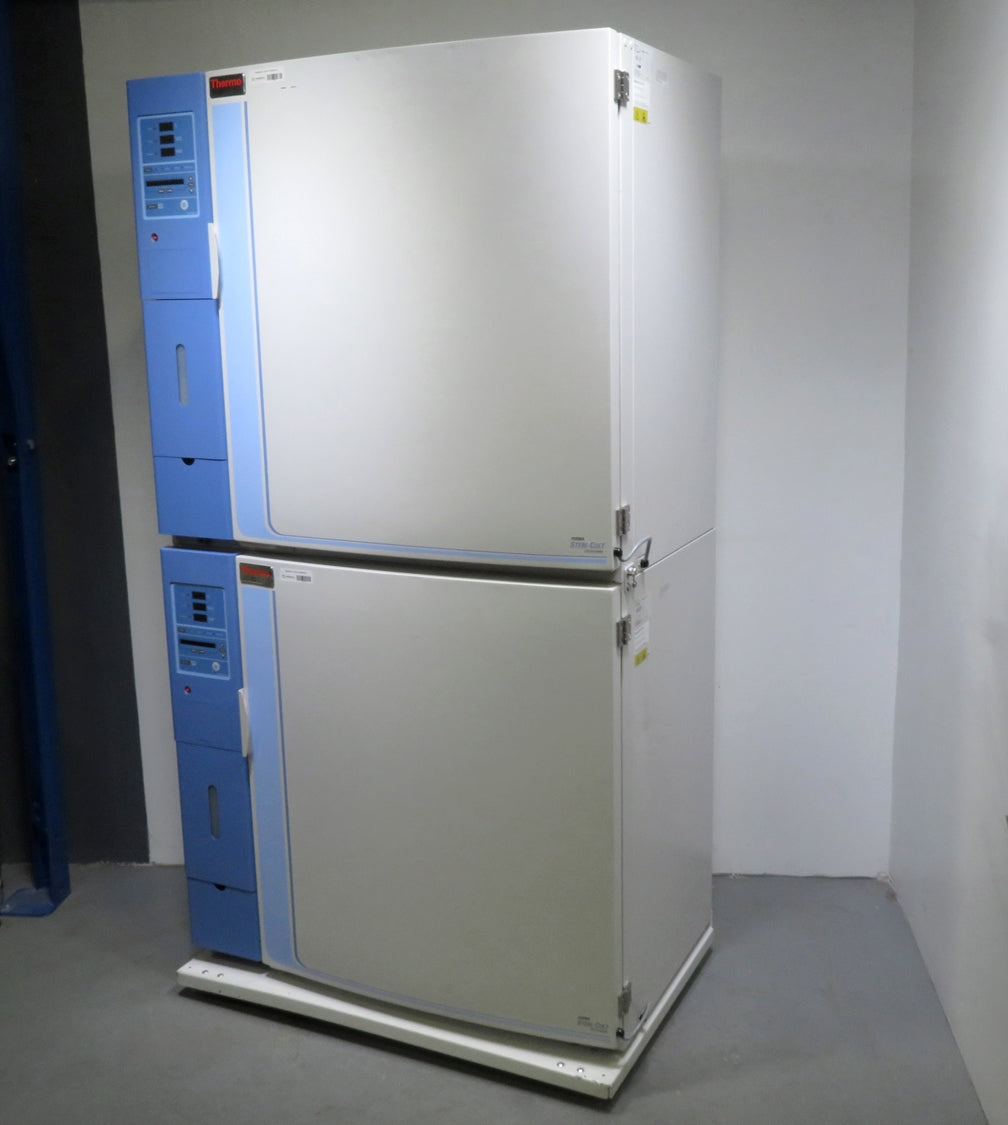

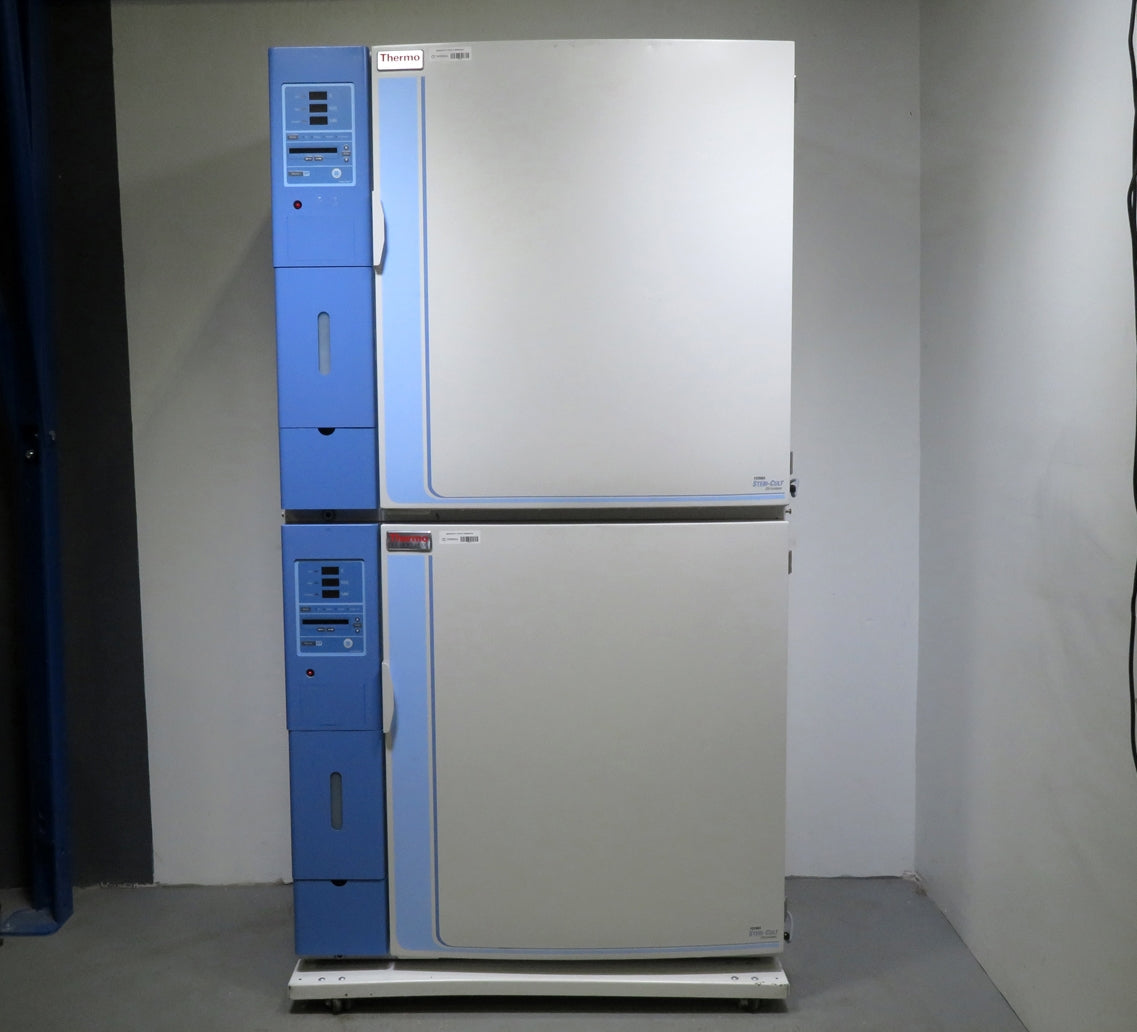

The Thermo Scientific Steri-Cult 3310 CO2 Incubator w/ Sterilization Cycle Dual Stack is a high-capacity, dual-stacked incubator designed for extensive culturing while ensuring superior contamination control. It features a direct heat chamber optimized for high throughput applications, with a polished stainless-steel interior and coved corners for easy cleaning. This incubator provides for a temperature range of Ambient +5°C to 50°C with a uniformity of ± 0.2°C at 37°C. The chamber's active airflow system ensures homogeneous conditions and reduces cross-contamination risks, supported by sturdy, easily removable stainless-steel shelves.
The Steri-Cult 3310 boasts an active humidity control system with a range from Ambient to 90% and accuracy of ± 2.0%, eliminating the need for a water pan and featuring an external water reservoir to reduce chamber contamination. Additionally, the incubator has a 140°C sterilization cycle, which operates overnight for 14 hours to eliminate bacteria, mold, yeast, and mycoplasmas, thereby simplifying and automating cleaning. The Steri-Cult features a CO2 range from 0 to 20% and utilizes an advanced IR CO2 sensor, providing precise monitoring unaffected by humidity changes

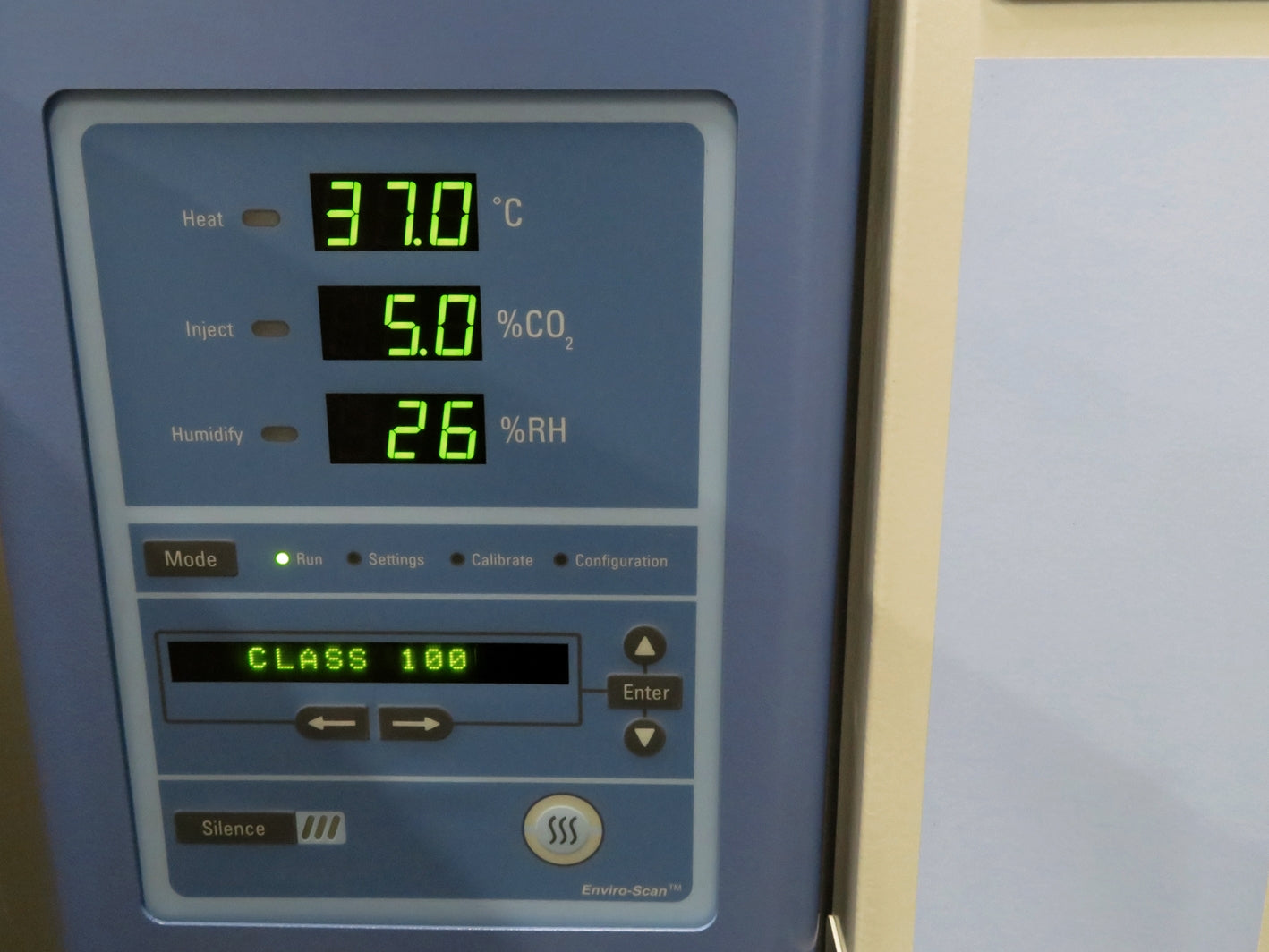

The ISO Class 5 HEPA filtration airflow system continuously filters the entire chamber volume every 60 seconds, reaching ISO Class 5 air quality within five minutes after a door opening. This feature minimizes contaminants from settling on interior surfaces. Operational control is managed via the Enviro-Scan Microprocessor Control, which includes an easy-to-use alphanumeric LED display, flexible controls, and a message center for process and alarm status messages.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Thermo Scientific Steri-Cult 3310 CO2 Incubator w/ Sterilization Cycle Dual Stack includes:
The Thermo Scientific Steri-Cult 3310 CO2 Incubator w/ Sterilization Cycle Dual Stack includes:
- > 2 x Shelves Per Unit
- > 1 x Diffuser Pan Per Unit
- > 1 x Humidity Bottle Per Unit
- > 1 x New HEPA Filter Per Unit
- > Stacking Kit
- > NIST Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Thermo Scientific Steri-Cult 3310 CO2 Incubator w/ Sterilization Cycle Dual Stack Specifications
| Temperature Range | Ambient +5°C to 50°C |
| Temperature Uniformity | ± 0.2°C at 37°C |
| Temperature Control | ± 0.1°C at 37°C |
| CO2 Range | 0 to 20% |
| CO2 Control | ± 0.1% at 5.0% |
| CO2 Sensor Type | IR (Infrared) |
| Inlet Pressure | 15 PSIG, ± 5 PSIG |
| Relative Humidity Range | Ambient to 90% |
| Relative Humidity Control | ± 2.0% |
| Volume | 11.4 cu. ft. (322.8L) [Per Unit] |
| Sterilization Cycle Temperature | 140°C |
| Sterilization Cycle Duration | Approximately 14 hours |
| Access Port Diameter | 1.4 in. (3.6 cm) |
| Over Temperature Protection | Fixed at 160°C, ± 5.6°C |
| Alarm Contacts | Deviation of temperature, CO2, RH, and power failure |
| Shelf Dimensions (W x D) | 25.7 x 19.9 in. (65.5 x 50.5 cm) |
| Internal Dimensions (W x H x D) | 28.8 x 32.8 x 20.6 in. (73.2 x 83.8 x 52.3 cm) [Per Unit] |
| External Dimensions (W x H x D) | 43 x 39.4 x 27 in. (109.2 x 100.1 x 68.6 cm) [Per Unit] |
| Weight | 410 lb. (186 kg.) |
| Electrical Requirements | 115V, 50/60 Hz, 11.5A, 1Ph |
Incubator Inspection and Recertification Checklist
- Inspect the display for any dim, flickering, or dead pixels, replacing any affected areas to maintain full readability and operational clarity
- Thoroughly examine external regulators for any signs of damage, wear, or malfunction (if applicable), replacing any compromised parts
- Inspect temperature, COâ‚‚, and Hâ‚‚O sensors (if applicable), ensuring each sensor is functioning correctly and accurately reporting conditions
- Conduct a detailed inspection of all internal wiring for frays, tears, or breakages; replace any compromised wires to ensure safe and reliable connections
- Verify that software settings align with the internal components and calibration specifications, adjusting configurations as needed for accurate operation
- Inspect and clean the fan, ensuring it is free from dust or obstructions; replace if performance is below required standards
- Examine wheels and leveling mounts for structural integrity, ensuring proper balance and stability for safe operation
- Inspect door gaskets and latches for any signs of wear or damage, replacing if necessary to maintain a secure seal and optimal environmental control
- Calibrate temperature accuracy at 37°C using a NIST-traceable probe, confirming it meets required tolerances
- Calibrate COâ‚‚ level to 5% using a Fyrite combustion test kit (if applicable), ensuring precise atmospheric conditions
- Monitor temperature and COâ‚‚ stability over a 24-hour period, verifying consistent operation within specified ranges
- Conduct a thorough cosmetic inspection to confirm all external surfaces and components meet quality standards, free from visible damage or wear
Technician Inspection and Recertification Checklist: Incubator
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Inspect display for dim, flickering, or dead pixels; replace for readability | Completed | |
| Examine external regulators for damage or malfunction; replace compromised parts | Completed | |
| Inspect temperature, COâ‚‚, and Hâ‚‚O sensors for correct function and accuracy | Completed | |
| Inspect internal wiring for frays, tears, or breakages; replace compromised wires | Completed | |
| Verify software settings align with components and calibration specs; adjust if needed | Completed | |
| Clean fan and remove dust/obstructions; replace if performance is substandard | Completed | |
| Examine wheels and leveling mounts for structural integrity and balance | Completed | |
| Inspect door gaskets and latches for wear or damage; replace to maintain seal | Completed | |
| Calibrate temperature at 37°C with NIST-traceable probe to confirm accuracy | Completed | |
| Calibrate COâ‚‚ level to 5% with Fyrite test kit for atmospheric precision | Completed | |
| Monitor temperature and COâ‚‚ stability over 24-hour period to verify consistency | Completed | |
| Conduct cosmetic inspection to confirm quality of external surfaces and components | Completed |
