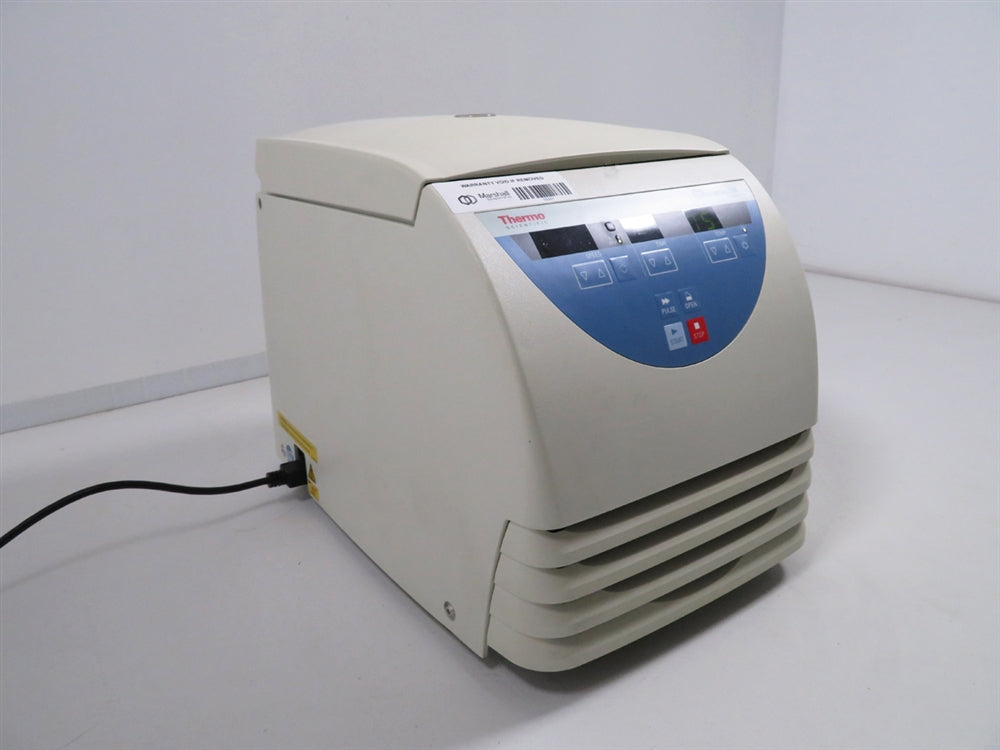

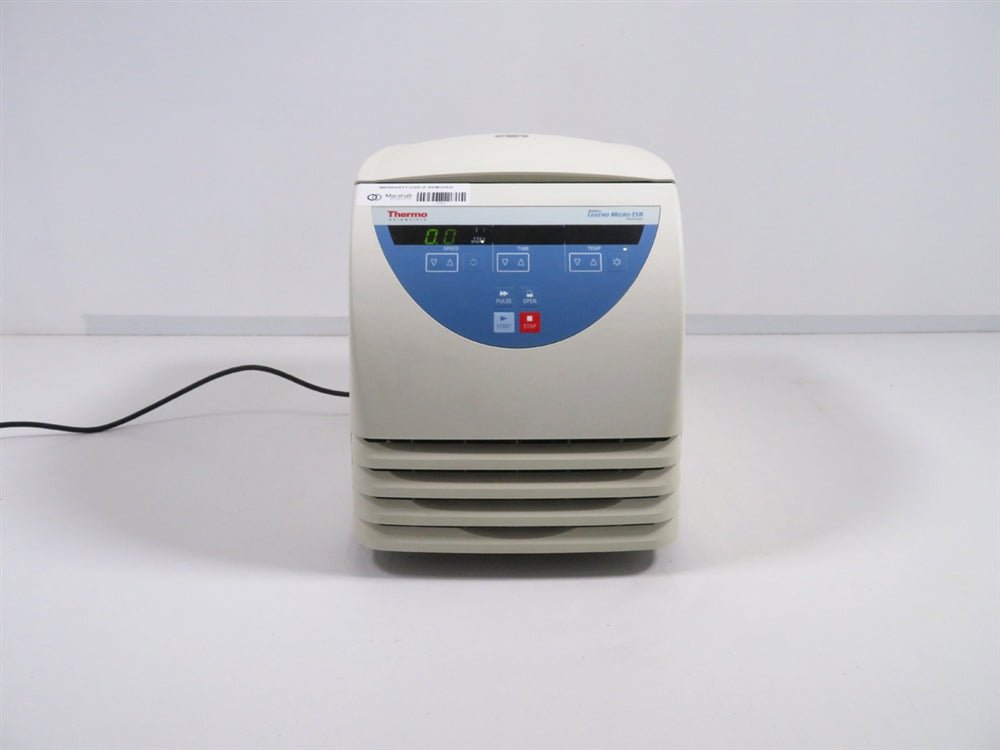

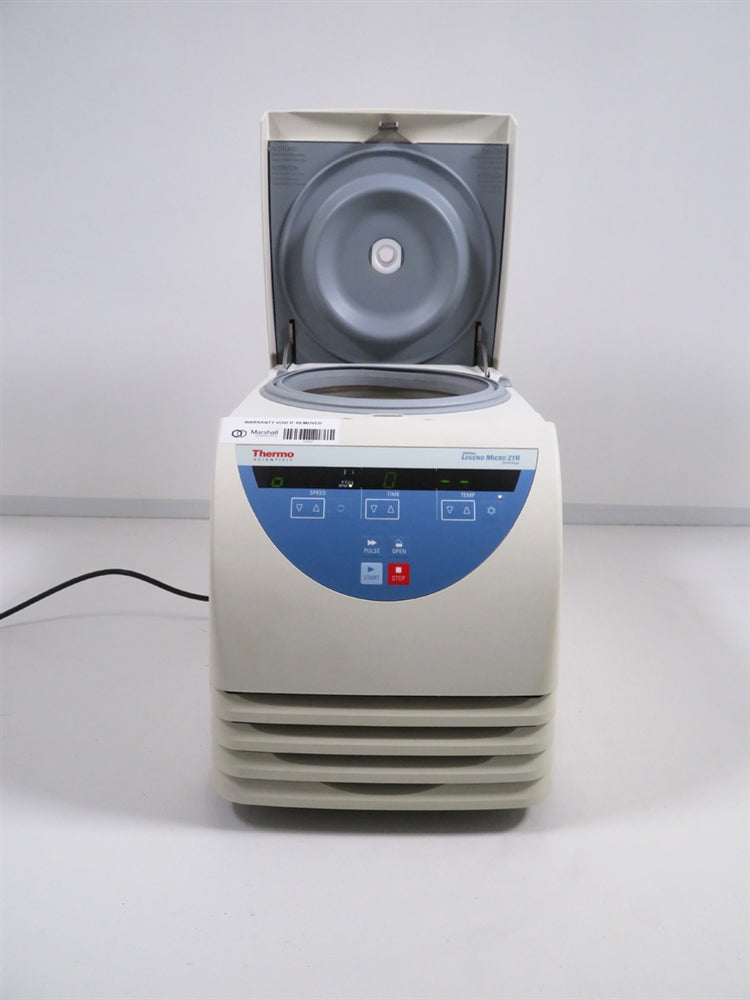

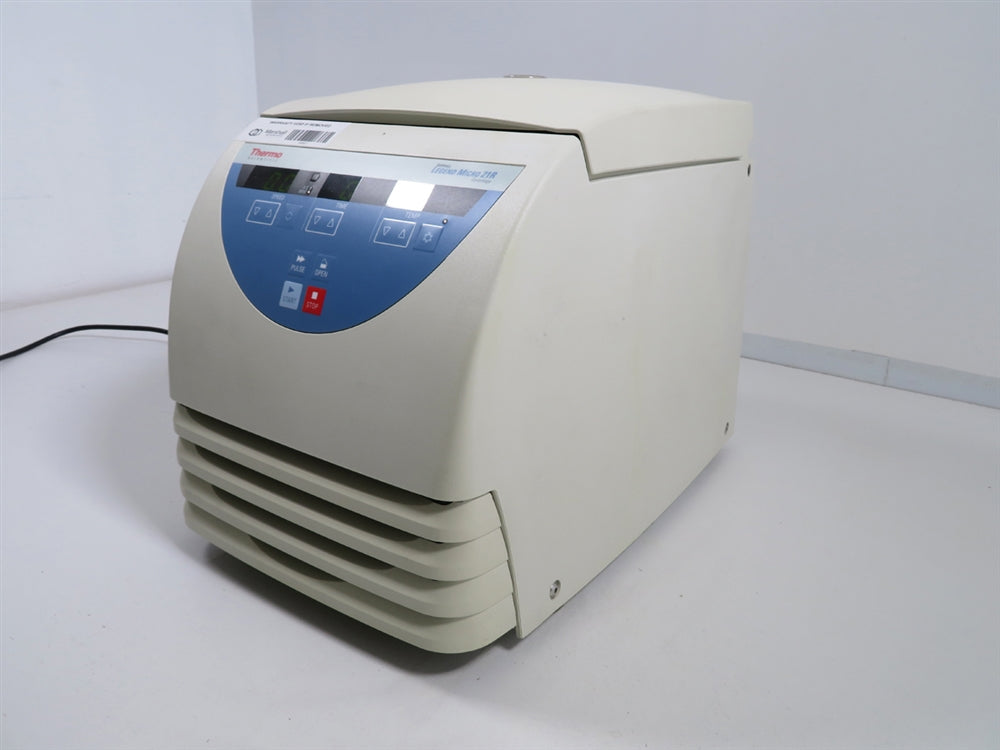

Thermo Sorvall Legend Micro 21R Refrigerated Centrifuge
Maximum Speed
14,800 RPM
Maximum RCF
21,100 x g
Temperature Range
-9C to +40C
Features
- Features a maintenance-free induction motor that ensures quiet and stable performance, even at high speeds.
- Includes a "quick run" option for brief sample spins, providing maximum power acceleration as long as the key is pressed.

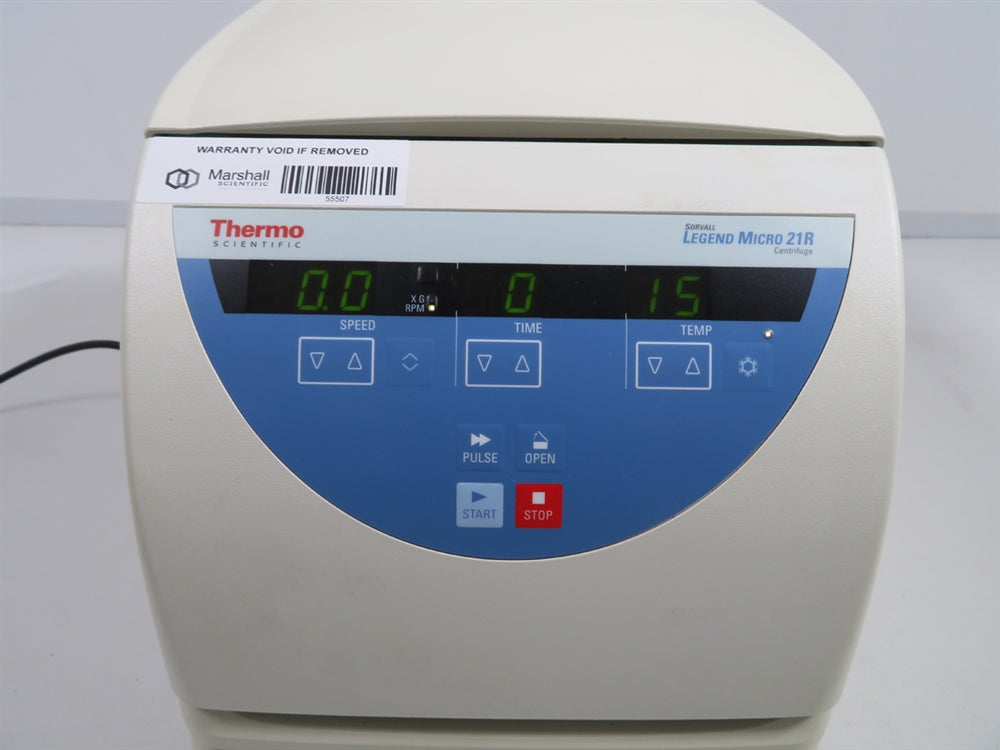

- ‘Easy control’ interface displays current values and allows easy setting of pre-selected set point values.
- Enables quick and easy tempering of the unloaded rotor, enhancing workflow efficiency.
- Offers a broad temperature range from -9 to +40°C, accommodating different sample requirements.
- Ideal for bio-chemical and medical laboratories with its space-saving footprint.
INCLUDED:
The Thermo Sorvall Legend Micro 21R Refrigerated Centrifuge includes:
The Thermo Sorvall Legend Micro 21R Refrigerated Centrifuge includes:

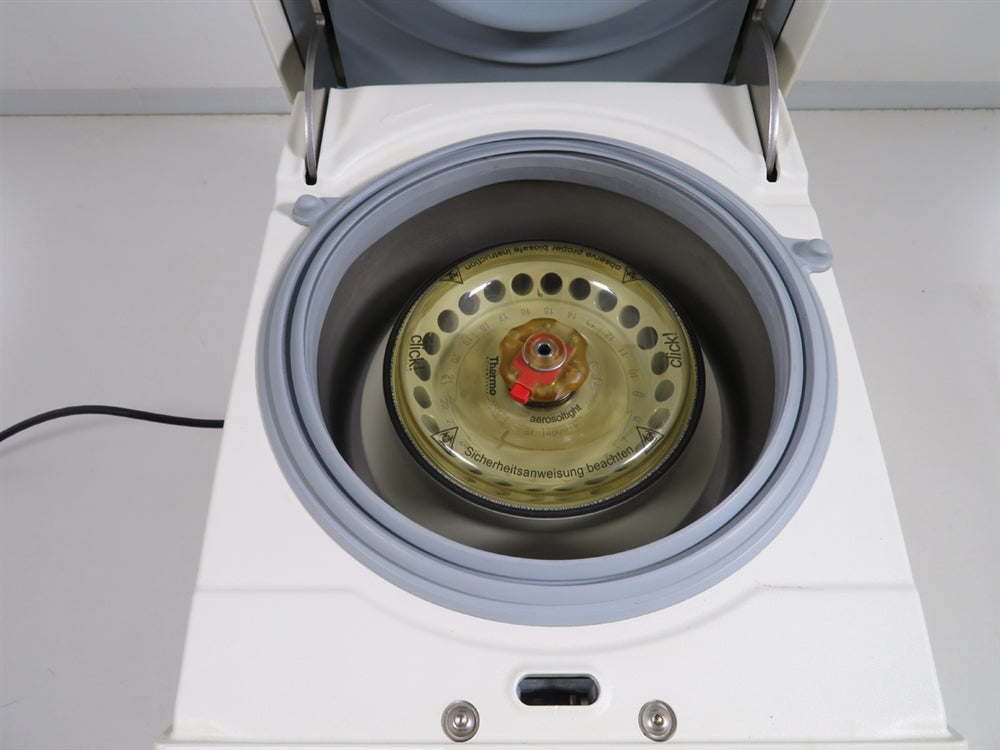

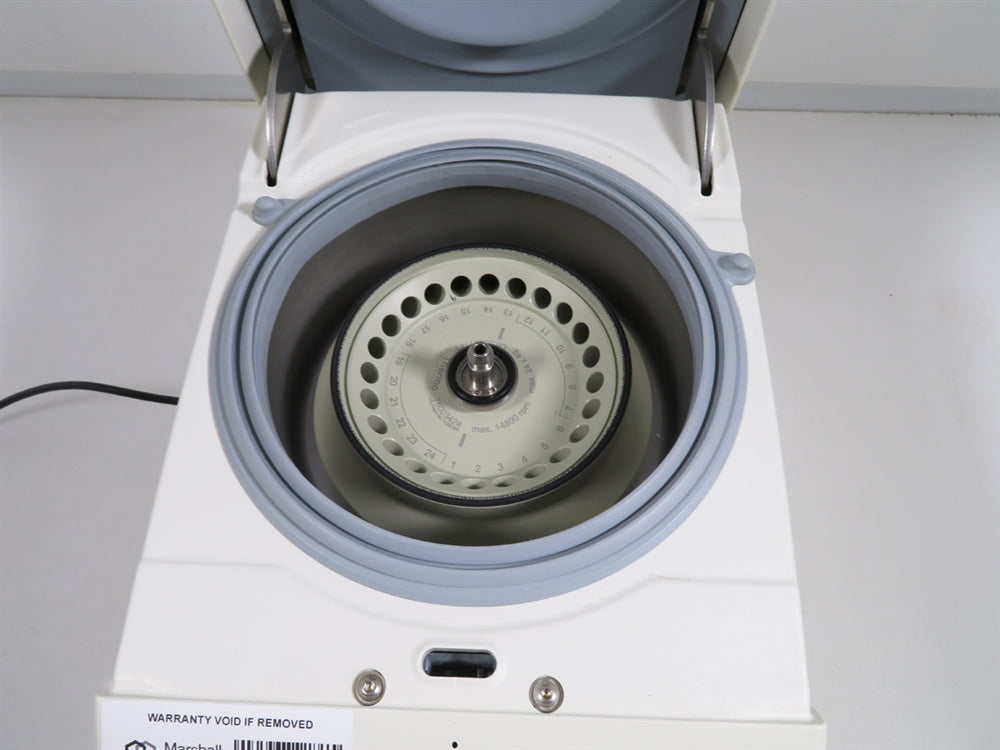

- > 24-Place Fixed Angle Rotor
- > NIST Centrifuge Calibration and Preventative Maintenance Report
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Thermo Sorvall Legend Micro 21R Refrigerated Centrifuge Specifications
|
Net Weight |
28 kg (62 lb.) |
|
Max. Speed |
14,800 rpm |
|
Noise Level |
50 dbA |
|
Electrical Requirements |
120V, 60Hz |
|
Refrigerated |
Yes |
|
Capacity |
24 x 1.5/2mL |
|
Max. RCF |
21,100 x g |
|
Temperature Range |
-9C to +40C |
|
Run Time |
1 to 99 min |
Centrifuge Inspection and Recertification Checklist
- Confirm the power supply output voltages match specified requirements for stable distribution to all internal components
- Measure and verify voltages at PCB test points to ensure accurate power delivery and circuit integrity
- Confirm rotor compatibility with the centrifuge model and check that rotor detection systems recognize the rotor type
- Inspect the exterior for any cosmetic or structural damage that could affect performance or safety
- Check the door mechanism alignment to ensure secure and smooth opening and closing
- Inspect and replace the gas strut with an OEM part to maintain proper door support and safety
- Examine the rotor chamber bowl for dents or damage and replace as needed to ensure safe operation
- Replace and confirm full functionality of all lid lock switches to maintain secure closure
- Inspect and lubricate the door lock mechanism, applying grease to the lid lock rail for smooth operation
- Test compressor functionality (if applicable) to ensure proper operation and consistent temperature control
- Conduct an 8-12 hour cycle test to validate consistent performance over prolonged use
- Confirm rotor motor stability, check for unusual noise, and assess mechanical integrity during operation
- Inspect the condensation drain and clear any clogs to prevent moisture buildup in the rotor chamber
- Verify RPM accuracy using an NIST-traceable tachometer and perform calibration as necessary
- Check the centrifuge error log to ensure zero recorded issues, confirming system reliability
Technician Inspection and Recertification Checklist: Centrifuges
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Confirm power supply output voltages match specified requirements | Completed | |
| Measure and verify voltages at PCB test points for accuracy | Completed | |
| Confirm rotor compatibility and detection for proper identification | Completed | |
| Inspect exterior for cosmetic or structural damage | Completed | |
| Check door mechanism alignment for secure opening and closing | Completed | |
| Inspect and replace gas strut with OEM part as needed | Completed | |
| Examine rotor chamber for dents or damage and replace if necessary | Completed | |
| Replace and confirm functionality of all lid lock switches | Completed | |
| Lubricate door lock mechanism and lid lock rail for smooth operation | Completed | |
| Test compressor (if applicable) for proper operation and cooling | Completed | |
| Run 8-12 hour cycle test to ensure consistent performance | Completed | |
| Check rotor motor for stability, noise, and integrity | Completed | |
| Inspect and clear condensation drain to prevent buildup | Completed | |
| Verify RPM accuracy with NIST traceable tachometer and calibrate | Completed | |
| Check centrifuge error log for zero recorded issues | Completed |
102 Tide Mill Road, Hampton NH 03842
customerservice@marshallscientific.com | (603) 601-8511 |
www.marshallscientific.com
Copyright © 2024 by Marshall Scientific LLC. All rights reserved.
Preventative Maintenance Performed on The Thermo Sorvall Legend Micro 21R Refrigerated Centrifuge
- Door Latch Assembly Checked for Full Function
- Door Hinges are Checked and Lubed as Needed
- Drive Belt is Checked for Rips and Tears and Replaced if Needed
- Rotors and O-rings are Lubed as Needed
- Lamps and Display are Checked and Replaced if Dim
- Line Cord is Checked Signs of Fray or Damage and Replaced Accordingly
- Internal Circuitry is Checked for Faulty/Shorted Components and Replaced Accordingly
Downloads
Click Here to View the Technical Specs for the Legend Micro 21R
