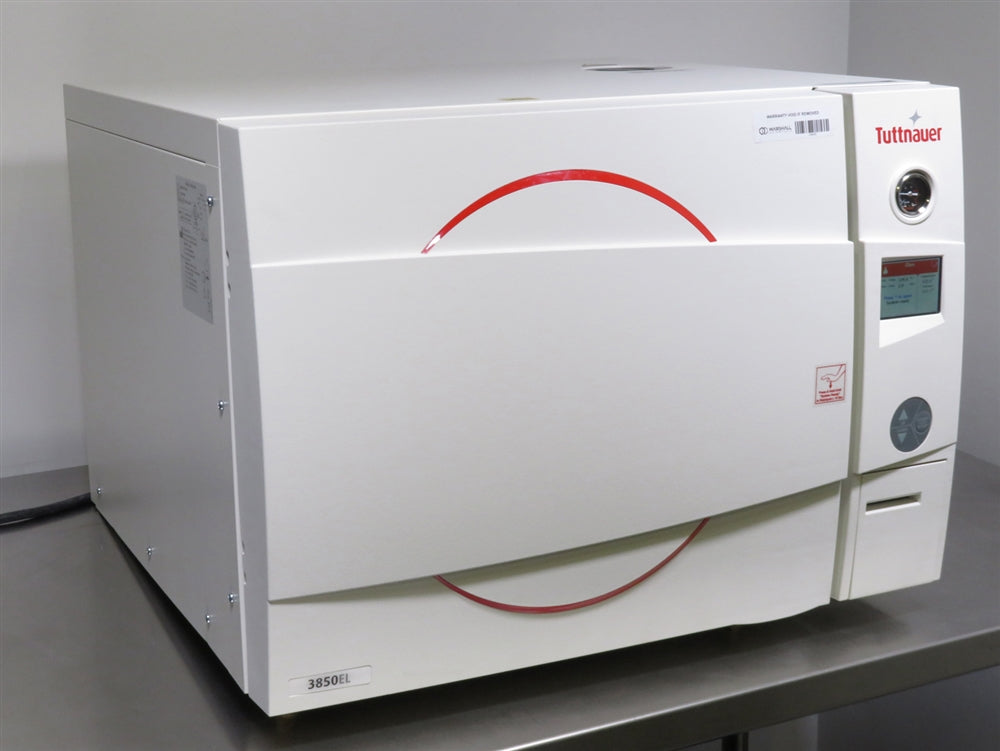

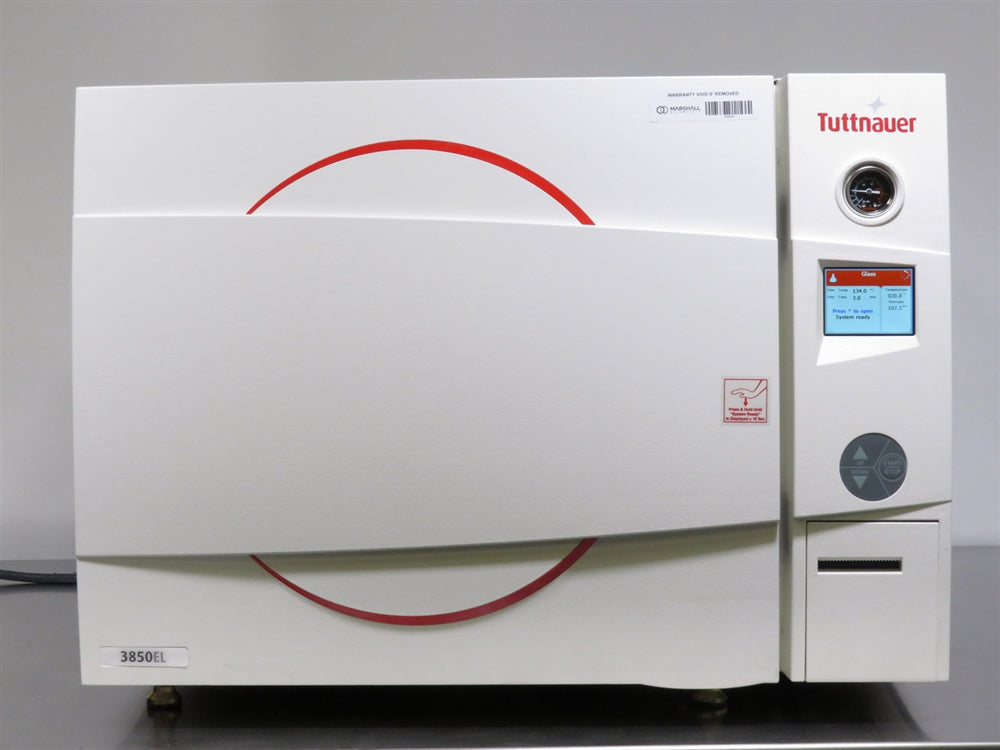

Tuttnauer 3850ELP-B/L-D Autoclave
Chamber Volume
65L (22 gal.)
Temperature Range
105°C to 138°C
Chamber Dimensions (Diameter x Height)
14 x 19.6 in. (38 x 50 cm)
Features

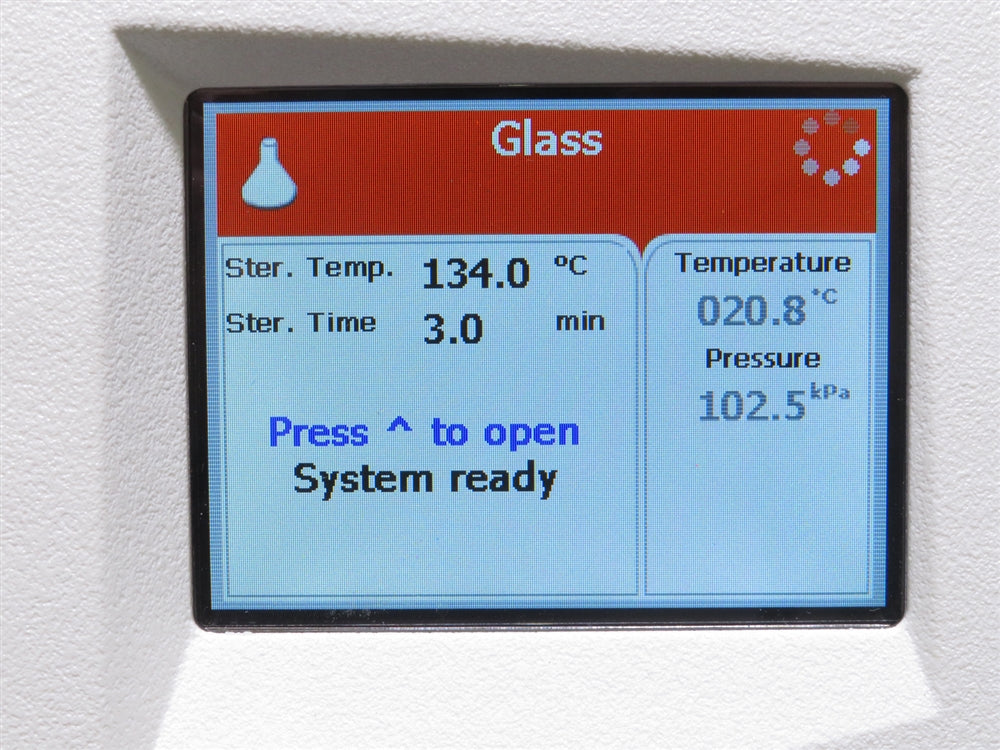

- Advanced control system with intuitive multi-color display for clear cycle monitoring
- Color-coded interface indicates cycle stages for quick and easy operation
- Automatic pressure locking system prevents door opening under pressure for enhanced safety

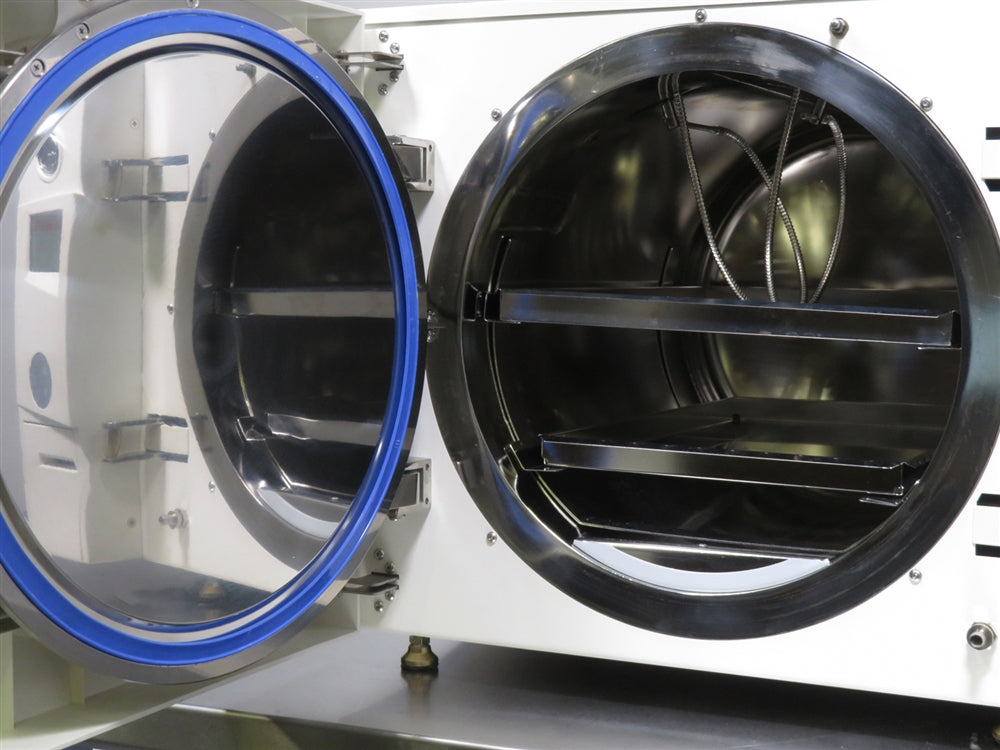

- 316L stainless steel chamber and door with electro-polished finish for durability
- 30 available cycle programs including 8 factory preset options for common applications
- USB, Ethernet, and printer connectivity for flexible cycle data access and reporting
- Front-loading benchtop design saves valuable laboratory workspace
- No water utility connections required for simple setup and operation
- Multi-language interface supporting up to 26 languages
Built with a 316L grade stainless steel chamber and door with an electro-polished finish, the 3850ELP-B/L-D ensures durability and long-term performance. Safety is reinforced through an automatic pressure locking system that prevents the door from opening while the chamber is pressurized. With 30 available cycle programs, including 8 factory preset options, users can easily handle diverse load types such as solid instruments, glassware, delicate plastics, liquids, and waste liquids at standard sterilization temperatures.
The system is engineered for flexibility and data accessibility, offering USB connectivity, and an internal printer for cycle documentation and reporting. Additional features such as multi-language support, and operation without external water utility connections make this autoclave a practical and efficient solution for modern laboratory environments.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Tuttnauer 3850ELP-B/L-D Autoclave includes:
The Tuttnauer 3850ELP-B/L-D Autoclave includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts & Labor Warranty
Tuttnauer 3850ELP-B/L-D Autoclave Specifications
| Chamber Volume |
65L (22 gal.)
|
| Temperature Operating Range |
105°C to 138°C
|
| Chamber Material | 316L Stainless Steel |
| Chamber Dimensions (Dia. x D) |
14 x 19.6 in. (38 x 50 cm)
|
| Dimensions (W x D x H) |
28.3 x 30.1 x 21.3 in. (71.8 x 76.5 x 54.1 cm)
|
| Weight | 264.5 lbs. (120 kg) |
| Electrical Requirements | 230, 60Hz, 13A, 3kW, 1 Ph |
Autoclave Inspection and Recertification Checklist
- Verify power supply output to ensure precise voltage delivery as per equipment specifications
- Check full display functionality, replacing any dead or dim pixels for optimal clarity
- Confirm unit is level to maintain stability and accurate operational performance
- Inspect door seal integrity, replacing if any wear or damage compromises airtight performance
- Examine and clean both external and internal filters to ensure unobstructed airflow and system efficiency
- Execute comprehensive cycle testing to validate consistent operation
- Verify printer functionality (if applicable) to ensure precise print outputs without error
- Assess internal plumbing system for any leaks or pressure inconsistencies
- Inspect all electrical connections and wiring for secure attachment and optimal conductivity
- Verify functionality of internal switches to ensure reliable engagement and operational control
- Inspect and clean the water reservoir to maintain purity and prevent contamination
- Confirm accuracy of pressure readings, recalibrating if deviations are identified
- Perform final test cycles, ensuring zero errors for validated operational readiness
Technician Inspection and Recertification Checklist: Autoclaves
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Verify power supply output voltages | Completed | |
| Check display functionality and replace dead/dim pixels | Completed | |
| Confirm unit leveling for stability | Completed | |
| Inspect and replace damaged door seal | Completed | |
| Clean external and internal filters for airflow efficiency | Completed | |
| Conduct comprehensive cycle testing | Completed | |
| Confirm printer functionality (if applicable) | Completed | |
| Assess plumbing for leaks or pressure issues | Completed | |
| Inspect electrical connections for secure and optimal conductivity | Completed | |
| Verify internal switch functionality | Completed | |
| Inspect and clean water reservoir | Completed | |
| Confirm pressure reading accuracy and recalibrate if needed | Completed | |
| Perform final test cycles with zero errors | Completed |
