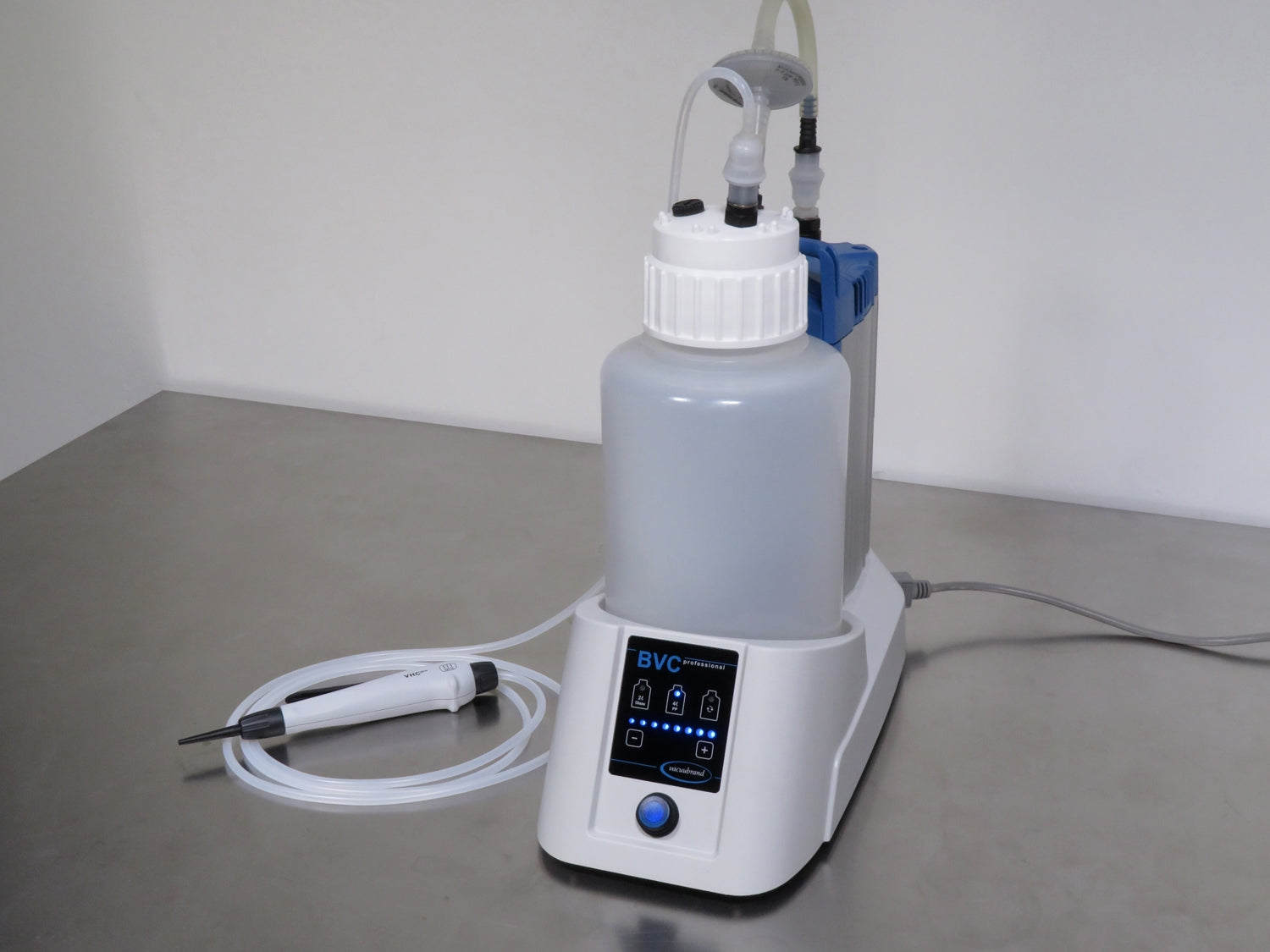

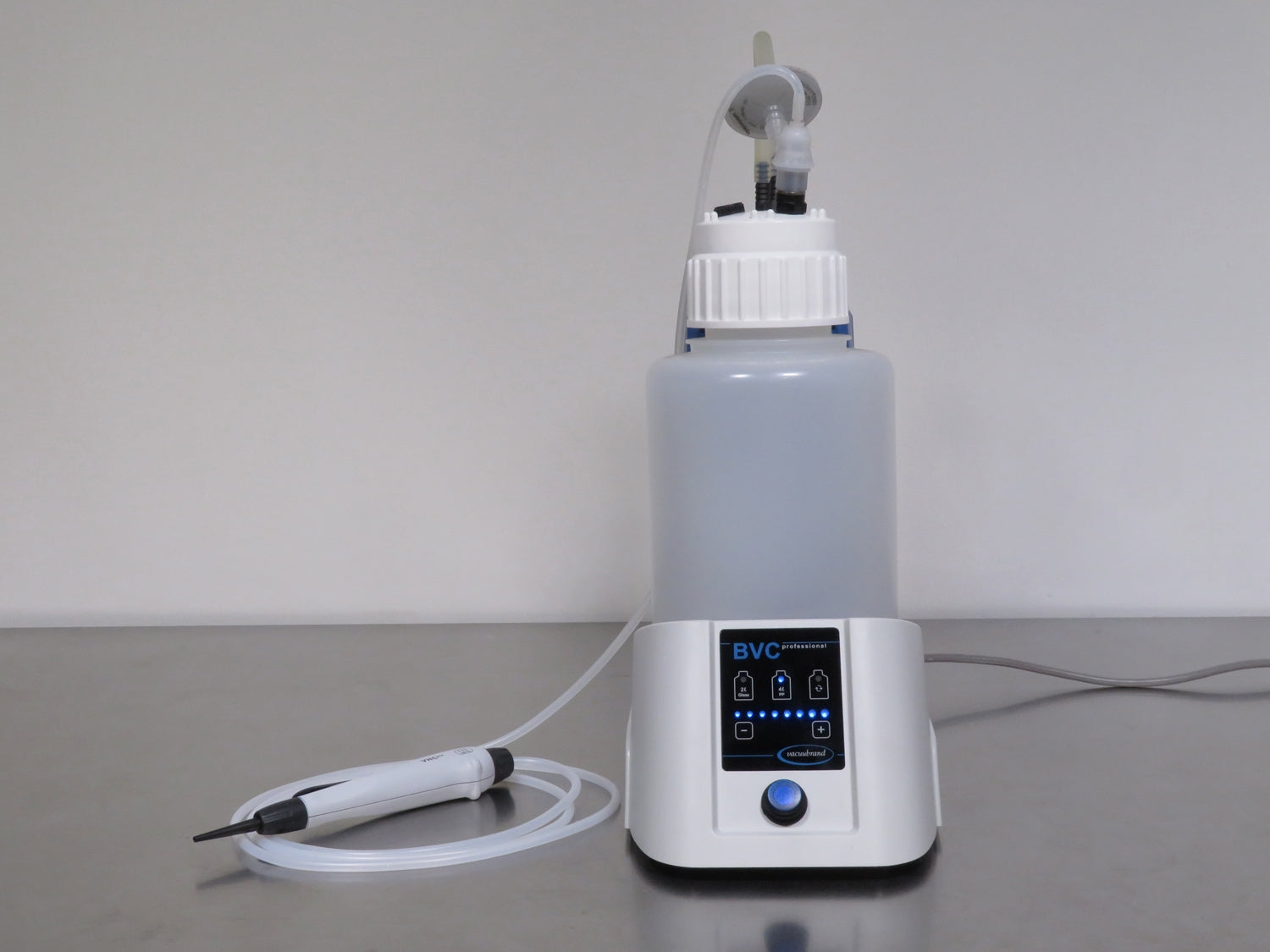

VACUUBRAND BVC Professional Fluid Aspiration System
Maximum Pumping Speed (60Hz)
0.5 cfm (Vacuum pump)
Ultimate Vacuum
150 mbar / 112 torr
Collection Bottle
4L Polypropylene
Features
- Non-contact sensor for electronic monitoring of the liquid level in the collection bottle
- Disinfection routine for the suction tubing for drawing in disinfectant after switching off the pump

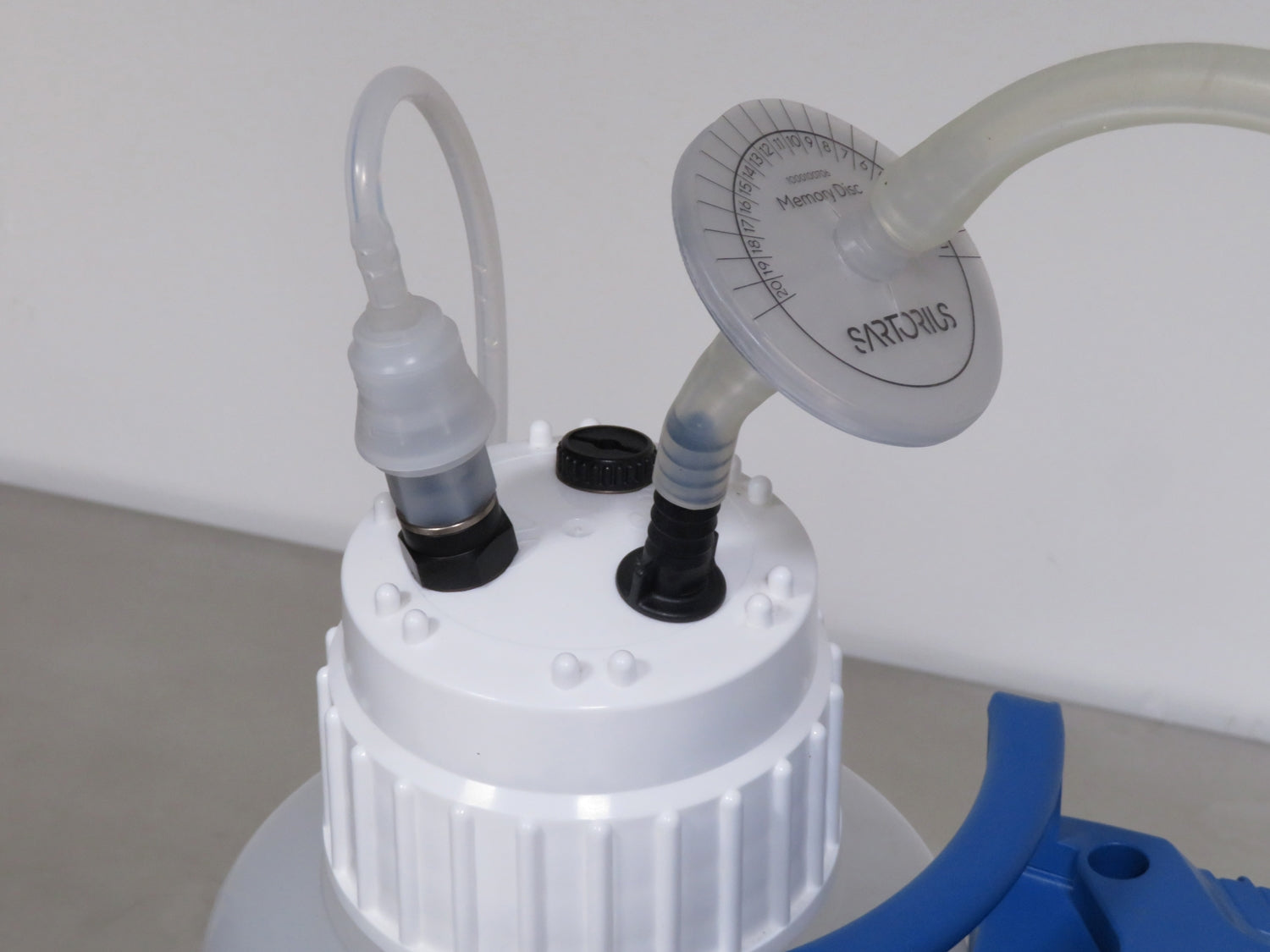

- Self-closing quick couplings (as accessory to the BVC professional) for convenient and safe bottle change, e.g., for work with biohazards
- For professional work and a perfect fit for required safety protocols

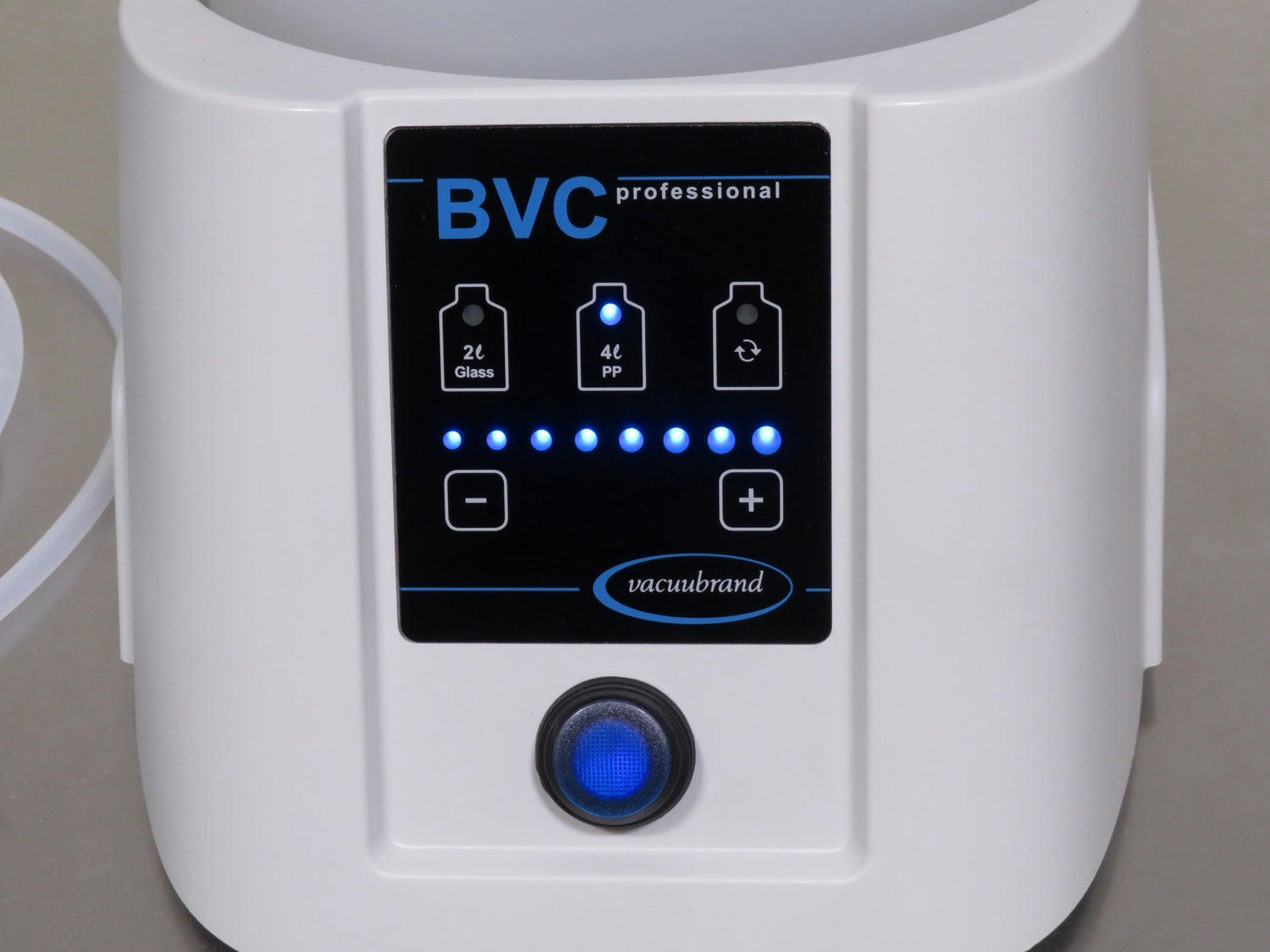

- Touchpanel vacuum controller enables precise, user-friendly adjustment within a 150–850 mbar control range
All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The VACUUBRAND BVC Professional Fluid Aspiration System includes:
The VACUUBRAND BVC Professional Fluid Aspiration System includes:
- > 4L Polypropylene Collection Bottle
- > Adjustable Suction Power Control Panel
- > Non Contact Liquid Level Sensor
- > Quick Couplings (4l pp version)

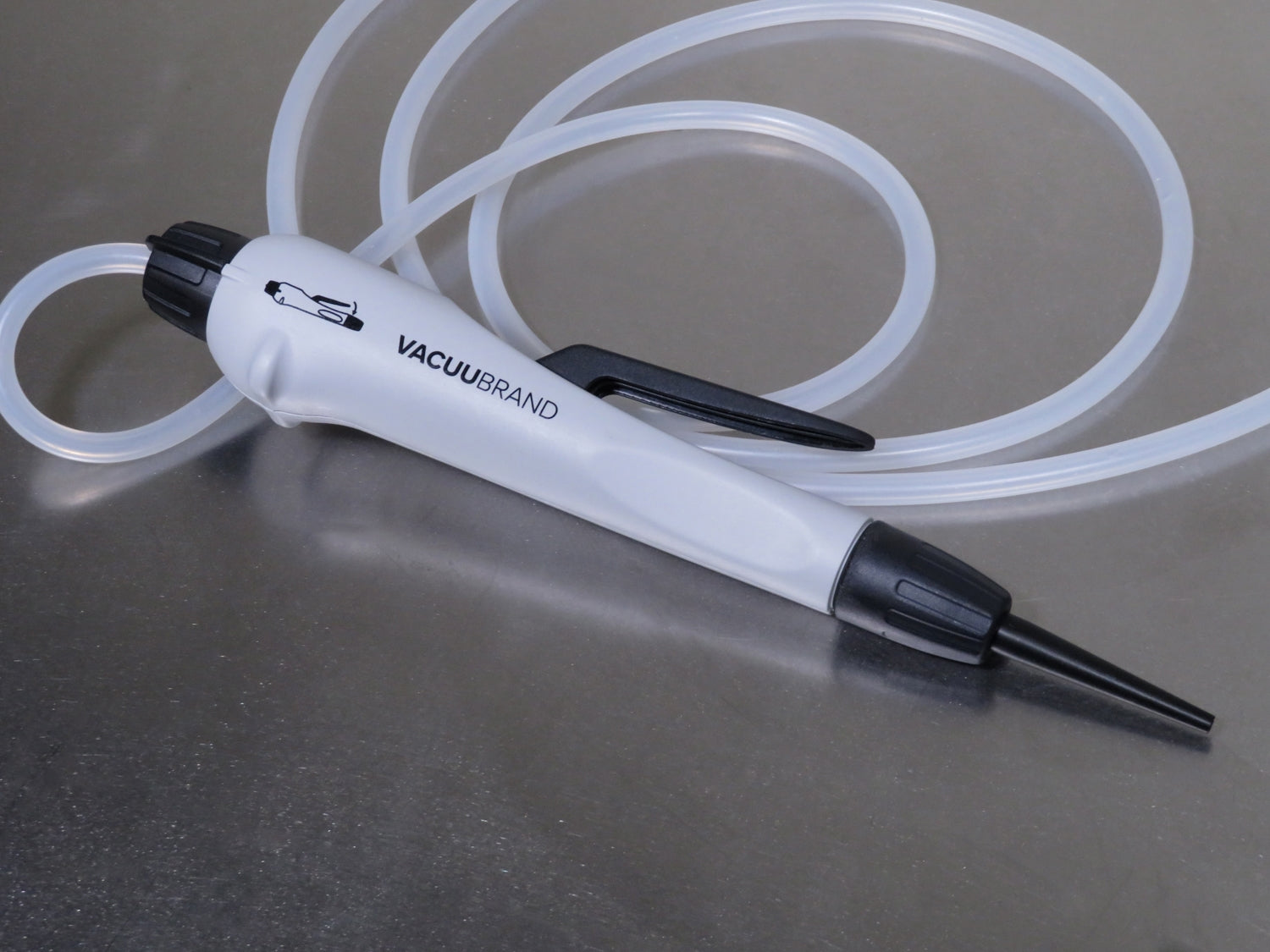

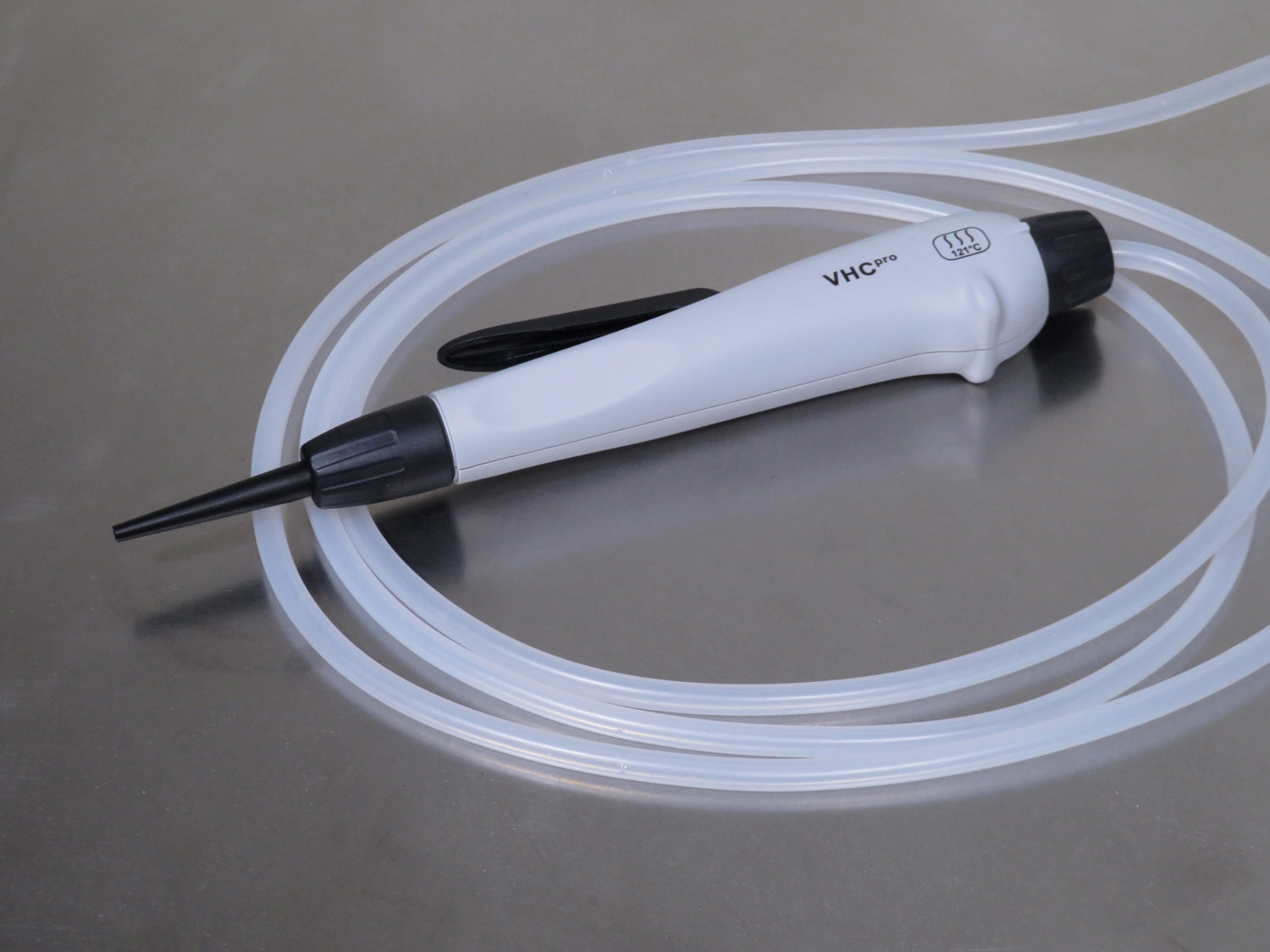

- > Aspiration Hand Set VHC with Protection Filter
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
VACUUBRAND BVC Professional Fluid Aspiration System Specifications
| Max. pumping speed 50 Hz | 0.7 m 3/h (Vacuum pump) |
| Max. pumping speed 60 Hz | 0.5 cfm (Vacuum pump) |
| Ultimate Vacuum | 150 mbar / 112 torr |
| Vacuum Controller | Touchpanel |
| Control Range | 150 - 850 mbar (adjustable) |
| Collection Bottle | 4L Polypropylene |
| Max. Back Pressure (abs.) | 1.1 bar |
| Inlet Connection | Suction controller |
| Outlet Connection | Hose nozzle DN 8 mm / silencer |
| Rated Motor Power | 0.04 kW |
| Rated Motor Speed at 50/60Hz | 1500/1800 min -1 |
| Protection Class IEC 60529 | IP 40 |
| Noise Level | 49 dBA |
| Dimensions (L x W x H) | 16.1 x 7.8 x 16.9 in. (40.8 x 19.4 x 43 cm) |
| Weight | 17.9 lb. (8.1 kg) |
| Rated Mains Voltage Range 1 | 100-115V, 50-60 Hz, 1.9A |
| Rated Mains Voltage 2 | 120V, 60 Hz, 1.4A |
