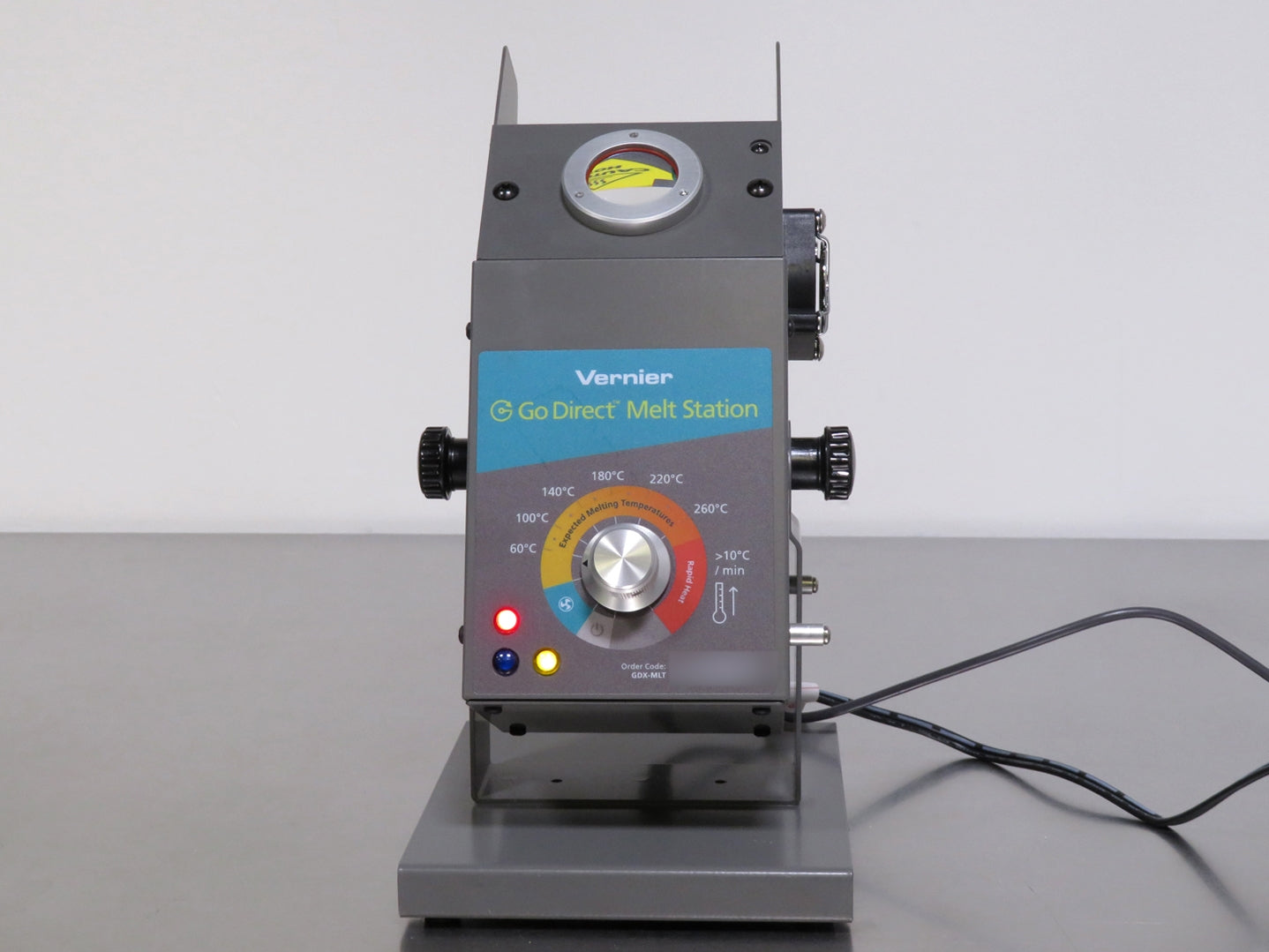

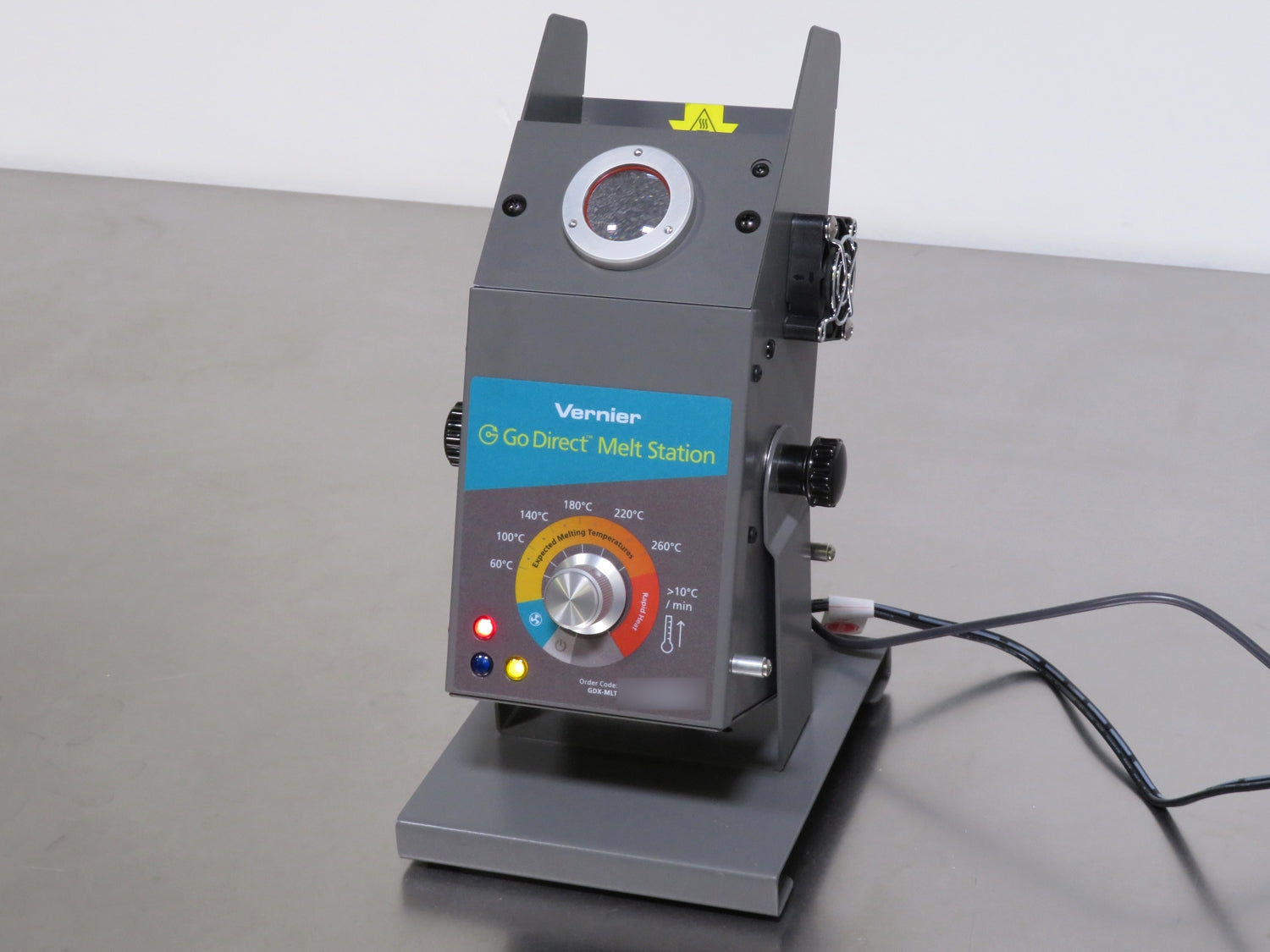

Vernier Go Direct Melt Station
Temperature Range
Ambient to 260°C
Typical Accuracy
± 0.4°C (< 200°C); ± 0.5°C (> 200°C)
Capillary Tube Slots
3
Features
- Wide-angle viewing lens with built-in magnification for clear observation of sample transitions
- Real-time graphing provides visual insight into the melting process

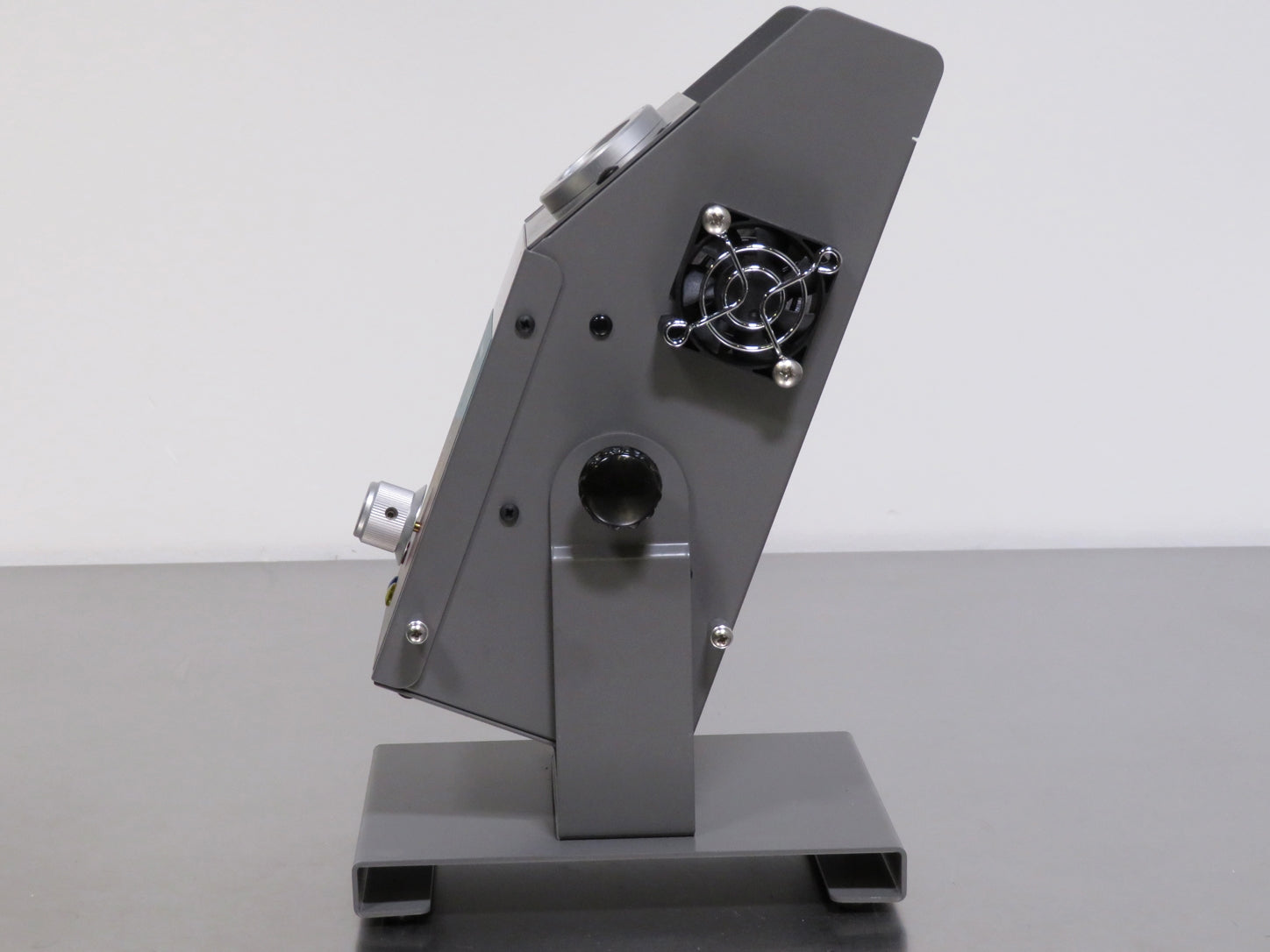

- Internal cooling fan reduces wait times between sample runs
- Safety auto shutoff activates after 60 minutes of inactivity for added protection

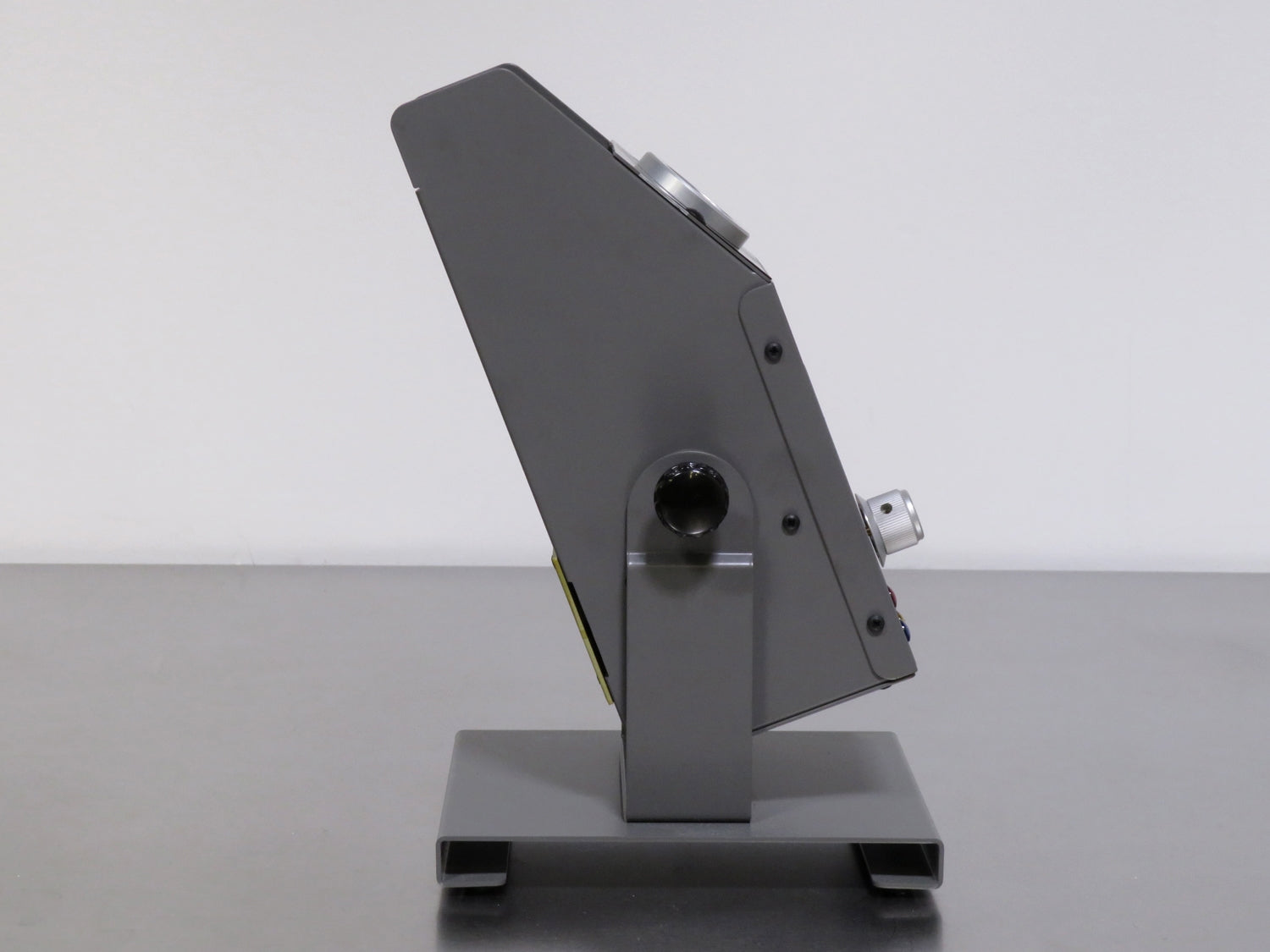

- Adjustable tilt base for ergonomic viewing in classroom and lab environments
- Compatible with Vernier Graphical Analysis® app for streamlined data collection
- Supports both Bluetooth and USB connectivity for flexible operation
- Simple setup and intuitive controls ideal for teaching melting point techniques

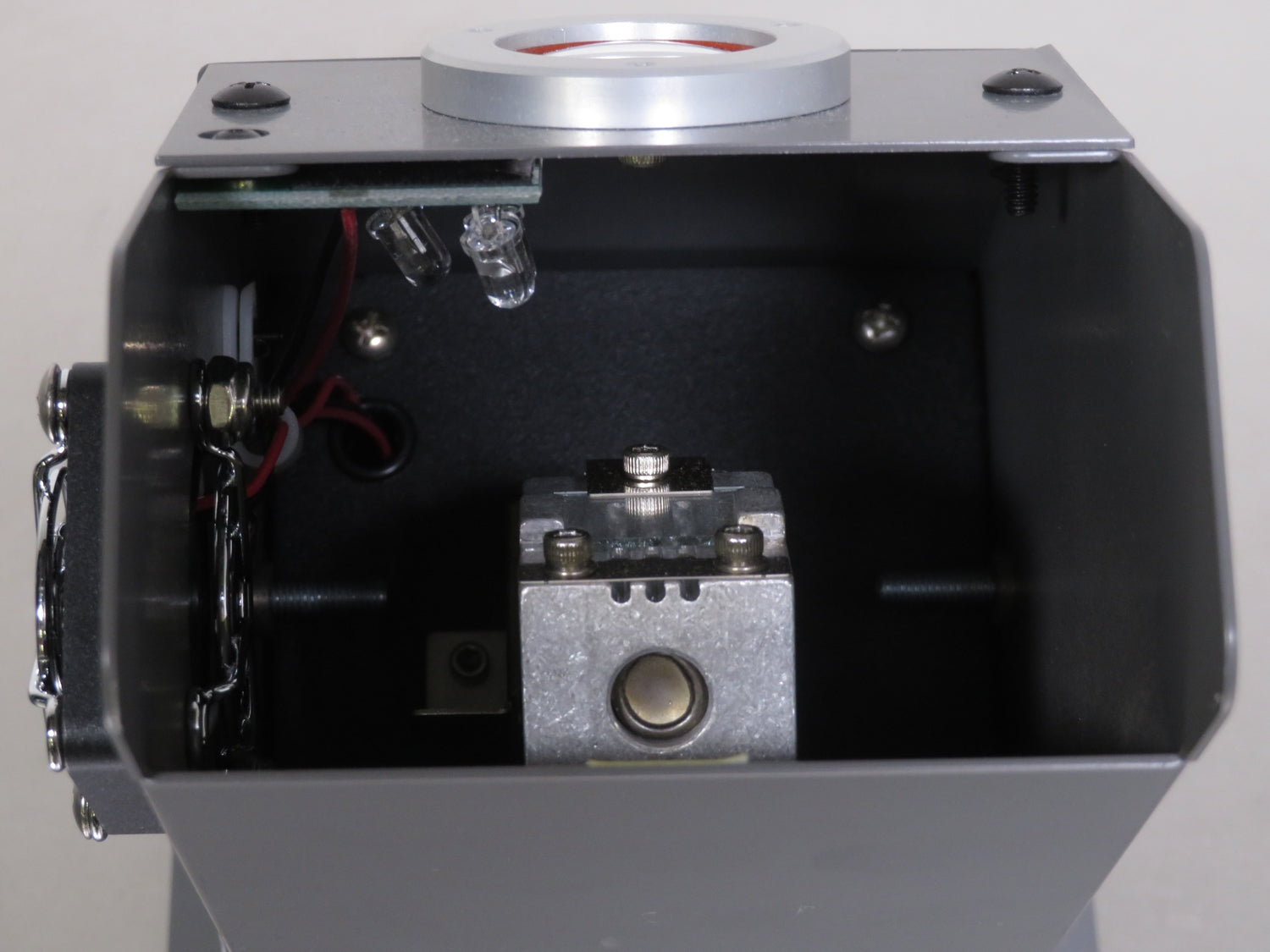

The Vernier Go Direct Melt Station is a compact, intuitive tool for teaching and performing capillary tube-based melting point analysis. Designed for ease of use in both classroom and lab settings, it features an LED-lit heating block, internal cooling fans, and a wide-angle magnification window for clear visual observation of phase changes. Real-time graphing offers added insight into thermal transitions, while a safety shutoff activates after 60 minutes of inactivity. With wireless Bluetooth and USB connectivity, the Go Direct Melt Station integrates easily with Vernier's Graphical Analysis app—supporting flexible data collection and streamlined operation.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Vernier Go Direct Melt Station includes:
The Vernier Go Direct Melt Station includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Vernier Go Direct Melt Station Specifications
| Temperature Range | Ambient to 260°C |
| Resolution | 0.10°C |
| Accuracy | ± 0.31 + 0.0006T, where T is the temperature in Celsius |
| Typical Accuracy | ± 0.4°C (< 200°C); ± 0.5°C (> 200°C) |
| Safety Shut Down | Automatically powers down after 60 minutes of heating |
| Capillary Tube Slots | 3 |
| Capillary Tube Compatibility | 1.4 to 1.8 mm OD, 100 mm length |
| Viewing Lens Diameter |
27 mm (functional) 30 mm (actual) |
| Capilary Slot Lighting | 3 white LEDs |

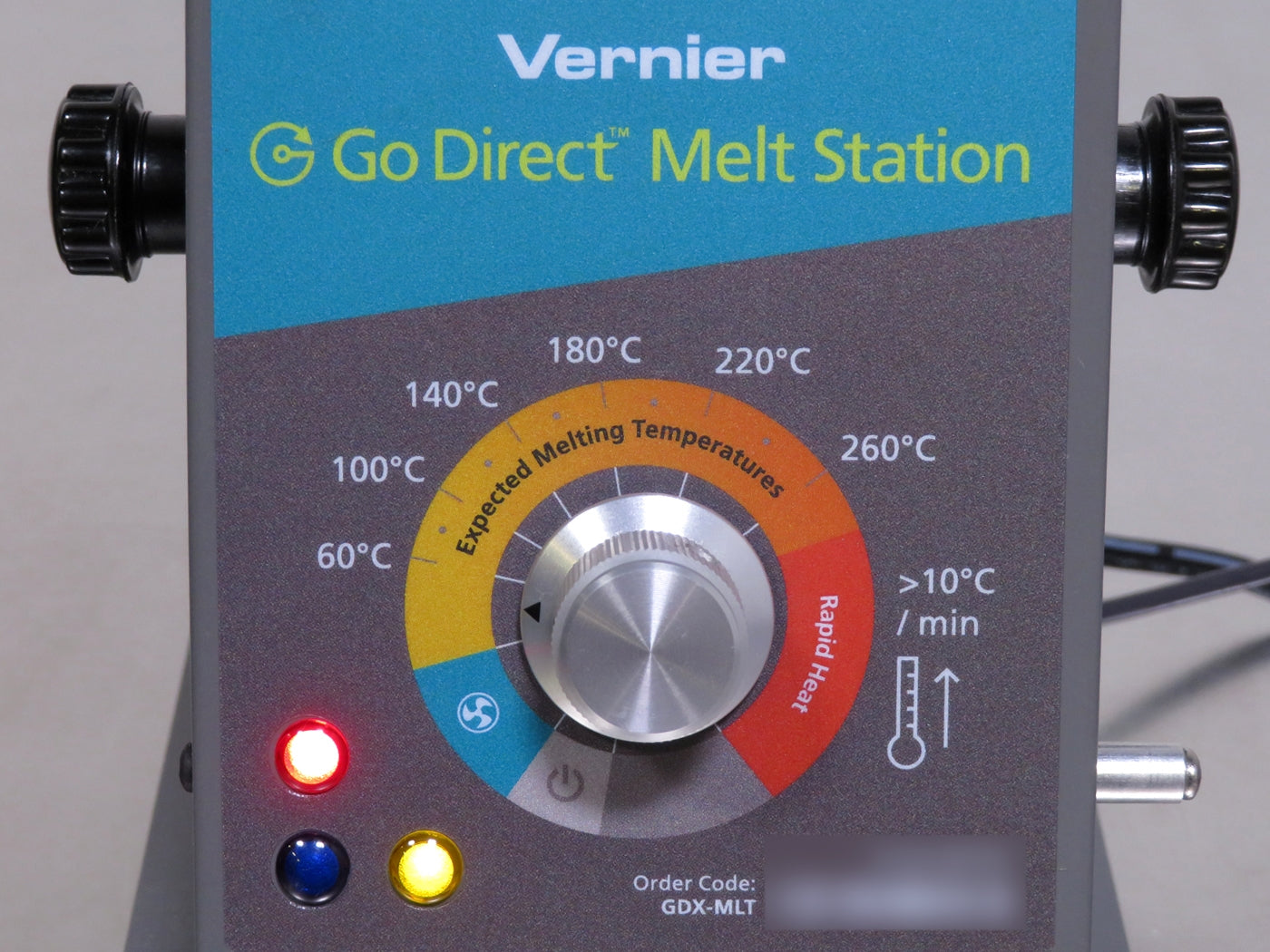

| Lighting of Control Dial | Red (heating), Blue (cooling), Yellow (safety shutoff) |
| Temperature Sensor | Class A Platinum Resistance Temperature Detector |

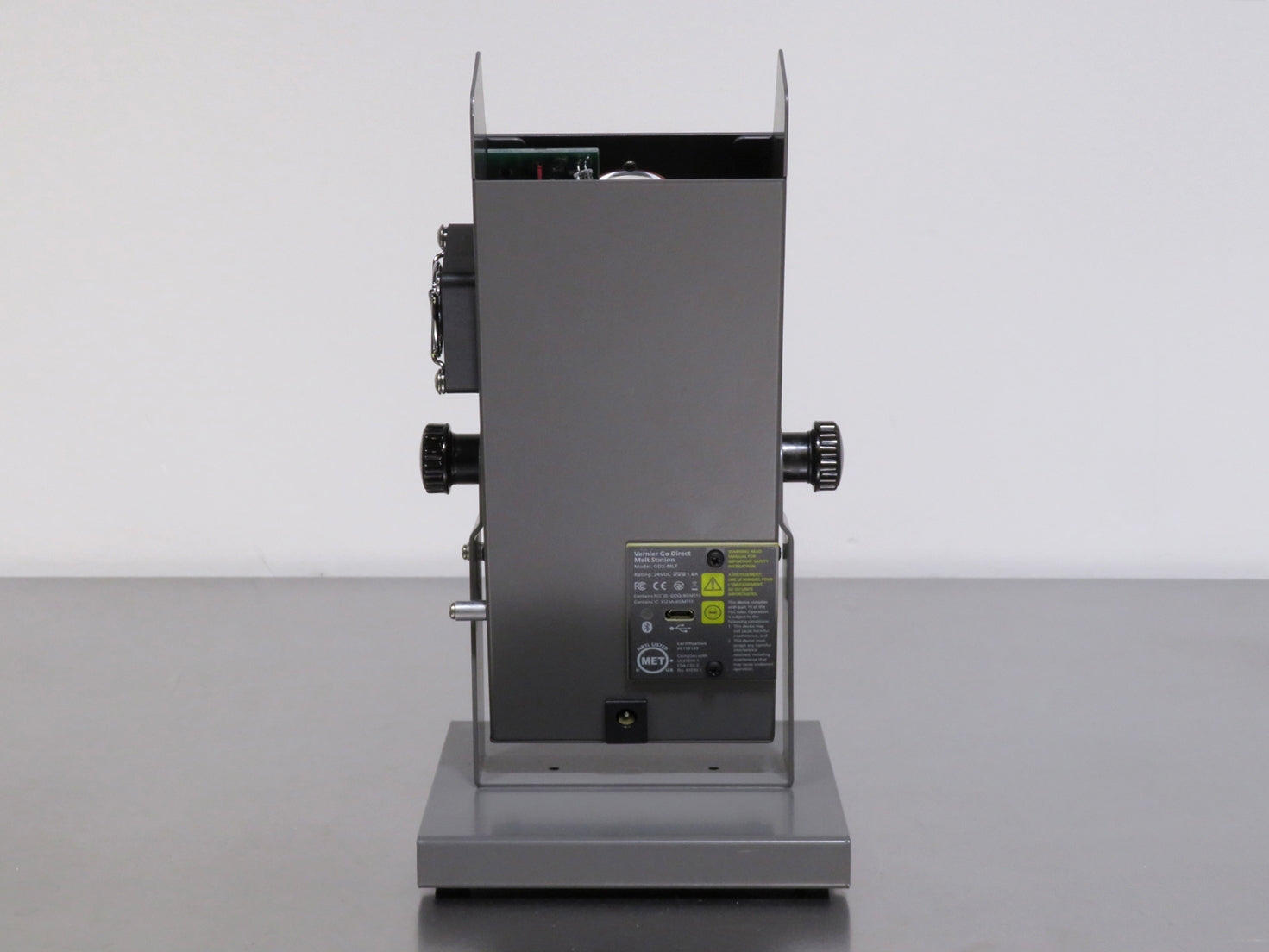

| Connectivity | Bluetooth and USB |
| Dimensions (W x D x H) |
Base: 5.1 x 5.9 x 0.5 in. (13 × 15 × 1.5 cm) Body: 3.6 x 3.6 x 9.5 in. (9 × 9 × 24 cm) |
| Weight | 2.2 lb. (1 kg) |
| Electrical Requirements | 24VDC to unit, AC adapter 100/240V, 50/60Hz input |
