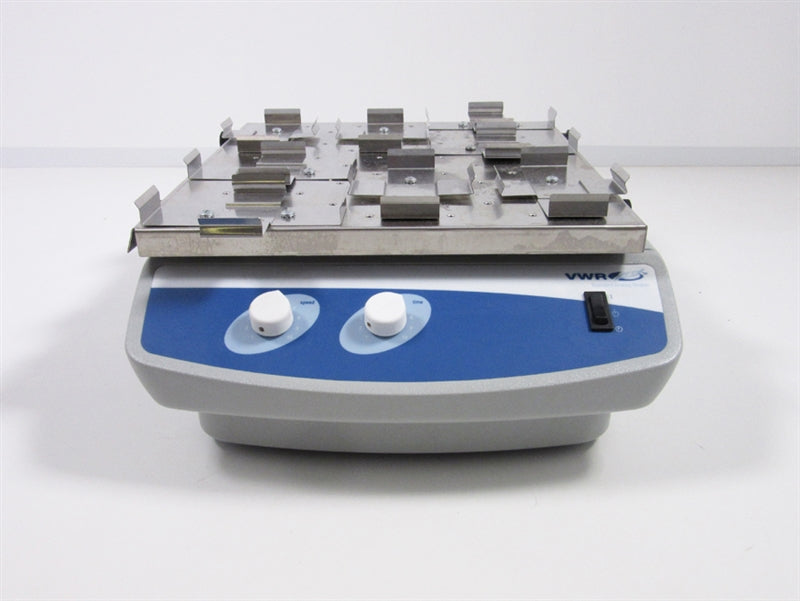

VWR 3500 Orbital Shaker
Speed Range
15 to 500 RPM
Orbit Size
19mm (0.75 in)
Timer
1 sec to 160 hours
- Designed for general laboratory shaking of flasks, dishes, and vials
- Durable construction with stable operation even under full load
- Built-in safety system shuts off power if the tray is obstructed or overloaded
- Automatic restart after power interruptions with memory of last used settings
- Simple analog controls with on/off rocker switch and independent speed and time knobs
- Ideal for use in standard lab environments, incubators, and cold rooms (0 to 40°C)
The VWR 3500 Orbital Shaker is ideal for shaking heavy flasks, vials, beakers, Petri dishes, and other sample containers. Variable speed ranges from 15 to 500 RPM on a 19mm orbit with timer up to 160 hours.
All of our equipment will be fully tested to perform at factory specifications before being shipped.
The VWR 3500 Orbital Shaker includes:
- > NIST Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
VWR 3500 Orbital Shaker Specifications
|
Speed Range |
15 to 500 RPM |
|
Timer |
1 sec to 160 hours |
|
Orbit Size |
19mm (0.75 in) |
|
Maximum Load |
15.9 kg (35 lbs) |
|
Tray Dimensions |
33 x 28 cm (13 x 11 in) |
|
Overall Dimensions (L x W x H) |
41.3 x 35.6 x 14.6 cm (16.25 x 14 x 5.75 in) |
- Validate that the power supply and PCB deliver stable, correct voltage outputs across all necessary connections, ensuring reliable operation
- Thoroughly inspect the display for any dim, flickering, or dead pixels; replace affected elements to maintain full readability and operational clarity
- Test the full range of button functionality, confirming responsive, accurate input recognition across all settings
- Conduct a detailed inspection of bearings and bearing housing, identifying any worn or damaged bearings, and replace as needed to prevent operational disruption
- Examine the drive belt for signs of cracking, fraying, or material breakdown; replace as required to ensure sustained performance
- Measure and adjust motor drive belt tension to optimal specifications, securing reliable and efficient power transmission
- Verify accuracy of the onboard timer, confirming proper functionality and replacing if it deviates from expected performance
- Calibrate shaker rotation speed with a NIST-traceable tachometer, validating precision within specified operational limits
- Run the shaker continuously for an 8-12 hour testing period, closely observing the shaking platform for smooth, consistent motion, while monitoring for any error indicators such as knocking, skipping, or unusual vibrations
- Perform a comprehensive cosmetic inspection to confirm the device’s exterior meets aesthetic and quality standards, free from visible damage or wear
Technician Inspection and Recertification Checklist: Shakers
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Validate stable, correct voltage outputs from power supply and PCB | Completed | |
| Inspect display for dim, flickering, or dead pixels; replace as needed | Completed | |
| Test button functionality for responsiveness and accuracy across all settings | Completed | |
| Inspect bearings and housing for wear; replace as needed to prevent disruption | Completed | |
| Examine drive belt for cracking, fraying, or material breakdown; replace as required | Completed | |
| Measure and adjust motor drive belt tension to optimal specifications | Completed | |
| Verify onboard timer accuracy; replace if it deviates from expected performance | Completed | |
| Calibrate shaker rotation speed using a NIST-traceable tachometer | Completed | |
| Run 8-12 hour continuous test; observe platform for smooth, consistent motion | Completed | |
| Perform comprehensive cosmetic inspection for quality standards compliance | Completed |
