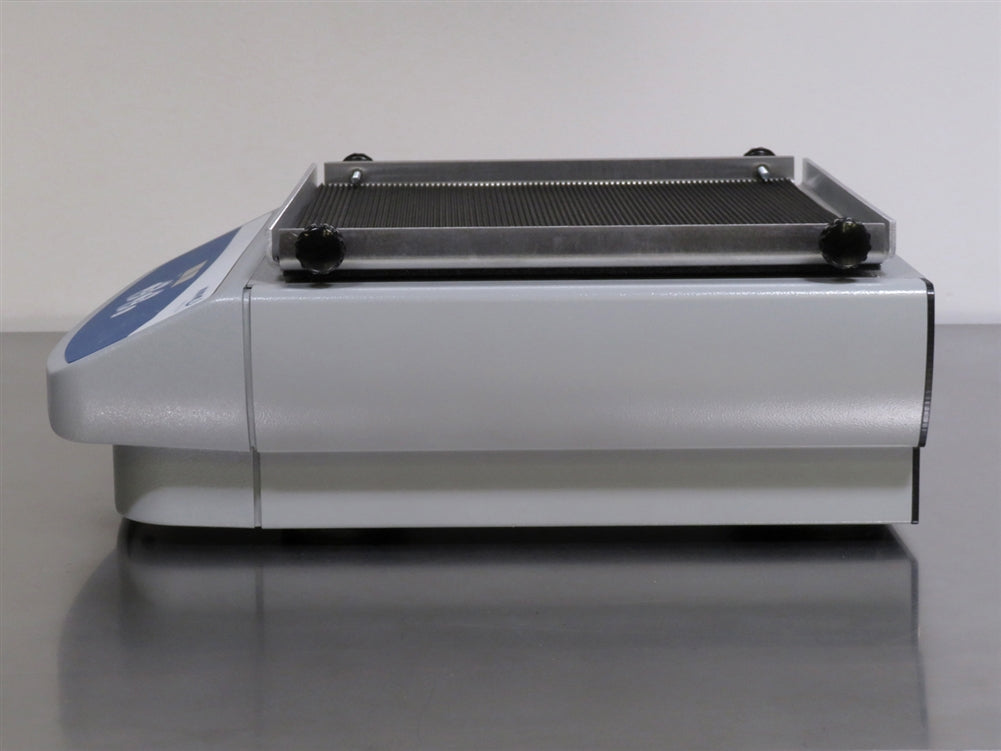

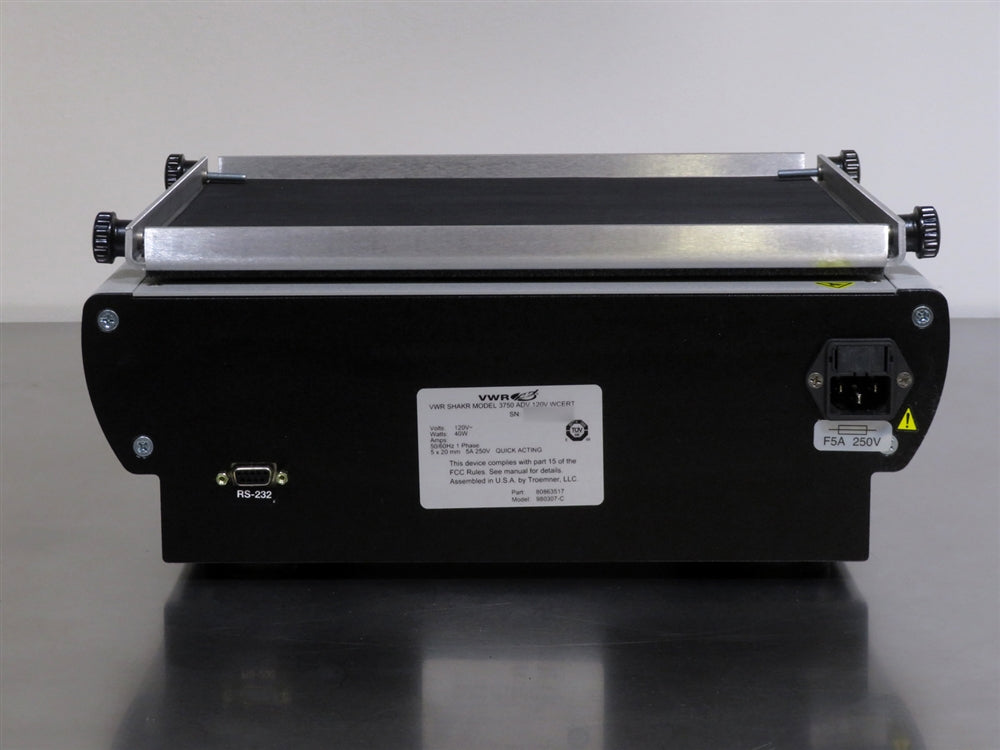

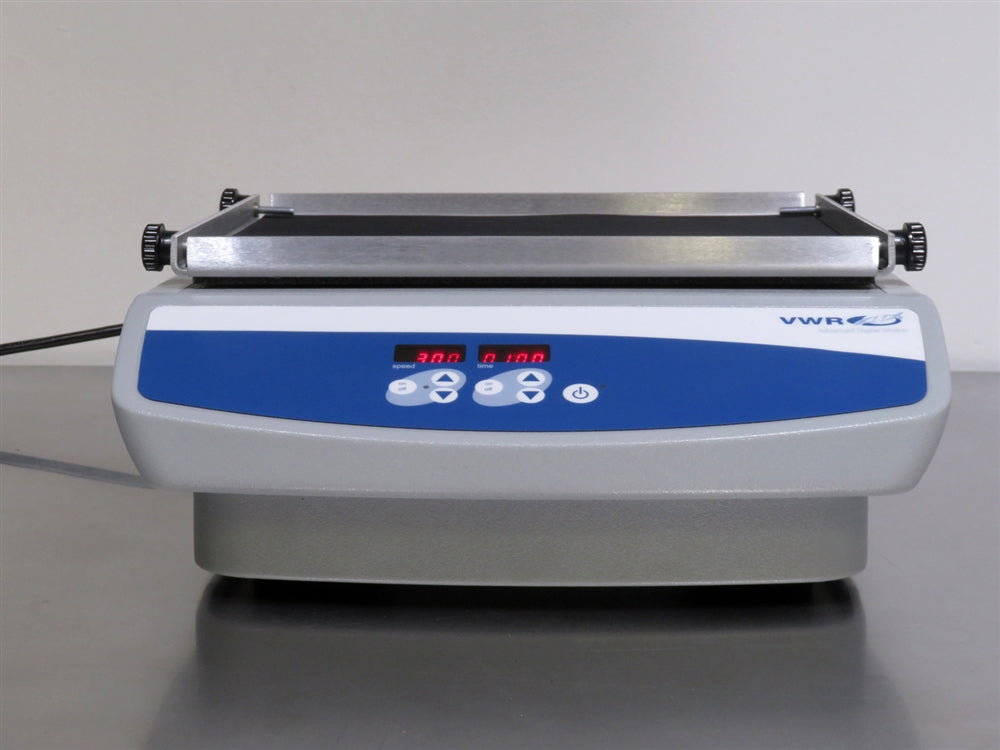

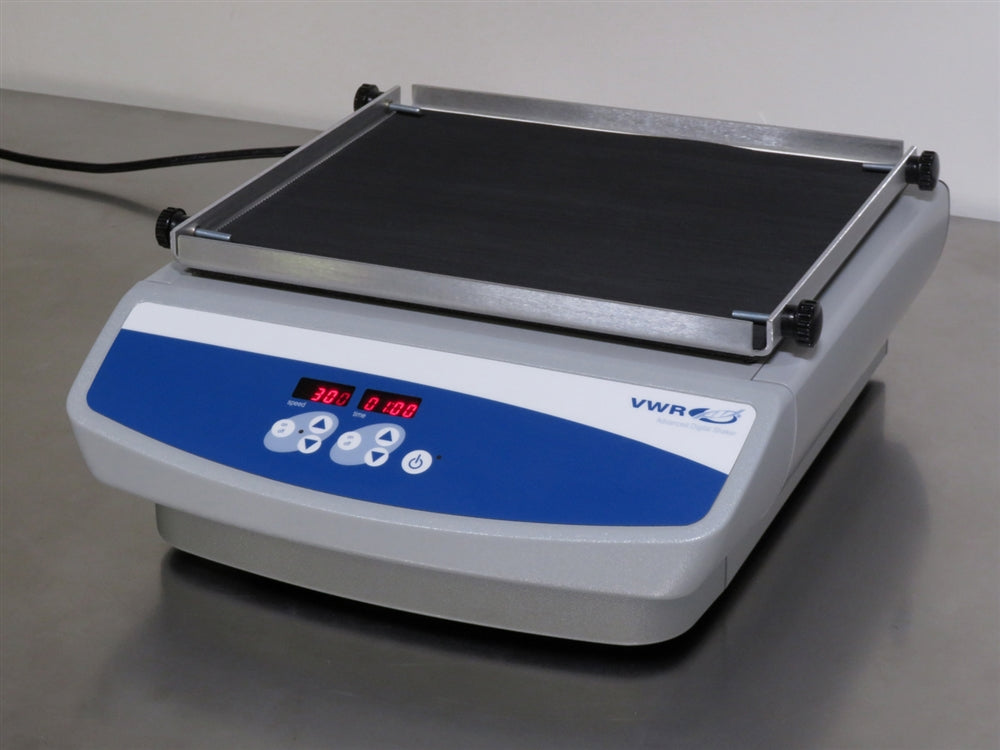

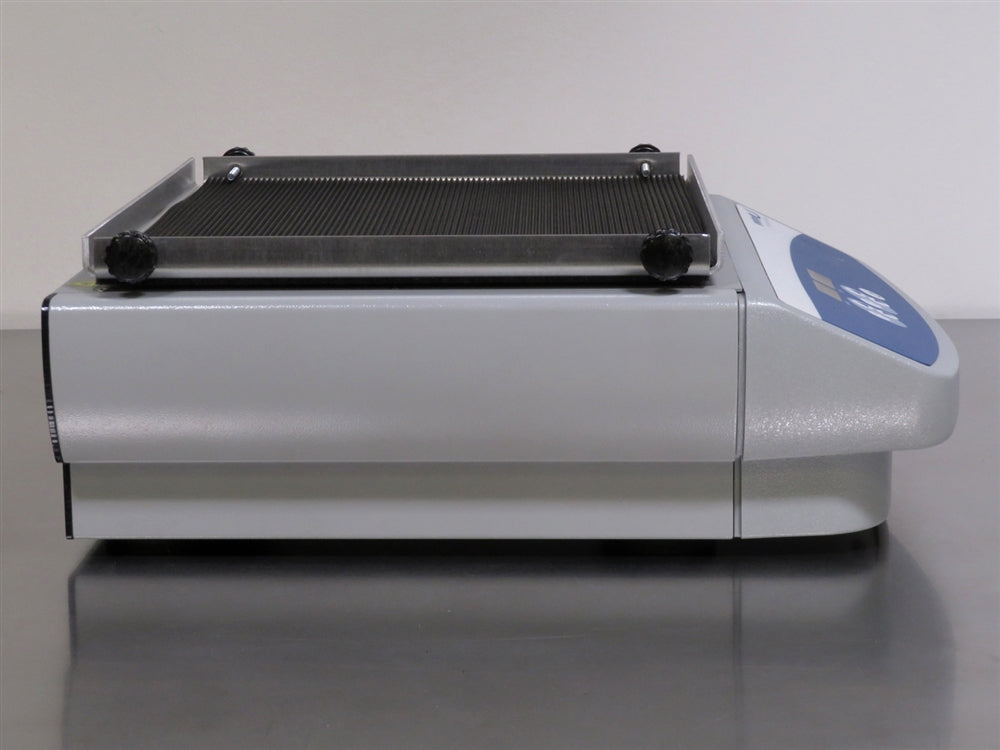

VWR Advanced 3750 Reciprocating Shaker
Speed Range
20 to 300 RPM
Platform Size
13 x 11 in. (33 x 22.2 cm)
Orbit
0.75 in. (19 mm)
Features
- Microprocessor-controlled system ensures precise and reproducible mixing performance

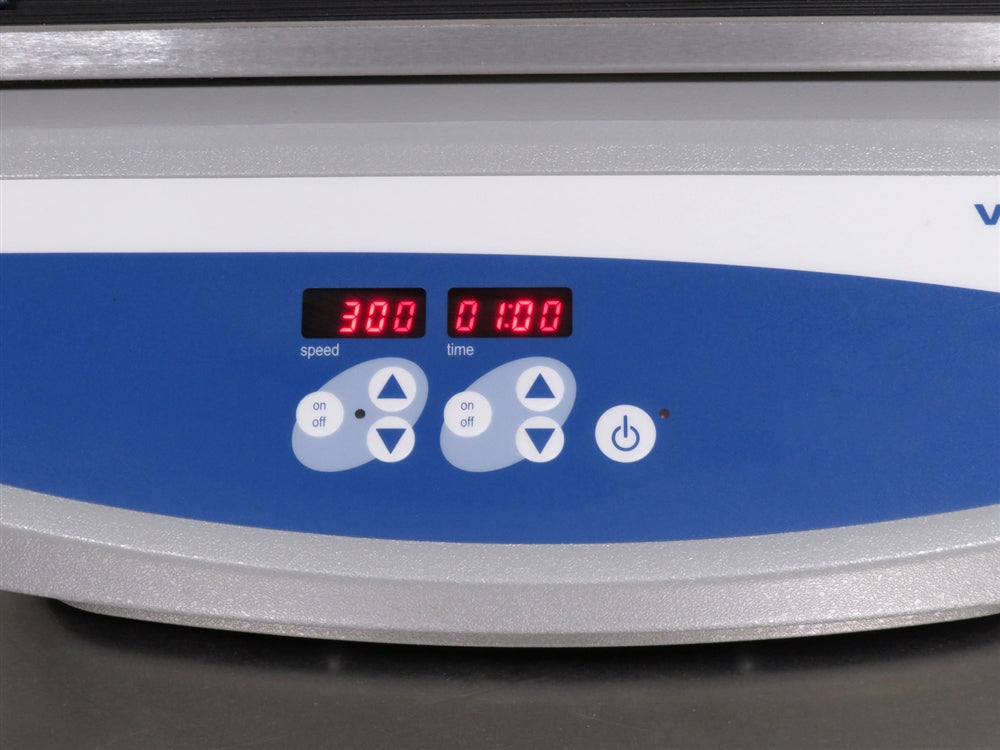

- Independent digital displays for speed and time provide clear, real-time monitoring
- Load sensor detects unbalanced conditions and automatically adjusts or halts operation for safety
- Audible alarm signals when timed operation reaches completion
- Maintenance-free brushless DC motor and permanently lubricated bearings for long-term reliability
- Operates safely in cold rooms, incubators, and CO₂ environments for flexible use
- Compact footprint suitable for limited bench space
This shaker will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The VWR Advanced 3750 Reciprocating Shaker includes:
The VWR Advanced 3750 Reciprocating Shaker includes:
- > 13 x 11 in. (33 x 22.2 cm) Platform
- > NIST Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
VWR Advanced 3750 Reciprocating Shaker Specifications
| Speed Range | 20 to 300 RPM |
| Speed Accuracy |
± 1% of set speed (Above 100 RPM)
± 1 RPM (Below 100 RPM) |
| Platform Size | 13 x 11 in. (33 x 22.2 cm) |
| Timer | 1 to 160 hours |
| Control | Digital |
| Orbit | 0.75 in. (19 mm) |
| Overall Dimensions (L x W x H) | 16.3 x 14 x 5.75 in. (41.3 x 35.6 x 14.6 cm) |
| Electrical Requirements | 120V, 50/60Hz, 5A, 40W |
Shaker Inspection and Recertification Checklist
- Validate that the power supply and PCB deliver stable, correct voltage outputs across all necessary connections, ensuring reliable operation
- Thoroughly inspect the display for any dim, flickering, or dead pixels; replace affected elements to maintain full readability and operational clarity
- Test the full range of button functionality, confirming responsive, accurate input recognition across all settings
- Conduct a detailed inspection of bearings and bearing housing, identifying any worn or damaged bearings, and replace as needed to prevent operational disruption
- Examine the drive belt for signs of cracking, fraying, or material breakdown; replace as required to ensure sustained performance
- Measure and adjust motor drive belt tension to optimal specifications, securing reliable and efficient power transmission
- Verify accuracy of the onboard timer, confirming proper functionality and replacing if it deviates from expected performance
- Calibrate shaker rotation speed with a NIST-traceable tachometer, validating precision within specified operational limits
- Run the shaker continuously for an 8-12 hour testing period, closely observing the shaking platform for smooth, consistent motion, while monitoring for any error indicators such as knocking, skipping, or unusual vibrations
- Perform a comprehensive cosmetic inspection to confirm the device’s exterior meets aesthetic and quality standards, free from visible damage or wear
Technician Inspection and Recertification Checklist: Shakers
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Validate stable, correct voltage outputs from power supply and PCB | Completed | |
| Inspect display for dim, flickering, or dead pixels; replace as needed | Completed | |
| Test button functionality for responsiveness and accuracy across all settings | Completed | |
| Inspect bearings and housing for wear; replace as needed to prevent disruption | Completed | |
| Examine drive belt for cracking, fraying, or material breakdown; replace as required | Completed | |
| Measure and adjust motor drive belt tension to optimal specifications | Completed | |
| Verify onboard timer accuracy; replace if it deviates from expected performance | Completed | |
| Calibrate shaker rotation speed using a NIST-traceable tachometer | Completed | |
| Run 8-12 hour continuous test; observe platform for smooth, consistent motion | Completed | |
| Perform comprehensive cosmetic inspection for quality standards compliance | Completed |
