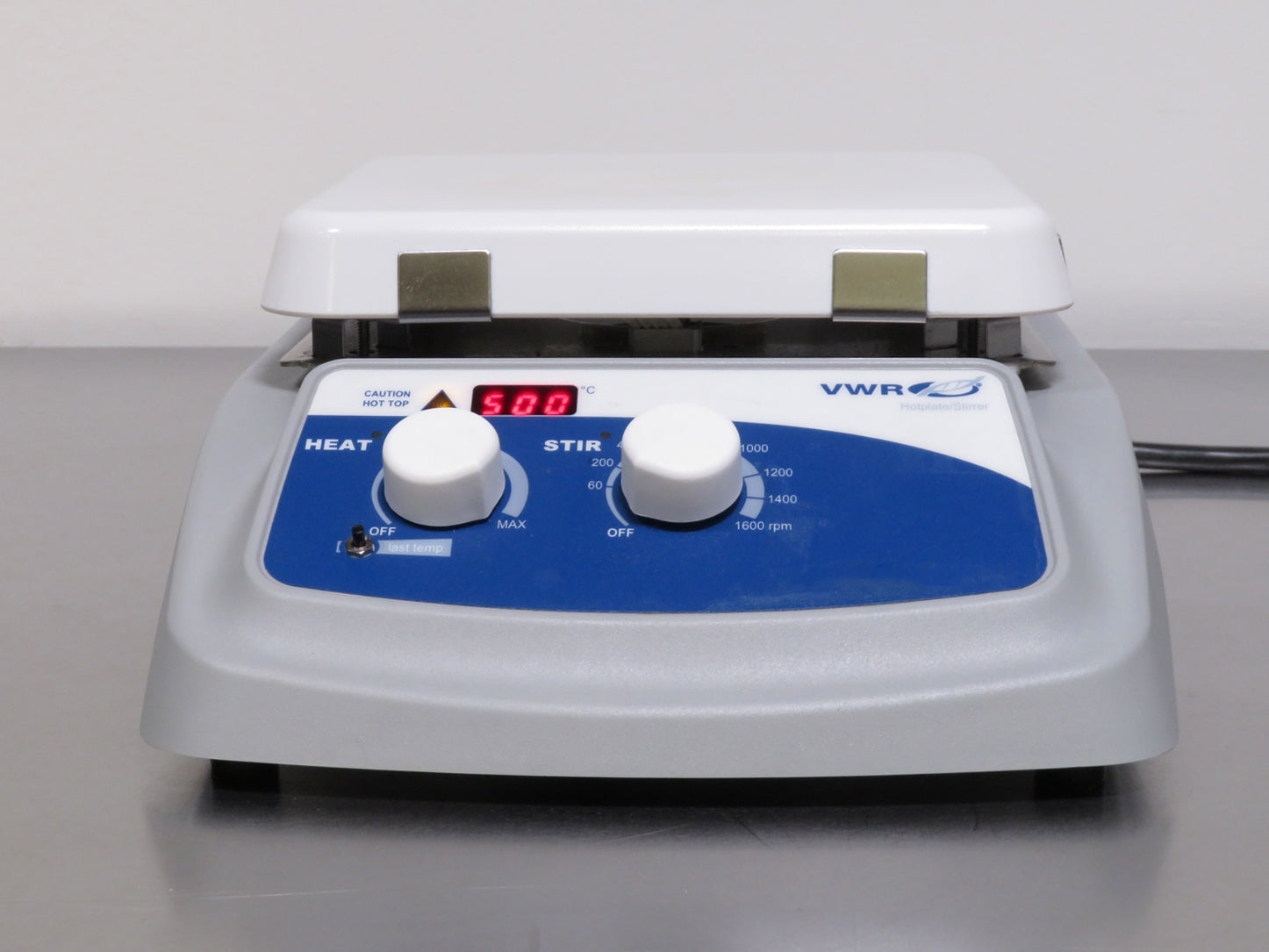

VWR Advanced Hotplate Stirrer, Cat. #: 97042-642
Temperature Range
Ambient +5°C to 500°C
Stirrer Speed
60 to 1,600 RPM
Platform Size
7 x 7 in (17.8 x 17.8 cm)
Features
- White ceramic 7 x 7 in. top plate is chemical-resistant and easy to clean
- Microprocessor control ensures accurate, repeatable results

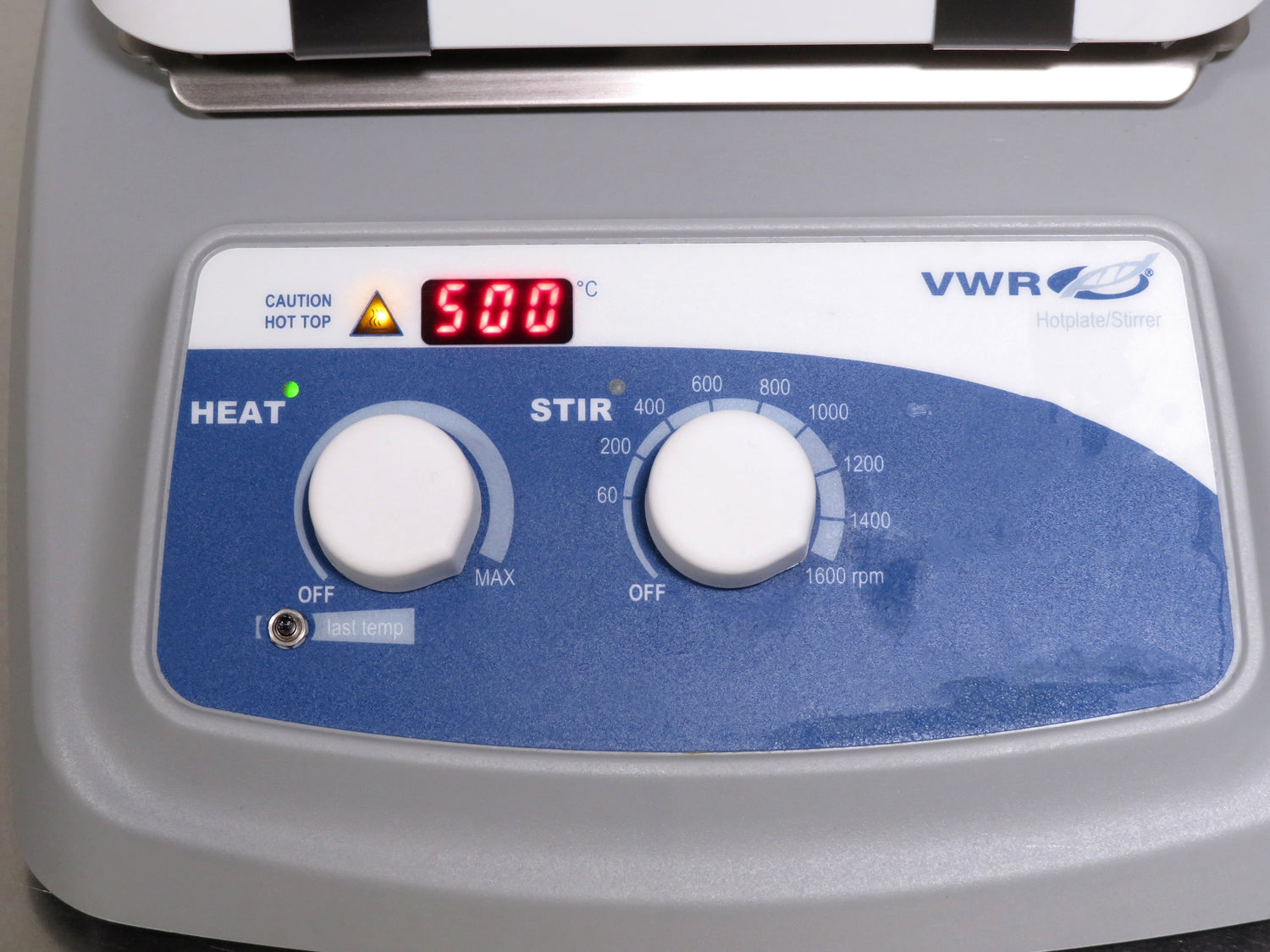

- LED display provides clear temperature readouts
- Gradual ramping feature improves safety and magnetic coupling
- Cool-touch, low-profile housing is safe for fume hood use
- Spill-resistant design channels fluids away from internal components
- Hot surface warning light stays lit until plate cools
- Built-in memory recall stores last temperature setting even when powered off
All of our equipment will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The VWR Advanced Hotplate Stirrer, Cat. #: 97042-642 includes:
The VWR Advanced Hotplate Stirrer, Cat. #: 97042-642 includes:
- > Operator's Manual
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
VWR Advanced Hotplate Stirrer, Cat. #: 97042-642 Specifications
| Temperature Range | Ambient +5°C to 500°C |
| Temperature Stability | ± 2% |
| Stirrer Speed | 60 to 1,600 RPM |
| Stirrer Speed Stability | ± 2% |
| Maximum Stirring Volume | 2.5L |
| Platform Size | 7 x 7 in. (17.8 x 17.8 cm) |
| Plate Material | Ceramic |
| Control | Analog |
| Weight | 10.5 lb. (4.8 kg) |
| Dimensions (L x W x H) | 14.77 x 9.85 x 4.27 in. (37.5 x 25 x 10.8 cm) |
| Electrical Requirements | 120V, 50/60Hz, 10A |
Hot Plate Stirrers Inspection and Recertification Checklist
- Inspect Display and Replace Any Dim/Dead Pixels (If Applicable).
- Inspect Ceramic Top for Any Cracks and Replace If Necessary.
- Inspect Functionality of All Buttons/Knobs.
- Use Magnetic Stir Bar Alongside NIST Tachometer to Confirm RPM of Internal Motor (If Applicable).
- Inspect Internal Wiring Inside Case.
- Clean Internal Parts and Vent Any Internal Debris.
- Check Feet to Confirm Plate Sits Properly Balanced.
- Replace All Parts That Were Removed on Internal Inspections.
- Confirm Temperature with NIST Traceable Temperature Probe (If Applicable).
- Ensure Cosmetics Are Acceptable.
Technician Inspection and Recertification Checklist: Hot Plate Stirrers
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect Display and Replace Any Dim/Dead Pixels (If Applicable) | Completed | |
| Inspect Ceramic Top for Any Cracks and Replace If Necessary | Completed | |
| Use Magnetic Stir Bar Alongside NIST Tachometer to Confirm RPM of Internal Motor (If Applicable) | Completed | |
| Inspect Internal Wiring Inside Case | Completed | |
| Clean Internal Parts and Vent Any Internal Debris | Completed | |
| Check Feet to Confirm Plate Sits Properly Balanced | Completed | |
| Replace All Parts That Were Removed on Internal Inspections | Completed | |
| Confirm Temperature with NIST Traceable Temperature Probe (If Applicable) | Completed |
