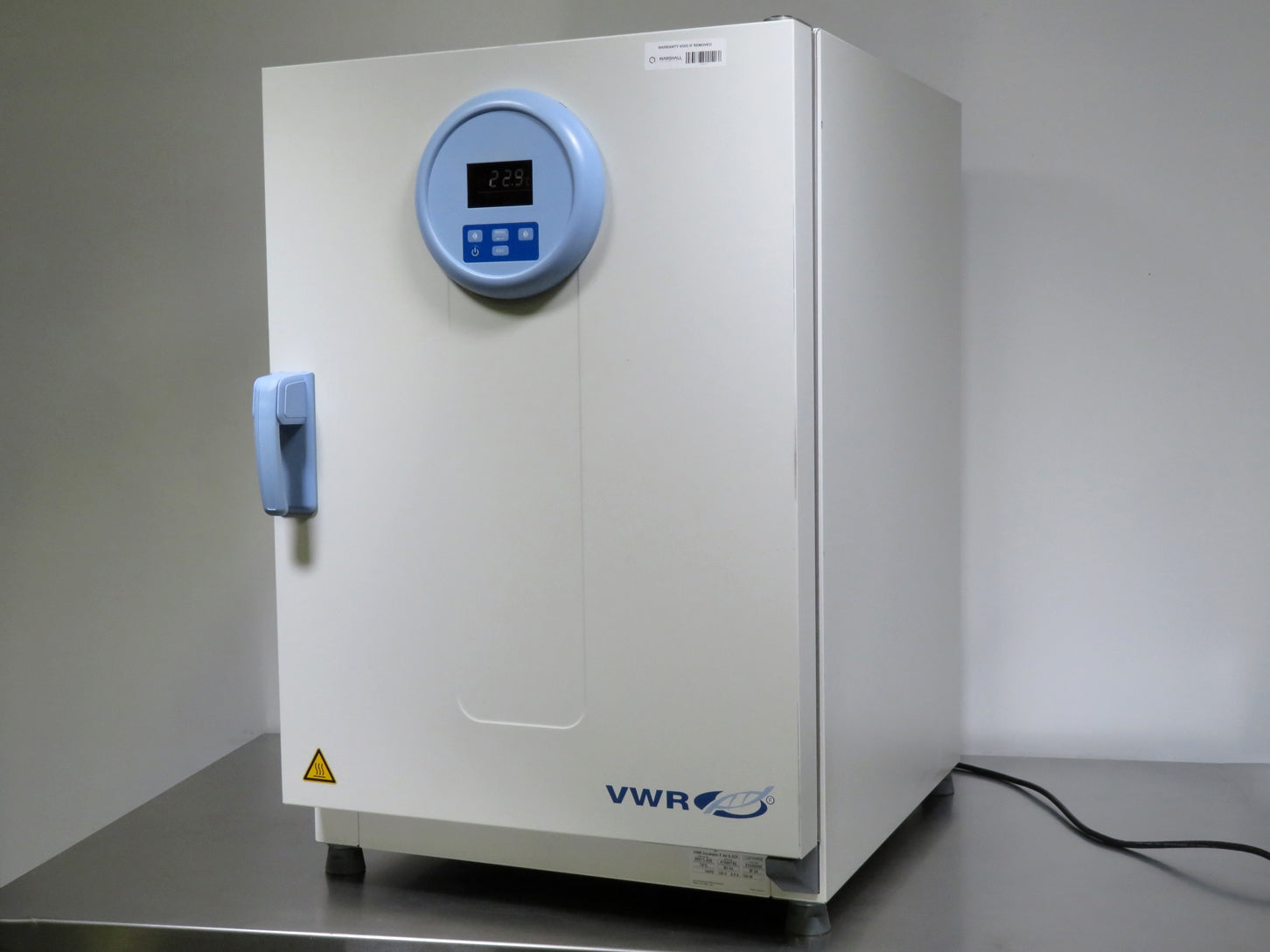

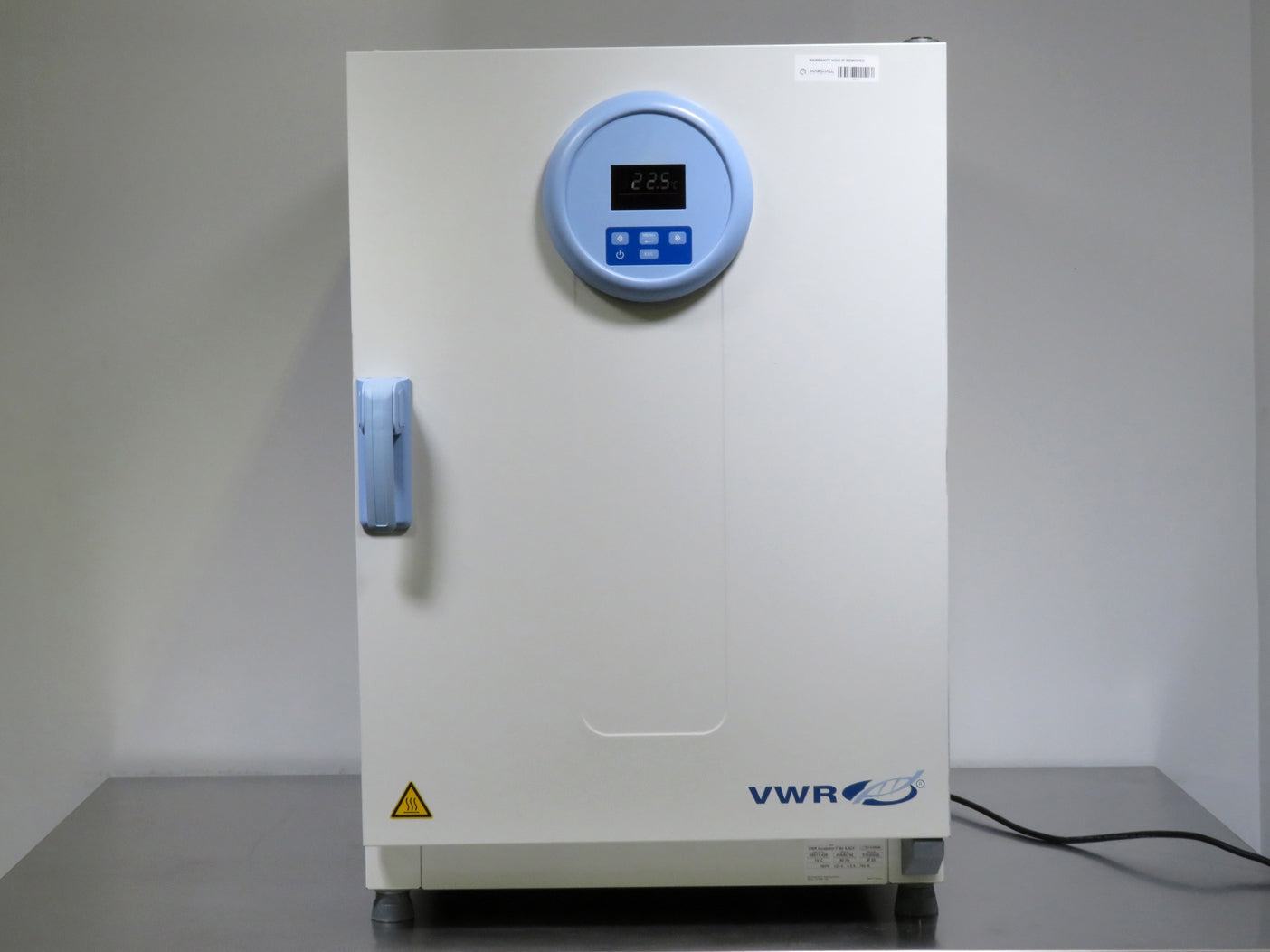

VWR Forced Air Incubator, Cat. #: 89511-428
Temperature Range
Temperature Range
Temperature Uniformity
± 0.4C at 37C
Volume
6.3 cu. ft. (178.4L)
Features
- Ensures outstanding stability and uniform conditions for sample preservation

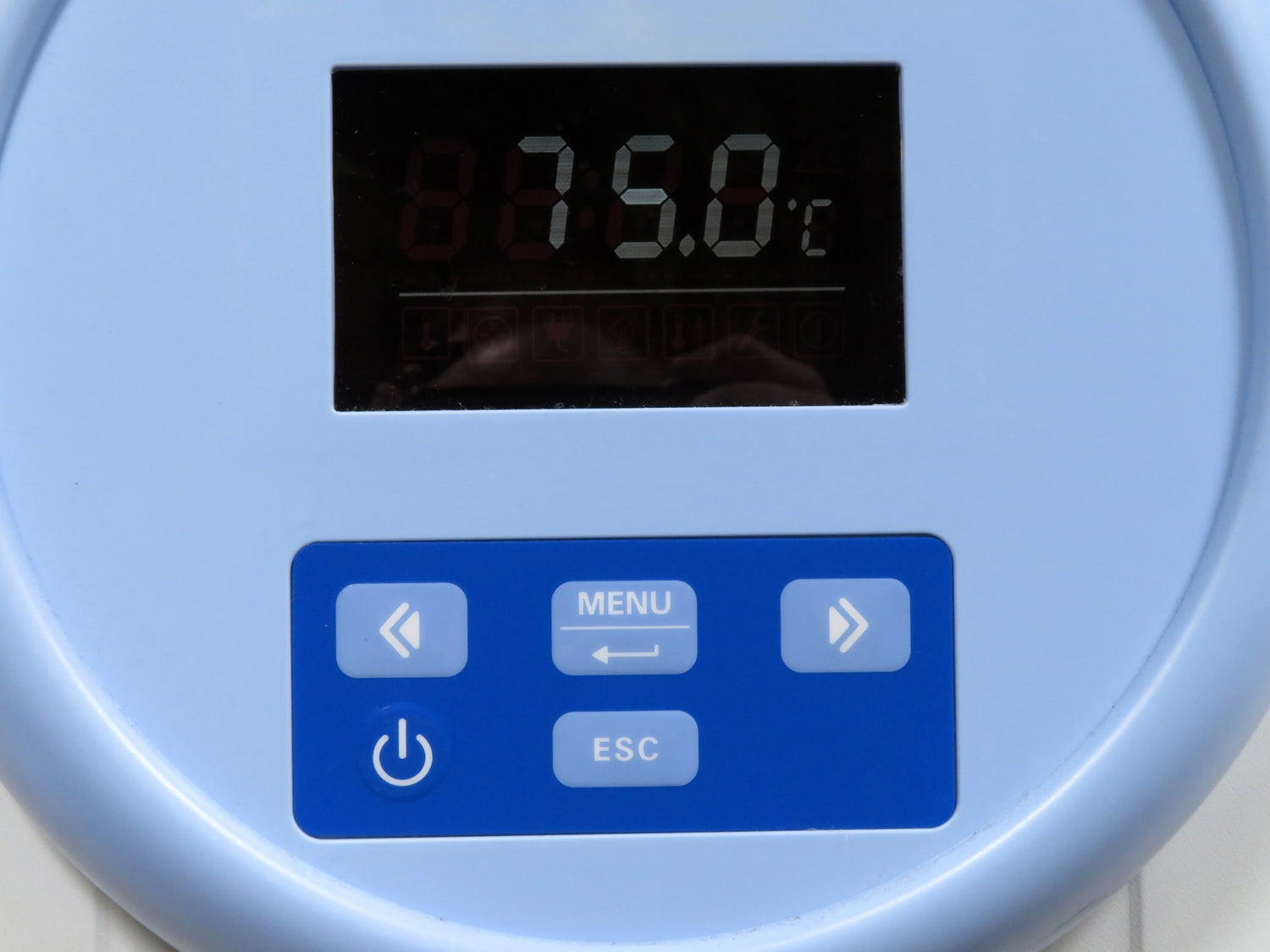

- User-friendly control panel allows for intuitive operation and adjustments
- Overtemperature alarm provides peace of mind with built-in safety monitoring
- Durable stainless steel interior with smooth, rounded corners simplifies cleaning
- Standard access port enables independent data logging and use of electrical equipment inside
- Integrated timer function allows scheduled on/off operation for added efficiency

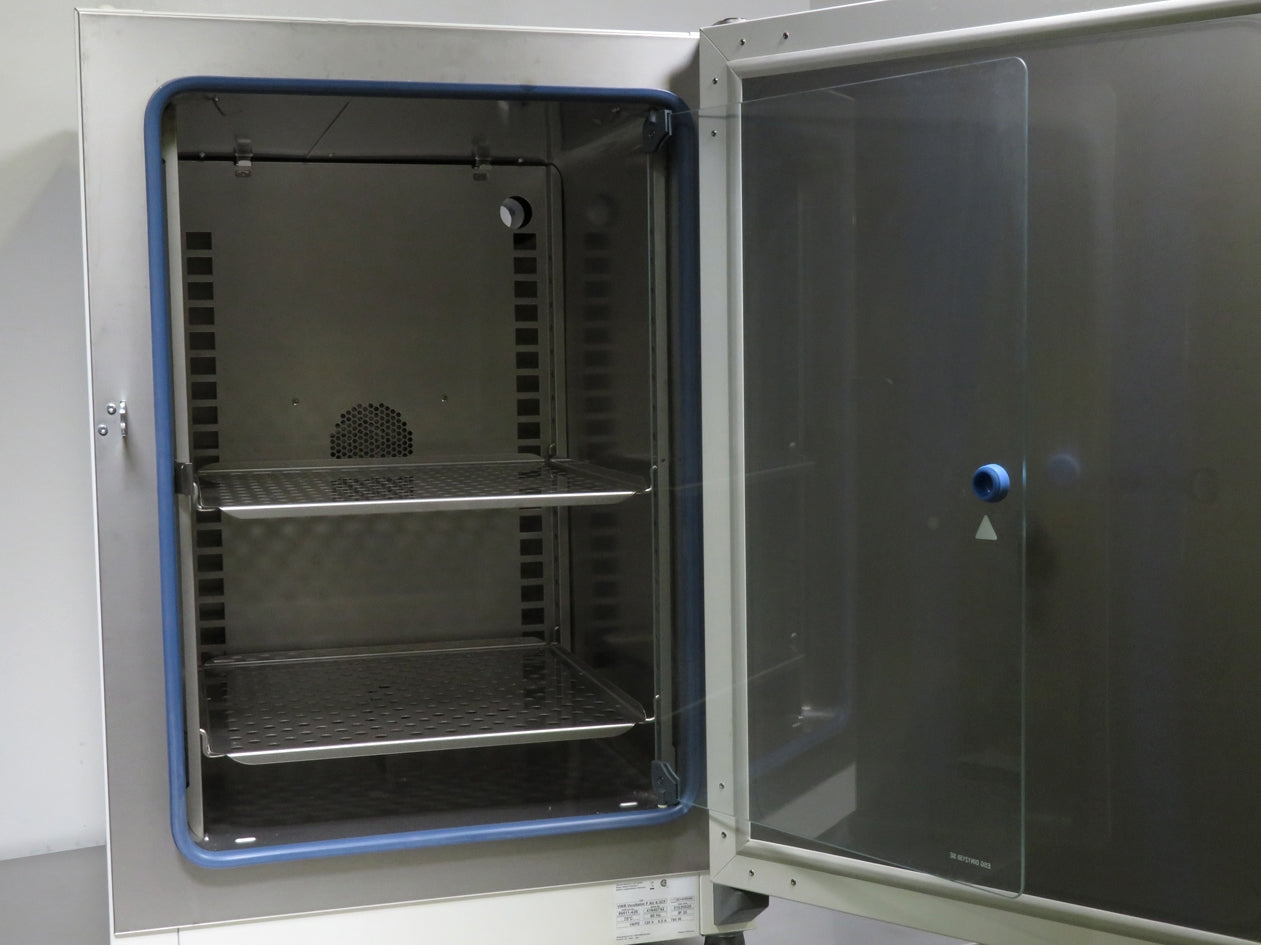

- Internal glass door enables sample observation without disrupting incubation conditions
- Forced air mechanical convection design ensures even airflow for consistent performance
- RS-232 interface provides seamless connectivity for data monitoring and control
This forced air incubator features PID control that is easy to use, and has a large display for optimal feedback to the operator. The integrated timer function allows users to turn the incubator on and off at a desired time. An overtemperature alarm and a dual sensor safety concept are also integrated to provide peace of mind. For data monitoring, the unit can be connected via a standard RS-232 interface to a computer. Cleaning is also simple due to the stainless steel interior with smooth, rounded corners.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The VWR Forced Air Incubator, Cat. #: 89511-428 includes:
The VWR Forced Air Incubator, Cat. #: 89511-428 includes:
- > 2 Shelves
- > Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
VWR Forced Air Incubator, Cat. #: 89511-428 Specifications
| Temperature Range | Ambient +10C to 75C |
| Temperature Uniformity | ± 0.4C at 37C |
| Temperature Stability | ± 0.1C at 37C |
| Volume | 6.3 cu. ft. (178.4L) |
| Maximum Weight Per Shelf | 55 lb. (24.9 kg) |
| Internal Dimensions (W x H x D) | 18.3 x 27.9 x 21.4 in. (46.4 x 70.8 x 54.3 cm) |
| External Dimensions (W x H x D) | 25.2 x 36.2 x 29.1 in. (64 x 92 x 73.8 cm) |
| Weight | 154 lb. (69.9 kg) |
| Electrical Requirements | 120V, 60Hz, 6.5A, 780W |
Incubator Inspection and Recertification Checklist
- Inspect the display for any dim, flickering, or dead pixels, replacing any affected areas to maintain full readability and operational clarity
- Thoroughly examine external regulators for any signs of damage, wear, or malfunction (if applicable), replacing any compromised parts
- Inspect temperature, COâ‚‚, and Hâ‚‚O sensors (if applicable), ensuring each sensor is functioning correctly and accurately reporting conditions
- Conduct a detailed inspection of all internal wiring for frays, tears, or breakages; replace any compromised wires to ensure safe and reliable connections
- Verify that software settings align with the internal components and calibration specifications, adjusting configurations as needed for accurate operation
- Inspect and clean the fan, ensuring it is free from dust or obstructions; replace if performance is below required standards
- Examine wheels and leveling mounts for structural integrity, ensuring proper balance and stability for safe operation
- Inspect door gaskets and latches for any signs of wear or damage, replacing if necessary to maintain a secure seal and optimal environmental control
- Calibrate temperature accuracy at 37°C using a NIST-traceable probe, confirming it meets required tolerances
- Calibrate COâ‚‚ level to 5% using a Fyrite combustion test kit (if applicable), ensuring precise atmospheric conditions
- Monitor temperature and COâ‚‚ stability over a 24-hour period, verifying consistent operation within specified ranges
- Conduct a thorough cosmetic inspection to confirm all external surfaces and components meet quality standards, free from visible damage or wear
Technician Inspection and Recertification Checklist: Incubator
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Inspect display for dim, flickering, or dead pixels; replace for readability | Completed | |
| Examine external regulators for damage or malfunction; replace compromised parts | Completed | |
| Inspect temperature, COâ‚‚, and Hâ‚‚O sensors for correct function and accuracy | Completed | |
| Inspect internal wiring for frays, tears, or breakages; replace compromised wires | Completed | |
| Verify software settings align with components and calibration specs; adjust if needed | Completed | |
| Clean fan and remove dust/obstructions; replace if performance is substandard | Completed | |
| Examine wheels and leveling mounts for structural integrity and balance | Completed | |
| Inspect door gaskets and latches for wear or damage; replace to maintain seal | Completed | |
| Calibrate temperature at 37°C with NIST-traceable probe to confirm accuracy | Completed | |
| Calibrate COâ‚‚ level to 5% with Fyrite test kit for atmospheric precision | Completed | |
| Monitor temperature and COâ‚‚ stability over 24-hour period to verify consistency | Completed | |
| Conduct cosmetic inspection to confirm quality of external surfaces and components | Completed |
